MODENGY 1025
200 G
600 G
4,5 KG
Anti-friction solid-film coating based on molybdenum disulfide and polytetrafluorethylene
It is used in the standard slide friction units including bearings, guideways, lead screws, spline joints, gearwheels

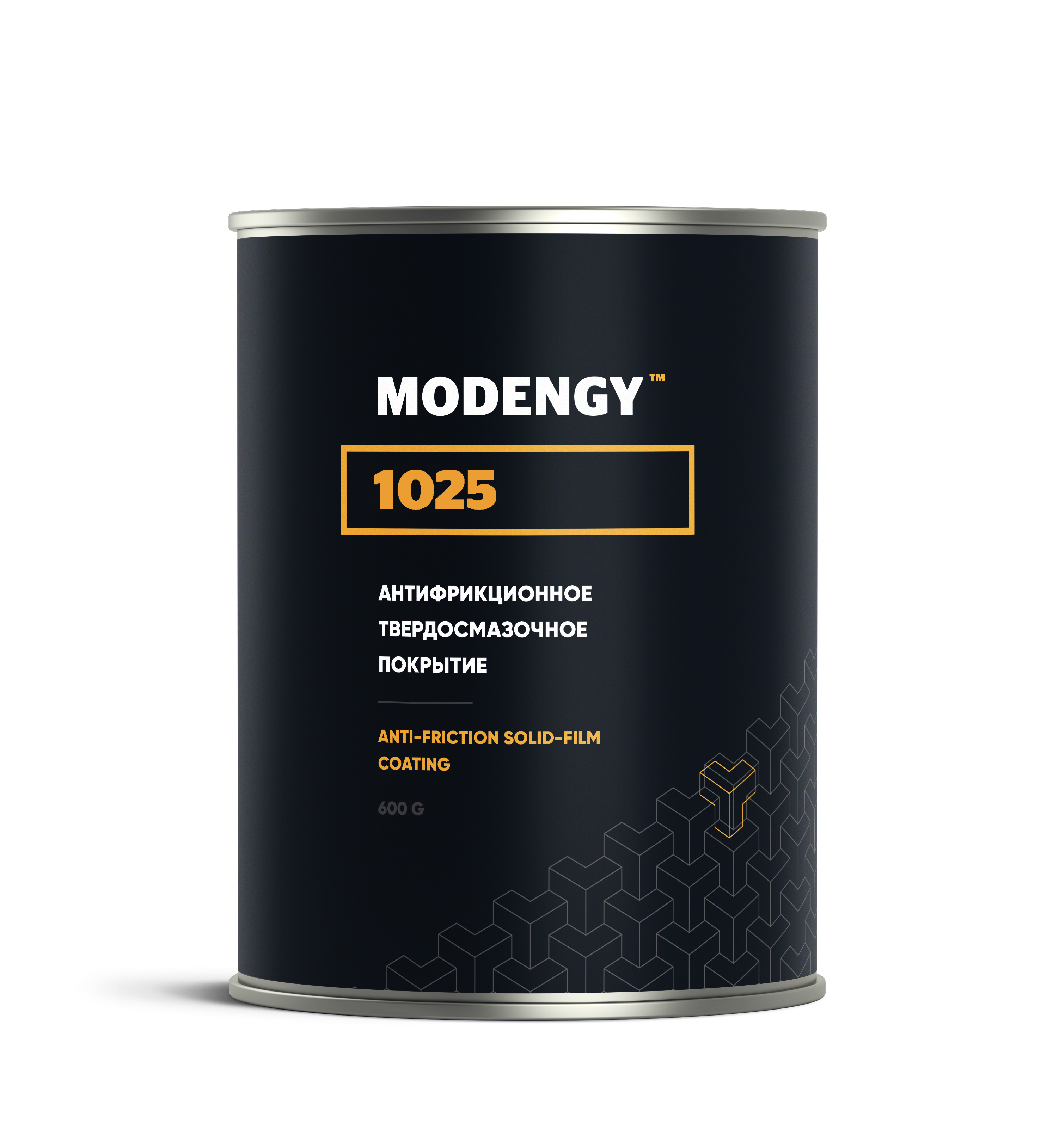

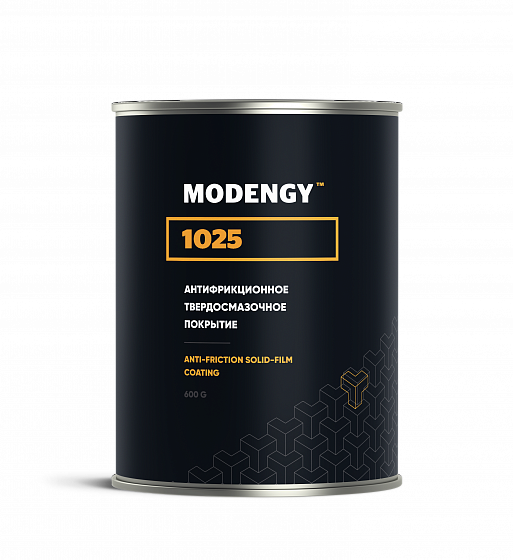

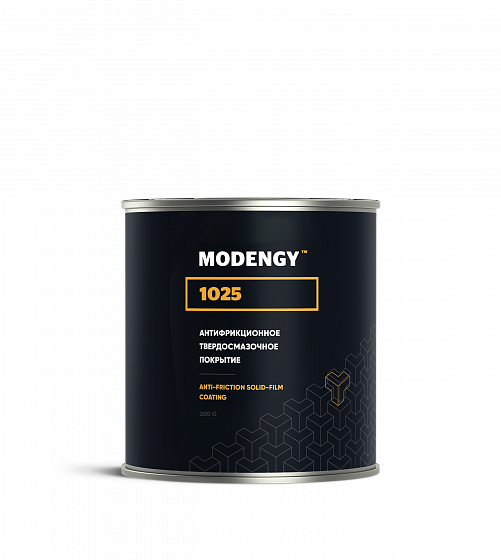

Package sizes:
MODENGY 1025 in action

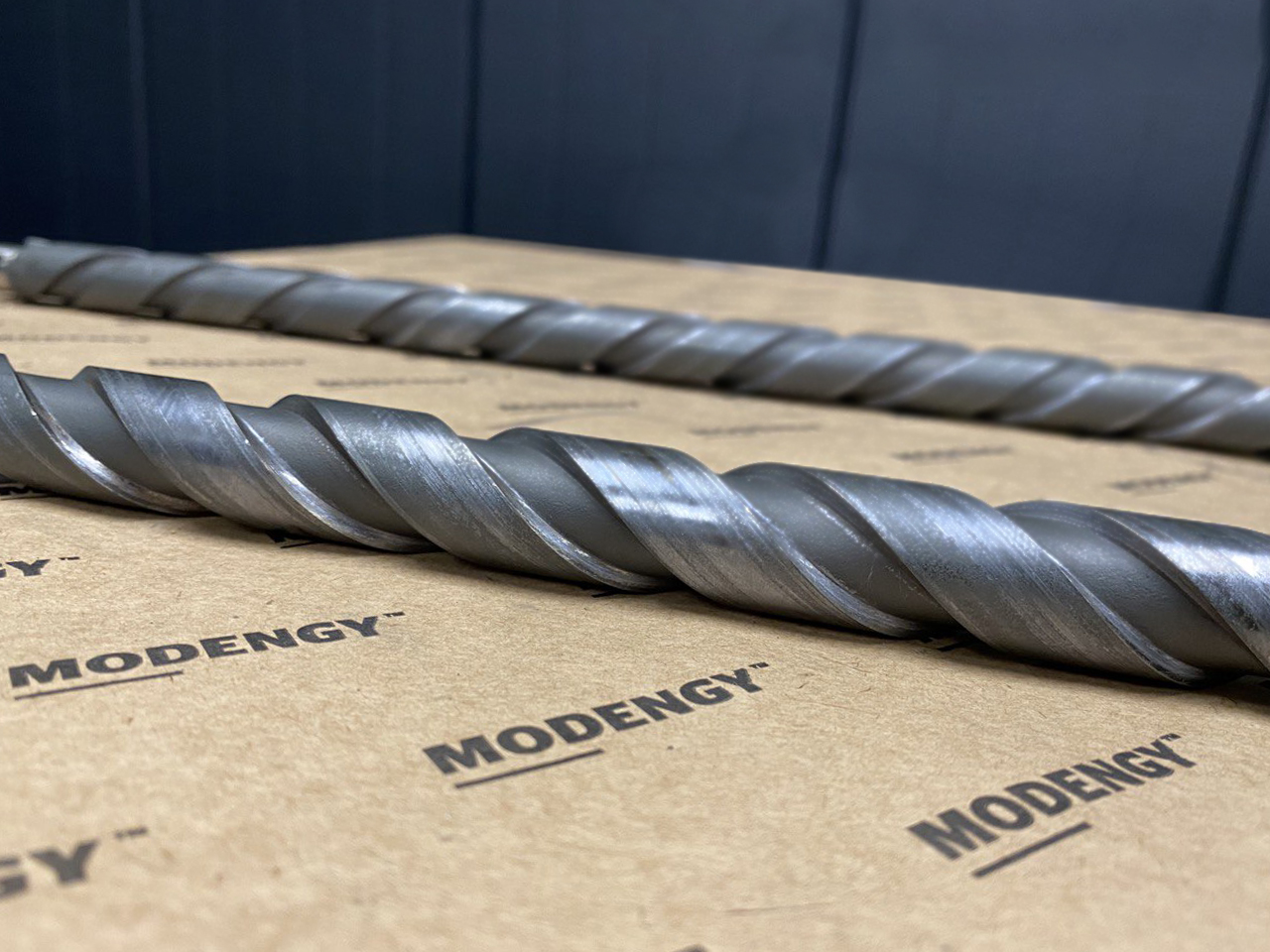

Before

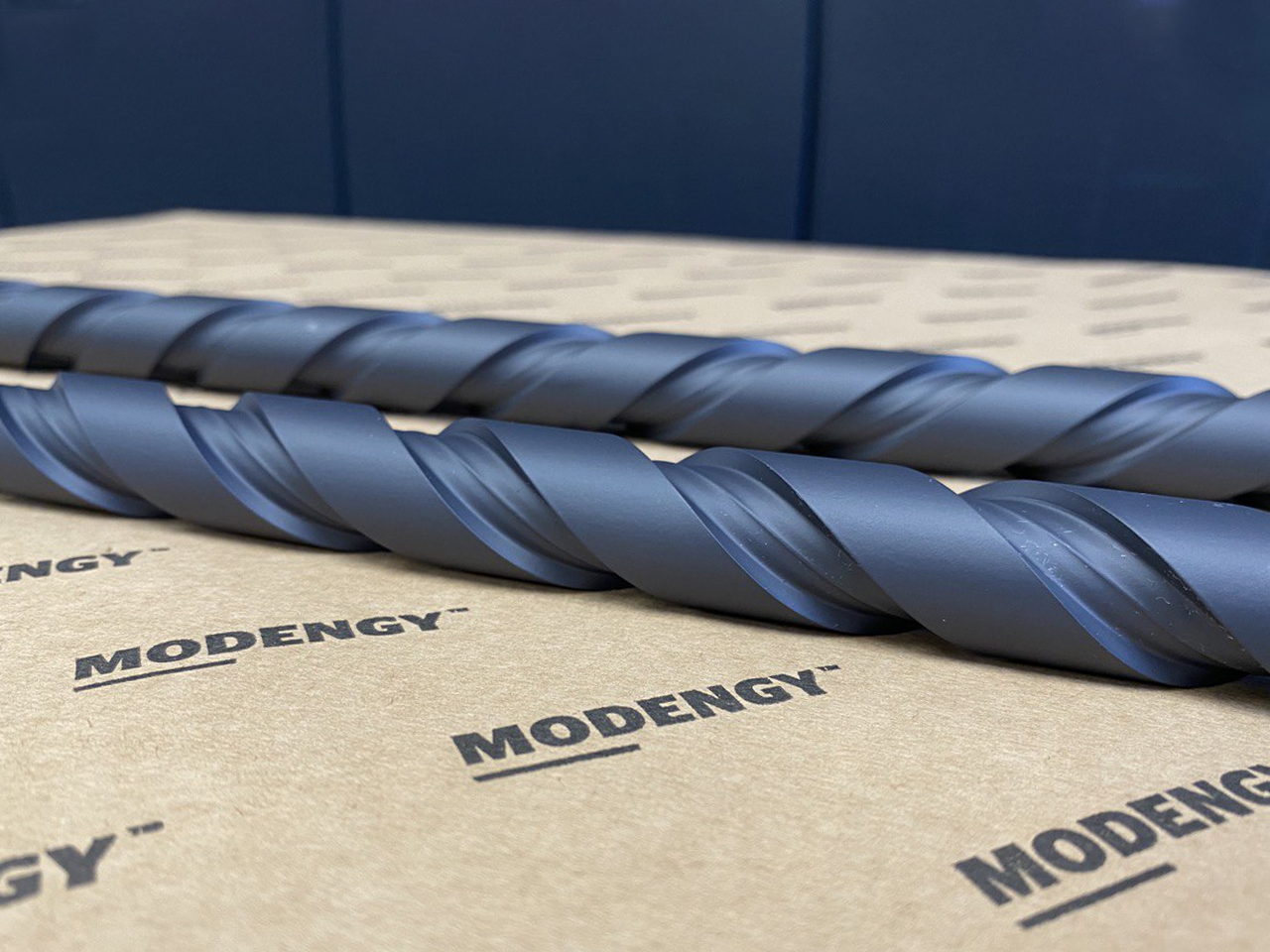

After
MODENGY 1025 significantly reduces friction coefficient, improves smoothness of transmission going, accumulates no dust and dirt from environment on the part’s surface.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1013 Special Solvent to rinse the equipment after the coating is applied, to remove uncured coating, to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low friction coefficient within wide contact pressures range, due to optimally selected combination of solid lubricating materials
- Wide service temperature range
- Effective protection against fretting corrosion
- High load-carrying capacity (2,500 MPa)
- It prevents stick-slip motion
- Long service lifetime (depending on the unit structure – lifetime lubrication)
- High anticorrosive properties (> 477 hours based on accelerated salt spray testing)
Specifications
- Colour: grey
- Standard expense allowance of the coating at 100% transfer, and film thickness of 20 µm: 126 g/m²
- Service temperature range: -100...+200 °С
- Curing temperature / time: +150 °С / 40 min
- Corrosion protection: > 477 hours (ISO 9227)
It is used in the following typical units
Bearings, guideways, lead screws, spline joints, gearwheels
