MODENGY 1044

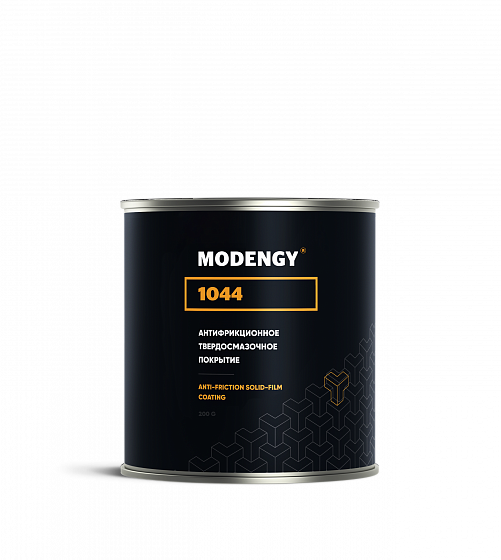

200 G

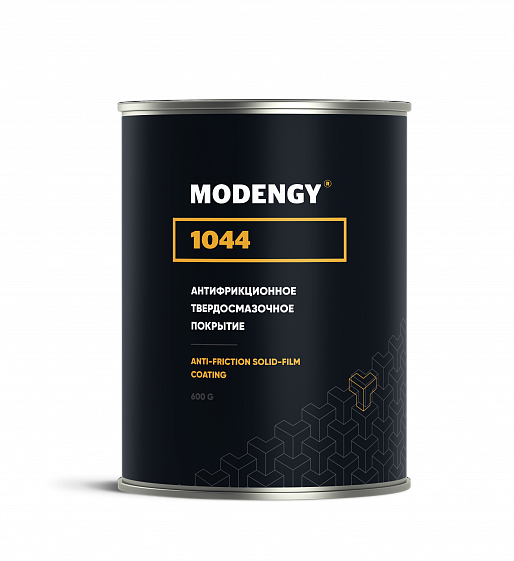

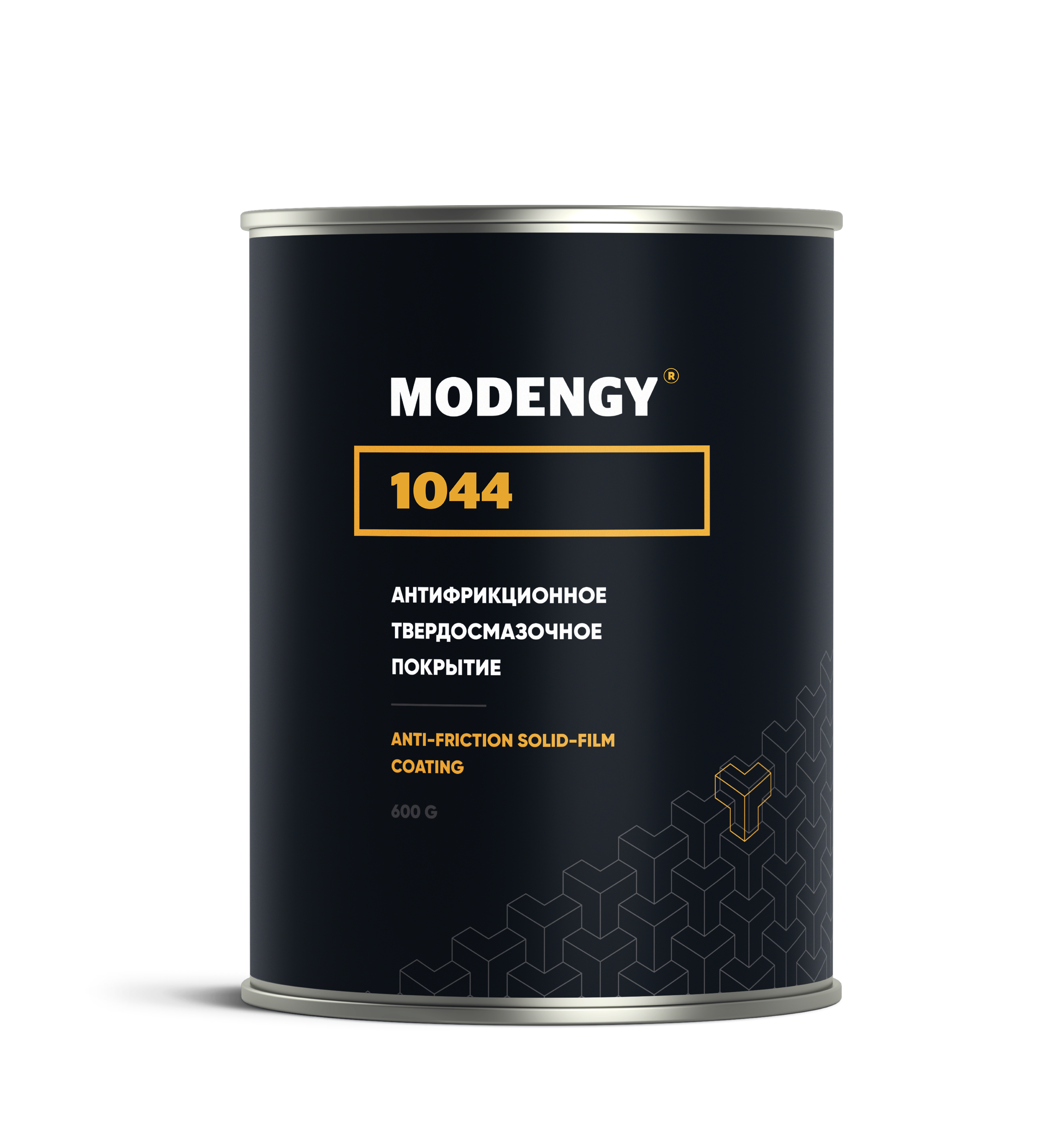

600 G

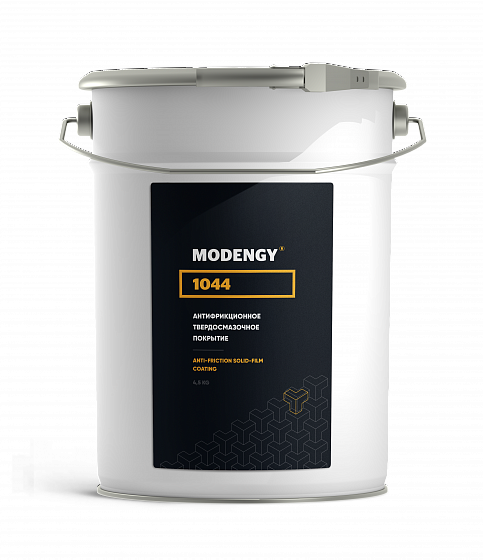

4,5 KG
Anti-friction solid-film coating based on molybdenum disulfide and graphite
It is used in bearings and sliding guideways; in cylinder-piston friction pairs; gearings; movable spline joints; fixed press-fit connections subjected to fretting; other units having metal-to-metal friction pairs subjected to heavy loads where combination of low friction and high corrosion protection is required.
Package sizes:
MODENGY 1044 in action

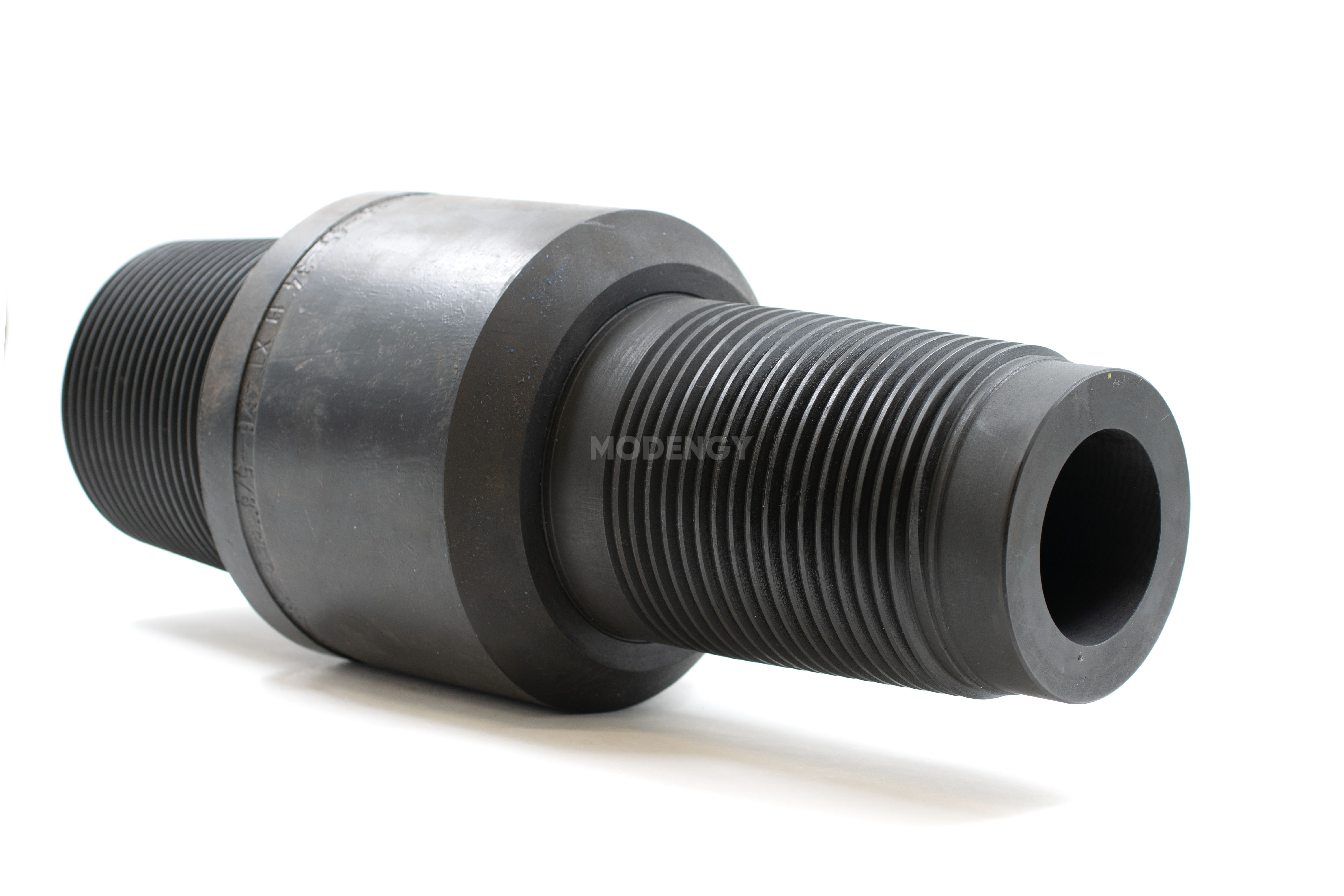

Before

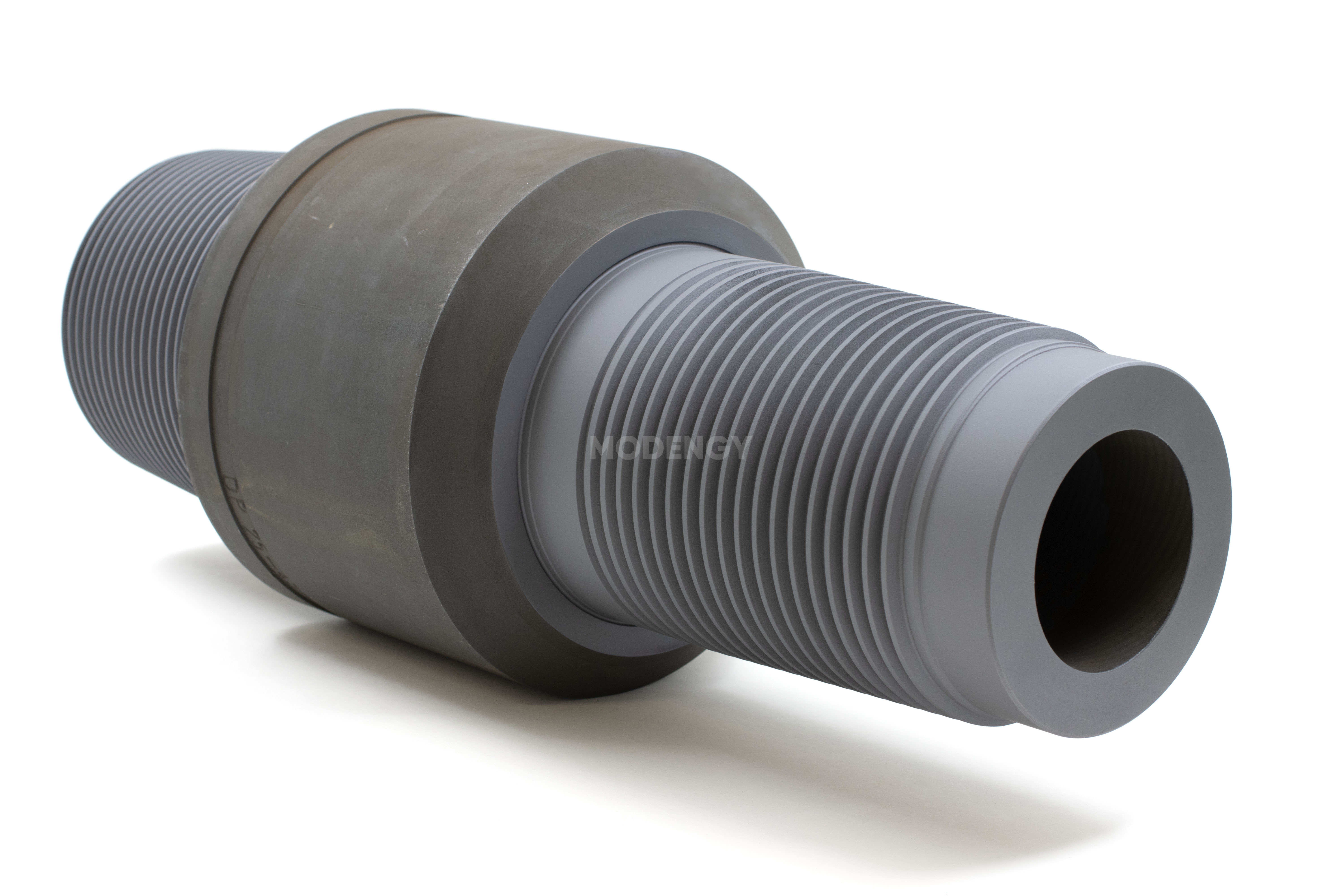

After
The material's separating layer prevents thread galling and enables easy assembly and disassembly of joints, even under continuous heating conditions.

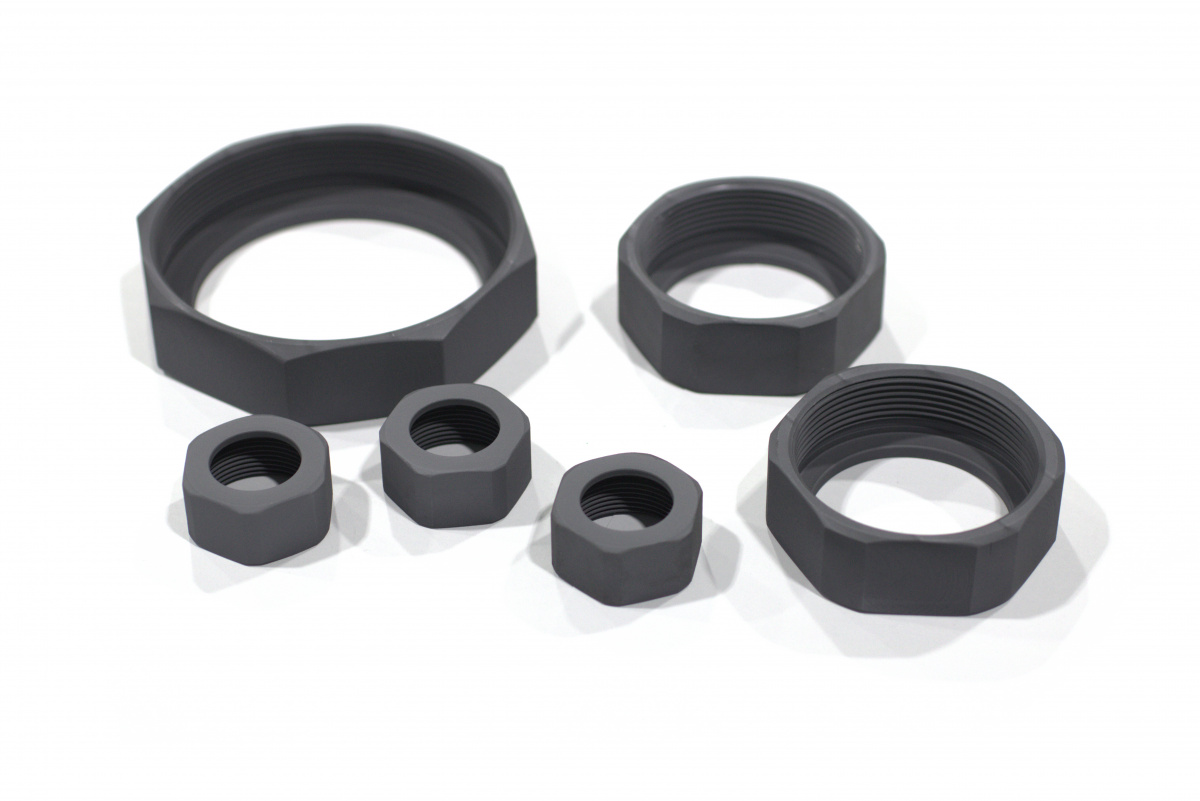

Before

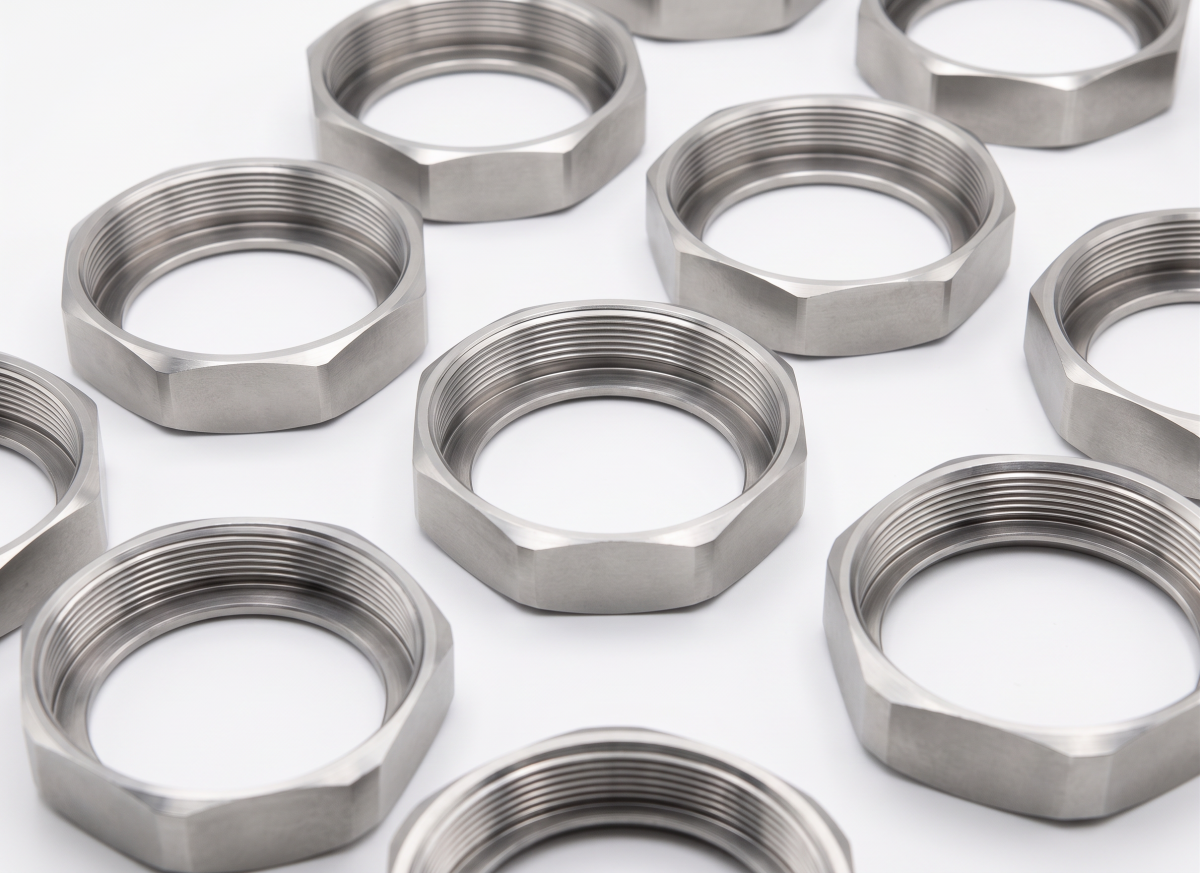

After
MODENGY 1044 coating forms a protective layer with low friction coefficient on the surface that reduces probability of thread damage during mounting and dismantling of the connections.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1013 Special Solvent to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low friction coefficient
- High load-carrying capacity
- High anticorrosive properties
- Wide service temperature range
- Operability within dusty environment
- High adhesion
- It prevents stick-slip motion
- Compatibility with greases (synergetic effect)
- High wear resistance at dynamic loads
- It speeds up running-in for parts
- It prevents galvanic corrosion
- Long service lifetime (depending on the units structure, it can be lifetime lubrication)
- Self-lubricating effect: it provides long-term sliding without need in additional lubrication
- It extends service lifetime of oil-filled units components
Features
The coating composition includes synergetic combination of solid lubricating materials that combines high antiscoring properties and long service lifetime providing at the same time effective corrosion protection.
Specifications
- Colour: grey
- Service temperature range: -100....+250 °С
- Standard coating consumption: 115 g/m²
- Cure temperature/ time: +200 °С / 40 min
It is used in the following typical units
Compressors and internal combustion engine pistons, hydraulic equipment sleeves, rack-and-pinion drives of the axial-type valves, lead screws and slide supports for pipeline fittings, submersible oil-and-gas equipment parts including threaded connections.
Video
MODENGY 1044: overview of properties. Protection against galvanic corrosion, long service life, friction reduction.
