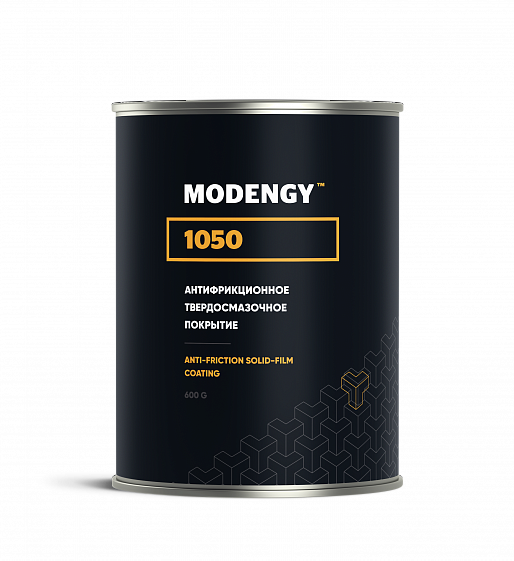

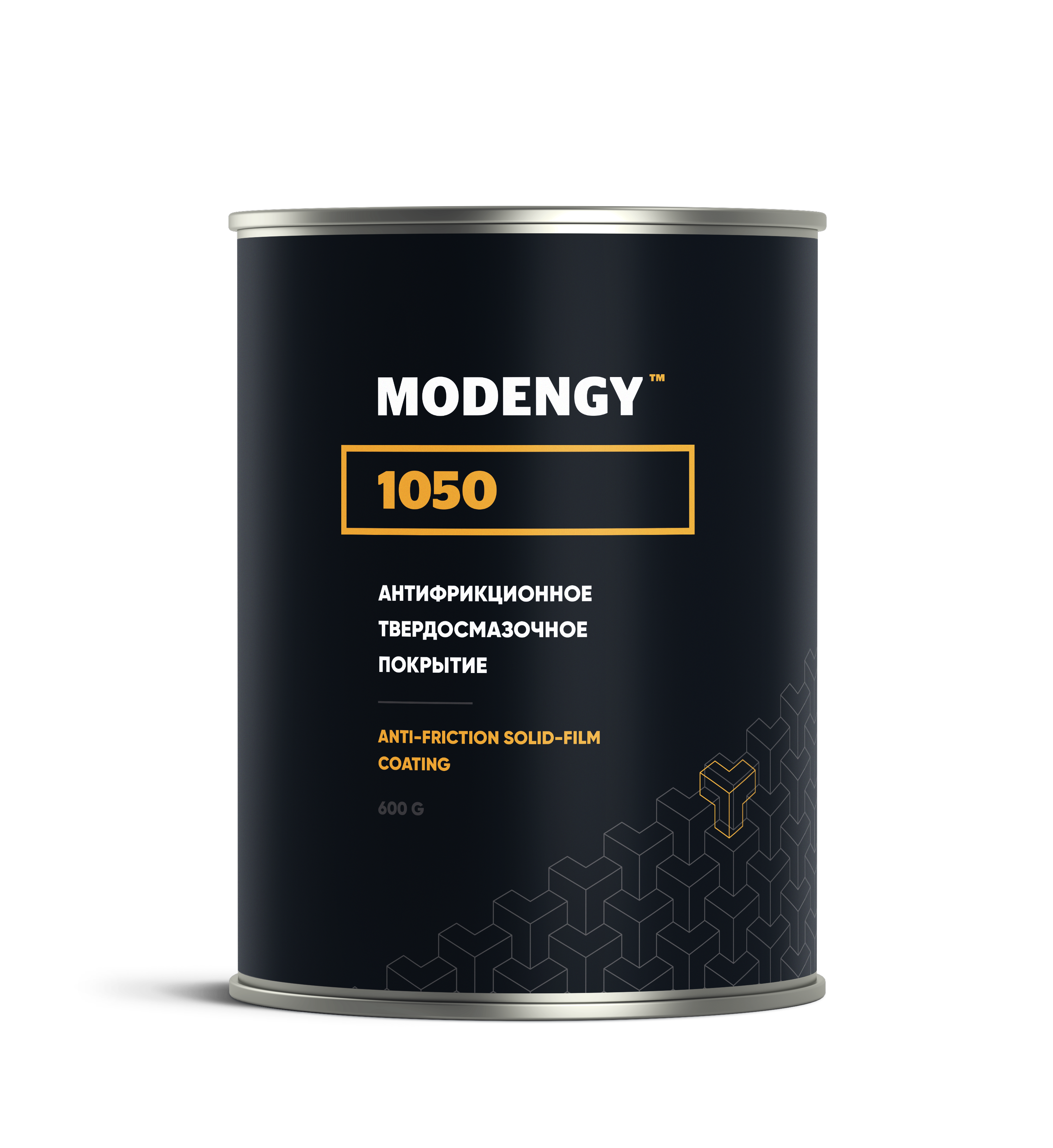

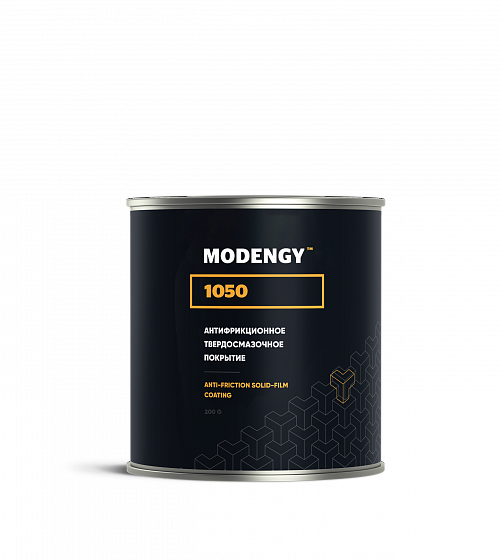

MODENGY 1050
Anti-friction solid-film coating based on molybdenum disulfide and graphite
It is used in splined joints, and key connections of the drive shafts, and axes of the vehicles and the specialty machinery, in highly loaded sliding bearings, and bushings of the mining equipment; in gear racks, and bushings of the technological equipment; sliding guideways, and mold pushers; in the units, and mechanisms of aerospace machinery
Package sizes:
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1013 Special Solvent to rinse the equipment after the coating is applied, to remove uncured coating, to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low friction coefficient
- High load-carrying capacity
- Wide service temperature range
- Workability in dusty environment
- High adhesion
- Effective protection against fretting-corrosion
- It has properties of anti-emergency lubrication
- Long service life (depends on the unit construction – long-term lubrication)
- It speeds up parts assembly with robots
- It prevents stick-slip motion
Specifications
- Colour: dark grey
- Service temperature range: -70 … +255 °С
- Standard coating consumption: 70 g / m²
- Cure temperature / time: +150 °C / 70 min or +180 °C / 35 min
It is used in the following typical units
Sliding bearings, sliding guideways, threaded connections, gearings, splined joints, and keyed connections, other units with metal-metal friction couplings
