MODENGY 1072

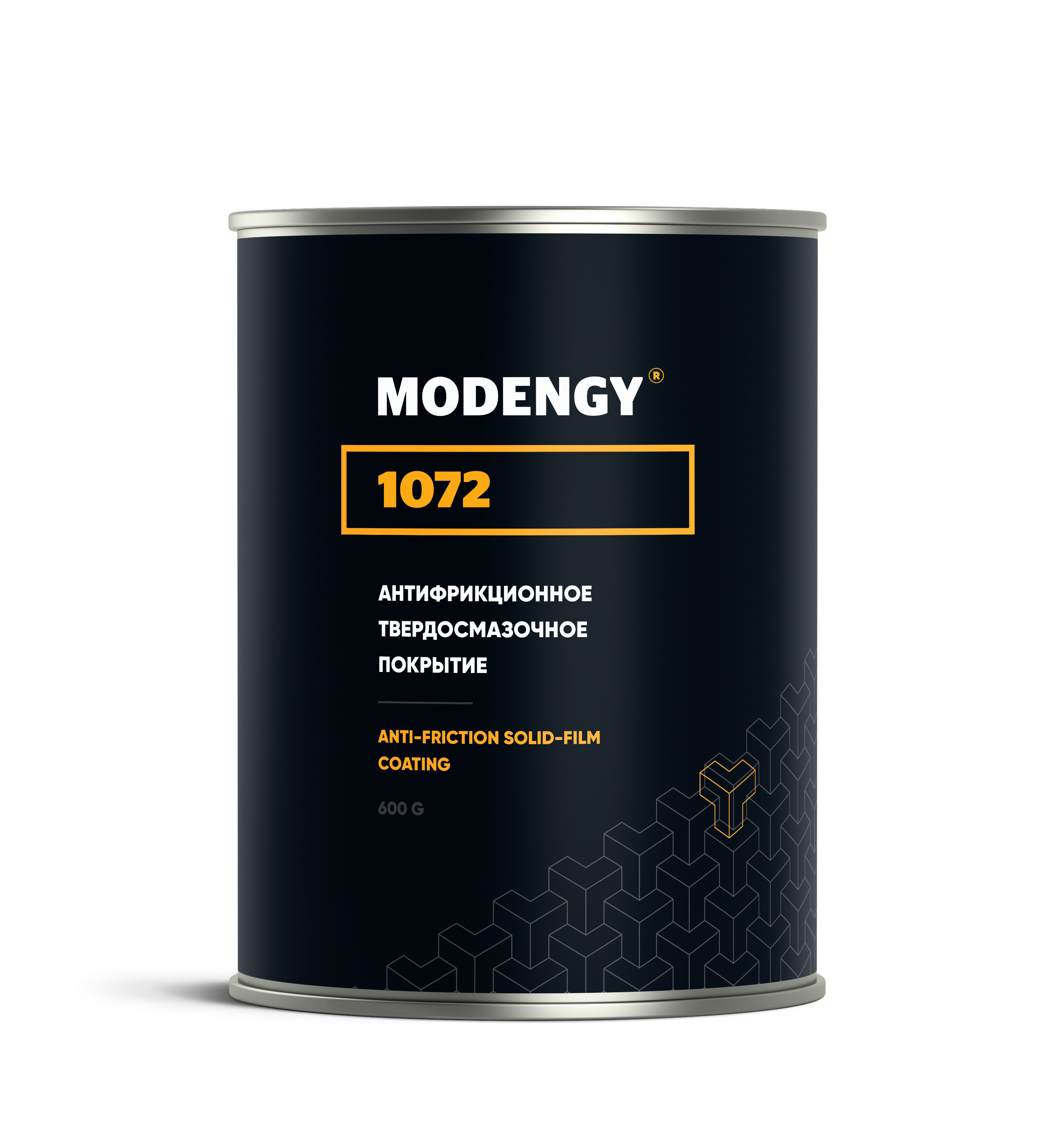

600 G

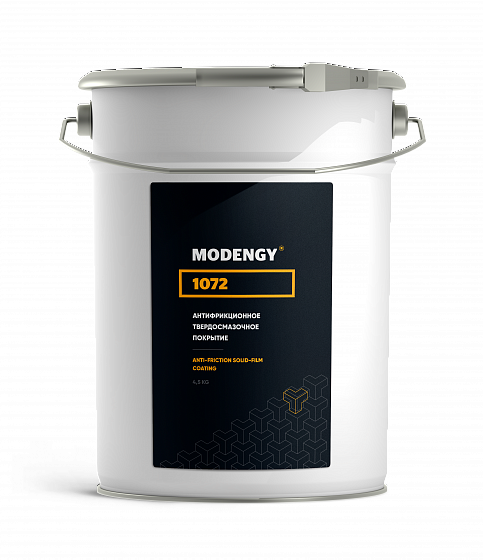

4.5 KG
Anti-friction solid-film coating based on graphite
It has been designed to be used on the engines and compressors piston skirts; spline joints; crankshafts and camshafts bushings; compressors, pumps, pneumatic and hydraulic drives pistons; sliding bearings; rods, guideways, plungers in hydraulic and pneumatic systems; as an additional emergency lubrication for the units lubricated by oil or a grease-like lubricating material.
Package sizes:
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 3015 Special Solvent is intended to rinse equipment after the coating is applied, and the uncured coating is removed, o control completeness of coating polymerization
Advantages
- It reduces friction coefficient in the boundary lubrication zone
- It improves friction units operation smoothness, reduces noise and vibrations
- It prevents stick-slip motion
- It has long service term
- It has high chemical resistance
- It has excellent adhesion
- It contains no aggressive substances, and thus has no negative effect on the process equipment
Features
Easy and convenient applying process at production by the silk-screening method. It is possible to apply it by the methods of spraying out after the compound is diluted to obtain viscosity required for spraying.
Specifications
- Colour: grey-black
- Service temperatures range: -100 … +250 °C
- Cure temperature / time: +200 °C / 50 min
It is used in the following typical units
Cylinder-piston group, sliding bearings, sliding guideways, parts with back-and-forth motion, other units with metal-to-metal friction pairs
