MODENGY 1107
600 G
4.5 KG
Anti-friction solid-film coating based on graphite
It is designed to be used on compressor piston skirts, pumps, pneumatic and hydraulic drives, automotive and ship engines; crankshaft and camshaft bushings; spline joints; rods, guideways, plungers of the hydraulic systems; as an additional emergency lubrication in the units lubricated with an oil or a grease; to prevent piston skirts and cylinder walls from wearing during running-in, oil starving, cold starting, at overheat of the internal combustion engine.

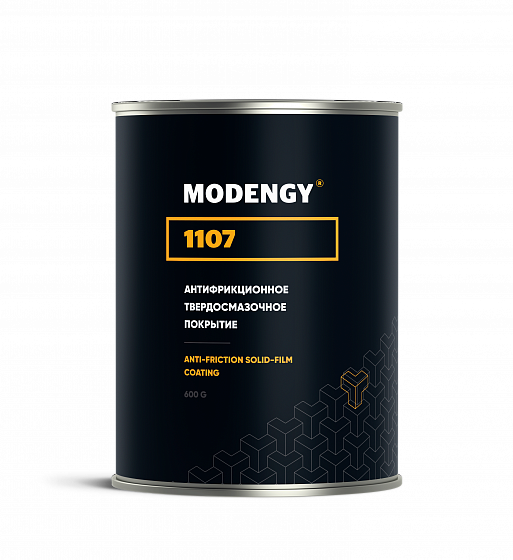

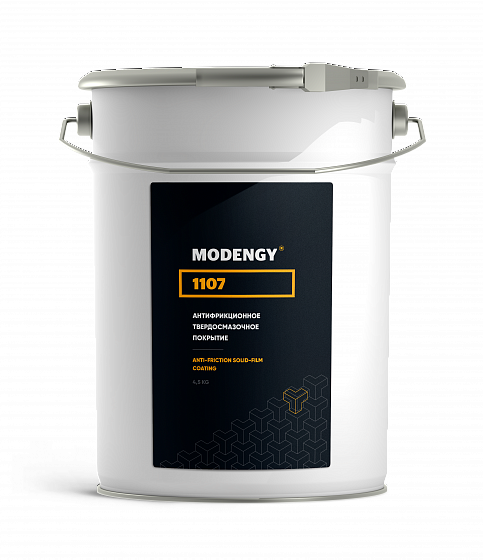

Package sizes:
MODENGY 1107 in action

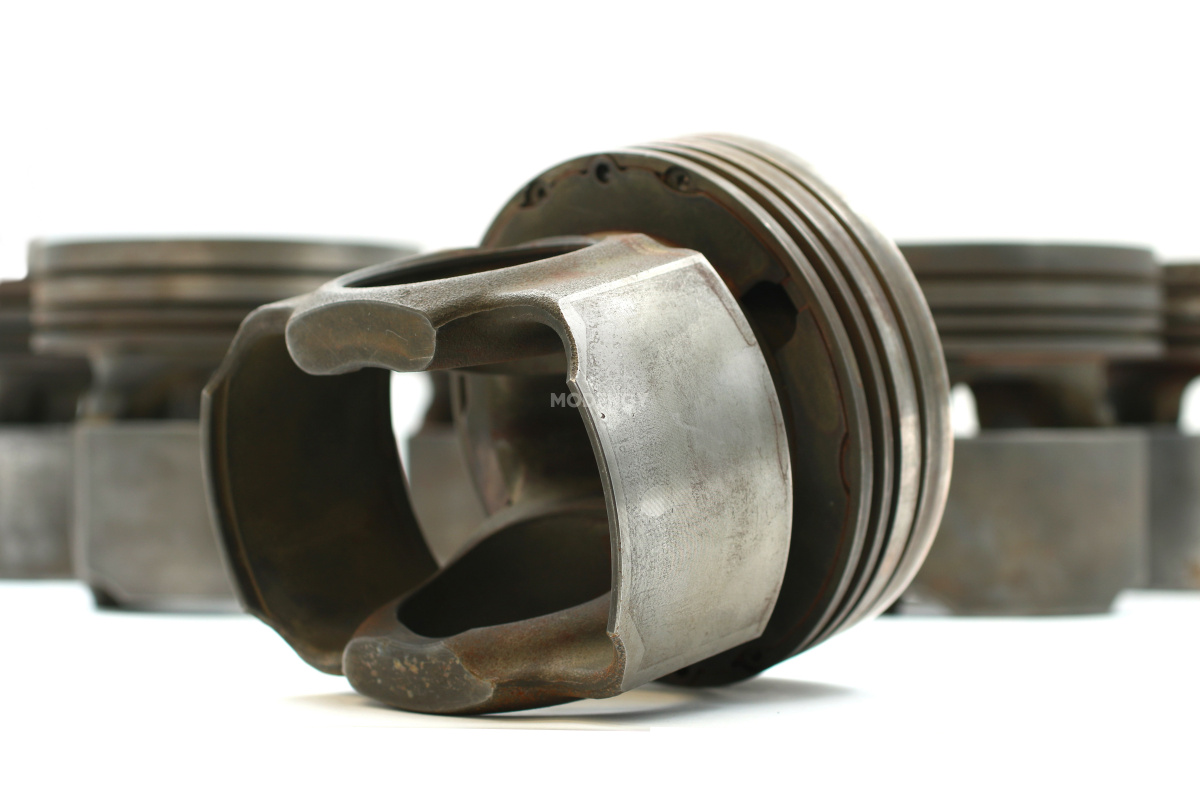

Before

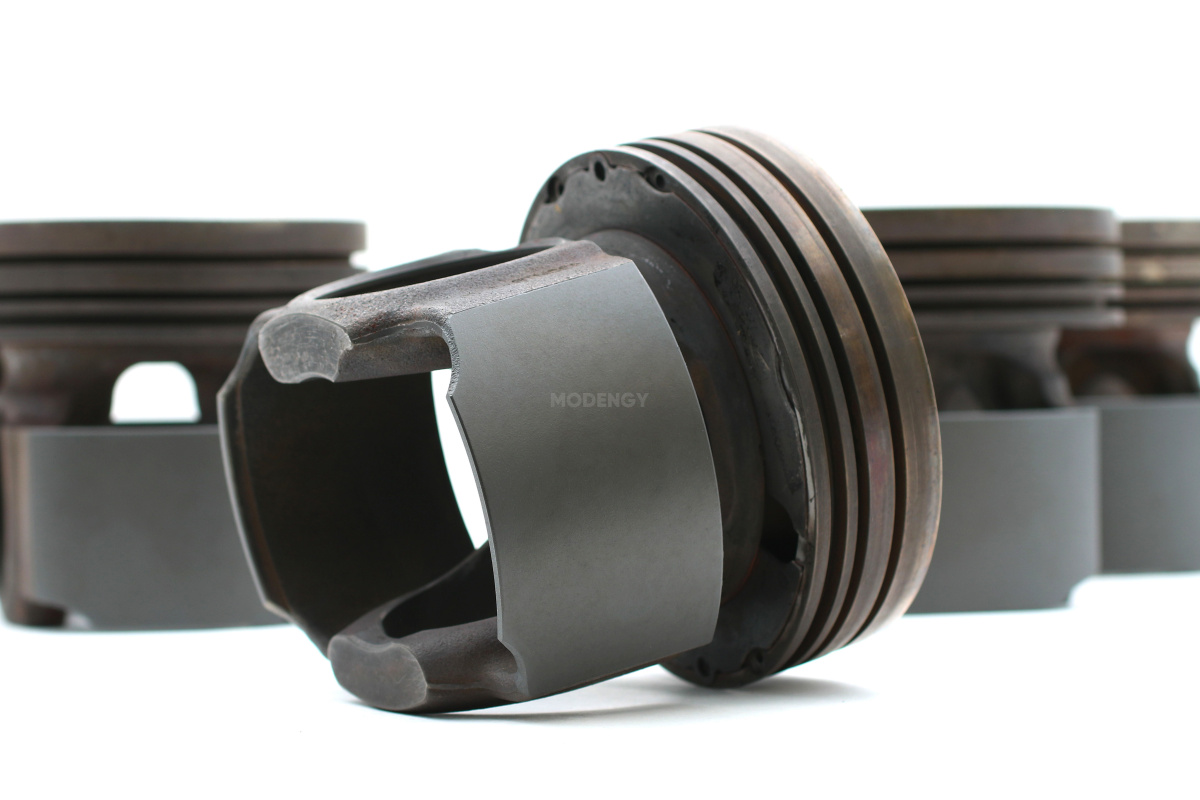

After
MODENGY 1107 was used at repairing a set of truck pistons. It was applied onto the piston skirts by the method of spraying to reduce wearing at the ‘oil starving’ moments, ‘cold’ starting up, to protect against scuffing.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1015 Special Solvent is intended to rinse equipment after the coating is applied, and the uncured coating is removed
- MODENGY 1013 Special Solvent to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- High thermal stability, and a wide service temperature range (-180…+350 °С)
- It reduces friction coefficient, especially under conditions of boundary lubrication
- Excellent adhesion to metal surfaces
- It prevents stick-slip motion
- Resistance to chemically aggressive media
- It contributes to increasing smoothness of friction units operating, decreasing noise and vibrations
- Long service lifetime and long-term protection against wear
- Operability within humid environment
- Compatibility with oils, greases, gasoline, diesel fuel
Features
Easy and convenient applying process at production by the silk-screening method. It is possible to apply it by the methods of spraying out after the compound is diluted to obtain viscosity required for spraying.
Specifications
- Colour: grey-black
- Service temperatures range: -50 … +350 °C
- Cure temperature / time: +200 °C / 20 min
It is used in the following typical units
Cylinder-piston group, sliding bearings, sliding guideways, other units with metal-to-metal friction pairs
