MODENGY 1031

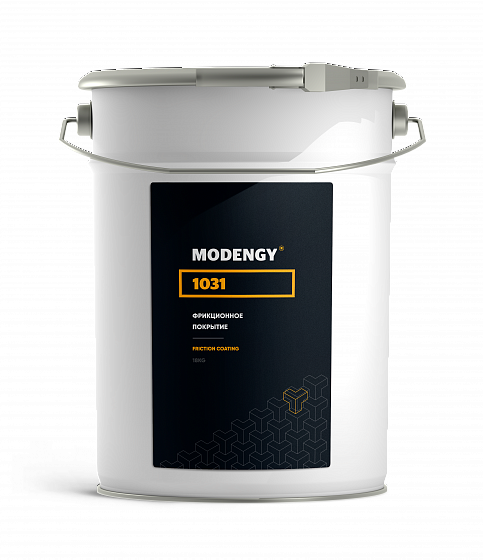

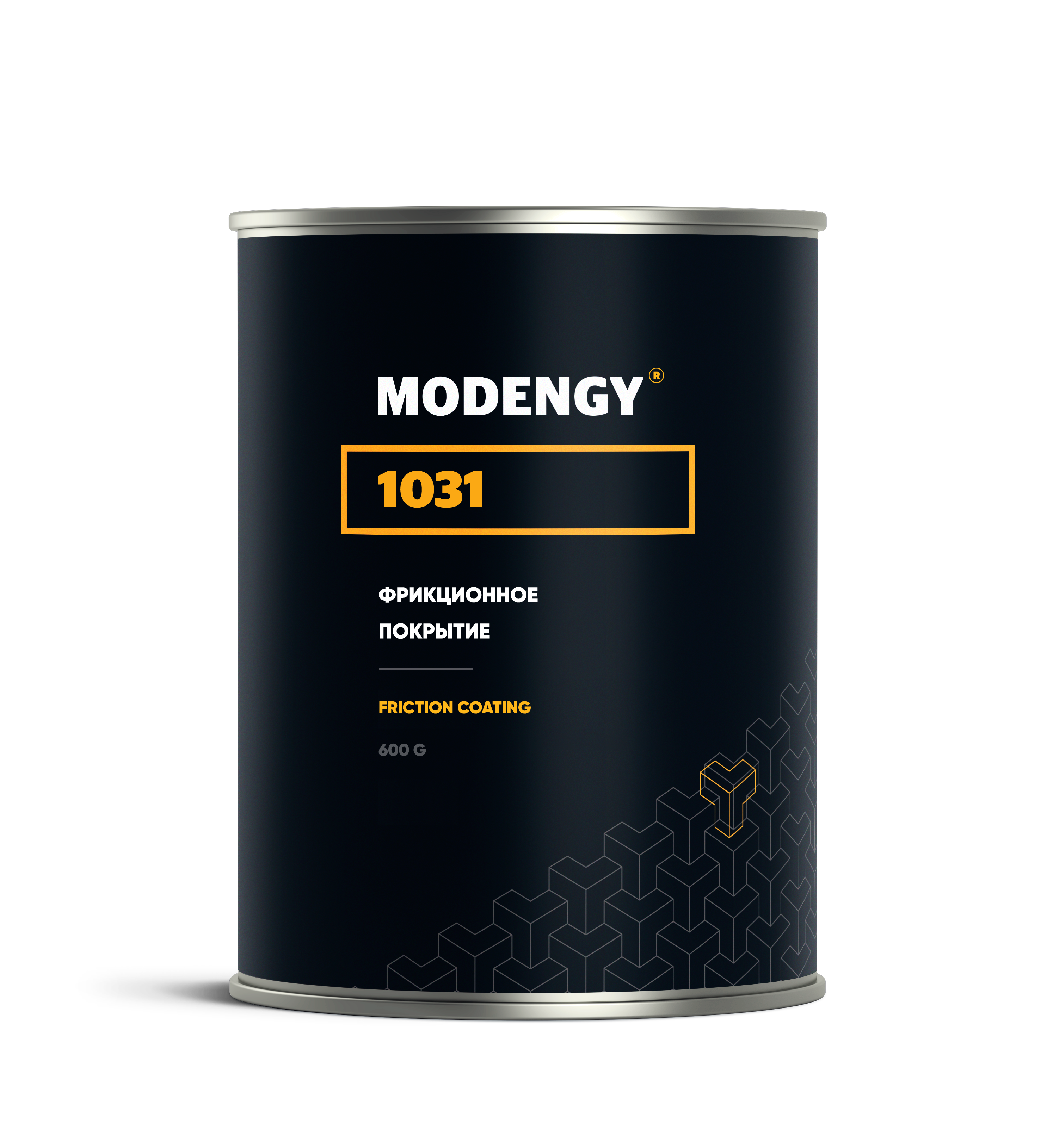

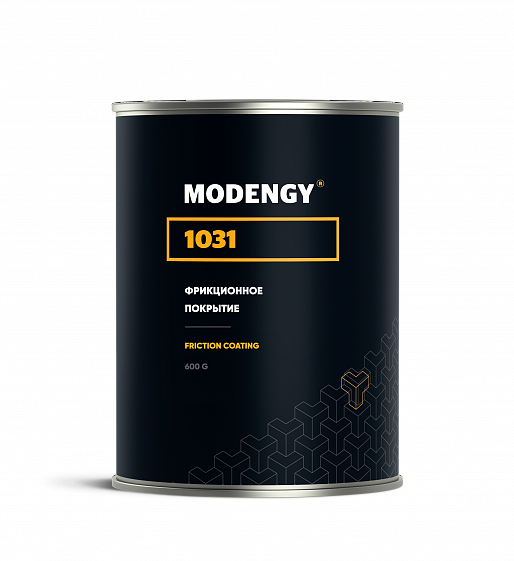

600 G
18 KG
Friction coating
It is used for the purpose of providing friction coefficient high values and stability in metal-to-metal pairs for transmitting torque moment; braking; fixing.
Package sizes:
MODENGY 1031 in action

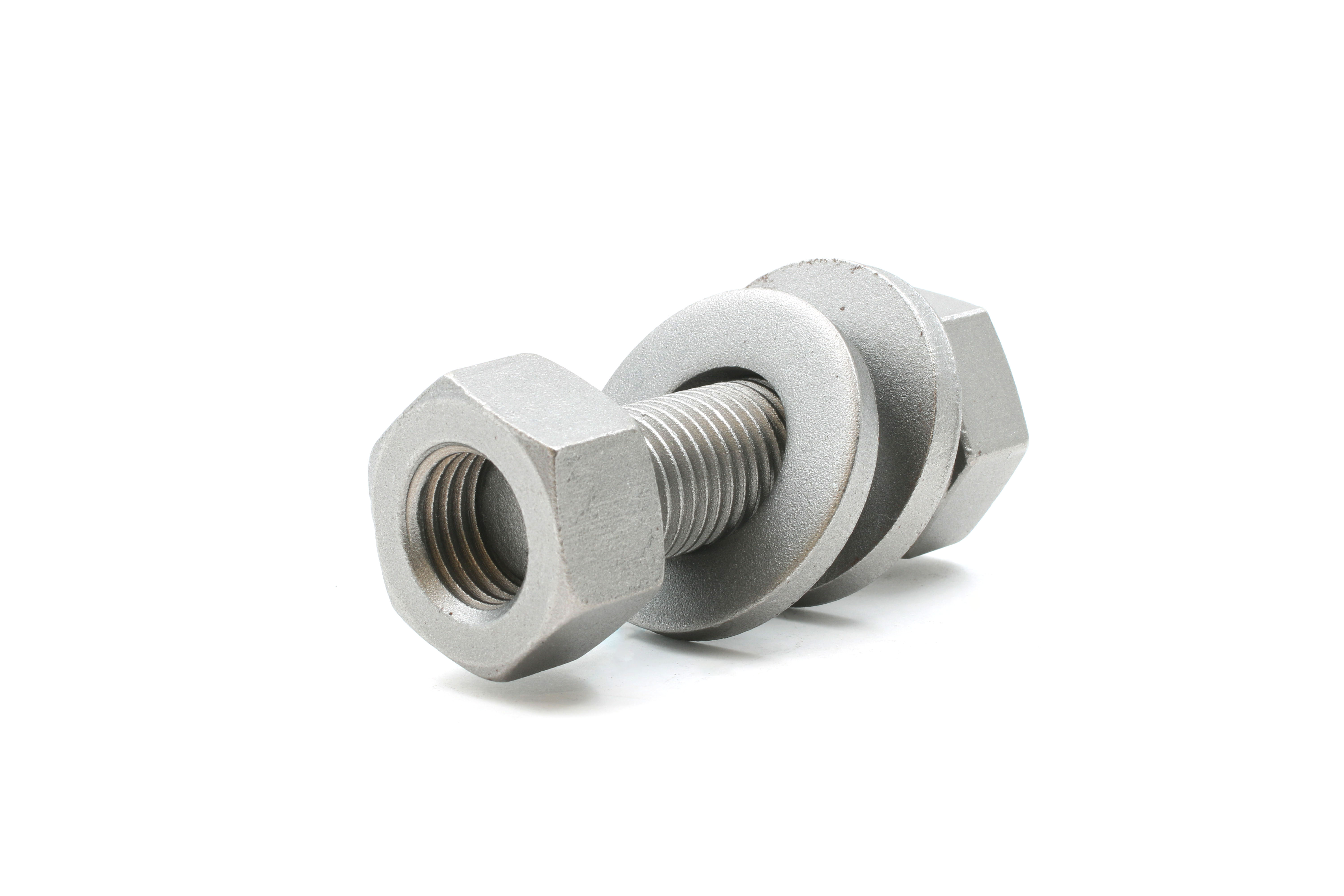

Before

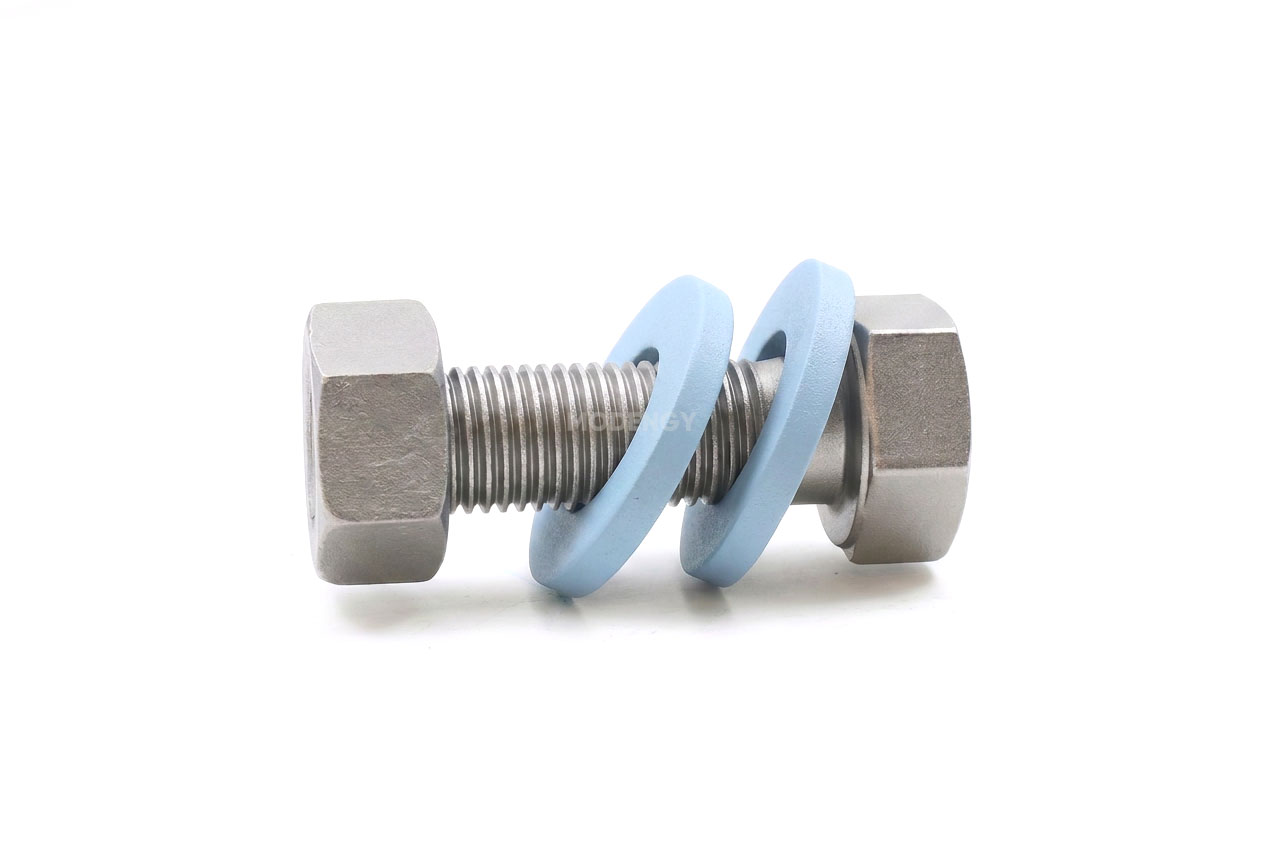

After
The MODENGY 1031 friction coating applied to the washers provides reliable protection of bolt sets against spontaneous loosening.
Additional expendable materials
and equipment
-
MODENGY Special Cleaner-Activator – to clean, degrease, and activate the surfaces
- MODENGY 1016 Special Solvent – to wash equipment after applying the coating, to remove non-cured coating,
to check coating cure completeness
-
MODENGY M1-250 spray gun – to apply MODENGY coatings
Advantages
- Stable in time and high friction coefficient
- Wide service temperatures range (-100 to +230°С)
- It is possible to apply it both by spaying out method, and by dipping with centrifuging
- High elasticity and capability to adapt to the mated surface
- Aesthetic appearance
- Operability within dusty environment
- It withstands high contact pressures
- It retains its properties at multiple cycles of assembling/ disassembling the connection
- Excellent adhesion
- Corrosion protection
Specifications
- Colour: blue
- Polymerization temperature / time: +150 °С / 40 min. or +200 °С / 30 min.
- Service temperature range: -100… +230 °С
- Standard expense allowance of the coating: 77 g/m2
Video
MODENGY 1031 friction coating: braking, locking, and securing of threaded connections
