MODENGY 4002
Antiscoring paste based on molybdenum disulfide
This is a concentrated paste based on highly dispersed molybdenum disulfide for assembly, running-in, and lubrication.
Package sizes:
Advantages
- High load carrying capacity and antiscoring properties
- Heat resistance
- Water resistance
- Convenient to apply
- Low friction coefficient
- It prevents stick-slip motion
- Good adhesion
Specifications
- Colour: grey-and-black
- Consistency Class: 2
- Service temperature range: -30 to +450 °С (up to +600 °С at limited air access)
How to apply

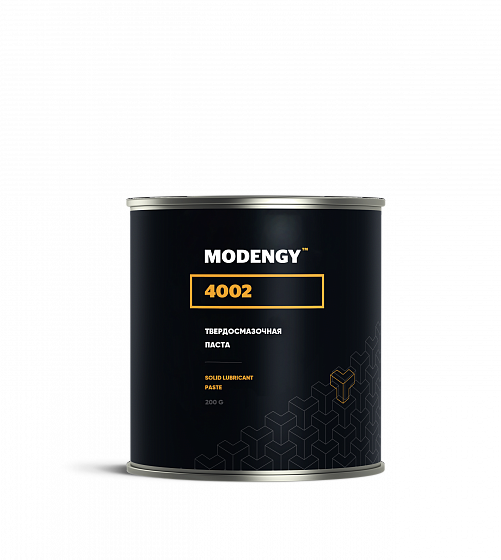

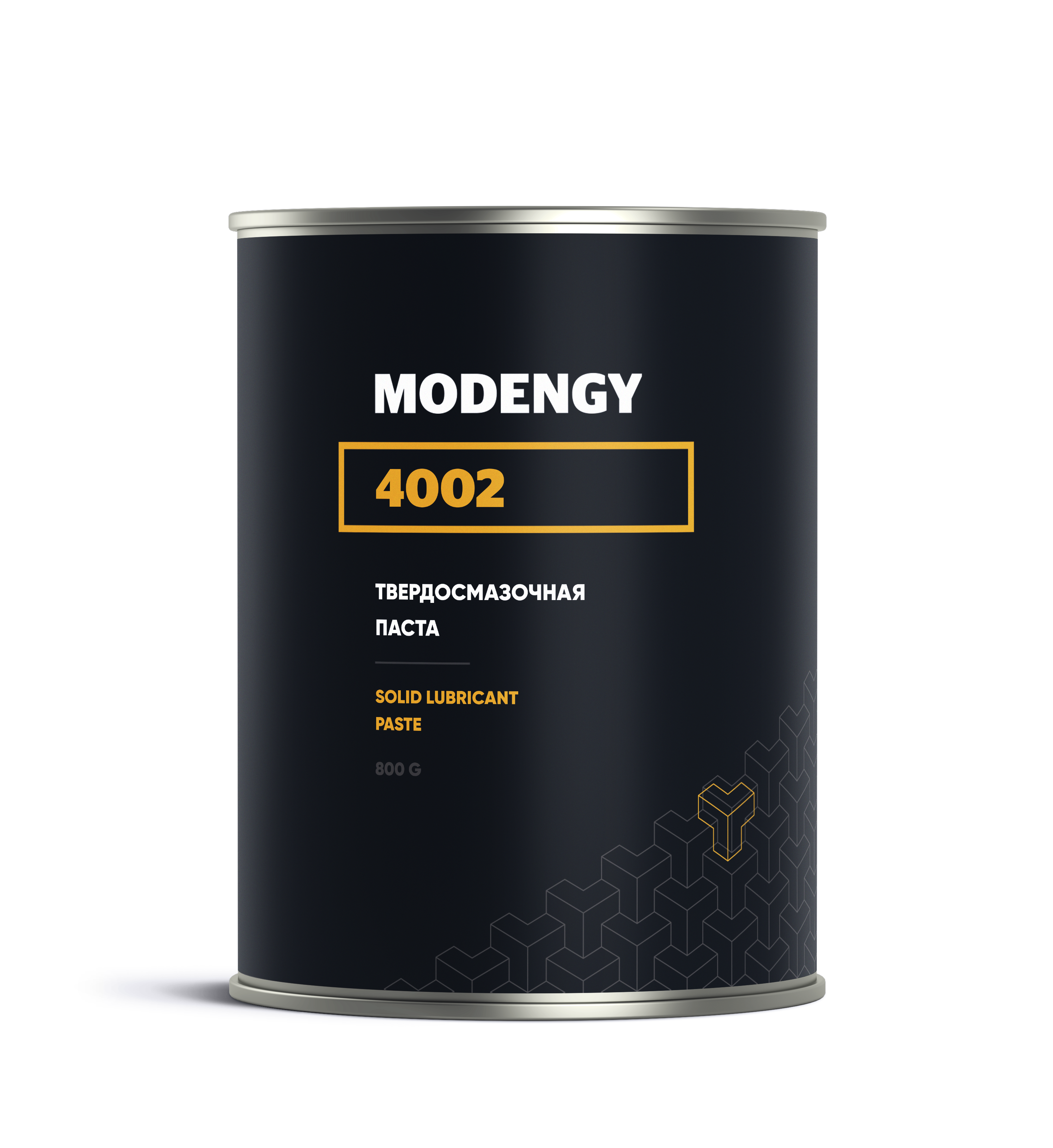

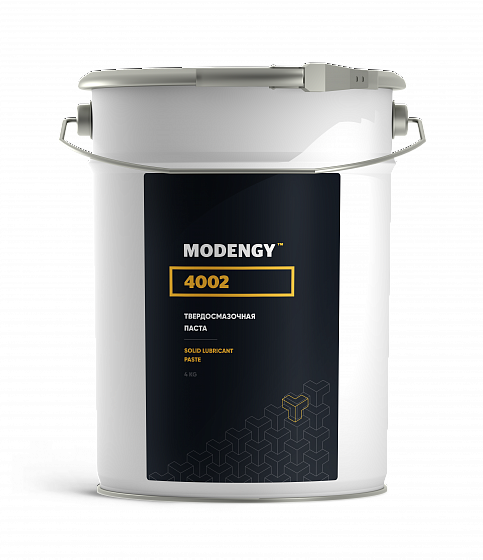

For paste in 0.8 KG Cans, and 4 KG Pails
- Clean and degrease the surfaces to be lubricated. For this purpose, it is recommended to use MODENGY Metal Cleaner.
- Thoroughly stir the paste in the package up to getting homogeneous state (oil separation on the paste surface at storage is not a sign of defectiveness).
- Apply the paste in a thin layer by using a brush, a rag, or a soft spatula by making rubbing-in motions.

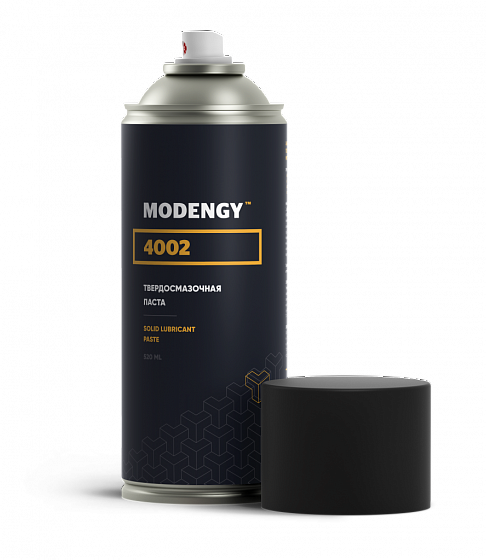

For paste in 520 ML Aerosol Cans
- Clean and degrease the surfaces to be lubricated. For this purpose, it is recommended to use MODENGY Metal Cleaner.
- Keep shaking the aerosol can for at least 3 minutes after you hear knocking of a little metal ball inside it.
- Spray out the paste onto the surface to be lubricated in a thin uniform layer.
- After you finish applying, turn the aerosol can upside down, direct it from yourself, and push the button several times to clean through the spraying head.
Purpose
-
To make mounting and dismantling of the press fits and threaded connections easier
-
Friction units running-in
-
Protection against fretting-corrosion
-
To prevent scuffing
-
To provide minimal friction in heavily loaded pairs
-
Effective lubrication of the friction pairs inclined to jamming (for instance, those made of stainless steels)
It is used in the following typical units
-
Threaded connections
-
Press fits
-
Splined joints
-
Lead screws
-
Bearings and sliding guideways
-
Cam mechanisms
-
Gearings
-
Other heavy-loaded slow-speed friction units
