RECORD
of the tribotechnical tests
Test Purpose
To detect impact from applications the solid-film coatings and greases onto the tribotechnical properties of the metal-to-polymer friction pair
Tests Conditions
The tests are held according to ASTM G99 standard on the sphere-disk scheme (see Fig.1) at sliding friction. The method described in the standard is used in the international practice to detect friction and wear parameters.
Friction pair geometrical parameters: a sample in the shape of disk of 80 mm diameter, and 0.8 mm thickness is a spherical counterbody of 10 mm diameter
Spherical counterbody material: POM (polyoxymethylene)
Sample material: AISI 430 steel, Ra=0.5 µm
Solid-film coating of the sample: see Appendix 3
Coating thickness: 25±5 µm
Grease: see Appendix 3
Weight of the grease to be applied onto the disk: 0.25 g
Sliding rate: V=0.8 m/s
Load: F=23.0 N
Brief description of the testing technique
Tests are held on the friction machine (see Fig.2), its Certificate is given in Appendix 1. This friction machine is equipped with NI LabVIEW data controlling and registering automated system.
The spherical counterbody is set into a holder (see Fig.3) and pressed with the given force F to the disk-shaped sample rotating with frequency n=310 revolutions per minute. In process of testing sliding friction force value is continuously registered, and friction coefficient value is automatedly calculated. Tests are kept up to accumulating the given friction path L=2,880 m. After the tests, linear wear of the spherical counterbody h is measured, and dimensionless wear intensity Ih=h/L is calculated.
Fig.1. Friction scheme at testing

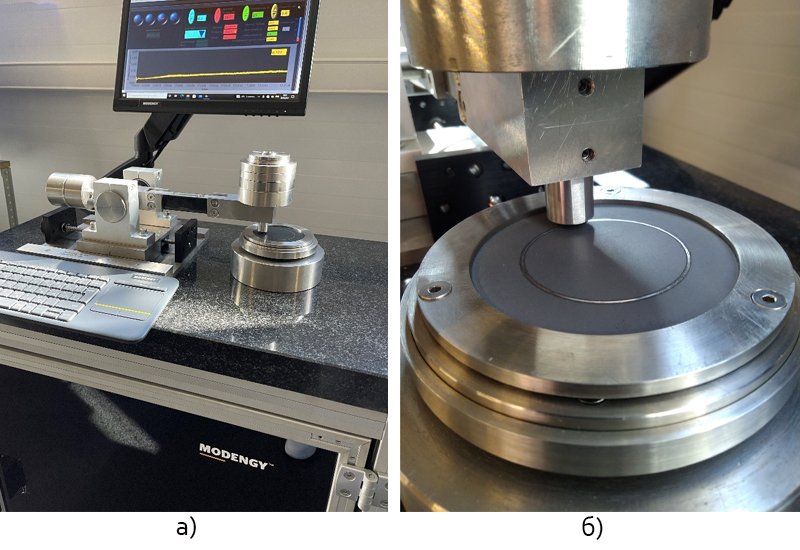

Fig.2. Friction machine (a – general appearance, b – testing block)
Fig.3. Holder with a spherical a counterbody set in it
Tests Results
Table 1
Experiment number |
Coating name of the sample |
Lubricant name on the sample |
Friction path L, m |
Linear wear h, µm |
Wear intencity Ih |
Friction coefficient in stationary mode f |
---|---|---|---|---|---|---|
1 |
No coating |
no |
2880 |
750 |
2,60E-07 |
0,378 |
2 |
MODENGY 1014 |
no |
2880 |
140 |
4,86E-08 |
0,190 |
3 |
MODENGY 1066 |
no |
2880 |
170 |
5,90E-08 |
0,300 |
4 |
MODENGY 1009 |
no |
2880 |
110 |
3,82E-08 |
0,160 |
5 |
MODENGY PTFE-A20 |
no |
2880 |
80 |
2,78E-08 |
0,100 |
6 |
No coating |
SHRB-4 |
2880 |
710 |
2,47E-07 |
0,220 |
7 |
No coating |
Pilot lubricant No.1 |
2880 |
930 |
3,23E-07 |
0,240 |
8 |
No coating |
Pilot lubricant No.2 |
2880 |
590 |
2,05E-07 |
0,220 |
9 |
No coating |
Pilot lubricant No.3 |
2880 |
760 |
2,64E-07 |
0,180 |
10 |
No coating |
Pilot lubricant No.4 |
2880 |
520 |
1,81E-07 |
0,270 |
11 |
No coating |
Pilot lubricant No.5 |
2880 |
870 |
3,02E-07 |
0,250 |
12 |
No coating |
Pilot lubricant No.6 |
2880 |
260 |
9,03E-08 |
0,130 |
13 |
MODENGY 1009 |
Pilot lubricant No.6 |
2880 |
110 |
3,82E-08 |
0,130 |
14 |
MODENGY 1009 |
Pilot lubricant No.2 |
2880 |
100 |
3,47E-08 |
0,090 |
15 |
MODENGY 1014 |
Pilot lubricant No.6 |
2880 |
60 |
2,08E-08 |
0,050 |
16 |
MODENGY 1014 |
Pilot lubricant No.2 |
2880 |
80 |
2,78E-08 |
0,090 |
17 |
MODENGY 1014 |
SHRB-4 |
2880 |
100 |
3,47E-08 |
0,095 |
18 |
MODENGY PTFE-A20 |
Pilot lubricant No.6 |
2880 |
50 |
1,74E-08 |
0,067 |
19 |
MODENGY PTFE-A20 |
Pilot lubricant No.2 |
2880 |
100 |
3,47E-08 |
0,110 |
20 |
MODENGY 1009 |
SHRB-4 |
2880 |
120 |
4,17E-08 |
0,130 |
21 |
MODENGY PTFE-A20 |
SHRB-4 |
2880 |
70 |
2,43E-08 |
0,150 |
22 |
No coating |
Pilot lubricant No.7 |
2880 |
1360 |
4,72Е-07 |
0,150 |
23 |
No coating |
Pilot lubricant No.8 |
2880 |
910 |
3,16Е-07 |
0,220 |
24 |
No coating |
Pilot lubricant No.9 |
2880 |
330 |
1.15Е-07 |
0,170 |
25 |
No coating |
Pilot lubricant No.10 |
2880 |
950 |
3.30Е-07 |
0,230 |
26 |
No coating |
Pilot lubricant No.11 |
196,8* |
340 |
1.73Е-06 |
0,300 |
27 |
No coating |
Pilot lubricant No.12 |
1035,0* |
530 |
5.12Е-07 |
0,300 |
28 |
MODENGY 1014 |
Pilot lubricant No.9 |
2880 |
50 |
1.74Е-08 |
0,080 |
29 |
MODENGY PTFE-A20 |
Pilot lubricant No.9 |
2880 |
50 |
1.74Е-08 |
0,060 |
Notes to Table 1
* - the tests were stopped because of overriding the marginal coefficient of friction with the lubricant f=0.3.
Fig.4. Samples with MODENGY 1014 coating on them before (on the left) and after (on the right) the tests
Fig.5. Samples with MODENGY 1009 coating on them before (on the left) and after (on the right) the tests
Fig.6. Samples with MODENGY PTFE-A20 coating on them before (on the left) and after (on the right) the tests
In Appendix 2, graphs of friction coefficient changing during the tests.
Experiment No.6 (see Table 1) is considered as the basic variant to be compared with – it’s the sample without any coating, SHRR-4 lubricant. The test results that exceed the basic variant on friction and wear factors in complex are gathered together in the Table 2 to make comparison them with it more convenient. Values of linear wear h, µm, and friction coefficient in stationary mode f are given in the table cells in the h/f format.
Table 2. Tests results assessment in comparison with the basic variant.
Grease Name |
Coating Name |
|||
---|---|---|---|---|
No coating |
MODENGY 1014 |
MODENGY 1009 |
MODENGY PTFE-A20 |
|
no |
750/0,378 |
140/0,190 |
110/0,160 |
80/0,100 |
SHRB-4 |
710/0,220 |
100/0,095 |
120/0,130 |
70/0,150 |
Pilot lubricant No.2 |
590/0,220 |
80/0,090 |
100/0,090 |
100/0,110 |
Pilot lubricant No.6 |
260/0,130 |
60/0,050 |
110/0,130 |
50/0,067 |
Pilot lubricant No.9 |
330/0,170 |
50/0,080 |
- |
50/0,060 |
Conclusions
The following has been established as the tests result:
- Replacement SHRB-4 basic grease for the pilot lubricants No.2, 6, 9 enables to reduce wear of the counterbody by 1.2 to 2.7 times, and friction coefficient by down to 1.7 times;
- Use of the solid-film coatings pointed in Table 2 on the sample instead of SHRB-4 grease enables to reduce wear of the counterbody by 5.1 to 8.9 times, and friction coefficient by 1.2 to 2.2 time depending on the coating name;
- Use of the solid-film coatings pointed in Table 2 on the sample in addition to SHRB-4 grease enables to reduce wear of the counterbody by 5.9 to 10.1 times, and friction coefficient by 1.5 to 2.3 times depending on the coating name;
- While being used in addition to SHRB-4 grease, the best on criterium of wear reduction is MODENGY PTFE-A20, and on friction reduction is MODENGY 1014;
- It has been remarked that the solid-film coatings give more significant impact on improving friction and wear values in comparison with greases (see. points 1,2, 3);
- By selecting optimal combination of a solid-film coating and a grease, it is possible to achieve wear reduction by up to 14.2 times (for example, MODENGY 1014 coating and Pilot lubricant No.9), and friction coefficient reduction by up to 4.4 times (for example, MODENGY 1014 coating and Pilot lubricant No.6).
Appendix 1
Appendix 2
Graphs of friction coefficient changing during the tests
Experiment No.1
Experiment No.2
Experiment No.3
Experiment No.4
Experiment No.5
Experiment No.6
Experiment No.7
Experiment No.8
Experiment No.9
Experiment No.10
Experiment No.11
Experiment No.12
Experiment No.13
Experiment No.14
Experiment No.15
Experiment No.16
Experiment No.17
Experiment No.18
Experiment No.19
Experiment No.20
Experiment No.21
Experiment No.22
Experiment No.23
Experiment No.24
Experiment No.25
Experiment No.26
Experiment No.27
Experiment No.28
Experiment No.29
Appendix 3
Performances of the greases under test
Grease Name |
Basic oil type |
Basic oil viscosity at 40°С, mm2/s |
NLGI |
Colour |
Thickener |
Lower limit of service temperatures, °С |
Upper limit of service temperatures, °С |
Anti-corrosive properties (EMCOR method) |
---|---|---|---|---|---|---|---|---|
SHRB-4 |
Mineral |
32 |
2 |
Brown |
Complex barium soap |
-30 |
130 |
no data available |
Pilot lubricant No.11 |
PAO |
120 |
2 |
White |
Calcium sulfonate |
-40 |
140 |
0 - 1 |
Pilot lubricant No.12 |
PAO |
50 |
2 |
Light brown |
Compex aluminium soap |
-45 |
170 |
0 - 1 |
Pilot lubricant No.9 |
PAO |
25 |
2 |
Beige |
Lithium soap |
-60 |
120 |
0 - 1 |
Pilot lubricant No.3 |
PAO |
48 |
1 - 2 |
Beige |
Compex aluminium soap |
-30 |
140 |
0 - 1 |
Pilot lubricant No.4 |
PAO |
400 |
1 - 2 |
Beige |
Polyurea |
-30 |
180 |
0 - 0 |
Pilot lubricant No.2 |
Mineral |
160 |
2 |
Black |
Lithium soap |
-20 |
120 ( 140) |
0 - 0 |
Pilot lubricant No.6 |
PAO |
32 |
2 |
Beige |
Lithium soap |
-50 |
140 |
no data available |
Performances of the solid-film coatings under test
Coating Name |
Polymerization Mode |
Color |
Fillers |
Service temperatures °С |
Corrosion resistance (hours in neutral salt mist acc. to ISO 9227) |
---|---|---|---|---|---|
MODENGY 1014 |
40 min. at 180°С |
Grey |
MoS2, PTFE |
-75…+255 |
> 670 |
MODENGY 1009 |
30 min. at 120°С |
Matt Black |
PTFE |
-100…+250 |
> 300 |
MODENGY PTFE-A20 |
30 min. at 20°С |
Translucent White |
PTFE |
-50…+130 |
> 160 |
