Repairing steering rack 'dried crust' plates by using MODENGY coatings

Functions of presser ‘dried crust’, and wear causes of its plates

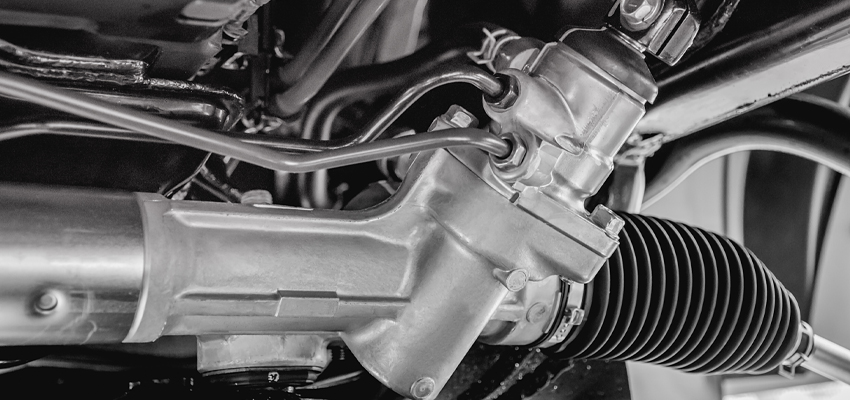

A hold-down unit is included into steering rack construction, and it fulfils two important functions. In the first place, it provides requires the gear pair pressing to the steering rack, and in the second place, it prevents the shaft vertical moving at hitting a ground bump.

The hold-down unit consists of three basic elements including a ‘dried crust’, a pressing-down plate, and a spring with washers.

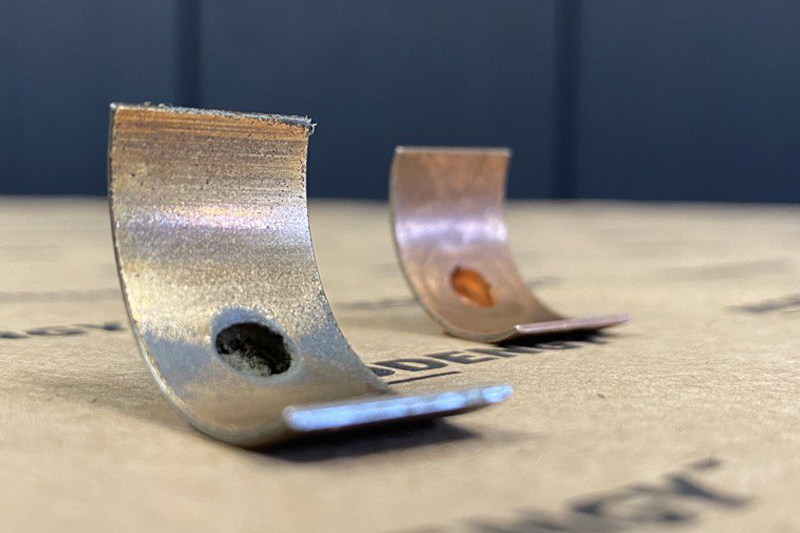

In process of driving-up, the steering rack shaft performs left-to-right and vice versa motions, as a result of what high friction appears between it and the pressing-down plate of the ‘dried crust’ that are pressed tightly to each other.

This causes plate premature wearing.

Producer of automotive components use a special anti-friction coating to extend service lifetime of the pressing-down bushings. It reduces friction in the unit, and prevents scuffing of the plate.

However, as mileage grows the coating gets worn, and stops reducing friction. Knocking from the steering rack that spreading to the steering wheel signals about wear of the plate.

To restore the worn coating, MODENGY products are applied.

MODENGY solutions to extend service lifetime of the steering rack pressing-down unit parts

Creating a new anti-friction layer on the pressing-down unit parts operational surfaces provides restoring their operability, and protection against wear for a long while.

In process of production or repairs of the pressing-down plates, MODENGY For the ICE Parts anti-friction coating is used.

This product is made on basis of molybdenum disulfide and graphite.

It forms a dry steady layer on the parts that reduces coefficient of static friction in the plate-to-shaft pair, improves smoothness of going, prevents stick-slip motion, provides wear reduction of the contacting surfaces.

How to apply MODENGY For the ICE Parts coating

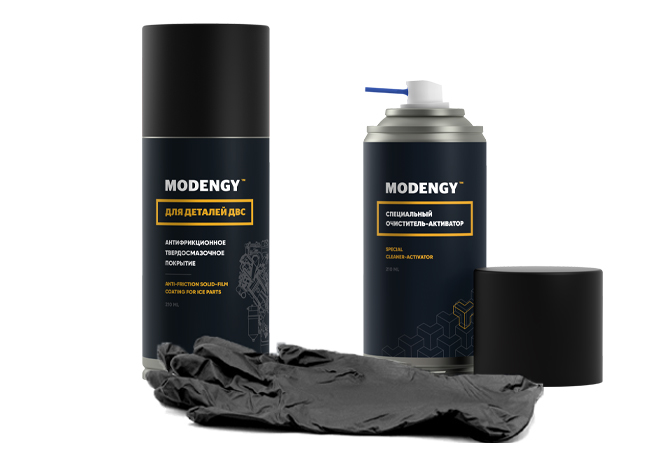

MODENGY For the ICE Parts coating is released in a set with MODENGY Special Cleaner-Activator. These products are pre packed into aerosol cans to provide easy application without using any additional equipment.

The plates must be dry and clean prior anti-friction material applying. The residues of the factory coating if there are any should be removed.

After the parts have been cleaned by any available methods, they should be treated with MODENGY Special Cleaner-Activator. It completes preparing the surfaces to applying the coating.

Prior applying, the content of the aerosol can with the coating need to be stirred thoroughly. For this purpose, the aerosol can should be shaking during several minutes after knocking of the little balls appears.

MODENGY For the ICE Parts is applied from the distance of 20 to 25 centimeters in 2 layers. Intermediate drying between the layers makes at least 20 minutes (the product must turn matt).

Final curing of the coating is held at room temperature during 12 hours, or in a kiln within at least 20 minutes at heating up to +170 °C.

Single application of MODENGY For the ICE Parts coating enables to improve significantly reliability, and to extend service term of the steering rack ‘dried crust’.
