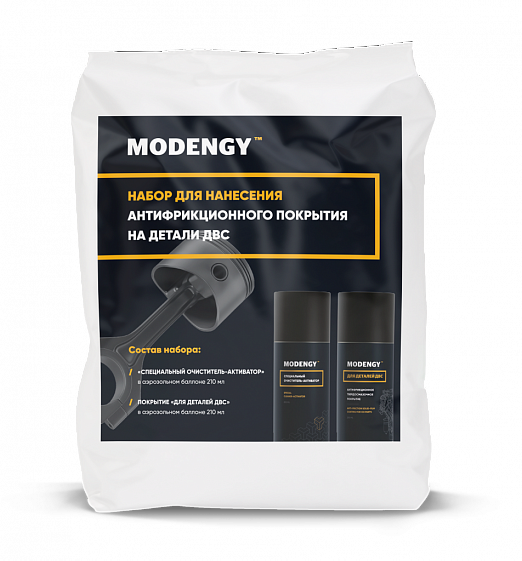

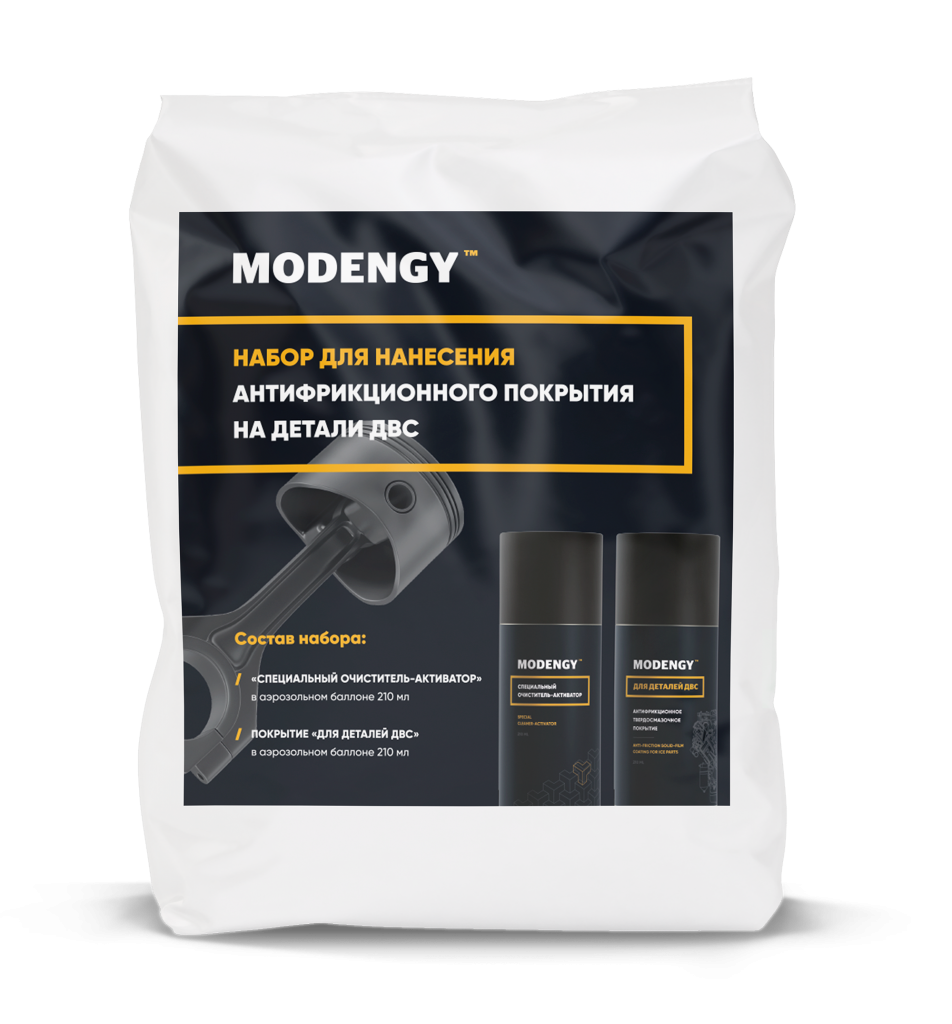

MODENGY™ Kit to apply the anti-friction coating onto the ICE parts
The Kit includes anti-friction solid-film coating + special cleaner-activator

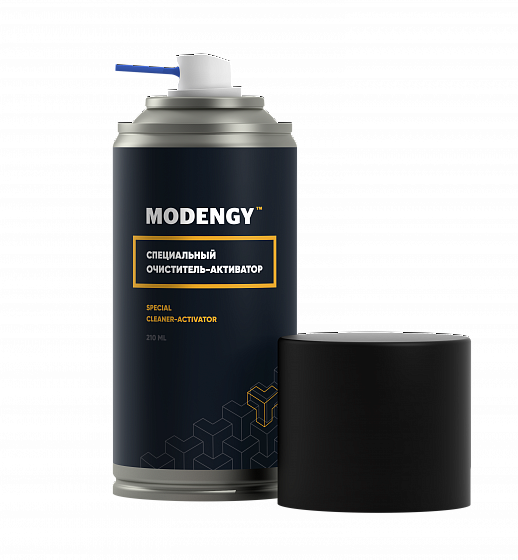

The Kit is intended to prepare, activate the surfaces of the engine parts, and to apply the anti-friction solid-film coating onto them afterwards. It consists of 520 ML aerosol can of MODENGY Special Cleaner-Activator, and 210 ML aerosol can of MODENGY For the ICE Parts anti-friction solid lubricating coating
Package sizes:
MODENGY ICE Parts Anti-Friction Coating Applying Kit in action
Advantages
- It increases the engine’s efficiency coefficient
- It protects against scuffing at the engine cold start
- It prevents scuffing in so called ‘oil starvation’ mode
- It serves as anti-emergency coating when engine gets overheated
- It reduces fuel consumption
- It reduces friction
- It reduces noise
- It slows down wear
- It has the balanced aerosol package design with accurately configured spraying parameters to apply in a uniform way
- It cures at room temperature
- It extends the engine service life
Examples of serial applications of MODENGY coatings
Specifications
- Colour: grey-black
- Service temperatures range: -70 … +260 °С
- Standard coating consumption: 210 ml / m²
- Cure temperature / time: +170 °C / 20 min or +20 °C / 720 min
Applying the coating by your own
Use to prepare and clean the surface. Only it guarantees good adhesion
Keep shaking the aerosol can with the coating for at least 3 minutes after you hear tapping of a little ball inside it
Spray the coating from the aerosol can onto the surface to be treated from the distance of 20 to 30 cm
Let the coating dry for at least 20 min. at room temperature until opacity appears (it’s the interim air-drying stage)
Apply the second layer of the coating over the dried previous one, if necessary
Coating fully cures and achieves readiness to be used after at least 12 hours at +20 ⁰С, or after at least 20 minutes at heating in the kiln up to +170 °C
Preparation
Surface preparation affects greatly on coating adhesion quality and its operating properties!
-
Additional preliminary surface preparation with mechanical and chemical methods significantly improves coating performances and its service lifetime
-
Thoroughly clean and degrease the surfaces to be covered. Use MODENGY Special Cleaner-Activator for final step of surface preparation
-
No oil, carbon deposit residues, fingerprints, and any other contaminations are acceptable on the surfaces to be covered
Applying
-
Keep shaking the aerosol can with the coating for at least 3 minutes after you hear tapping of little balls inside it
-
Apply it as an uniform thin layer by spray out of the aerosol can from the distance of 15 to 20 cm
-
Don’t permit any sags. If it has happened, remove uncured the uncured coating with MODENGYTM Special Cleaner-Activator, then prepare the surface once again, and repeat applying procedure
-
It is acceptable to apply 2 layers with a break for drying for at least 20 minutes at +20 °C between them
-
The recommended thickness of the cured coating is 8 to 16 µm
-
As soon as the coating has been applied, clean the aerosol can spraying head nozzle. To do so, turn the aerosol can bottom up and press the spraying head button for several times directing the jet away from yourself
Curing
- Coating fully cures and achieves readiness to be used after at least 12 hours at +20 ⁰С, or after at least 20 minutes at heating in the kiln up to +170 °C
Solvent
- Use MODENGY Special Cleaner-Activator to degrease the surfaces, activate surfaces and remove uncured coating off them
