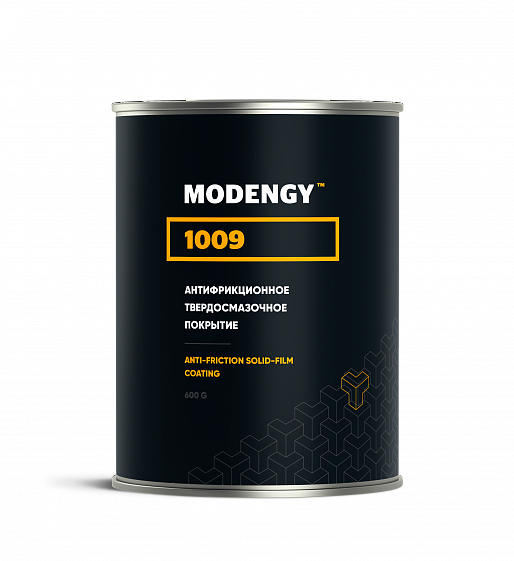

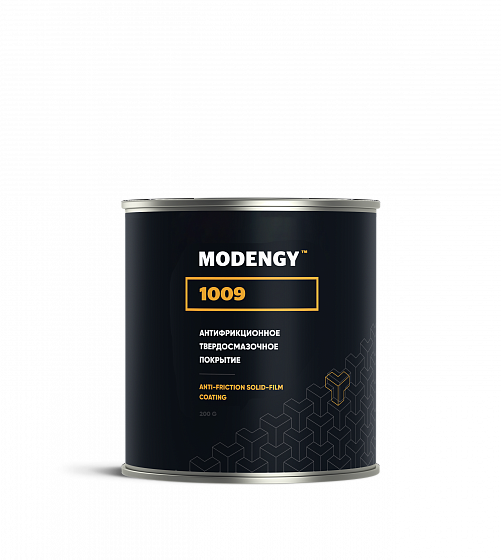

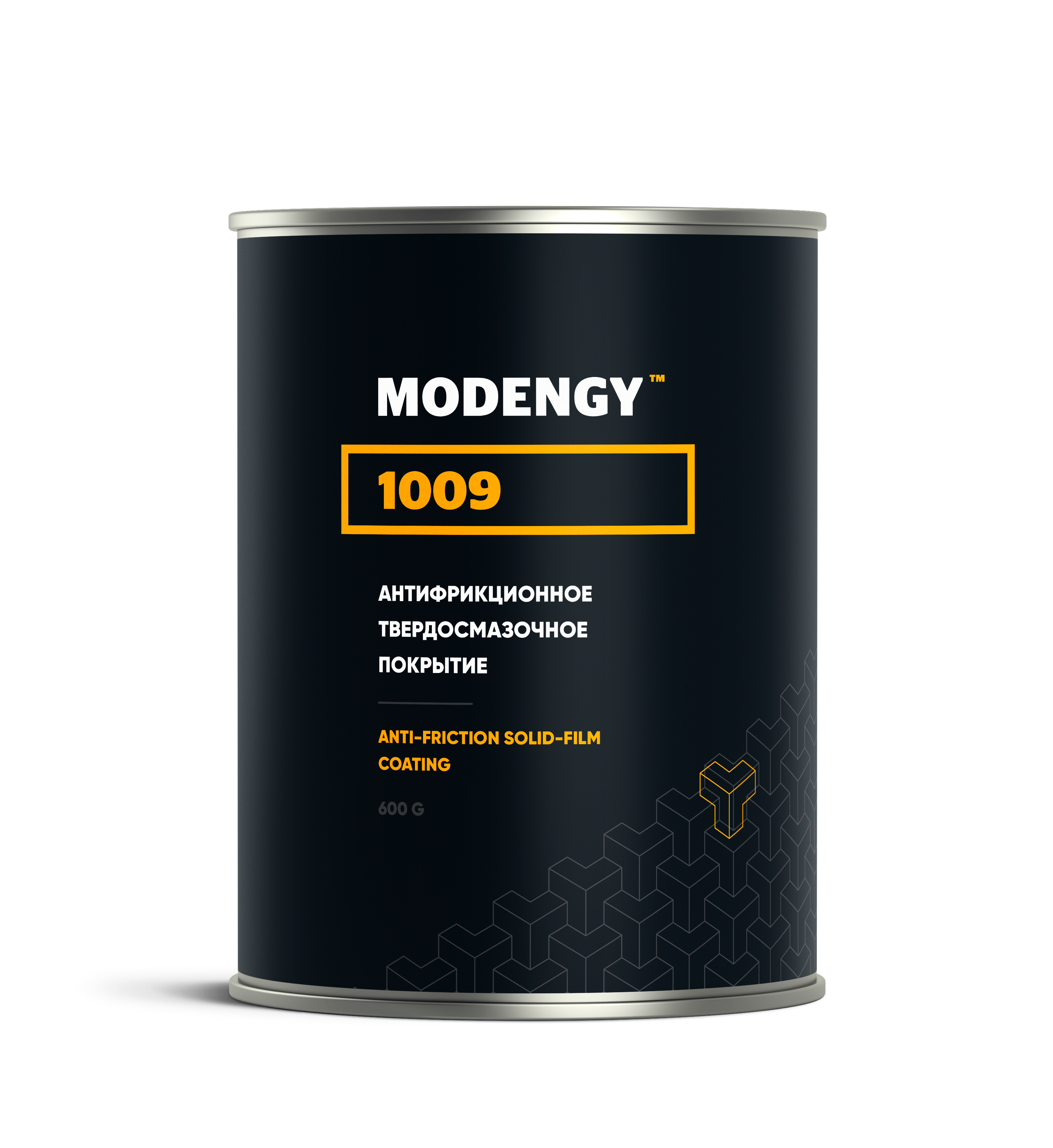

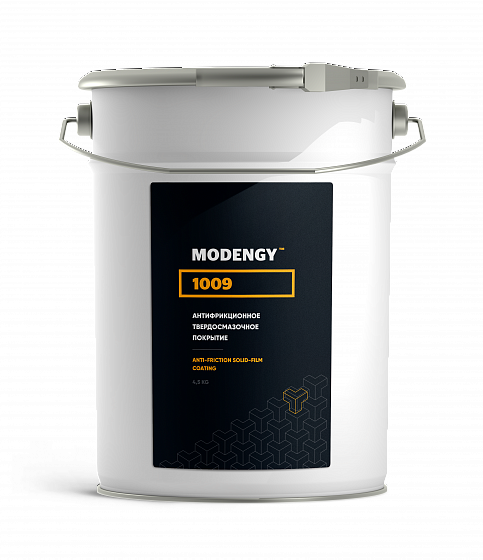

MODENGY 1009
200 G
600 G
4,5 KG
Anti-friction solid-film coating based on polytetrafluorethylene (PTFE)
It is used in the parts of car locks, hinges, fastening elements; threaded connections in the instrument-making industry; slide guideways in printing equipment; truck cranes telescopic booms; friction units exposed to heating, dust, moisture, and chemically aggressive substances – where oils and greases are non-effective
Package sizes:
MODENGY 1009 in action
Before
After

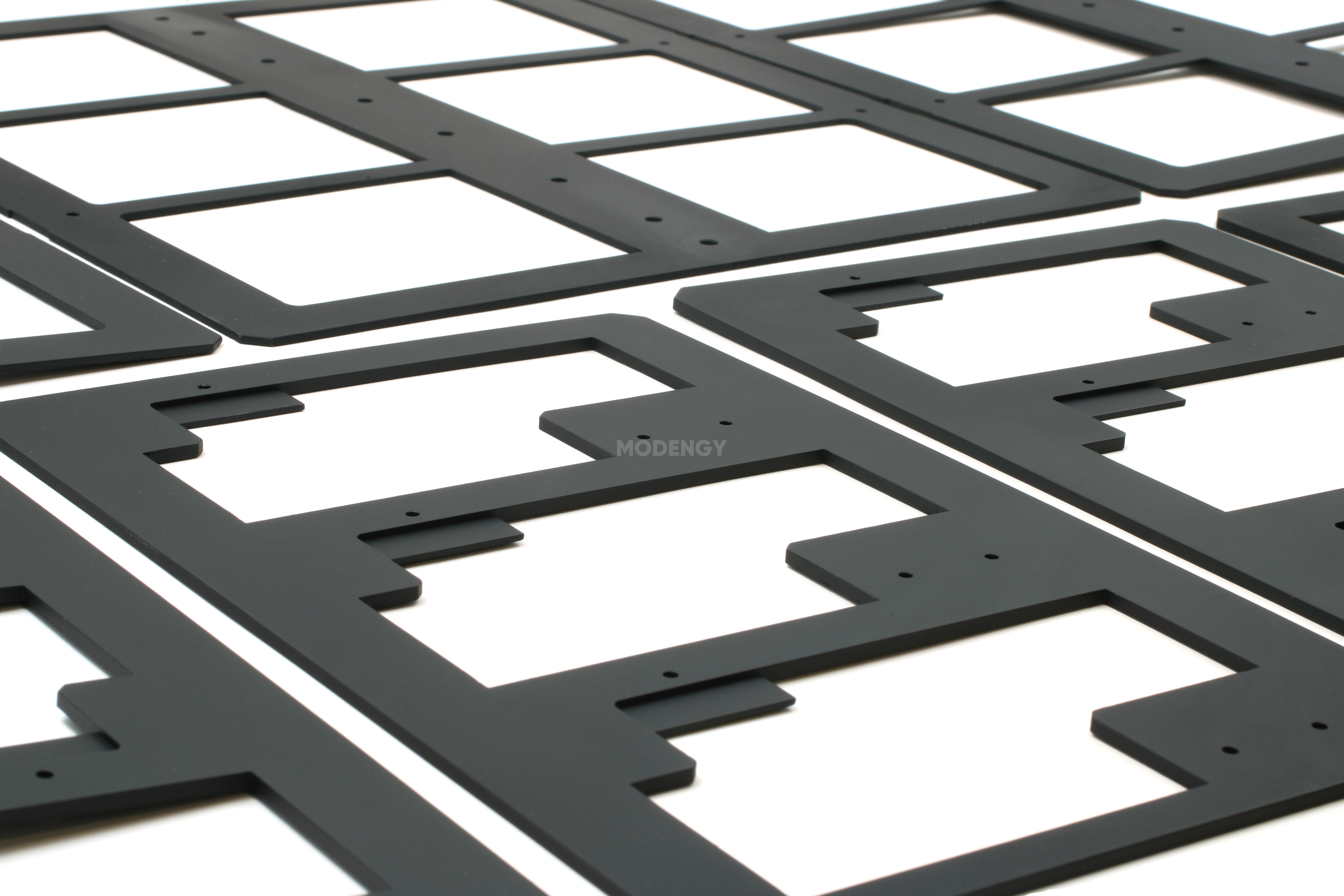

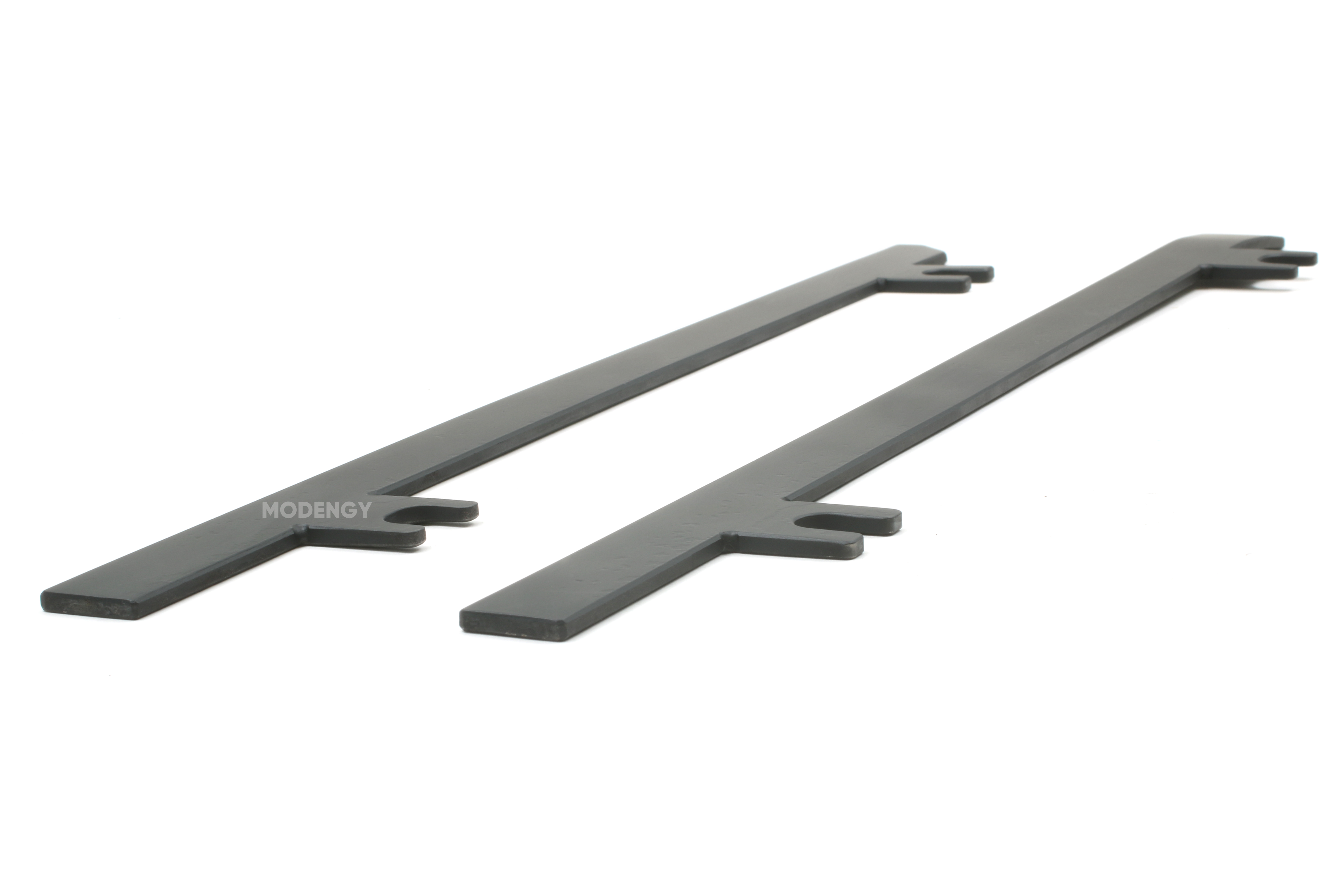

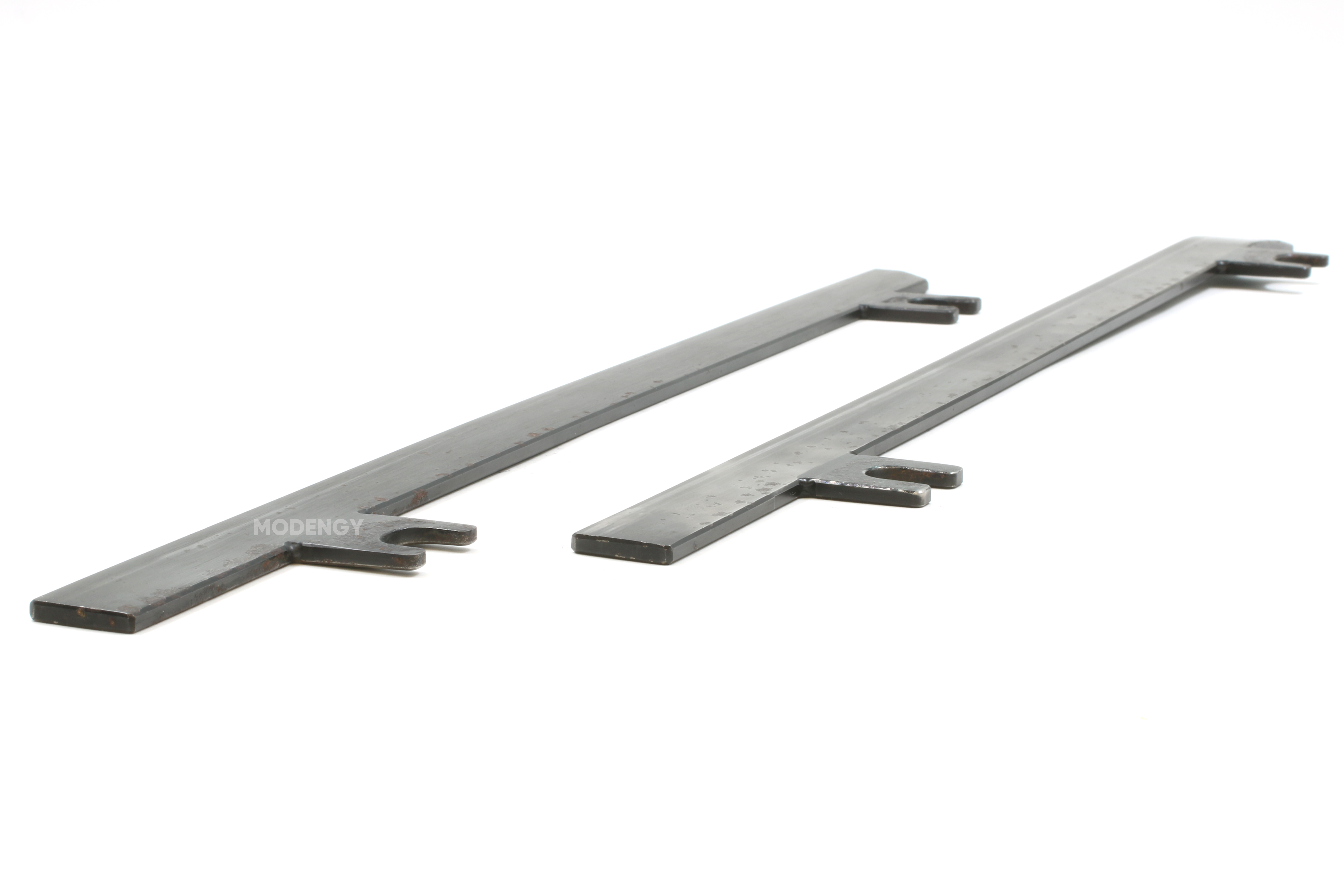

In order to improve glass containers sliding along the medical equipment side guides, MODENGY 1009 anti-friction coating based on polytetrafluorethylene is applied.
Before
After
They form a thin lubricating layer on the surfaces that reduces friction and wear, provides fast forming of an air wedge while he turbines are moving to the operating mode.
Before
After
For the purpose of extending service lifetime of the parts under aversive operational conditions as well as of preventing forming the deposits, MODENGY 1009 coating is applied onto the metal surfaces of the sensors.
Before
After
To provide aesthetic appearance for the parts, MODENGY 1003 and MODENGY 1009 solid-film coatings are used. MODENGY 1009 also protects the parts against corrosion extending their service lifetime. The coatings need no renewing for the entire operation period of the tyre studding devices.
Before
After
In order to prevent scuffing of the parts, MODENGY 1006 and MODENGY 1009 anti-friction solid-film coatings are used. They reduce friction in rotation process of the cuff, and thus prolong service lifetime, and operation reliability of the unit.
Before
After
To make the gimlet entering into the wood easier, and to provide corrosion protection, MODENGY 1014 and MODENGY 1009 anti-friction solid-film coatings are applied onto the holder surfaces.
Before
After

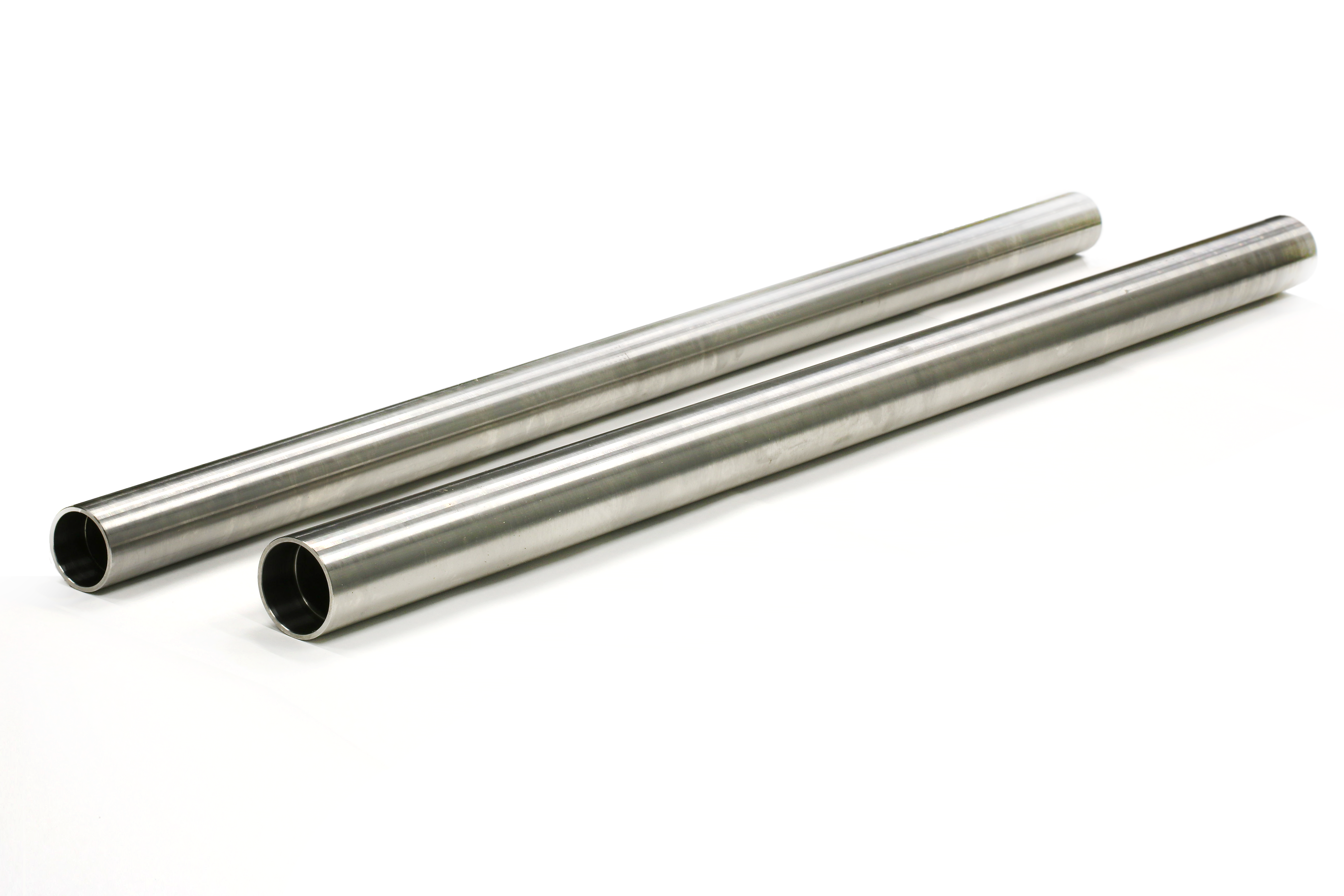

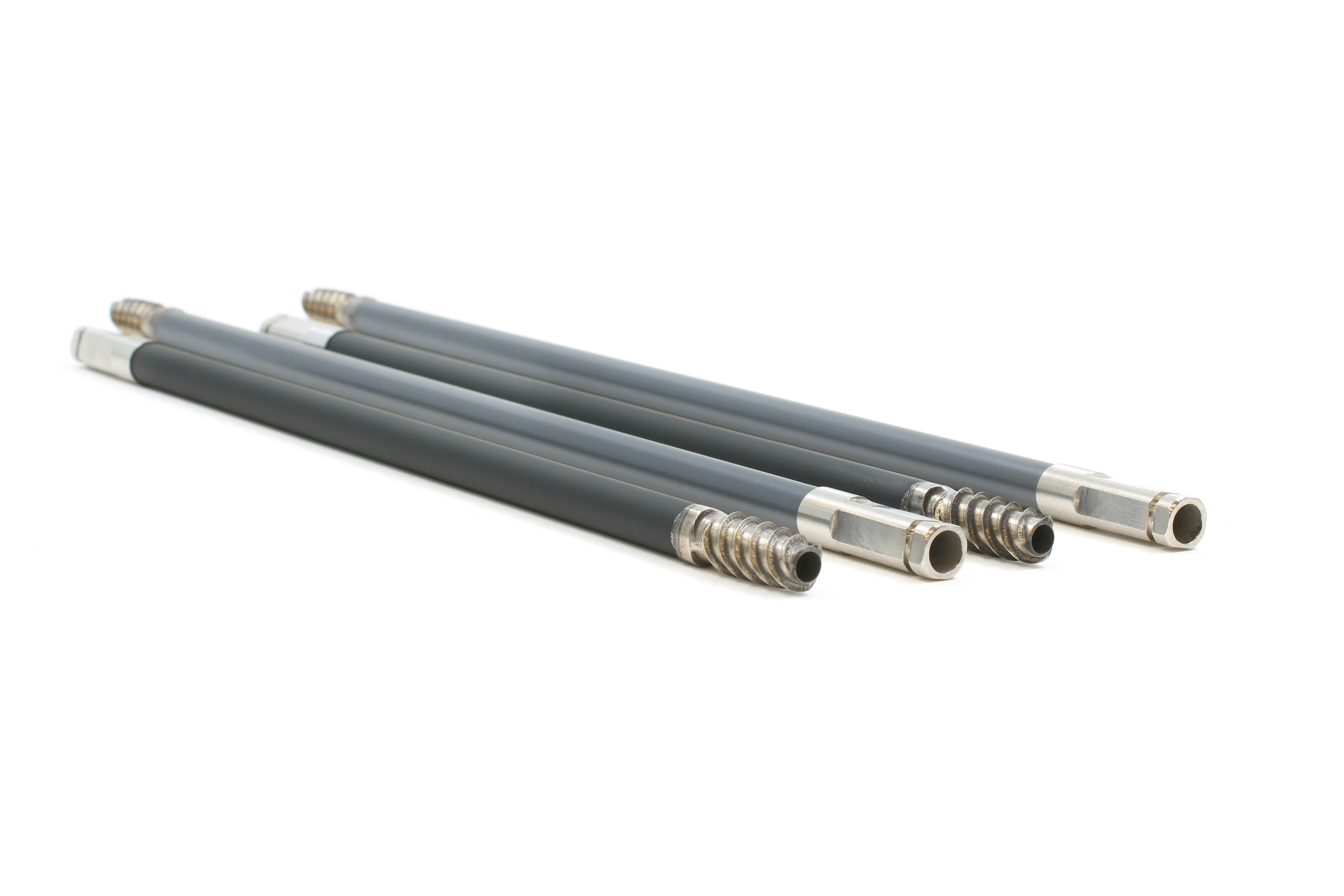

To make belt moving easier, MODENGY 1009 and MODENGY 1014 anti-friction solid-film coatings are applied onto the shafts. Due to this, smoothness of the products moving along the conveyor improves, and wear of the parts in the metal-to-polymer pair reduces.
Before
After

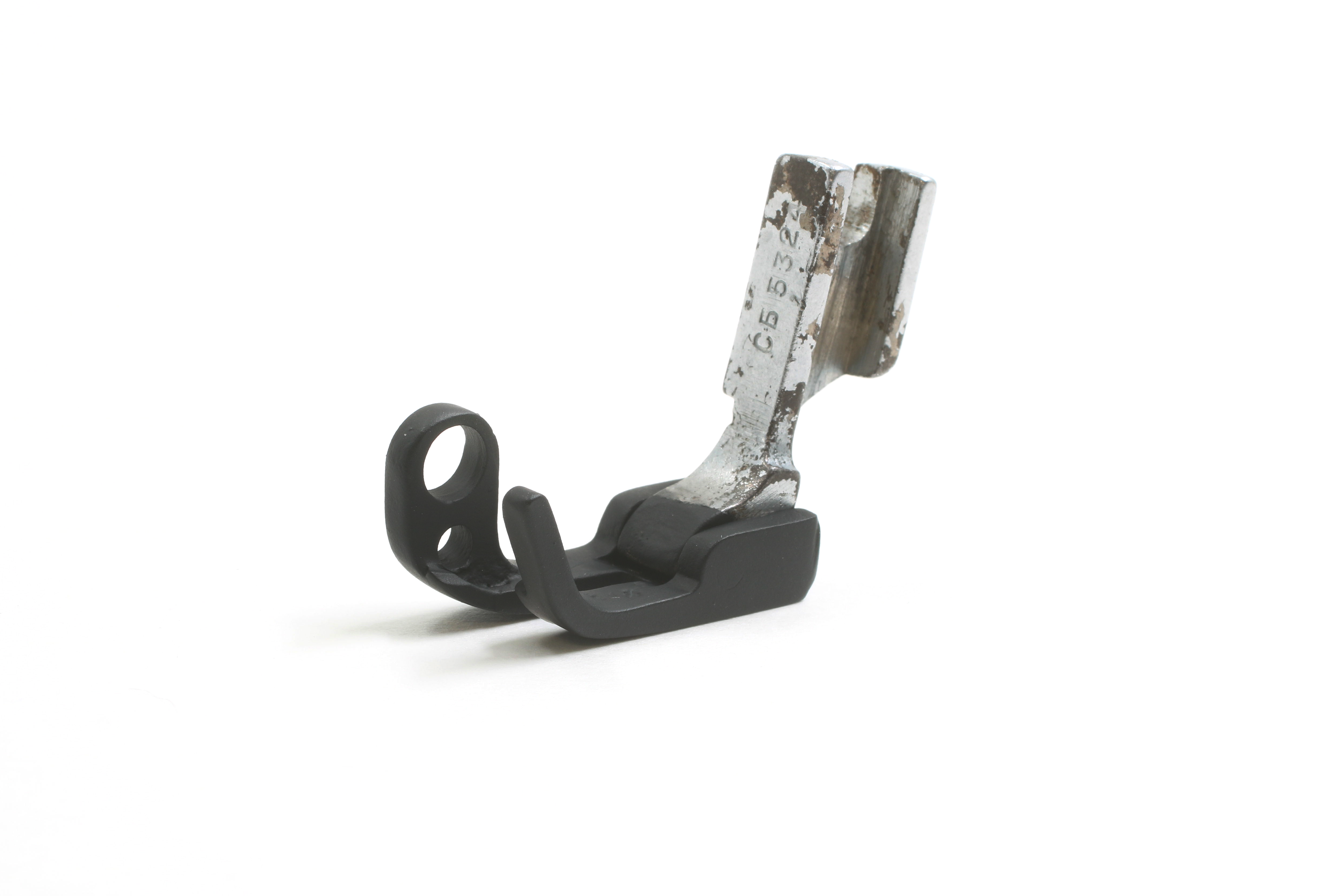

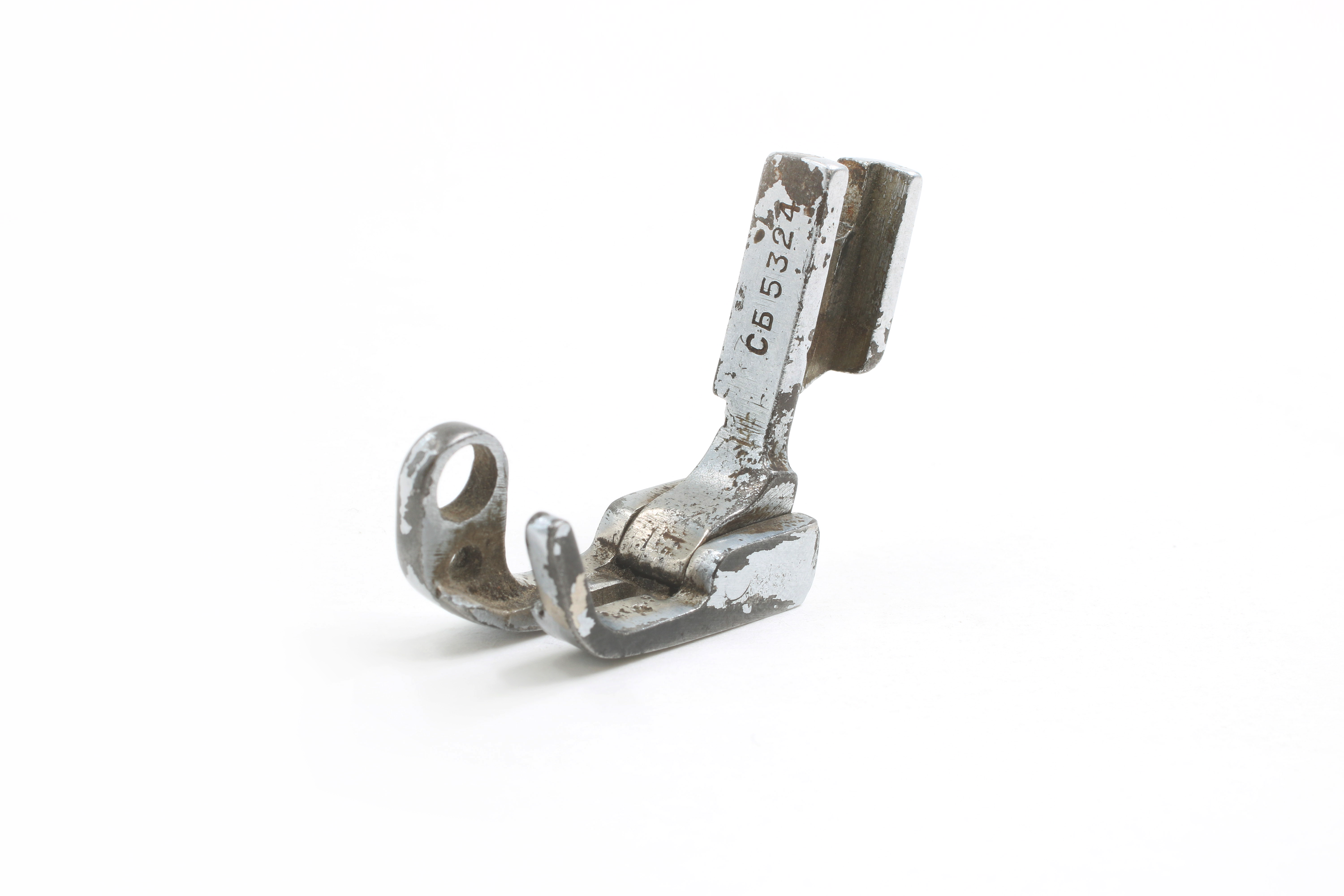

To reduce friction coefficient between the metal surface of the presser foot, and the leather material, MODENGY 1009 anti-friction solid-film coating is used. It provides easy presser foot sliding along the tissue without crumpling. Amount of defective products goes down, and sewing speed gets faster.
Before
After

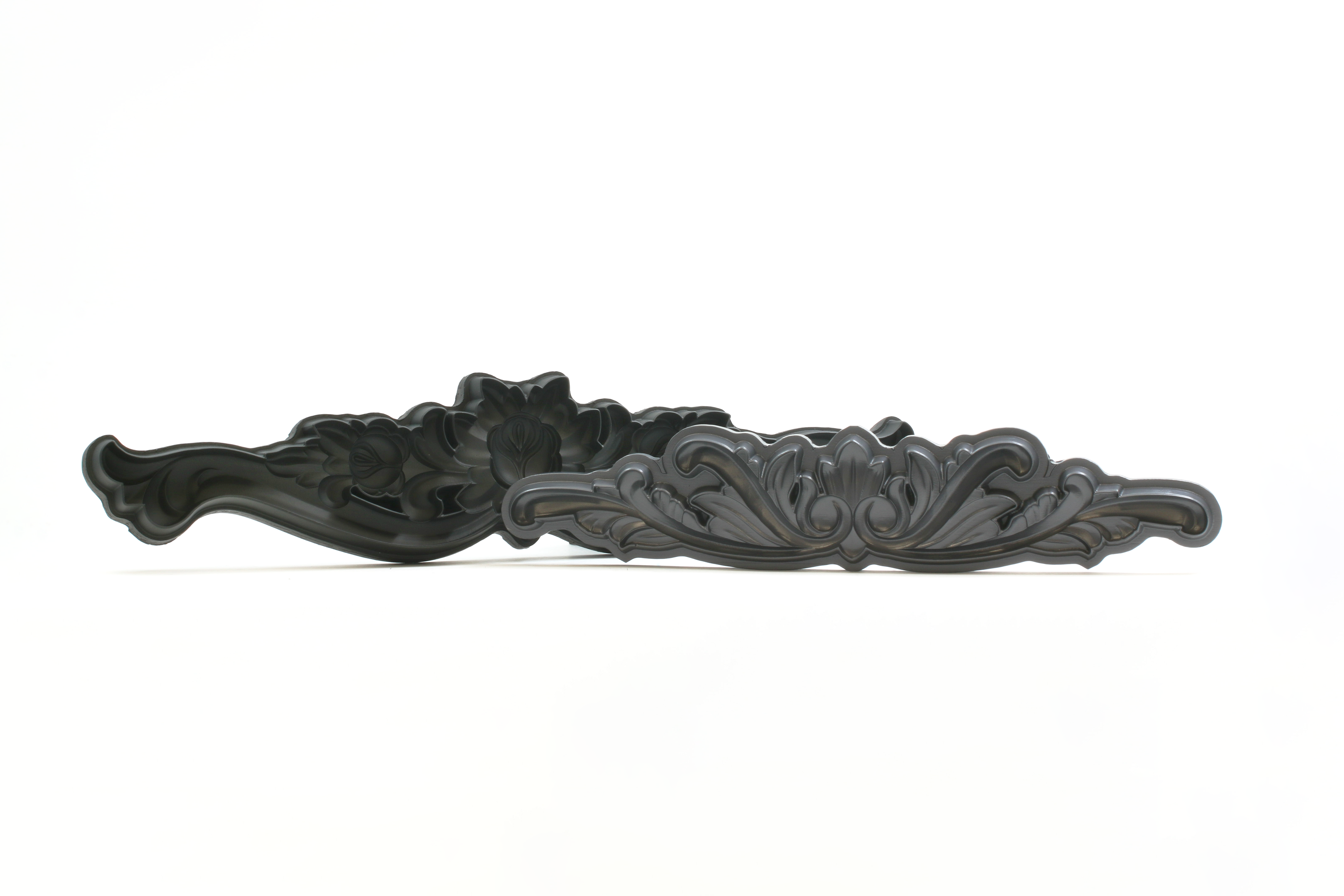

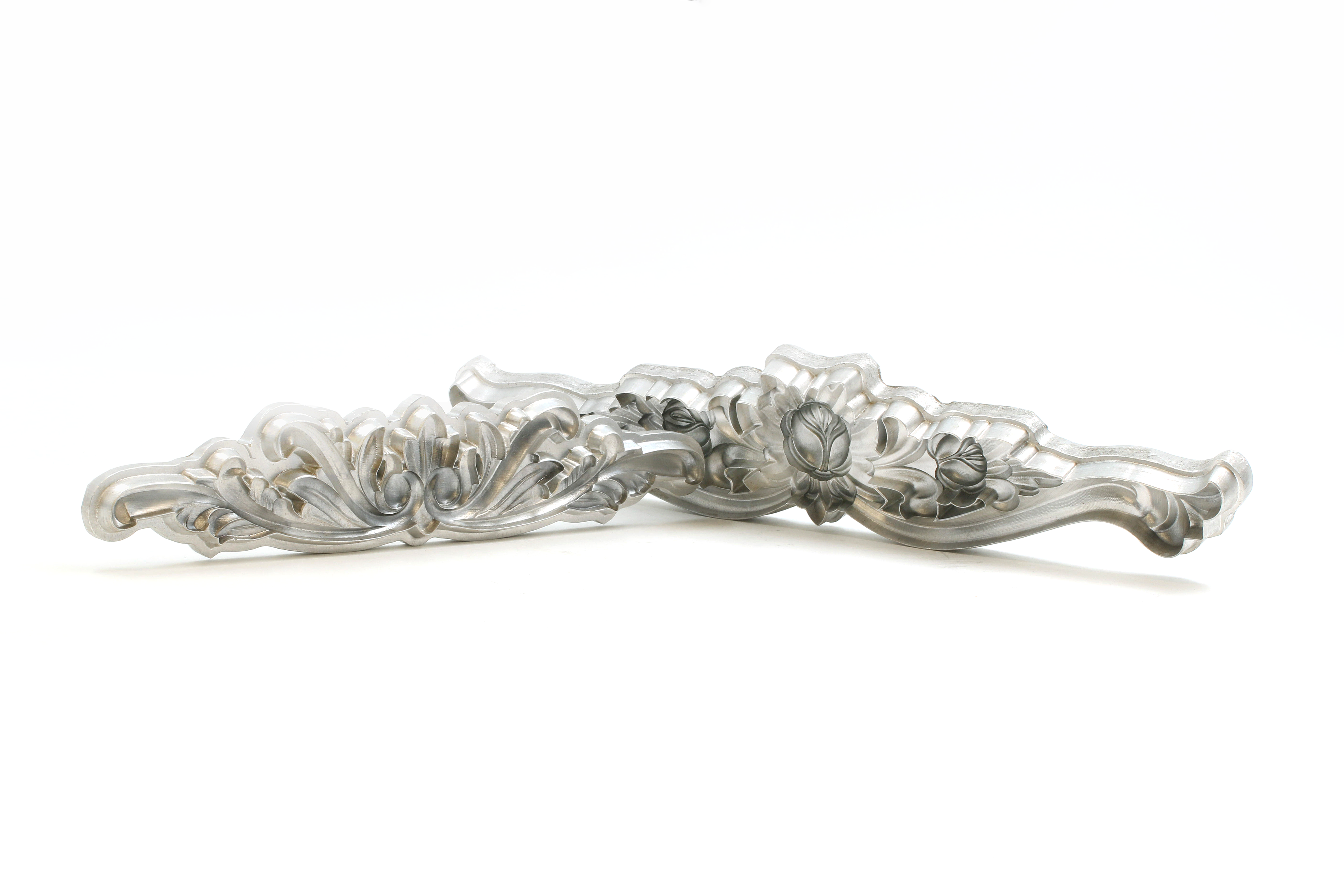

MODENGY 1009 and MODENGY 1014 coatings having anti-adhesive properties help prevent paste sticking to the operating surface of the moulds, decrease number of defective items in process of their production, extend service lifetime of the equipment.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1013 Special Solvent to rinse the equipment after the coating is applied, to remove uncured coating, to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low friction coefficient
- Chemical resistance
- Wide service temperature range (-100 to 250 °С)
- Operability in dusted environment
- Non-toxic after complete cure
- It prevents stick-slip motion
- Long service lifetime (depending on the unit construction it can also serve as long-term lubrication)
- It makes parts assembly by robots faster
- High anticorrosive properties
- Aesthetic appearance (black matt colour)
- Due to not high polymerization temperature, it may be applied onto the plastics
- It may be used together with oils and greases
- It fits for electrostatic spraying
- High hydrophobic properties - it prevents moisture gathering, and freezing-on
Specifications
- Colour: black matt
- Service temperature range: -100 to +250 °С
- Standard coating consumption: 118 g/m²
- Cure temperature/ time: +120 °С / 30 min
It is used in the following typical units
Slide bearings and guideways, threaded connections, sealing devices, other units with metal-to-metal, metal-to-plastic, plastic-to-plastic friction pairs
