MODENGY 1071
600 G
4,5 KG
Anti-friction solid-film coating for foil bearings
The coating is applied onto the petal operating surfaces, and performs the functions of reducing friction and protecting against wear at the moments of starting and stopping. Due to the adaptive mechanism realized in the coating composition, friction coefficient remains stable within a wide range of contact pressure.

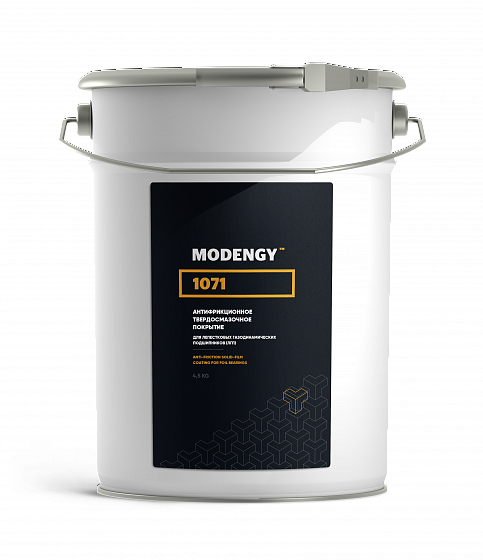

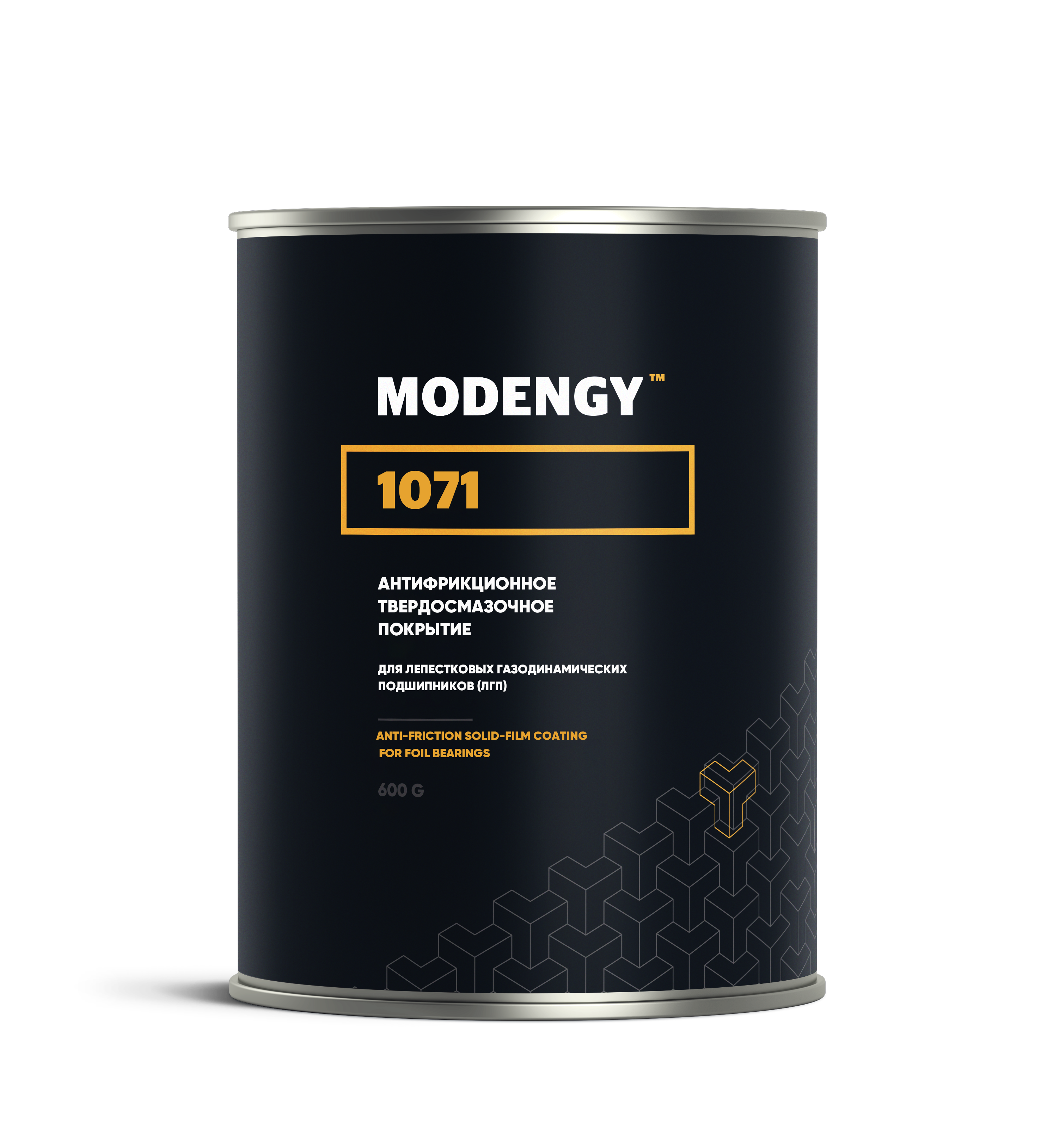

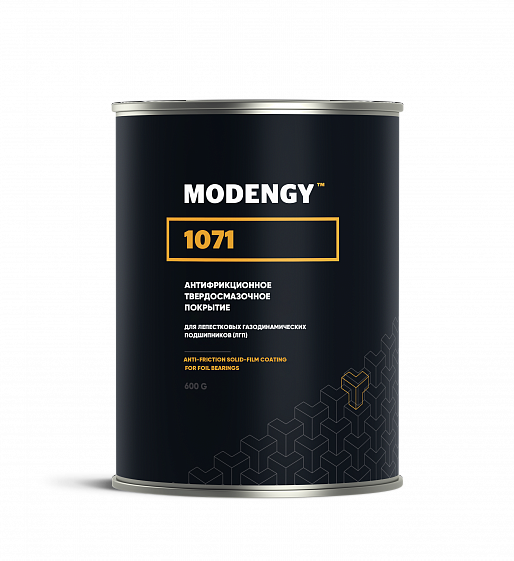

Package sizes:
MODENGY 1071 in action
Before
After

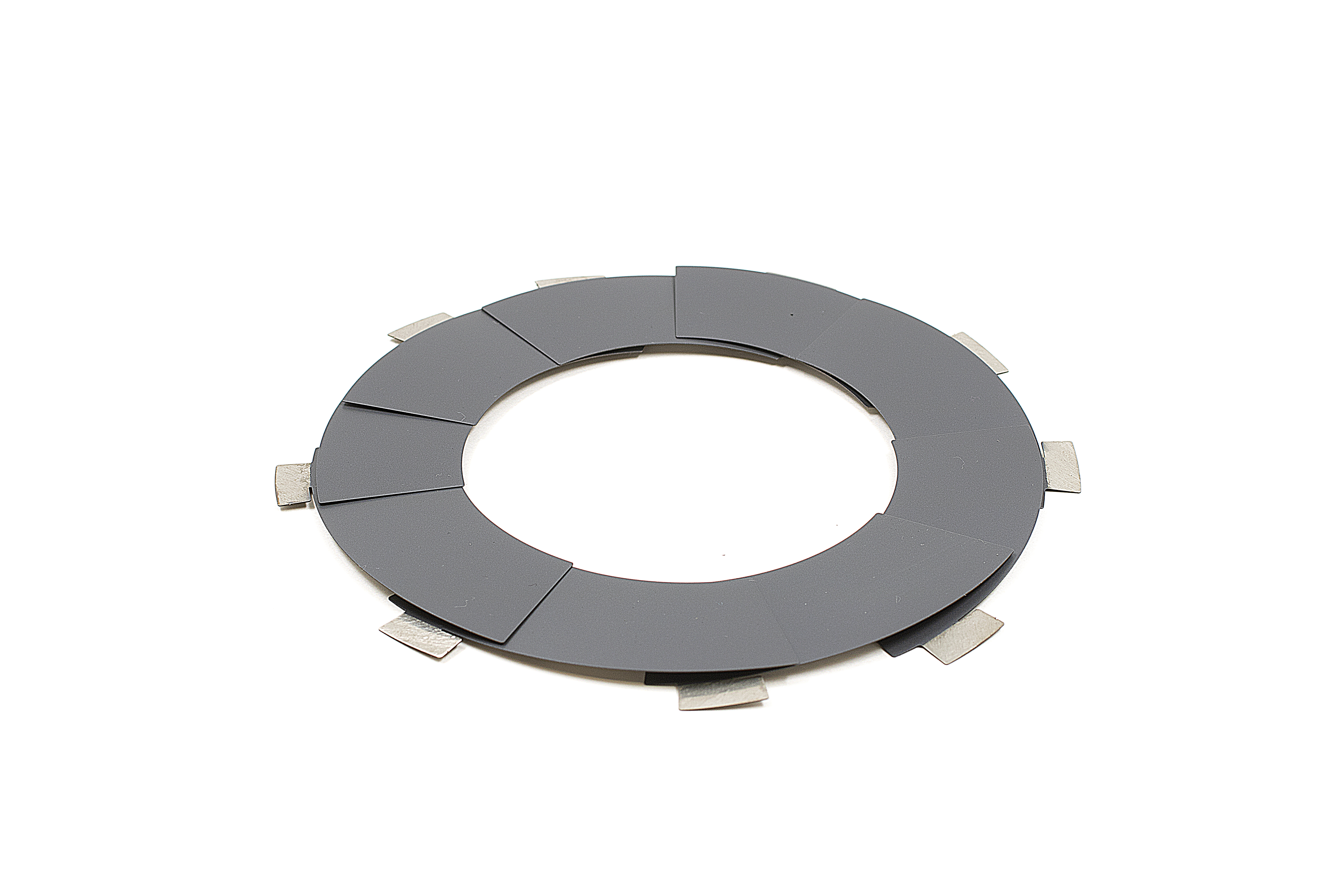

MODENGY 1014 and MODENGY 1071 solid-film coatings are applied onto the petals surface. They have enhanced antiscuffing properties, and load-carrying capacity, that’s why they effectively protects the parts against wear, and provides reliable operating of the unit.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1015 Special Solvent is intended to rinse equipment after the coating is applied and the uncured coating is removed
- MODENGY 1013 Special Solvent to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low and stable friction coefficient
- Wide service temperature range (-200...+260 °C)
- Resistance to temperature drops
- Chemical resistance
- Smooth texture
Specifications
- Colour: grey
- Service temperature range: -200… +260 °C
- Coating standard expense allowance at 100% transfer, and film thickness of 20 µm: 170 g/m²
- Cure temperature / time: +200 °C / 120 min
