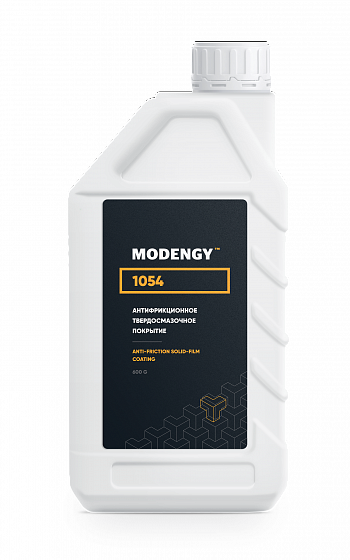

MODENGY 1054

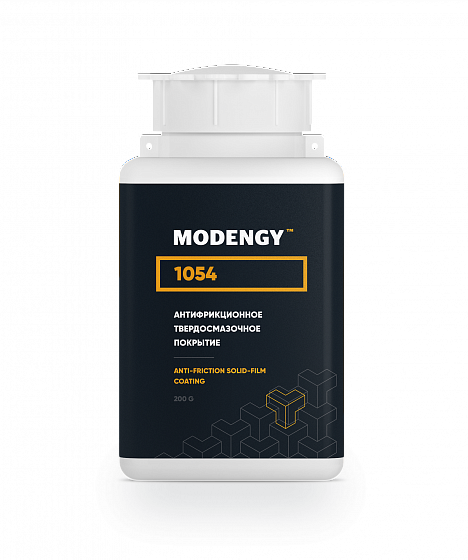

200 G Bottle

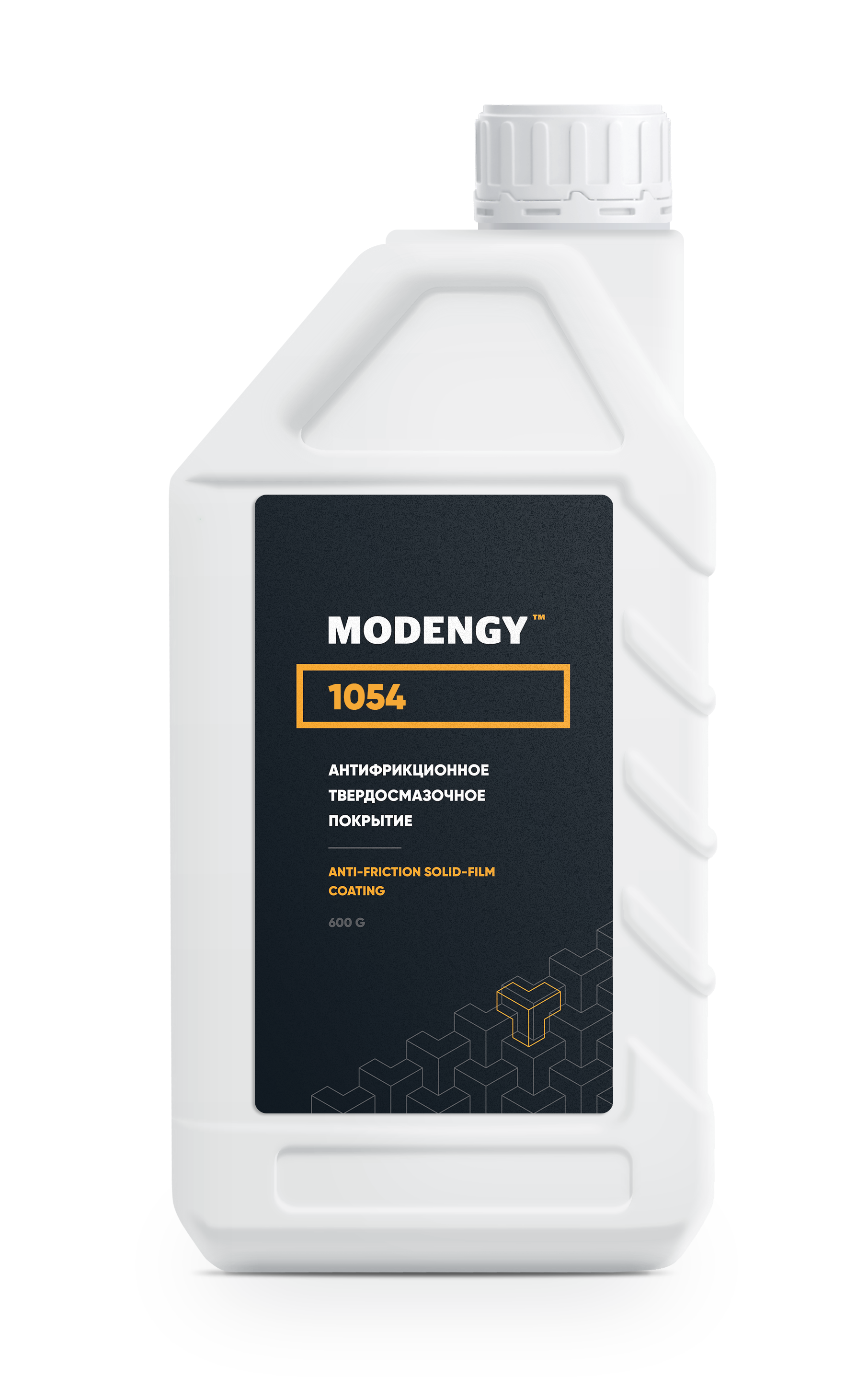

600 G Can
4.5 KG Pail
Anti-friction solid-film coating based on graphite
It is used at die stamping and molding metal parts (made of alloys of aluminum, titanic, magnesium, and other metals).
Package sizes:
MODENGY 1054 in action

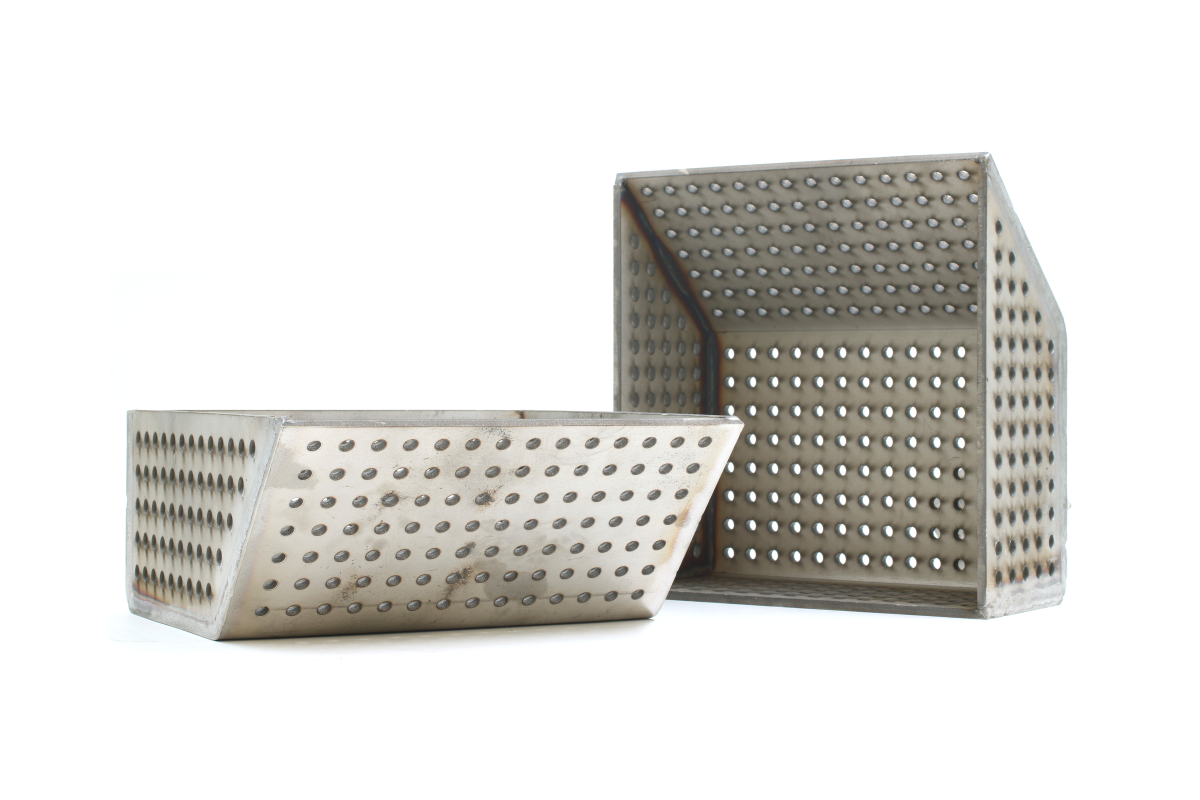

Before

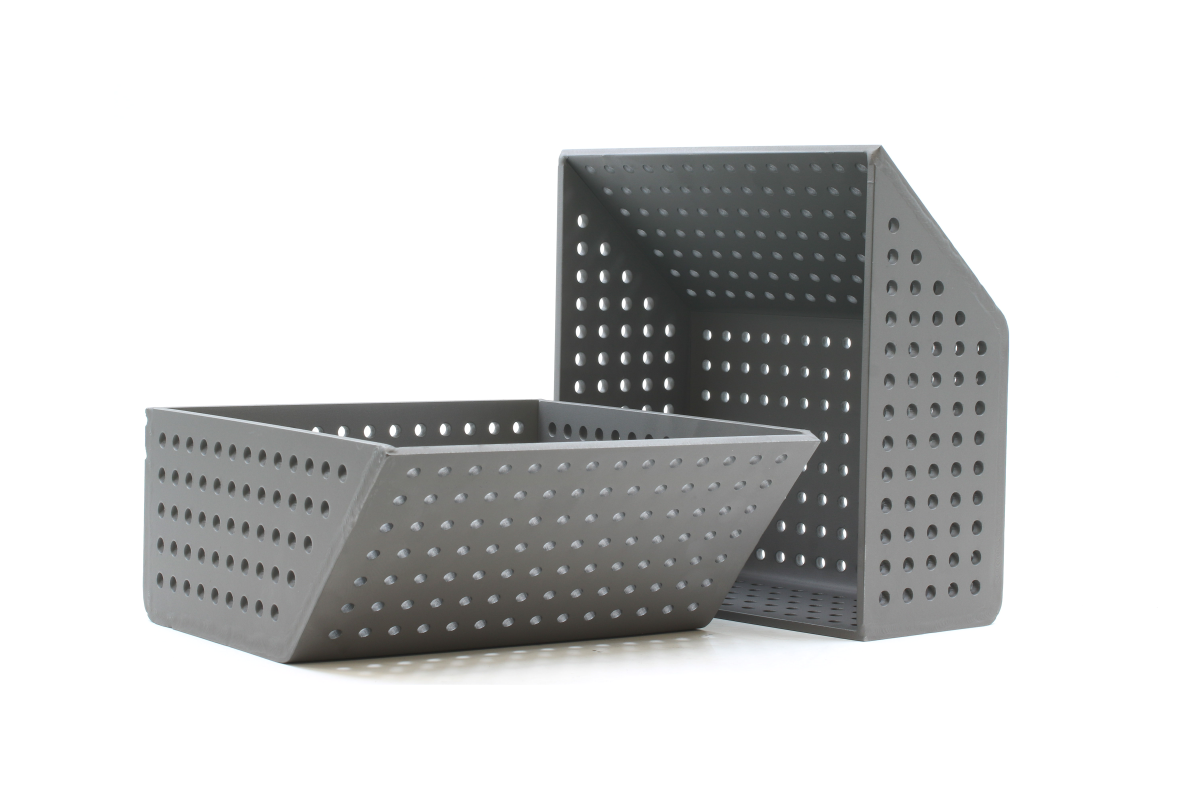

After
Application of MODENGY 1054 coating enables to make cleaning the dippers easier, to reduce mechanical impact to their surfaces, and to provide stable and efficient operation of the hot-dip galvanization lines.

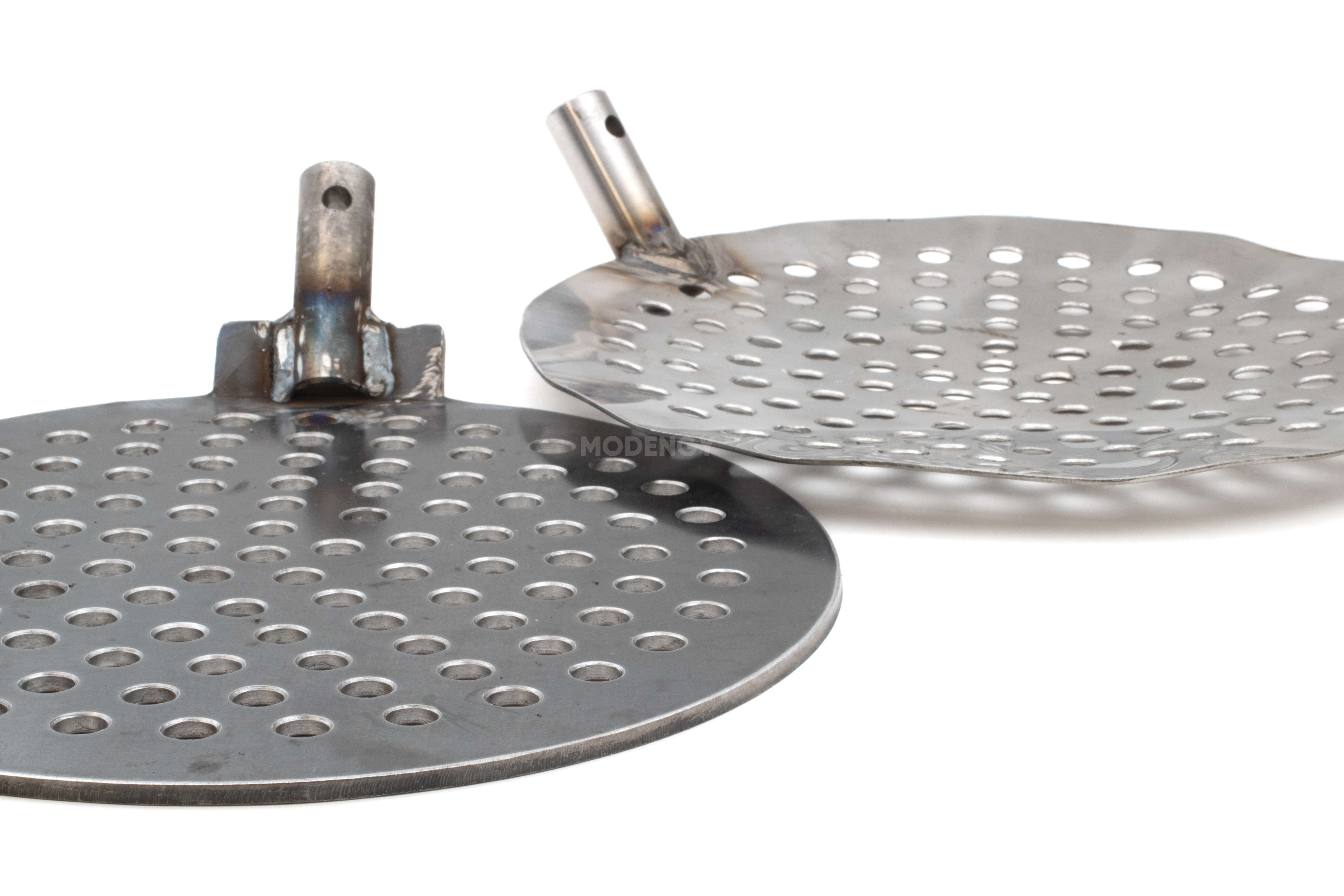

Before

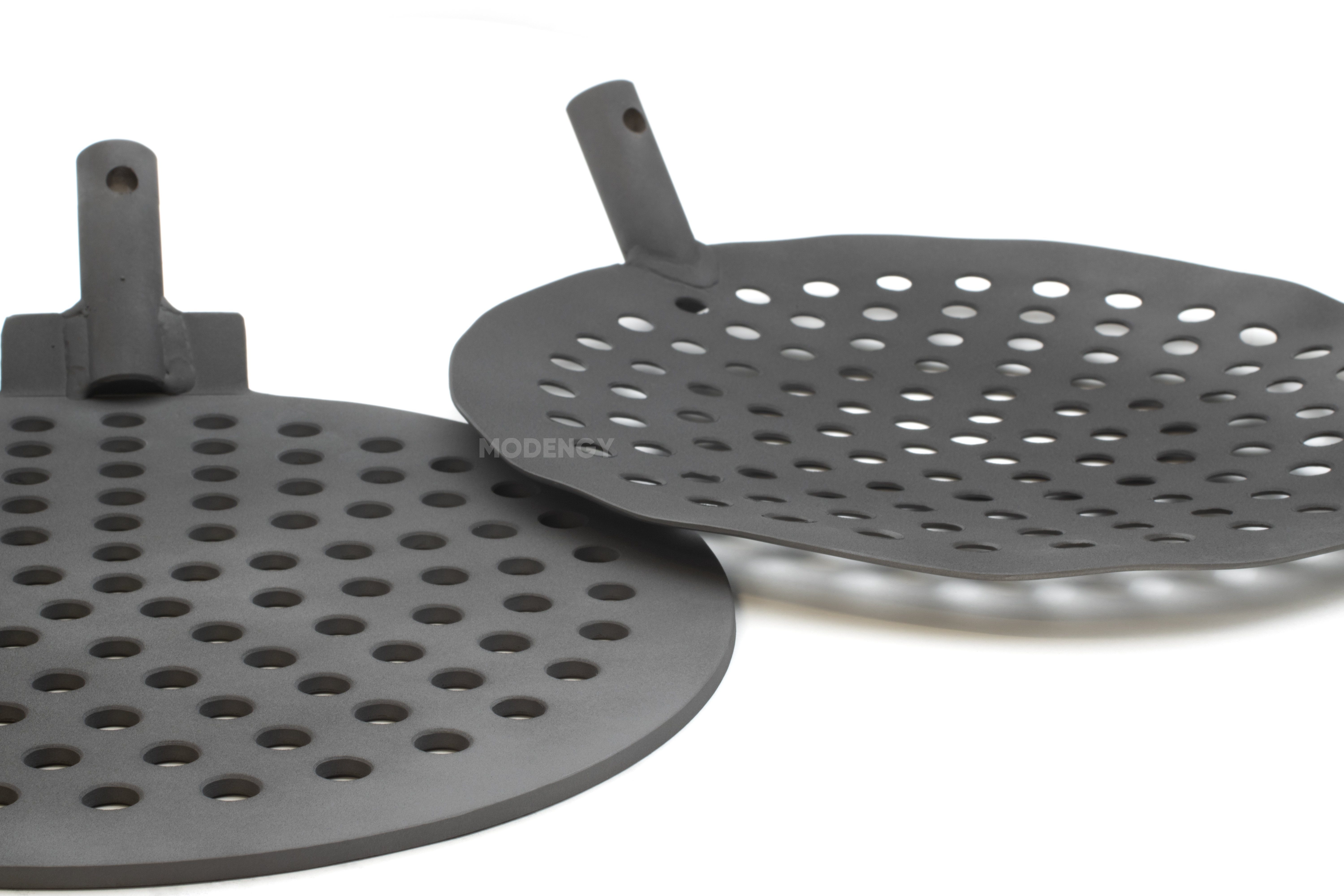

After
In order to prevent hard zinc from sticking, MODENGY 1054 high-temperature anti-adhesive coating is applied onto the ladles. It retains its properties in the air gas-polluted with harmful vapours, and at melted drops falling, that is under conditions typical for a hot galvanizing line.

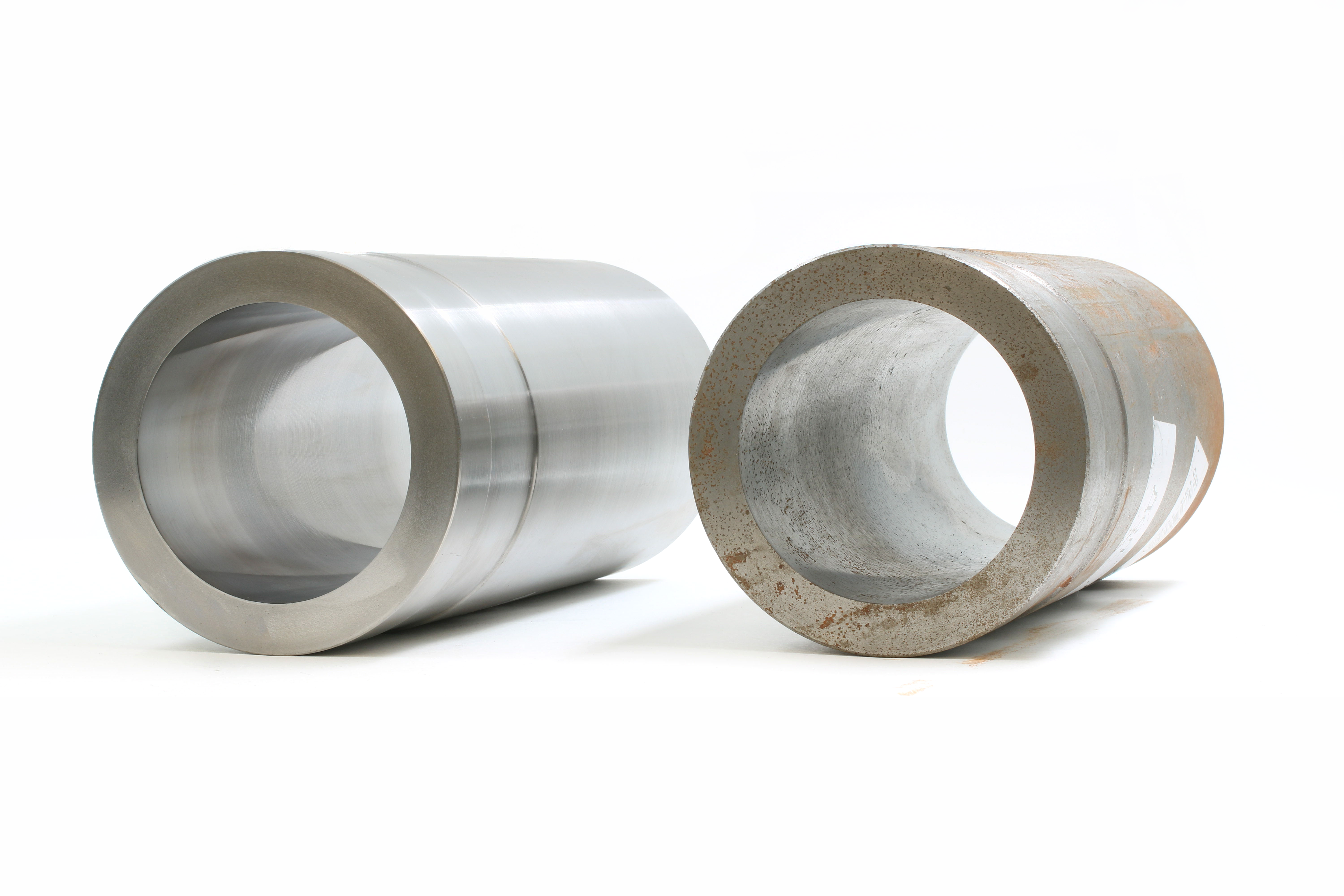

Before

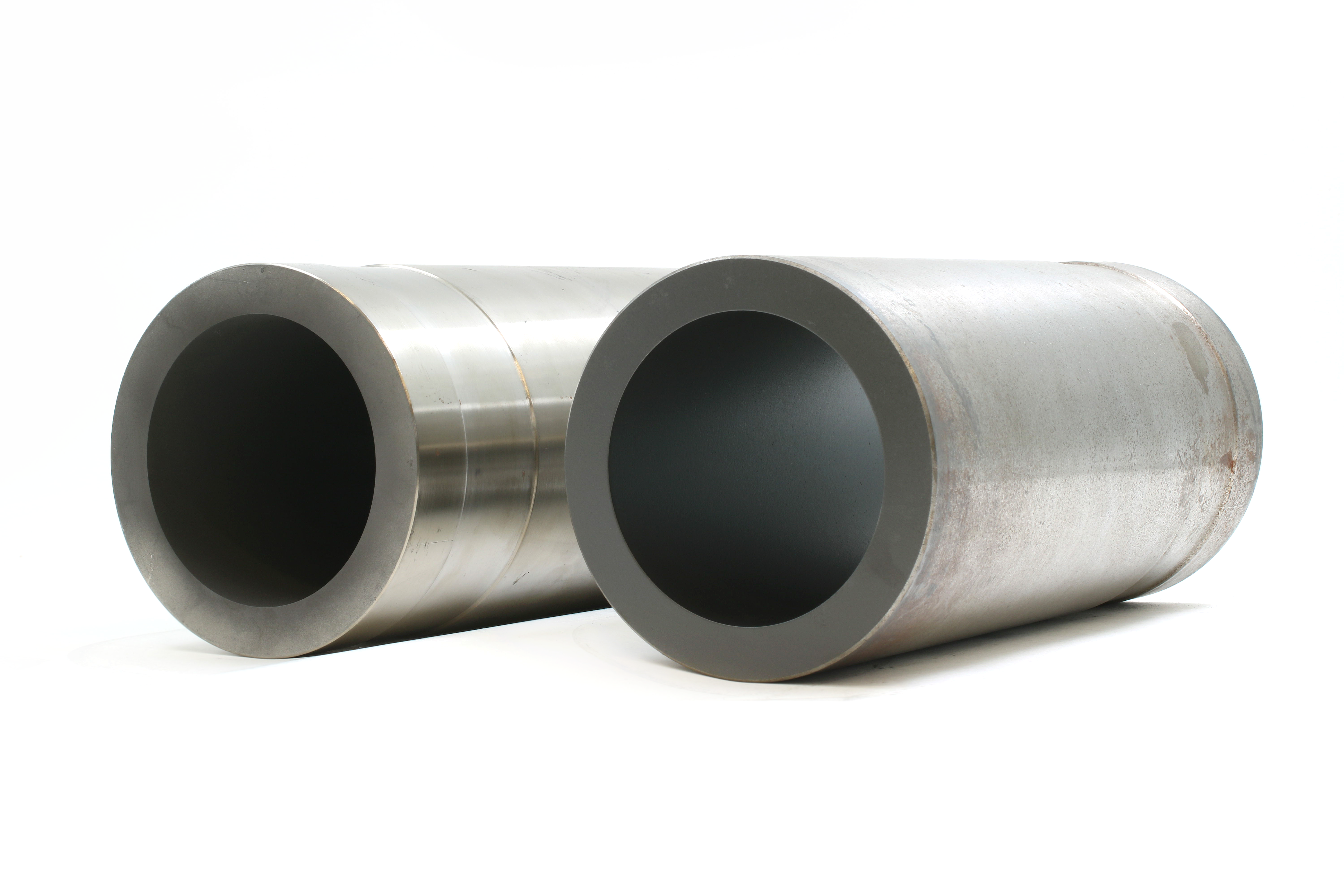

After
To solve this issue of metal sticking to the molds, MODENGY anti-adhesive coatings are used. They make taking the items out of the molds easier, and reduce number of rejects. The suitable product is getting selected by taking into account the service temperatures upper limit.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, activate surfaces
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Due to friction reduction, it reduces wear of equipment working surfaces, and energy consumption.
- High heat-resistance
- Separating properties
- High adhesion
- Water-based coating
Specifications
- Colour: grey-and-black
- Service temperature range: -100 to +650 °C
- Cure conditions (temperature / time): +90 °C / 60 min
- Standard expense of the coating: 180 g/m²
Video
High temperature and separating MODENGY 1054 coating. Video review
MODENGY coatings on the buskets of the robotic systems collecting dross
High temperature and separating MODENGY 1054 coating. Video review
MODENGY coatings on the buskets of the robotic systems collecting dross
