What are solid-film pastes?
Pastes are one of the ways to realize the solid lubrication technology.
Their base is compositions of superfine powders of solid lubricating materials (up to 60 % of the composition) distributed in base oil together with the thickener and functional additives that improve products’ properties.
Due to high percentage content of solid lubricating substances, pastes characteristics significantly exceed greases properties.
Pastes form an effective separating layer between the mated parts. The superfine particles of the solid substances fill in the surface microroughnesses caves expand in this way its support area and bearing capacity.
Such layer is capable to withstand significant loads without breaking its wholes, and protecting the parts from the direct contact and seizure.

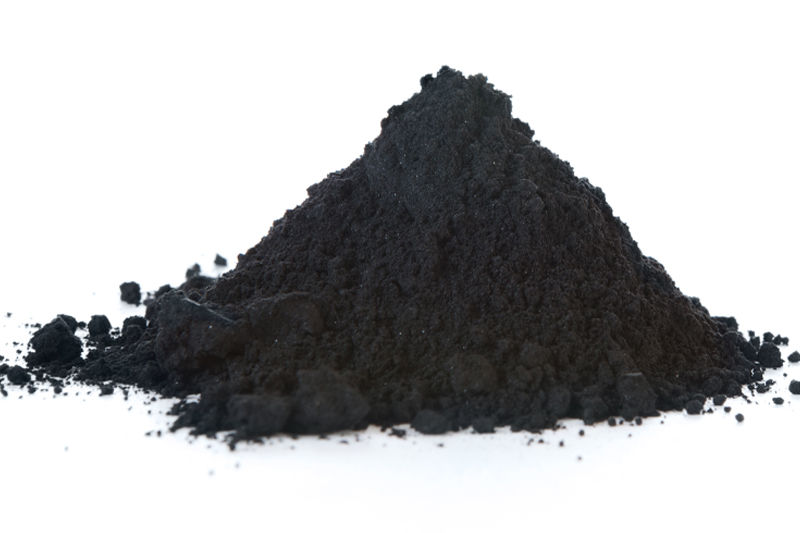

Figure 1 – Molybdenum disulfide
The solid lubricating materials with layer structure such as molybdenum disulfide (see Fig.1) and graphite has unique anti-friction properties within a wide range of loads and temperatures.
Besides, the solid lubricants are notable for their chemical inertness, thermal and oxidation stability. They remain effective after a long downtime of the unit, and enable to dismantle the unit without damages if necessary.
The service temperatures range of pastes is wide enough. However, at heating only their solid lubricating components operate while the mineral base oil evaporates out of the content at +140 °С already, and their synthetic base does at +220 °С.
MODENGY solid-film pastes product line
In the product range of the Modengy company, the innovator in the field of designing and producing lubricating materials, there is the MODENGY solid-film pastes line that includes materials with a wide range of properties and features to solve the most complicated and nonstandard tasks.
MODENGY pastes’ composition is notable for high effectiveness due to the optimal formulas and synergistic effects that were revealed as a result of researches held at its own laboratories and then used in the process of designing them.
Features and advantages of MODENGY solid-film pastes:
- Very high load-carrying capacity and anti-scoring properties;
- Low friction coefficient;
- Operating capacity at extremely high temperatures as dry lubrication;
- Easy to use and convenient to apply;
- High adhesion: the pastes cover work surfaces with an even thin layer, and are held reliably on them;
- Long service lifetime under adverse operational conditions.

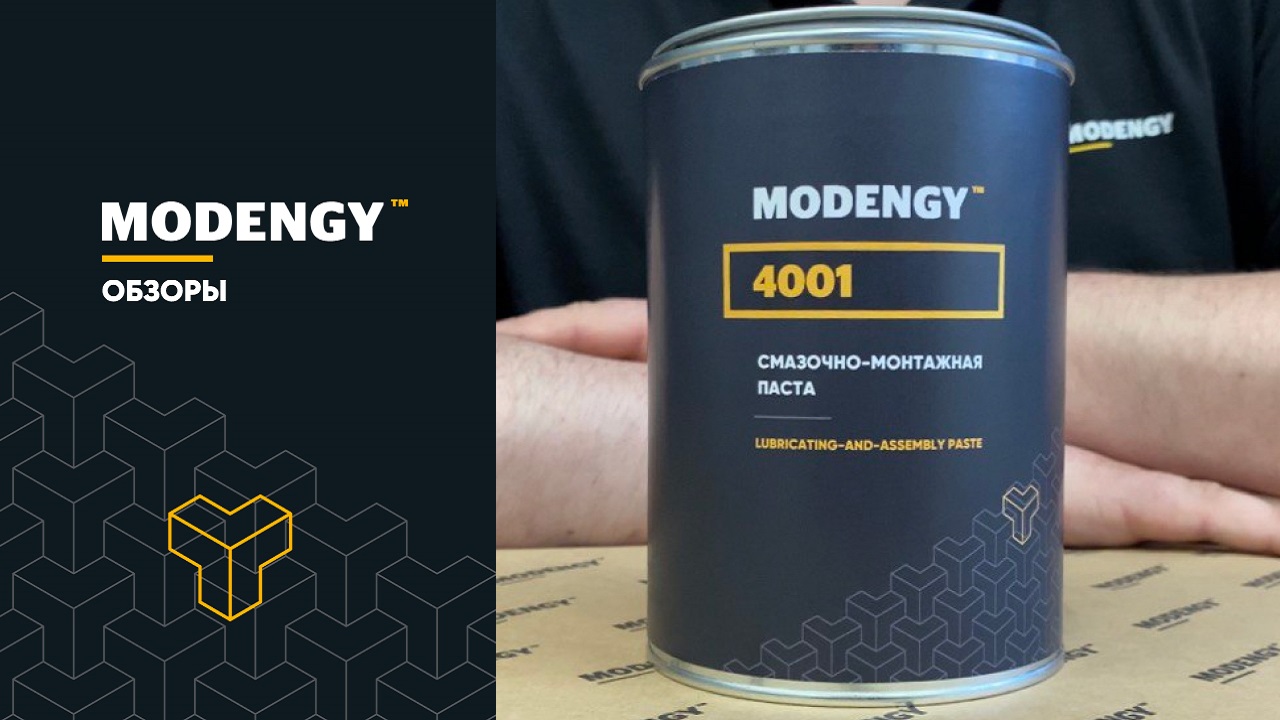

MODENGY 4001 is a lubricating and mounting paste for open units running being exposed to aggressive media (see Fig.2).
This paste has high performances that enable it to lubricate and protect the parts under the most adverse conditions: high anti-corrosive properties, heat resistance up to +1000 °С as a dry lubrication, low friction coefficient.
MODENGY 4001 is intended to be used in bearings and sliding guideways, open gearwheels, lead screws, threaded connections, spline joints, transmission mechanisms of the brake systems.

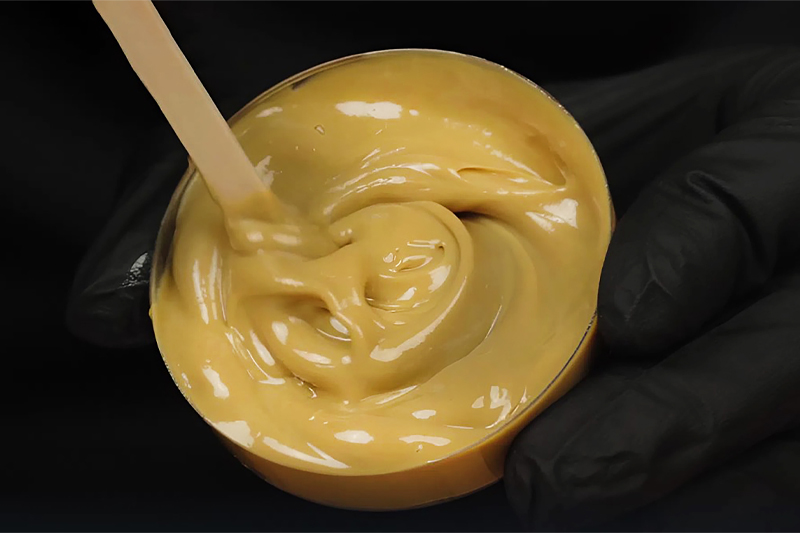

Figure 2 – MODENGY 4001 paste
This product is used in mass in the clamp hook units made of high-strength steel for long-term lubrication, and to prevent fretting wear.
This paste also fits perfectly for the equipment running under conditions of marine atmosphere and increased humidity. MODENGY 4001 so called ‘marine paste’ has water-repellent properties, is resistant towards water washout, provides long protection against corrosion and oxidation.

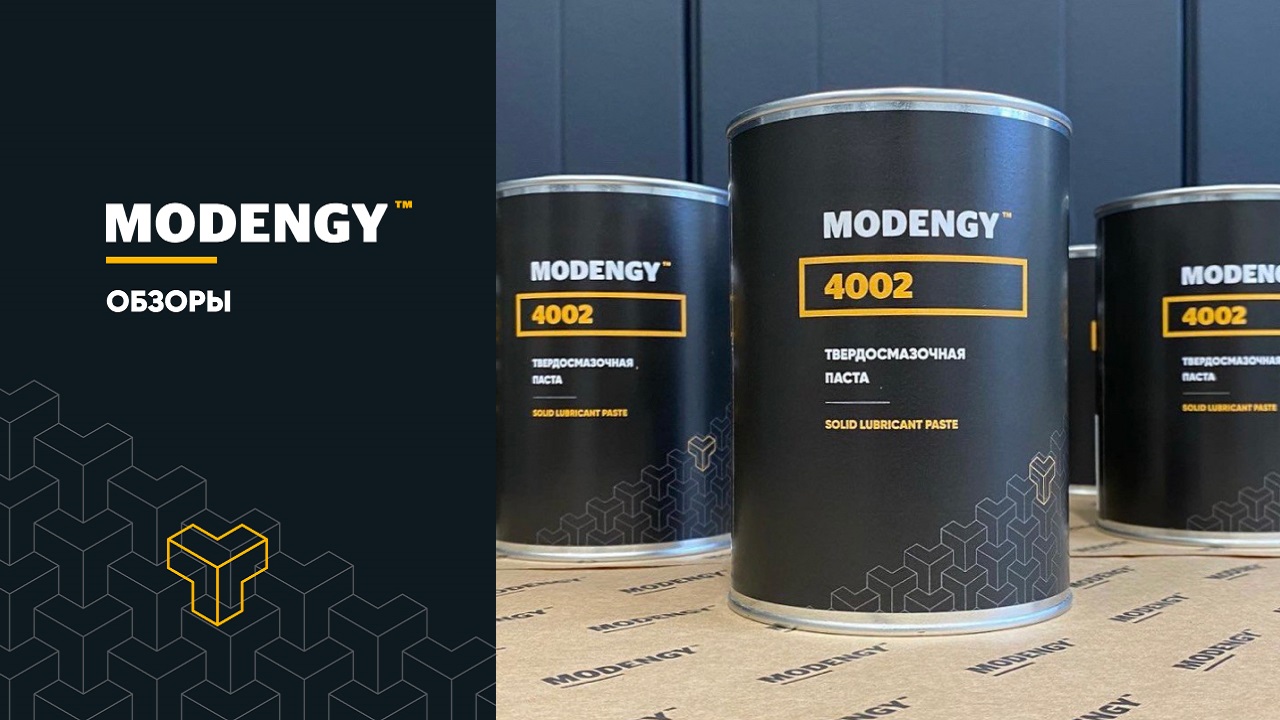

MODENGY 4002 is a concentrated anti-seize paste based on molybdenum disulfide and mineral oil (see Fig.3).
It is intended to make easier mounting and dismantling of press fits and threaded connections easier, running-in, to prevent fretting corrosion, to provide protection against scoring, to reduce friction in heavily loaded units, to lubricate friction pairs made of constructive materials having tendence to jamming (such as stainless steel).
Figure 3 – MODENGY 4002 paste
The paste is successfully applied by the enterprises that manufacture rail transport at wheelsets mass press-fitting; is used to increase coefficient of efficiency of the quarter-turn worm reducers, due to friction reduction.

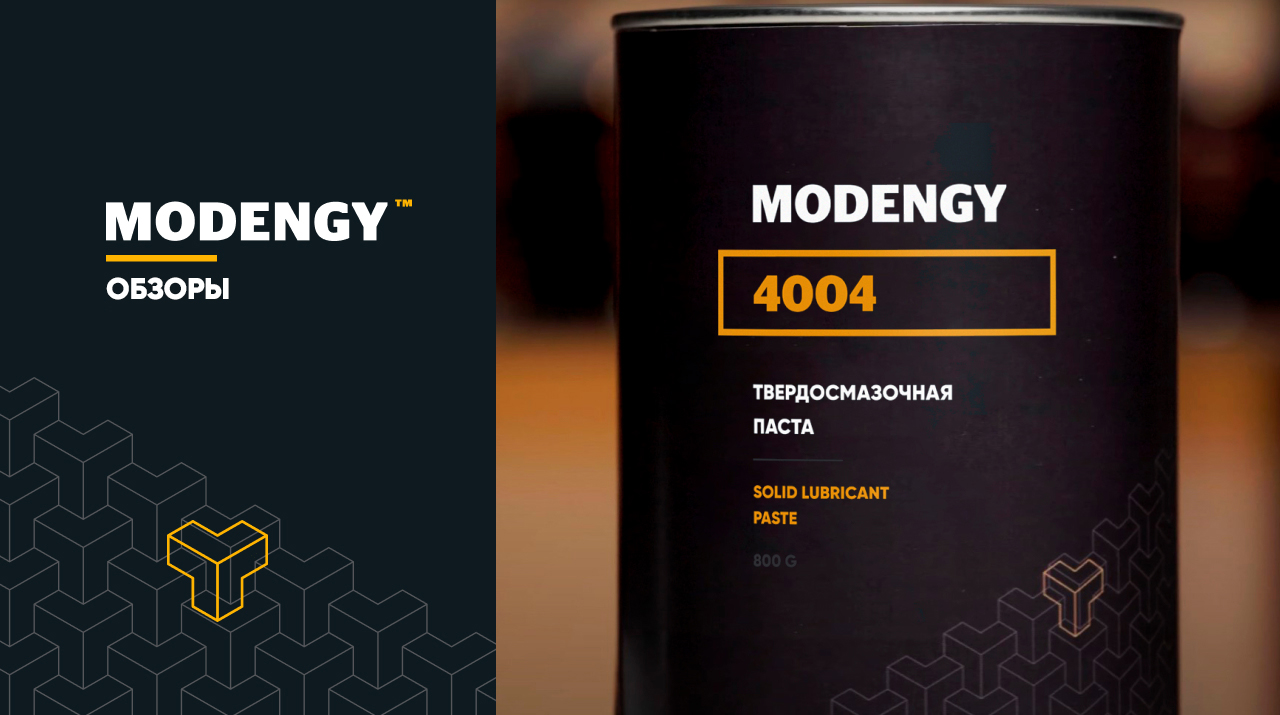

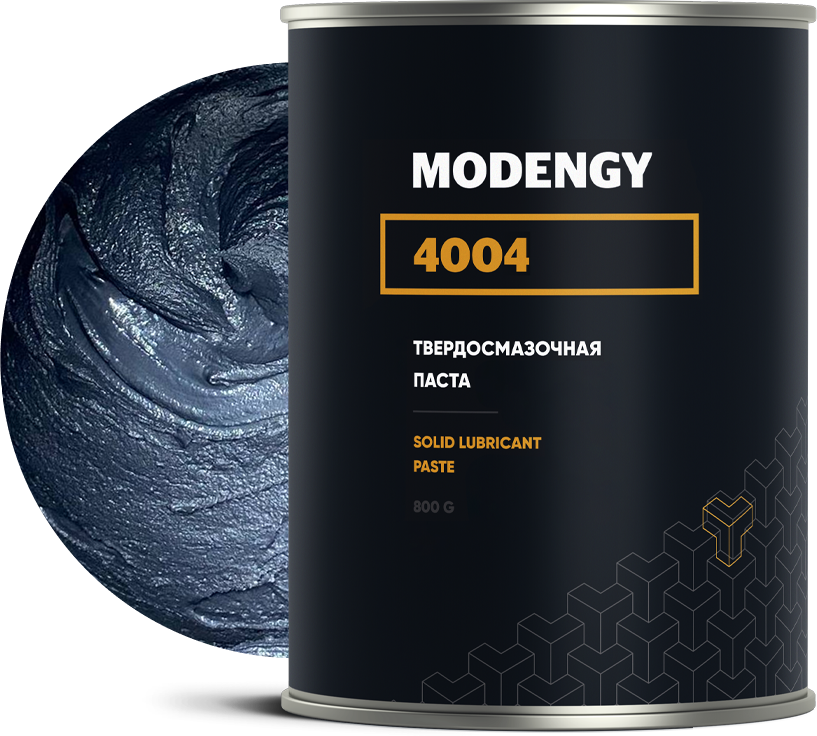

MODENGY 4004 is a solid-film paste with extremely high anti-scoring properties and load-carrying capacity. It is based on molybdenum disulfide and powders of soft metals distributed in a mineral oil.
The given material is used at very high loads, for example, in the operations of metals processing by plastic deformation, in drilling equipment.

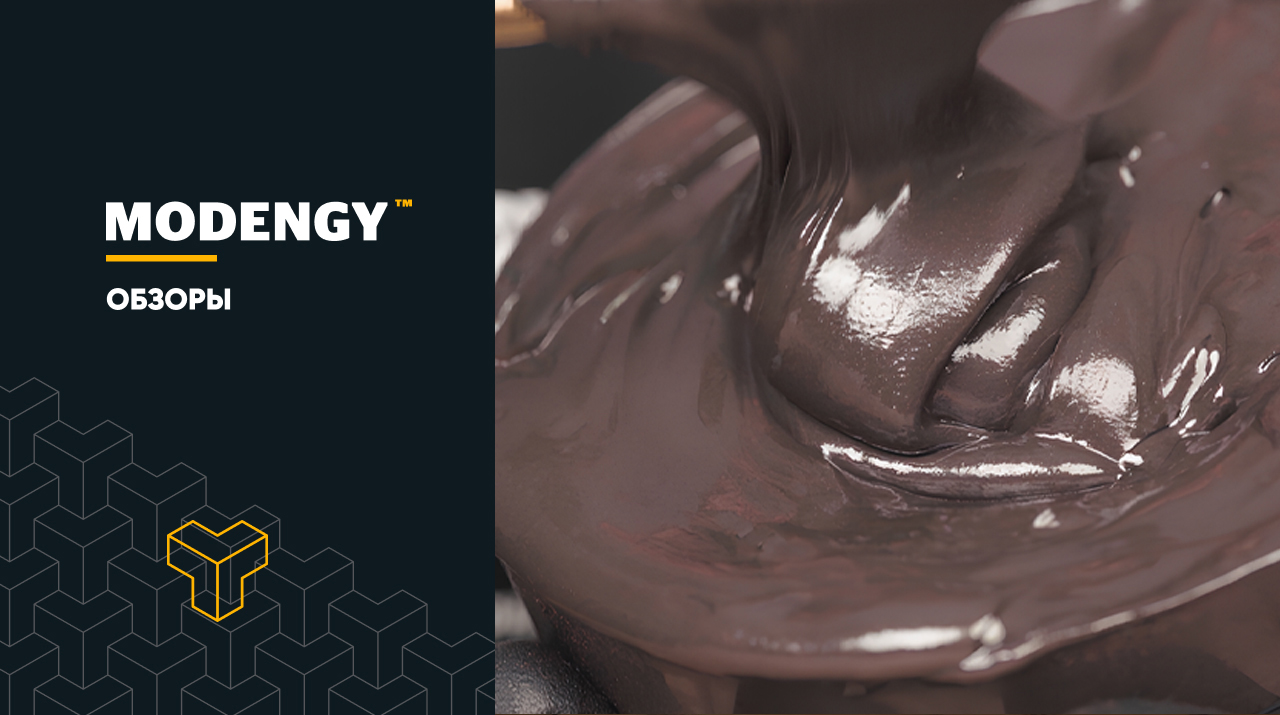

MODENGY 4005 is a copper thread paste intended to make mounting and dismantling threaded connections operating under conditions of high temperatures and corrosion-active media easier (see Fig.4). Its composition includes solid lubricating fillers (copper, graphite), anti-sticking components, separating agents, and functional additives.
It was designed specifically for threaded connections, and provides optimal friction coefficient for this kind of conjunction that enables to control precisely bolts tension effort.
MODENGY 4005 is successfully used at assembling flange connections of the various purpose pipelines. Application of this paste provides even tightening for all bolts of the connection, and prevents tightness loss because of joint deformation.

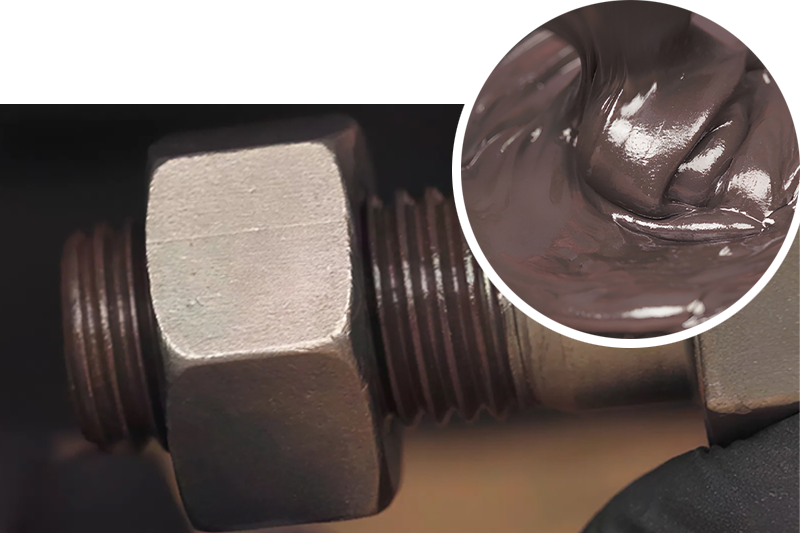

Figure 4 – MODENGY 4005 paste
MODENGY 4005 paste keeps its effectiveness at heating up to +1100 °С. It has been tested in the leading research institutes where it demonstrates full compliance with the declared heat resistance.
The threaded connections treated with the paste were subjected to long heating and exposure at over +1000 °С, and still were dismantled without any difficulties after that. In addition, efficiency of using this paste was proved by industrial operating experience.

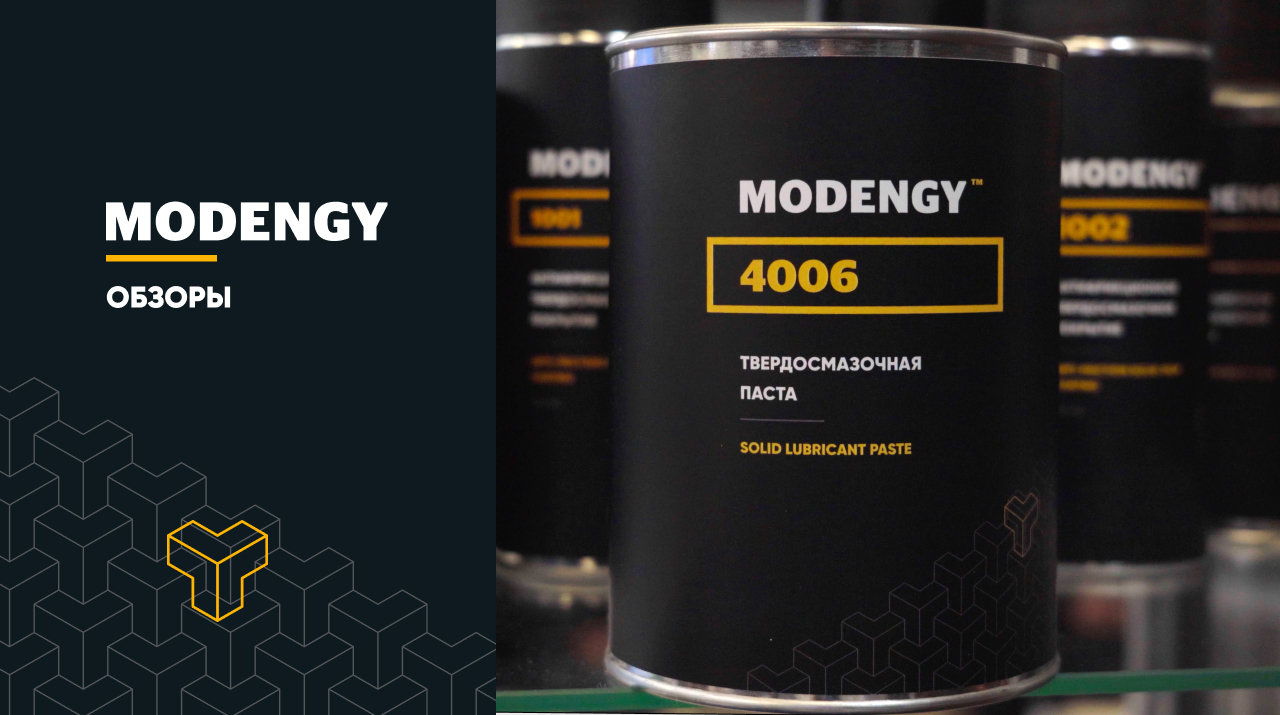

MODENGY 4006 is a Teflon paste for metal-to-metal and metal-to-polymer friction pairs. It has superfine polytetrafluorethylene, synthetic base oil, and functional additives in its composition (see Fig.5).
This paste is intended to solve the following tasks: to prevent scuffing and jamming, to increase tightness of fixed connections, to damp noise and vibrations, to provide minimal friction in heavily loaded pairs.

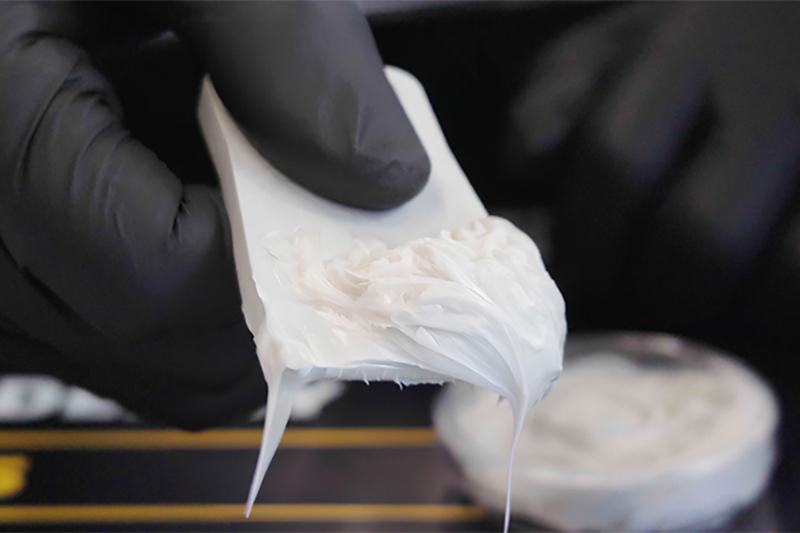

Figure 5 – MODENGY 4006 Paste
MODENGY 4006 is a white product compatible with most of plastics. It has high load-carrying capacity and anti-scoring properties, it performs a sealing function, prevents stick-slip motion.
MODENGY pastes are available in 800 GR (1 KG) Cans, in 4 (6) KG Pails as well as in small 200 (250) GR tin cans.
Video
In a wide assortment of MODENGY solid-film pastes line, you can find solutions for a wide range of tasks in all industries. In a course of time, the range of the products is supposed to expand.
For instance, the manufacturer is already working on creating solid-film pastes based on graphene, one of the strongest nanomaterials with a very high lubrication ability.
Please contact the Modengy company to select and design innovative lubricating materials and functional coating to extend service lifetime of your equipment.
Source: MODENGY solid-film pastes: properties unachievable for conventional lubricants - 2025 - No. №5 (140). С. 16-17
