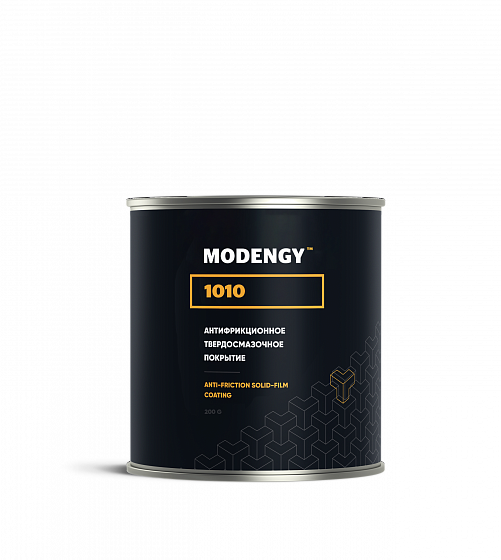

MODENGY 1010
200 G Bottle
600 G Can

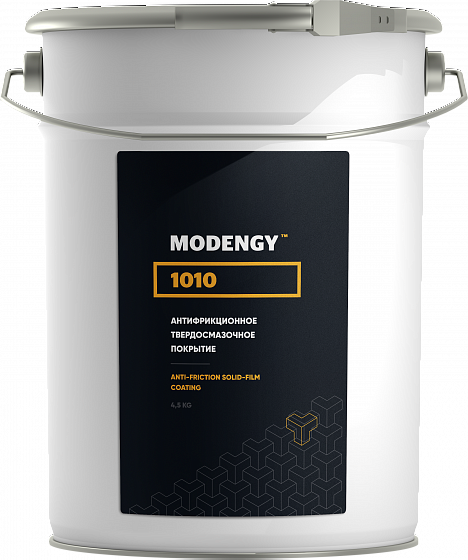

4.5 KG Pail
Anti-friction solid-film coating based on polytetrafluorethylene (PTFE)
It is used in the cartridge cases of the pneumatic equipment, springs, cramps, locks, guideways in the automotive machinery; sliding surfaces of the equipment to process polymers including soldering fixtures, calibrators, cooling tables; movable seals with polymer materials; threaded connections in the instrument making industry, and in the automotive machinery; sliding guideways in the instrument making industry, and in printing equipment
Package sizes:
MODENGY 1010 in action
Before
After

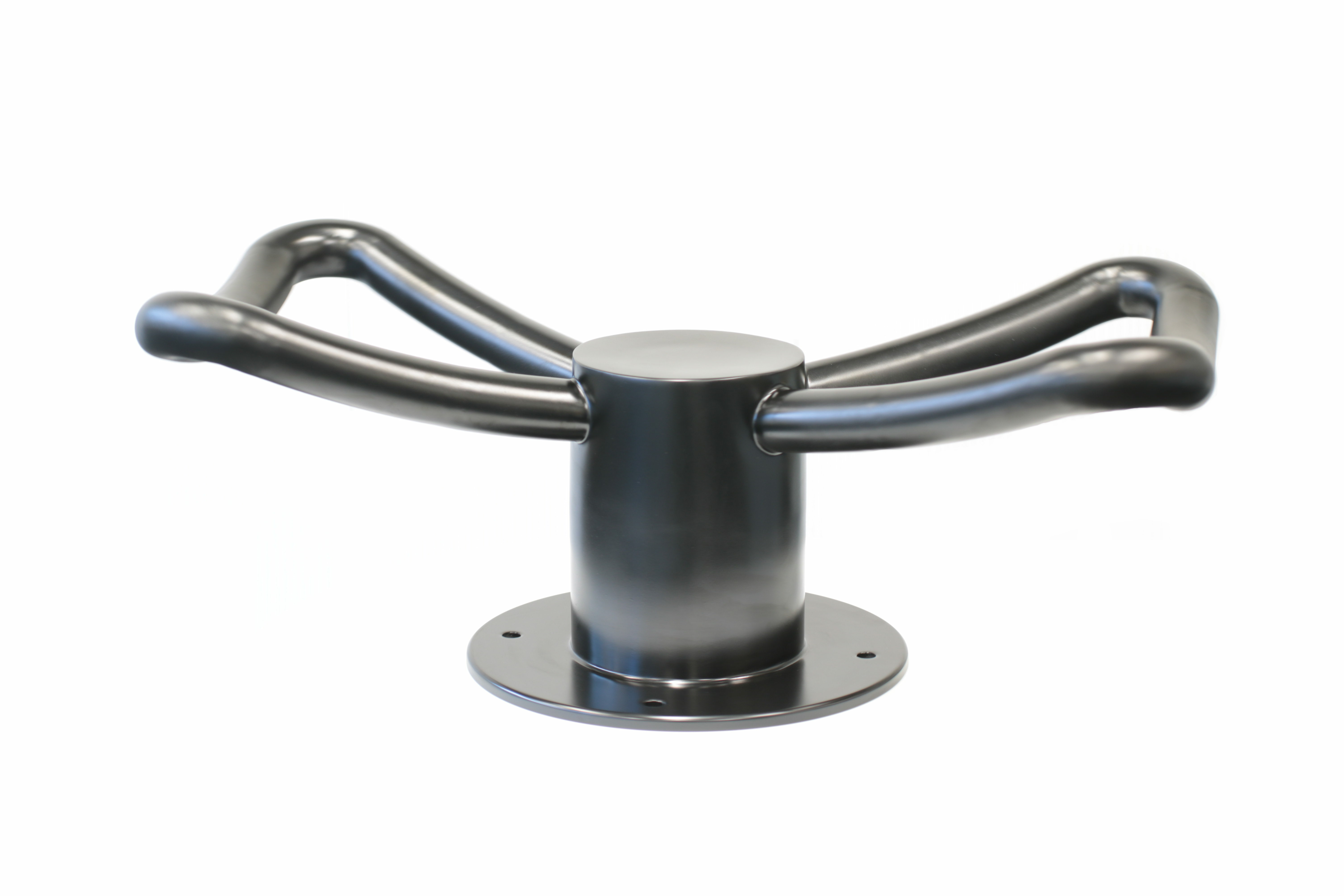

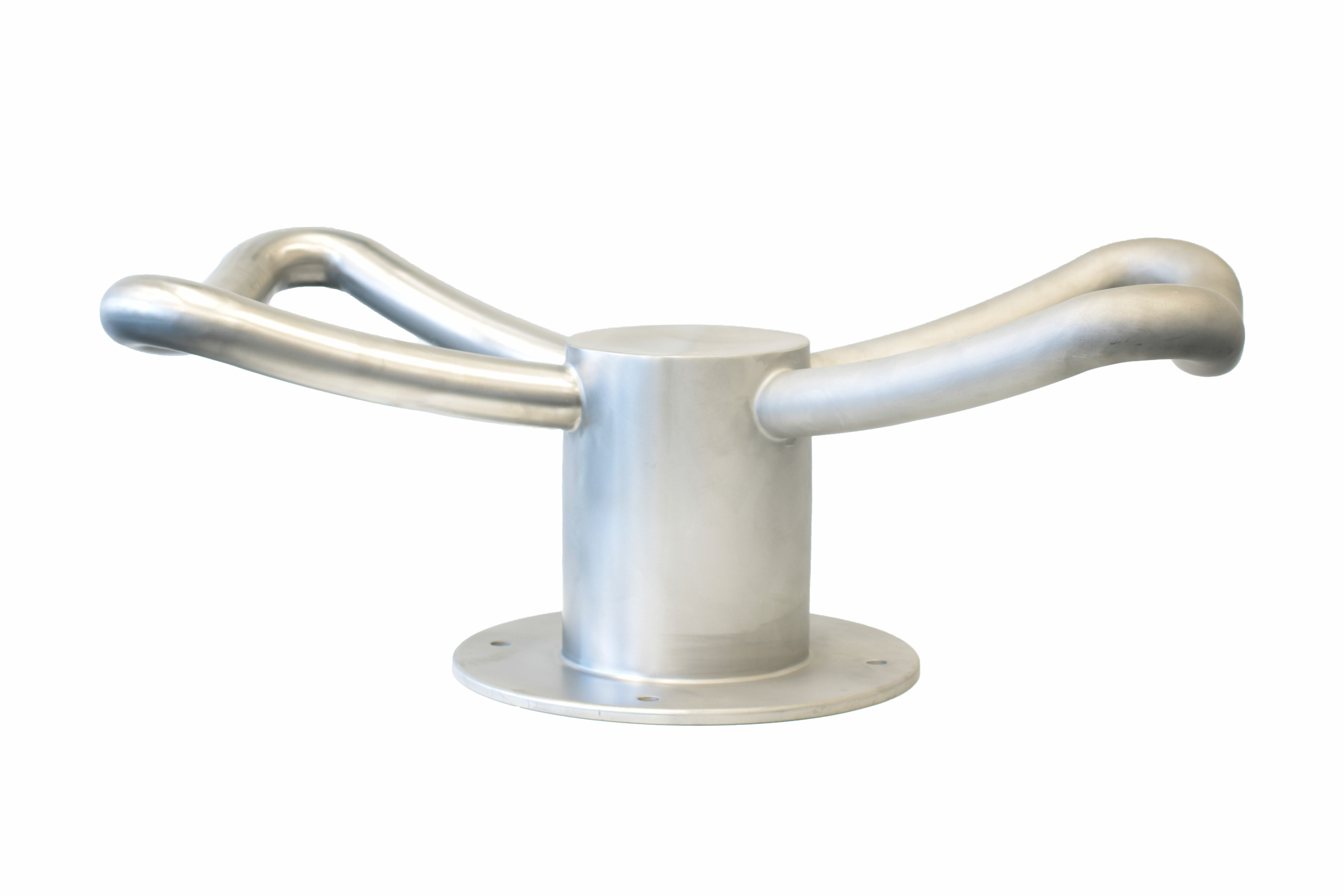

Exhibit room elements besides having a long service lifetime must have aesthetic appearance. MODENGY 1010 anti-friction solid-film coating helps with providing these features.
Before
After

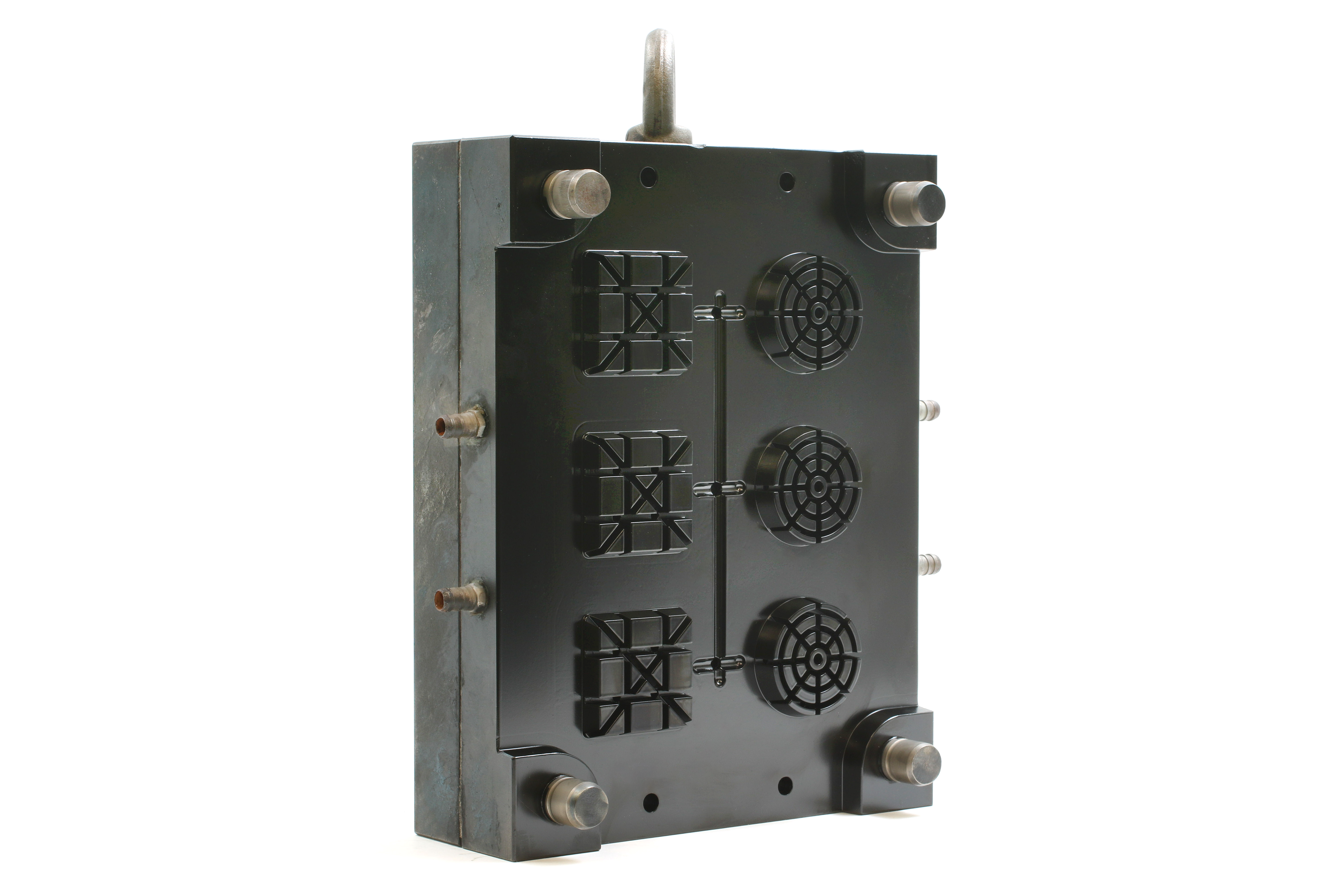

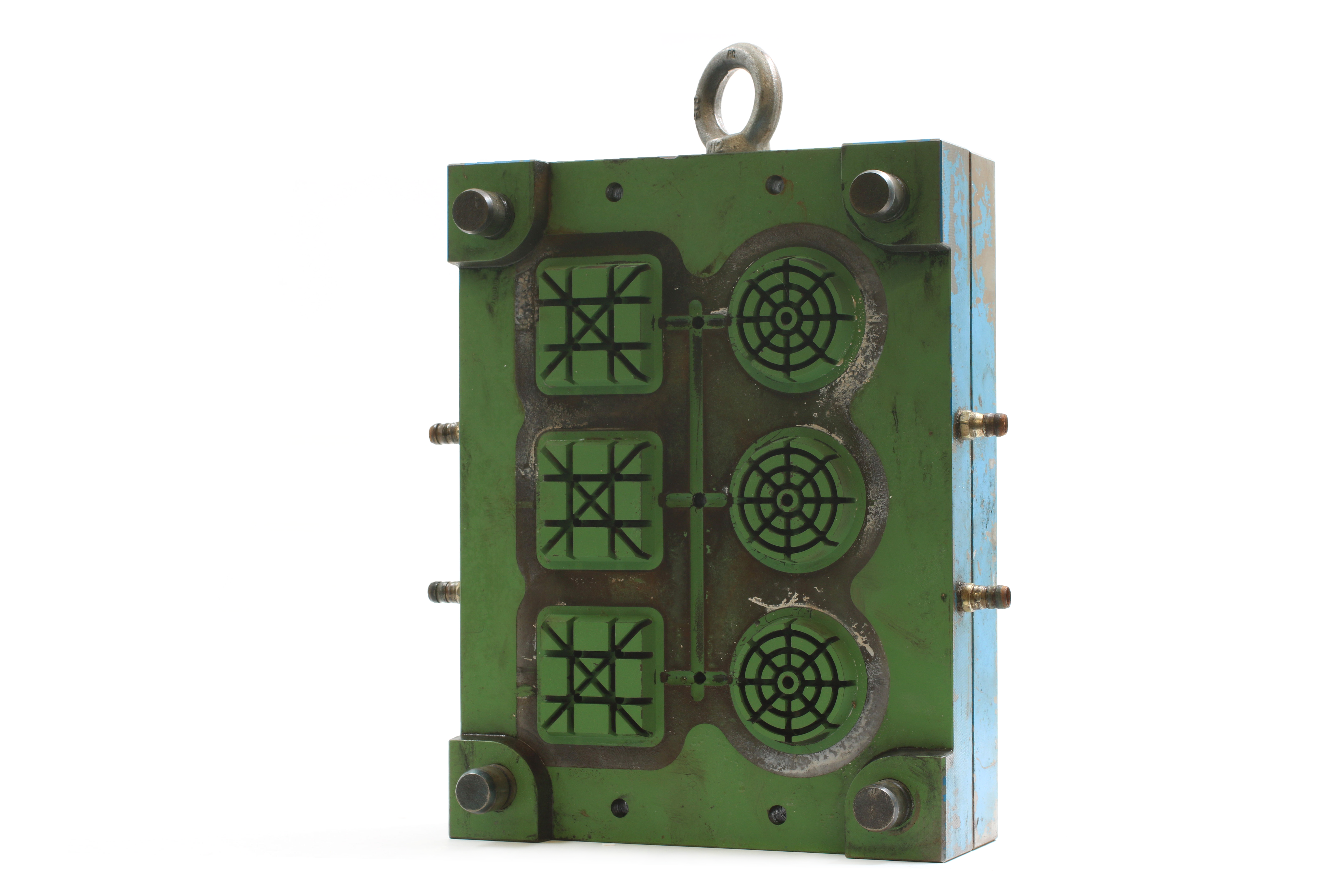

MODENGY 1010 coating based on polytetrafluorethylene solve the issue of silicone sticking to the moulds. It forms a glossy separating layer making the process of taking the finished items out of the moulds easier.
Before
After

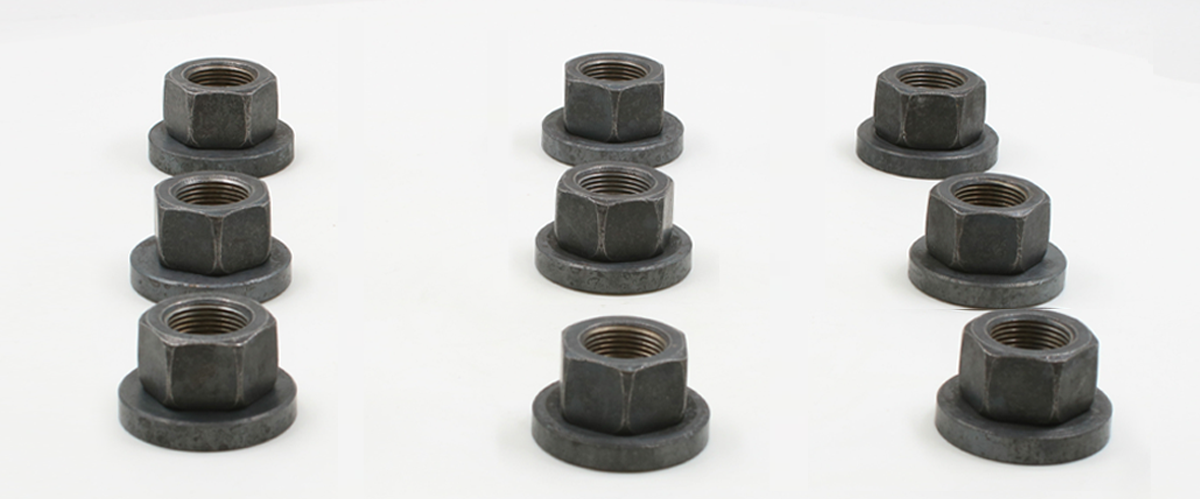

A separating layer of the solid lubricant makes process of connection mounting and dismantling easier, prevents parts sticking, thread galling, and scuffing while unscrewing.
Before
After

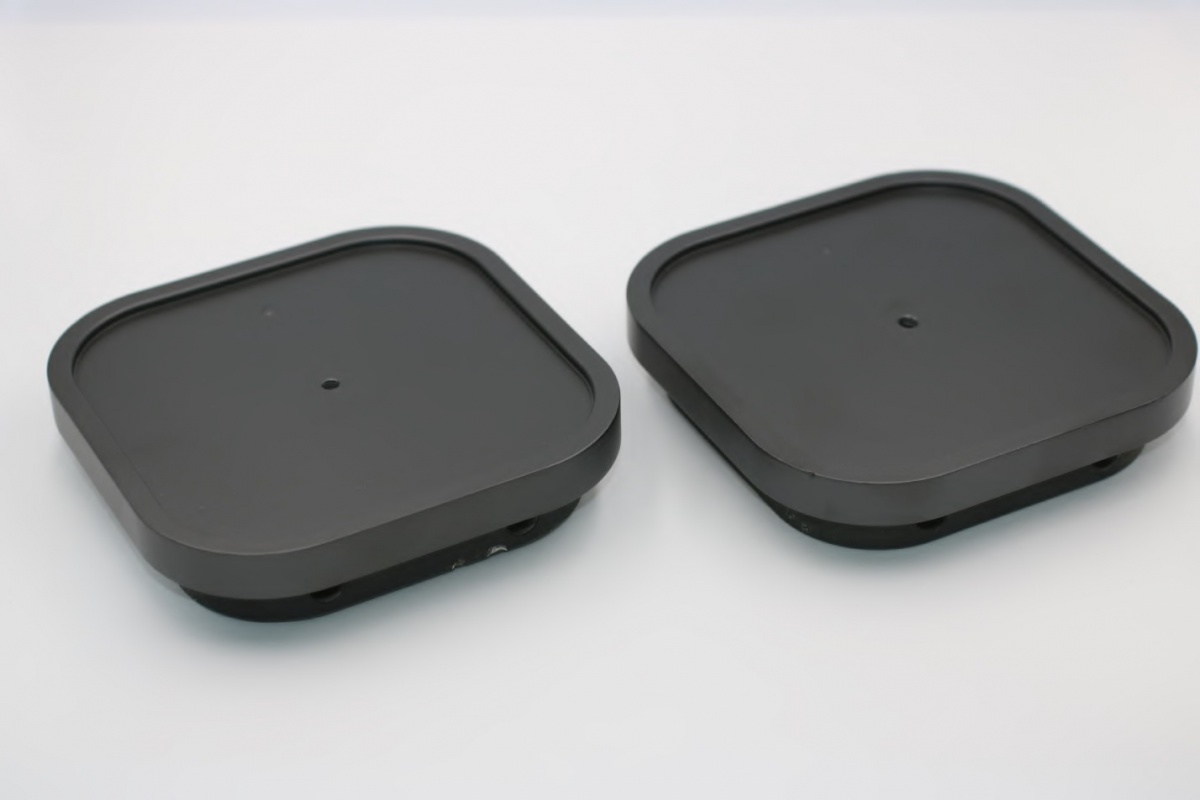

Soldering equipment operates at high temperatures, which leads to the packing material sticking onto the surfaces.
The coatings are applied onto the matrixes.The coatings operate as non-stick material, effectively solving the issue of film sticking to the soldering elements. This reduces volume of defective items while packaging as maximum as possible, and extends service lifetime of the equipment.
The coatings are applied onto the matrixes.The coatings operate as non-stick material, effectively solving the issue of film sticking to the soldering elements. This reduces volume of defective items while packaging as maximum as possible, and extends service lifetime of the equipment.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1013 Special Solvent to rinse the equipment after the coating is applied, to remove uncured coating, to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low friction coefficient
- Wide service temperature range
- High adhesion
- Non-toxic after complete cure
- Workability in pair with plastics and rubbers
- Provides aesthetic appearance
- It has properties of anti-emergency lubrication
- It prevents stick-slip motion
- High anticorrosive properties
- Resistance to most chemically aggressive media
- It speeds up parts assembly with robots
Specifications
- Colour: glossy black
- Service temperatures range: -70 … +250 °С
- Corrosion protection: > 500 hours (ISO 9227)
- Standard coating consumption: 60 g / m²
- Cure temperature / time: +180 °C / 60 min
It is used in the following typical units
Sliding bearings, threaded connections, movable sealings, the other units with metal/plastic, metal/rubber friction pairs
Documents
Video
Video review of the MODENGY PTFE-based anti-friction coatings for fasteners
MODENGY coatings on the wheel nuts
Video review of the MODENGY PTFE-based anti-friction coatings for fasteners
MODENGY coatings on the wheel nuts
