MODENGY 1011

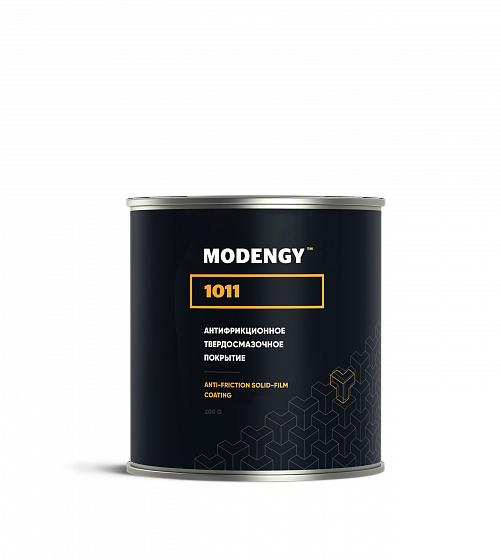

200 G Bottle

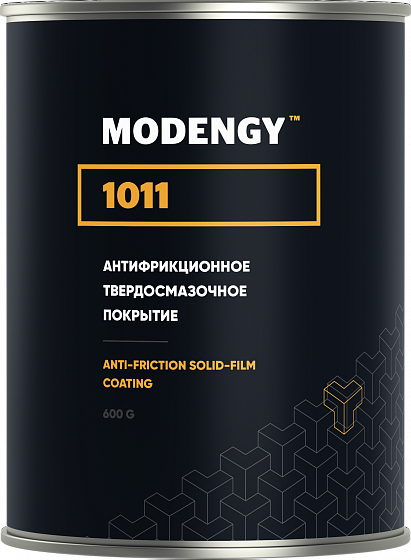

600 G Can
4.5 KG Pail
Anti-friction solid-film coating based on polytetrafluorethylene (PTFE)
It is used in springs, cramps, locks, guideways in automotive machinery, on sliding surfaces of the polymer processing equipment such as soldering fixtures, calibrators, cooling tables; in movable sealings with polymer materials, threaded connections in instrument making industry, and automotive machinery
Package sizes:
MODENGY 1011 in action
Before
After

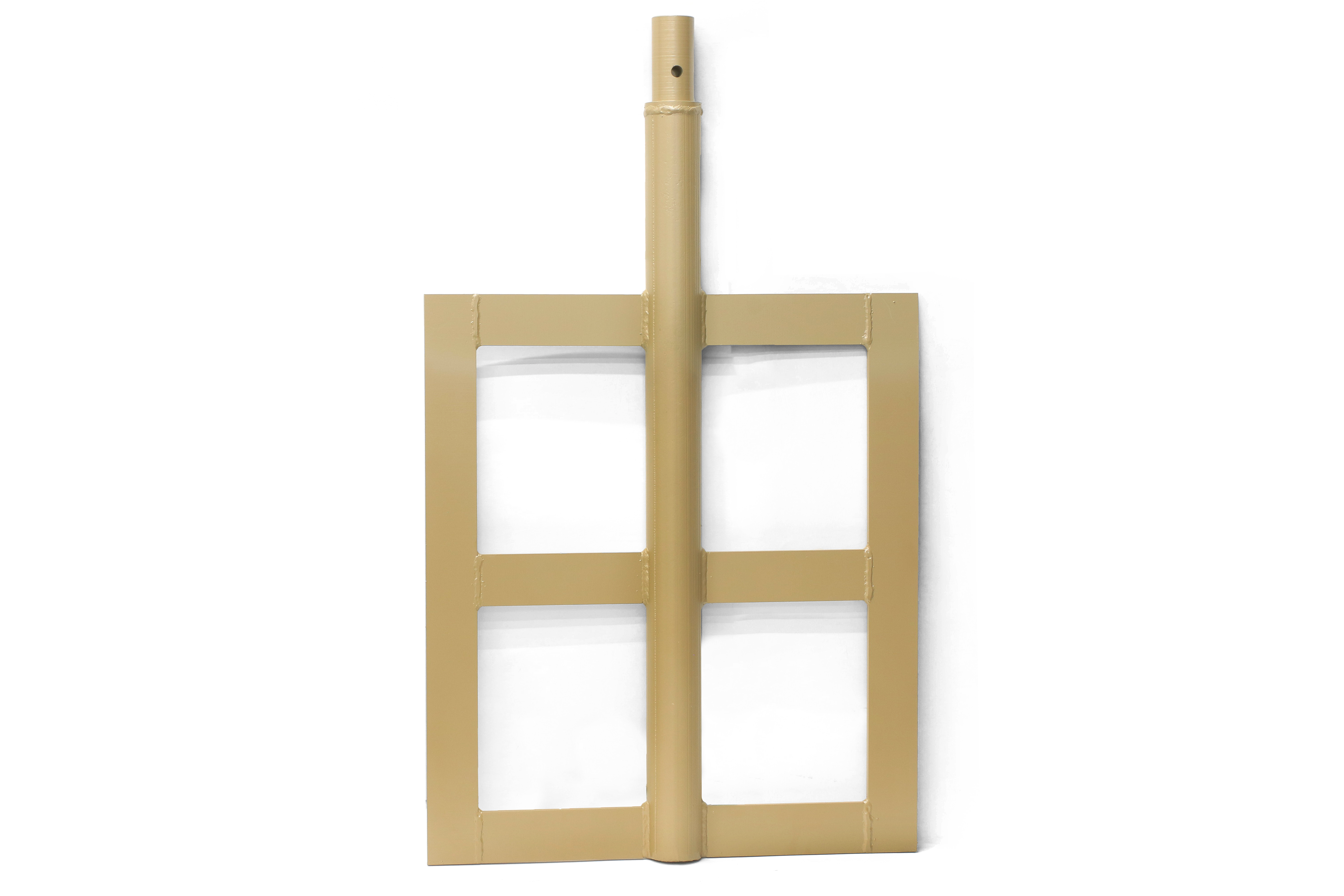

To provide longterm corrosion protection, and to prevent materials from sticking onto the mixer screws, MODENGY 1011 solid-film coating with high anti-adhesive and anti-corrosive properties is applied.
Before
After

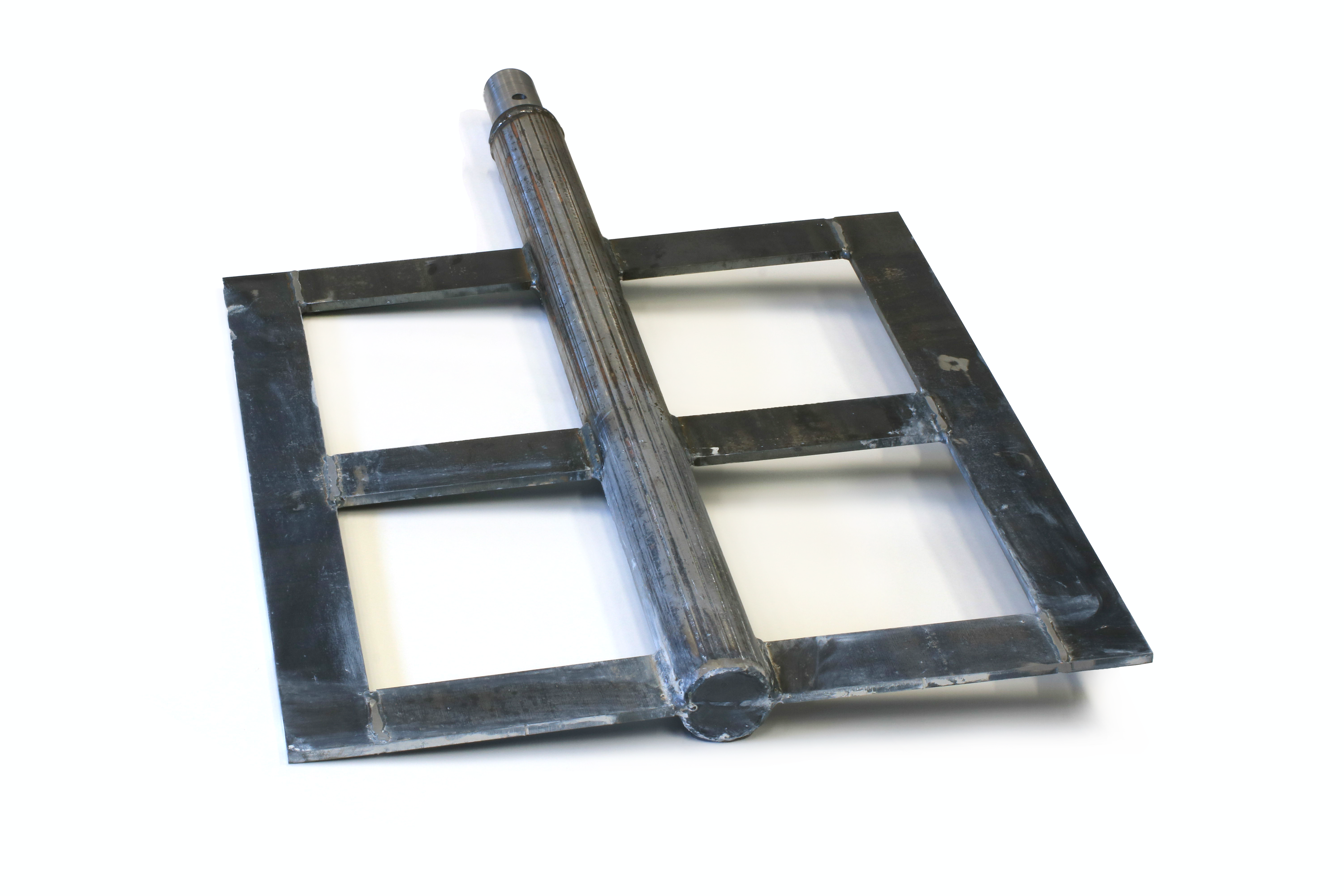

Producers of greases, adhesives, emulsions, and other multicomponent products face the issue of corrosion forming on the screws of dissolvers, the units to mi x substances. The rust particles got into the content of the finished products make them unusable.
To solve this issue MODENGY 1011 anti-friction solid-film coating based on polytetrafluorethylene onto the screws of the dissolvers.
To solve this issue MODENGY 1011 anti-friction solid-film coating based on polytetrafluorethylene onto the screws of the dissolvers.
Before
After

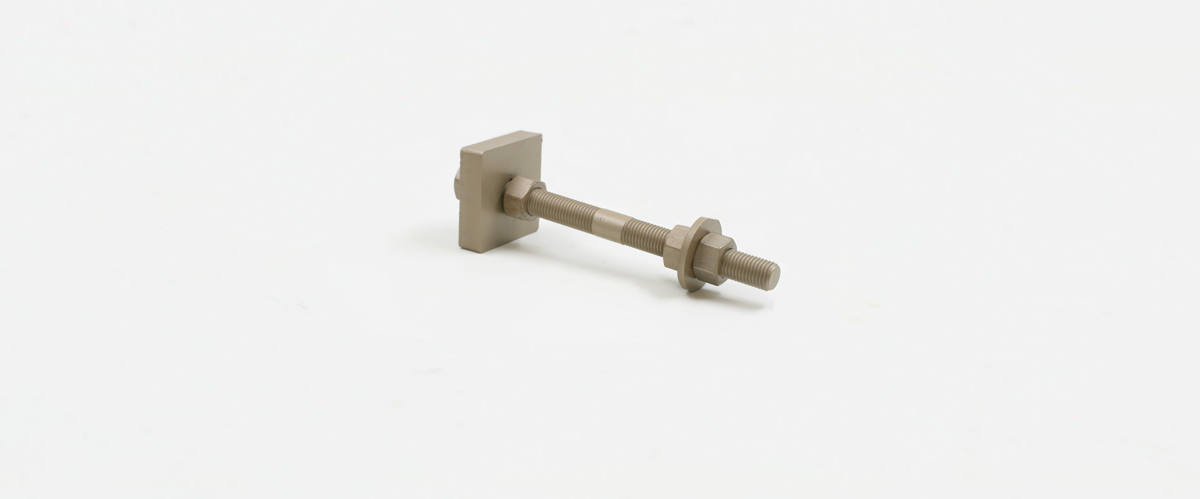

Applying MODENGY 1011 protective solid-film coating provides high level fastener quality.
This coating creates a wear resistant dry lubricating layer that protects against corrosion and aggressive media impact. The tightening factor gets stable, scuffing is prevented at screwing off, and mounting makes easier.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1013 Special Solvent to rinse the equipment after the coating is applied, to remove uncured coating, to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low friction coefficient
- Wide service temperature range
- High adhesion
- Protection against fretting-corrosion
- Workability in pair with plastics and rubbers
- Provides aesthetic appearance
- It has properties of anti-emergency lubrication
- It prevents stick-slip motion
- High anticorrosive properties
- Resistance to most chemically aggressive media
- It speeds up parts assembly with robots
- Non-toxic after complete cure
Specifications
- Colour: silver
- Service temperatures range: -70 … +250 °C
- Corrosion protection: > 500 hours (ISO 9227)
- Standard coating consumption: 60 g / m²
- Cure temperature / time: +180 °C / 60 min
It is used in the following typical units
Pneumatic cylinders, threaded connections, movable seals, the other units with metal/plastic, metal/rubber friction pairs
Video
Video review of the MODENGY PTFE-based anti-friction coatings for fasteners
MODENGY 1011 coating on the dissolver screw
Video review of the MODENGY PTFE-based anti-friction coatings for fasteners
MODENGY 1011 coating on the dissolver screw
