MODENGY 1026

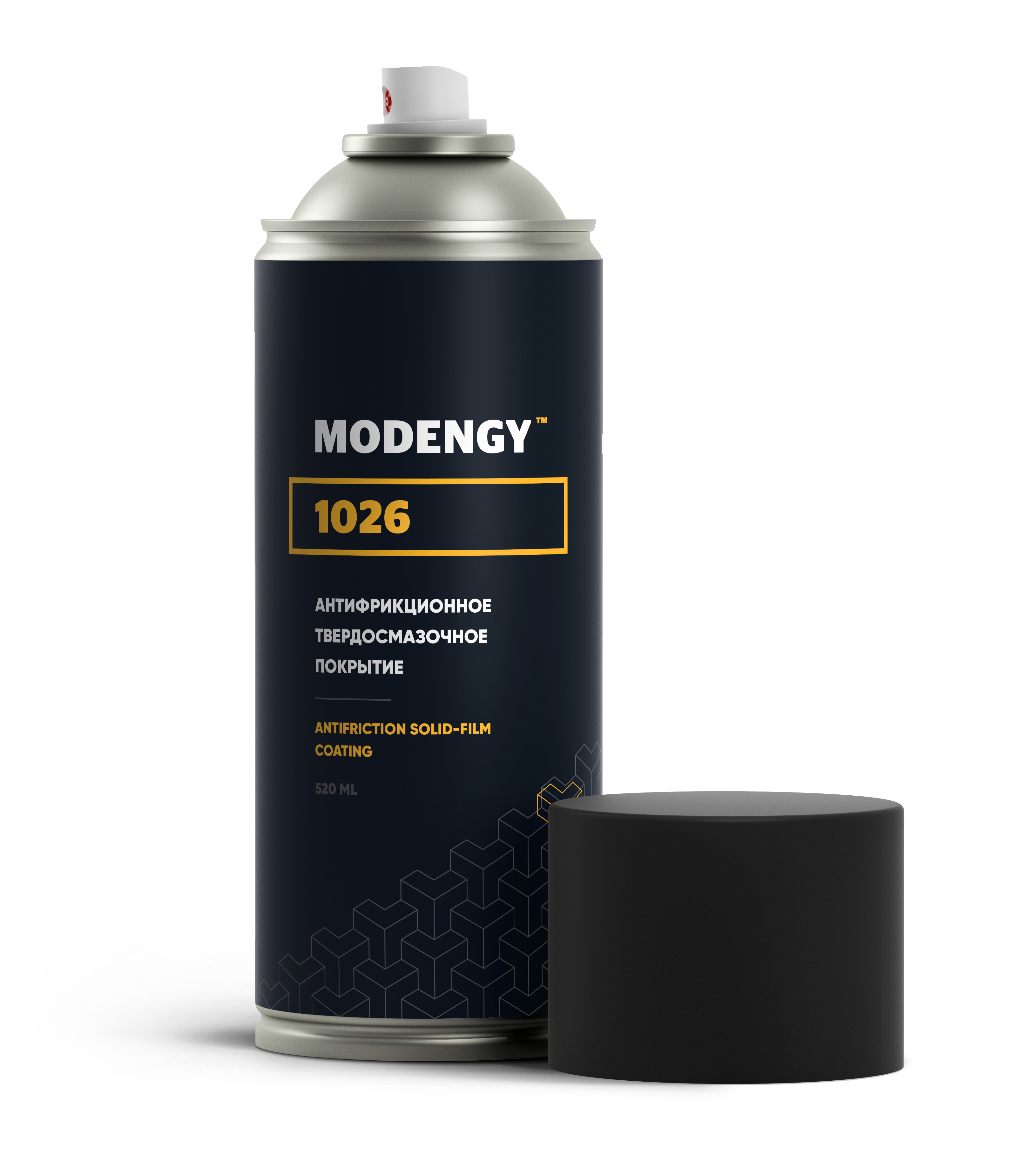

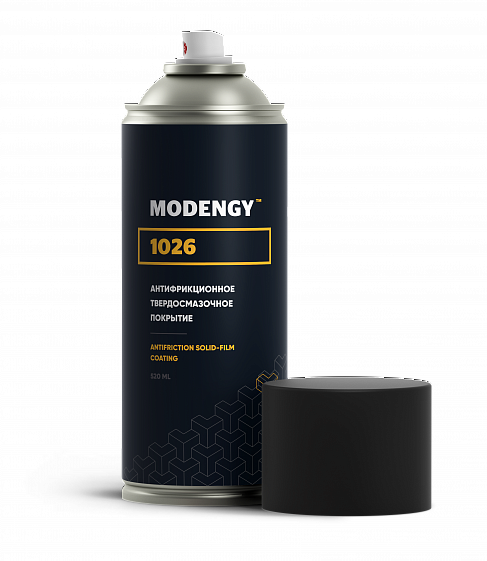

520 ML Can

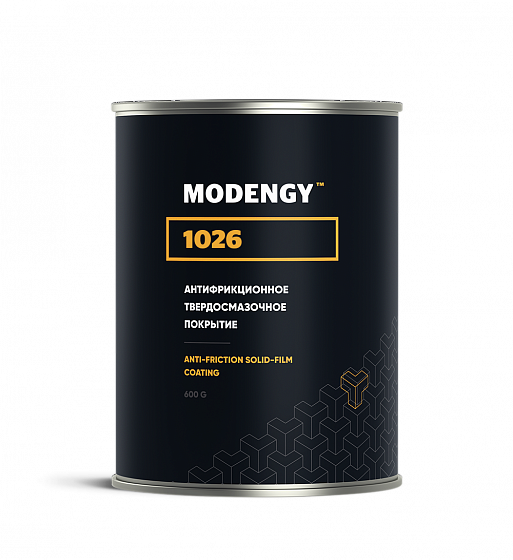

600 G Can

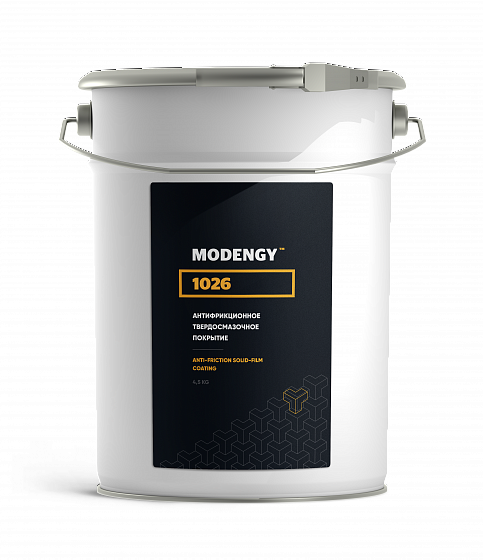

4.5 KG Pail
Anti-friction solid-film coating based on molybdenum disulfide
It is used in sliding guideways of the machine tools, flat springs, splined joints of the equipment's driving shafts
Package sizes:
MODENGY 1026 in action
Before
After

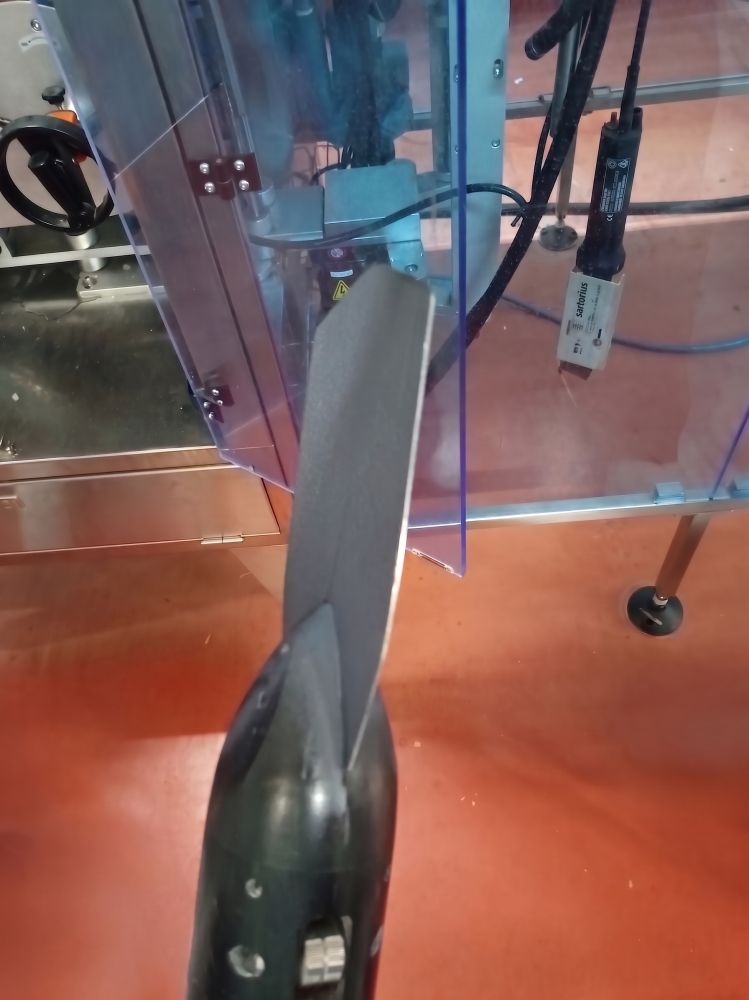

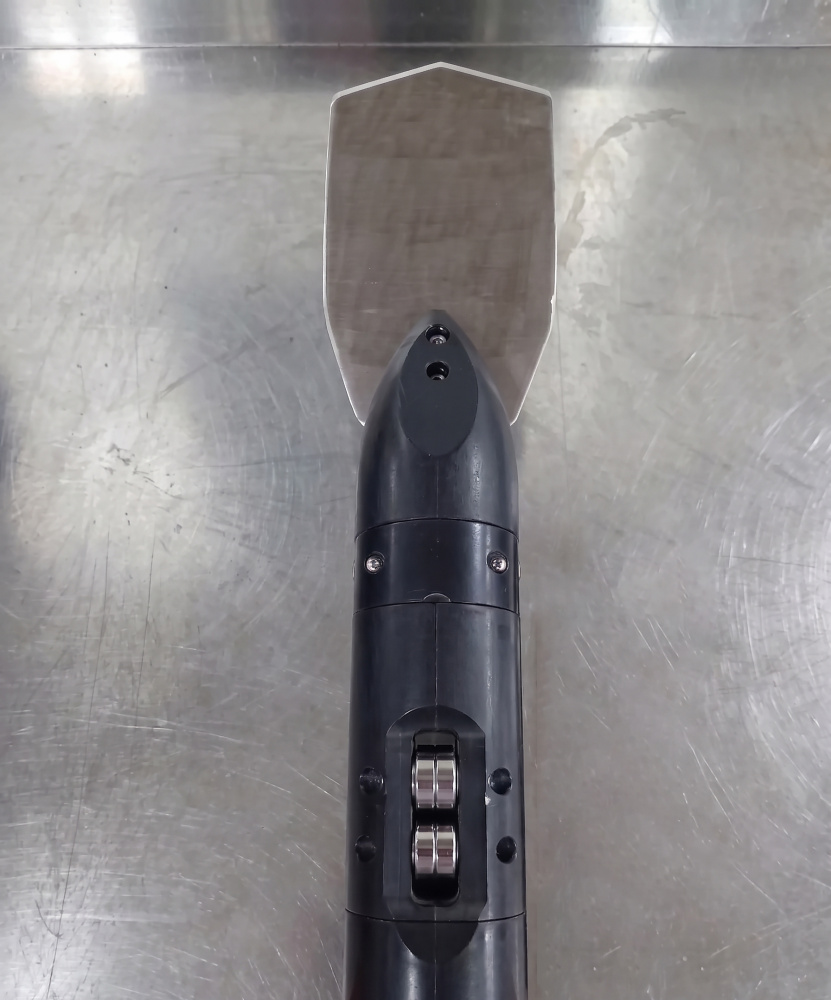

MODENGY 1026 coating effectively reduces friction, and decreases resistance when the thermo-sleeve is moving along all the surfaces of the mandrel. Applying of this 'cold curing' coating is easily built in into the line maintenance regulation, no additional downtime of the equipment is required.
Before
After

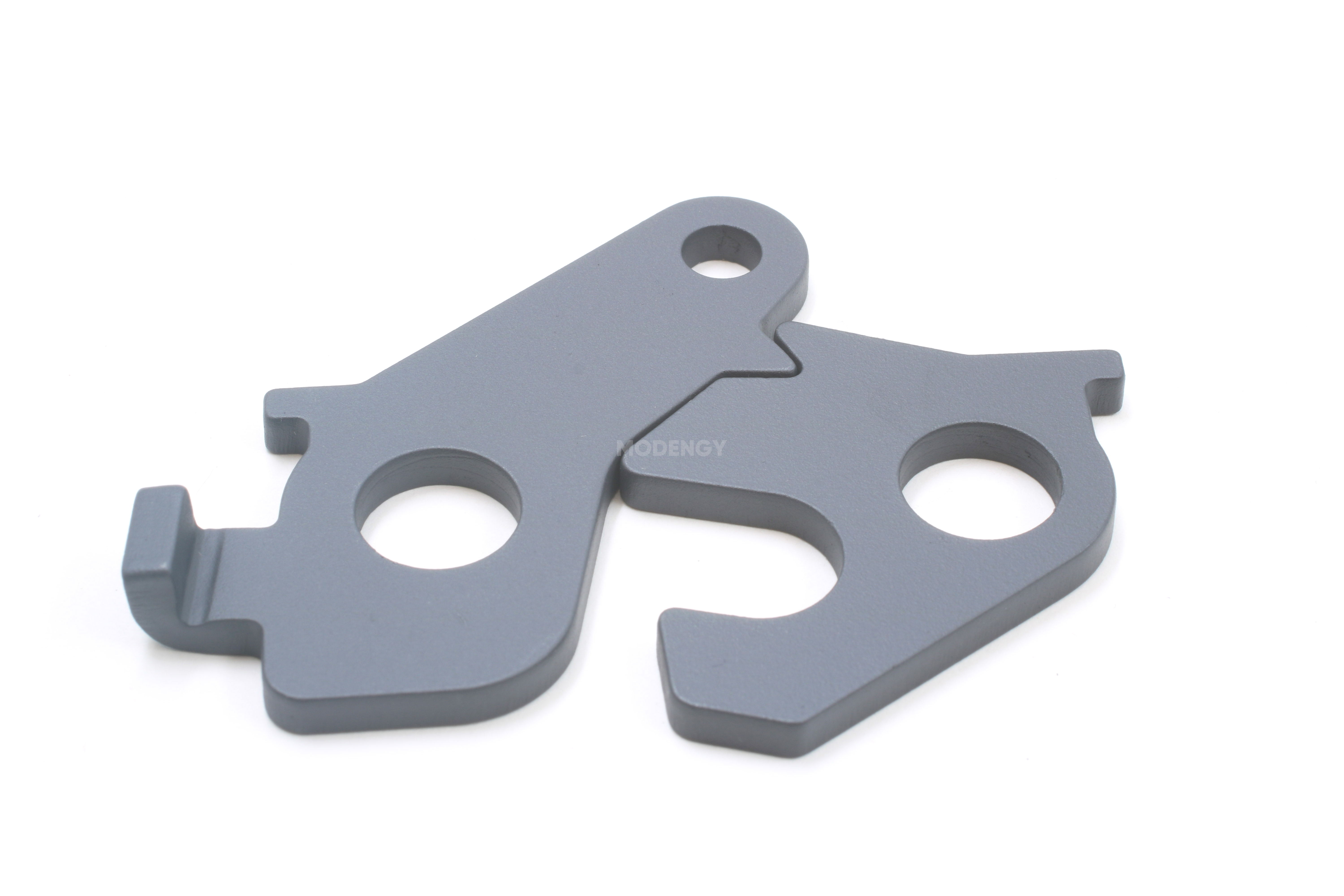

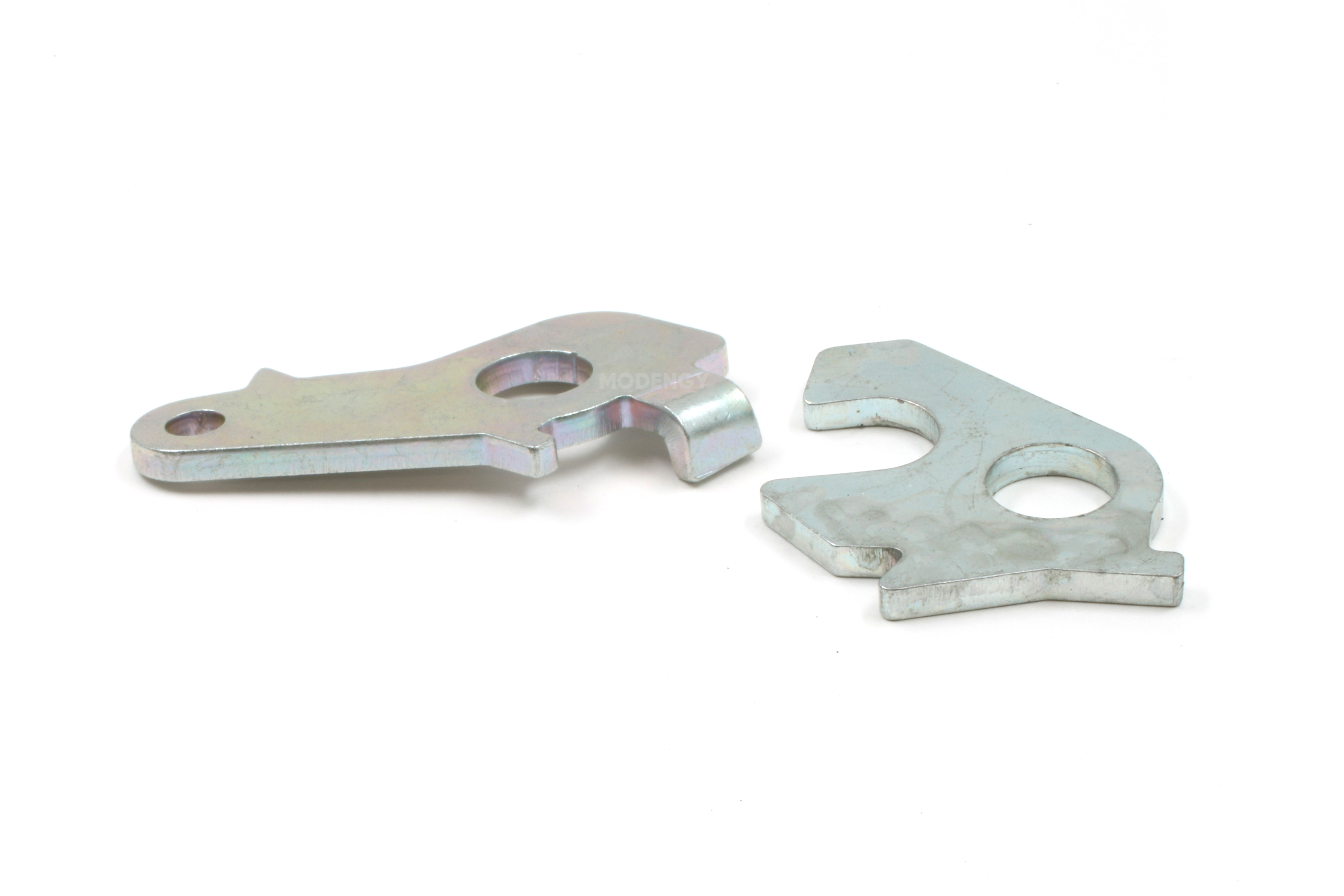

In order to provide effective corrosion protection as well as to reduce friction between the locking mechanisms parts, MODENGY 1026 coating based on molybdenum disulfide is used.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, activate surfaces
- MODENGY 1013 Special Solvent to rinse the equipment after the coating is applied, to remove uncured coating
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low friction coefficient
- High load-carrying ability
- Wide service temperature range
- Workability in dusty environment
- It has properties of anti-emergency lubrication
- Effective protection against fretting-corrosion
- Resistance to water wash-off
- Anti-corrosive properties (> 760 hours based on accelerated salt spray testing)
- It prevents stick-slip motion
- Long service life (dependent on the unit construction – durable lubrication)
- It speeds up parts assembly with robots
Specifications
- Colour: grey
- Service temperatures range: -70 … +120 °C
- Corrosion protection: > 760 hours (ISO 9227)
- Standard coating consumption: 180 g / m²
- Curing temperature / time: +20 °C / 180 min. The curing process can be accelerate by heating or by hot air blowing around
It is used in the following typical units
Sliding bearings, sliding guideways, tooth gears, threaded connections, splined joints, and keyed connections, adjusting wedges, the other units with metal/metal friction pairs
Video
MODENGY 1026. Composition, unique properties, application fields
Review of MODENGY 1026 at the TatOilExpo-2024 exhibition
Anti-friction coating MODENGY 1026 based on molybdenum disulfide
Video instructions on application
MODENGY 1026. Composition, unique properties, application fields
Review of MODENGY 1026 at the TatOilExpo-2024 exhibition
Anti-friction coating MODENGY 1026 based on molybdenum disulfide
