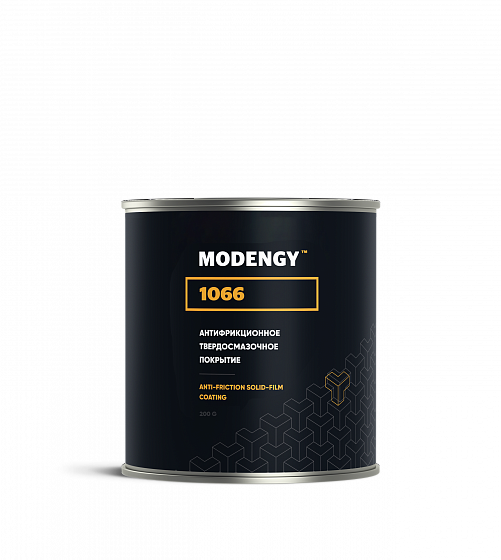

MODENGY 1066
200 G Bottle
600 G Can
4.5 KG Pail
Anti-friction solid-film coating based on molybdenum disulfide and graphite
It is used in the thrust bearings of the oil pumps hydraulic protection; in the radial sliding bearings in pumps and valves; in plunger pairs of hydraulic equipment; in D-valves and other valves in the distributing and controlling devices; in calibrators in the polymer production lines; in the ICE parts such as pistons, sliding bearings that are operated under extreme conditions; in the operating elements of the dry compression screw compressors
Package sizes:
MODENGY 1066 in action
Before
After

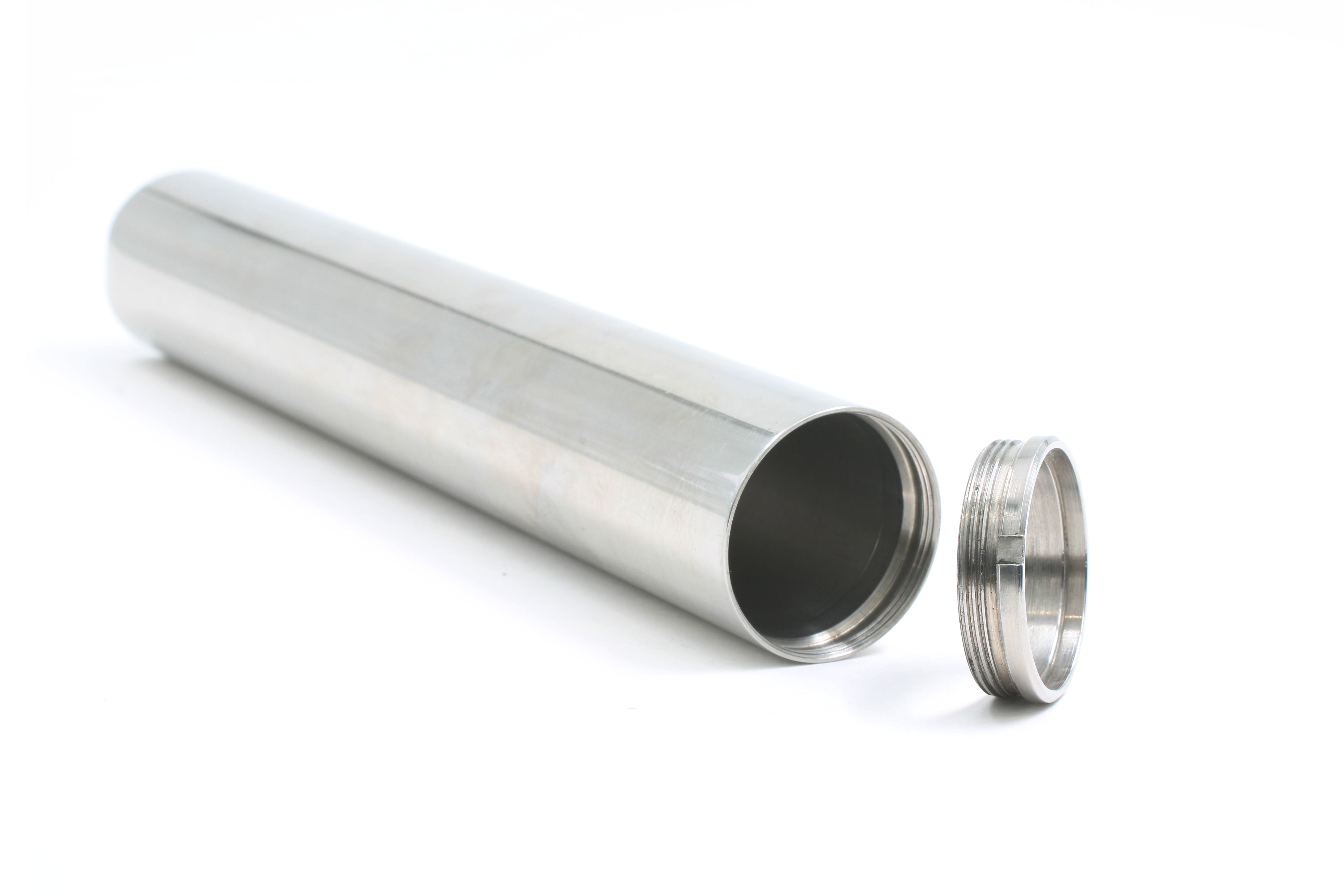

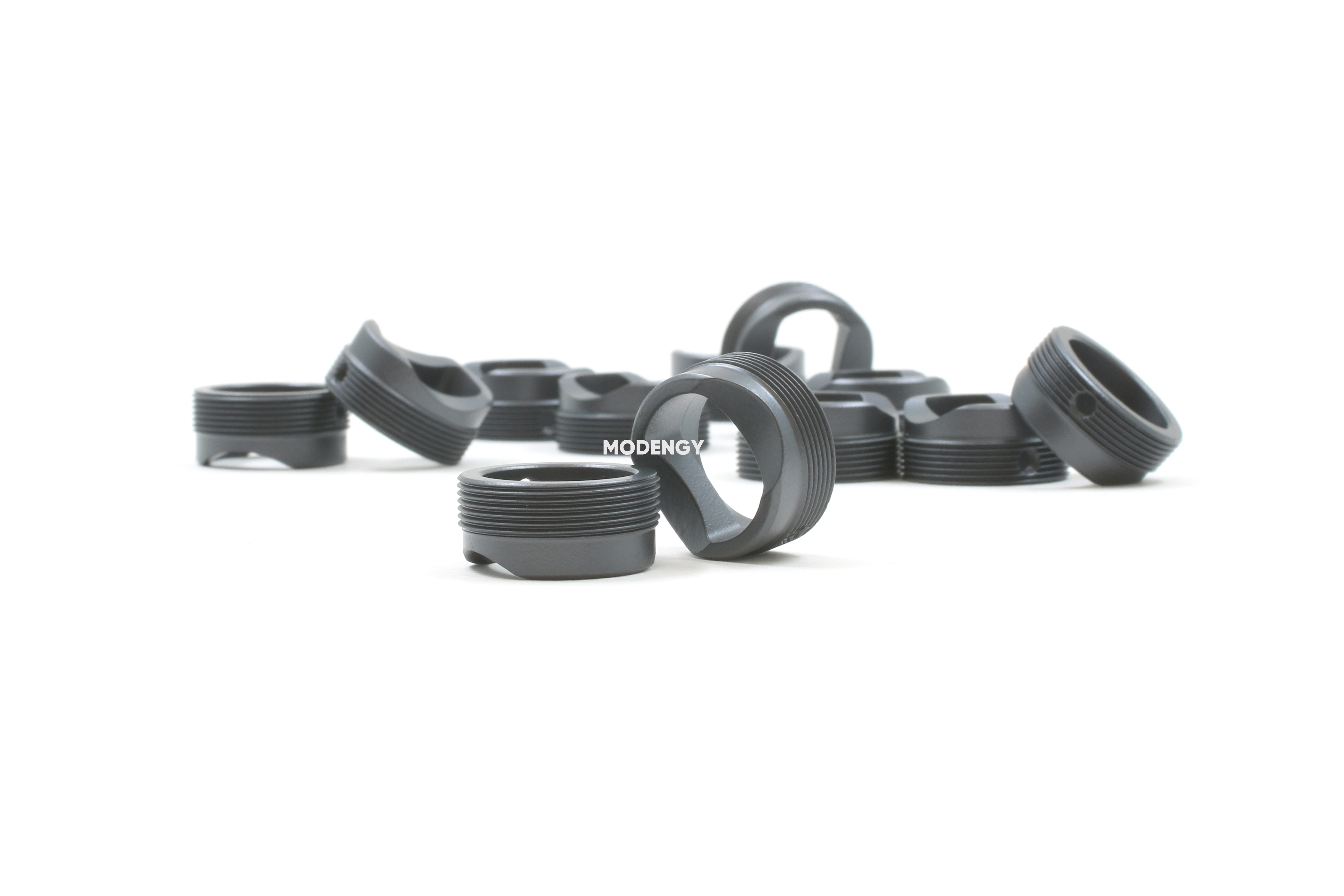

MODENGY 1066 coating based on molybdenum disulfide and graphite is applied onto the external skeletons' thrust threaded bushings made of stainless steel. It solves an acute issue of thread galling at screwing and unscrewing connections.
Before
After
To provide smooth going of the unit, and to extend service lifetime of the parts, MODENGY 1066 coating is applied onto the contacting surfaces. It reduces friction coefficient, prevents stick-slip motion, provides lifetime lubrication of the elements.
Before
After

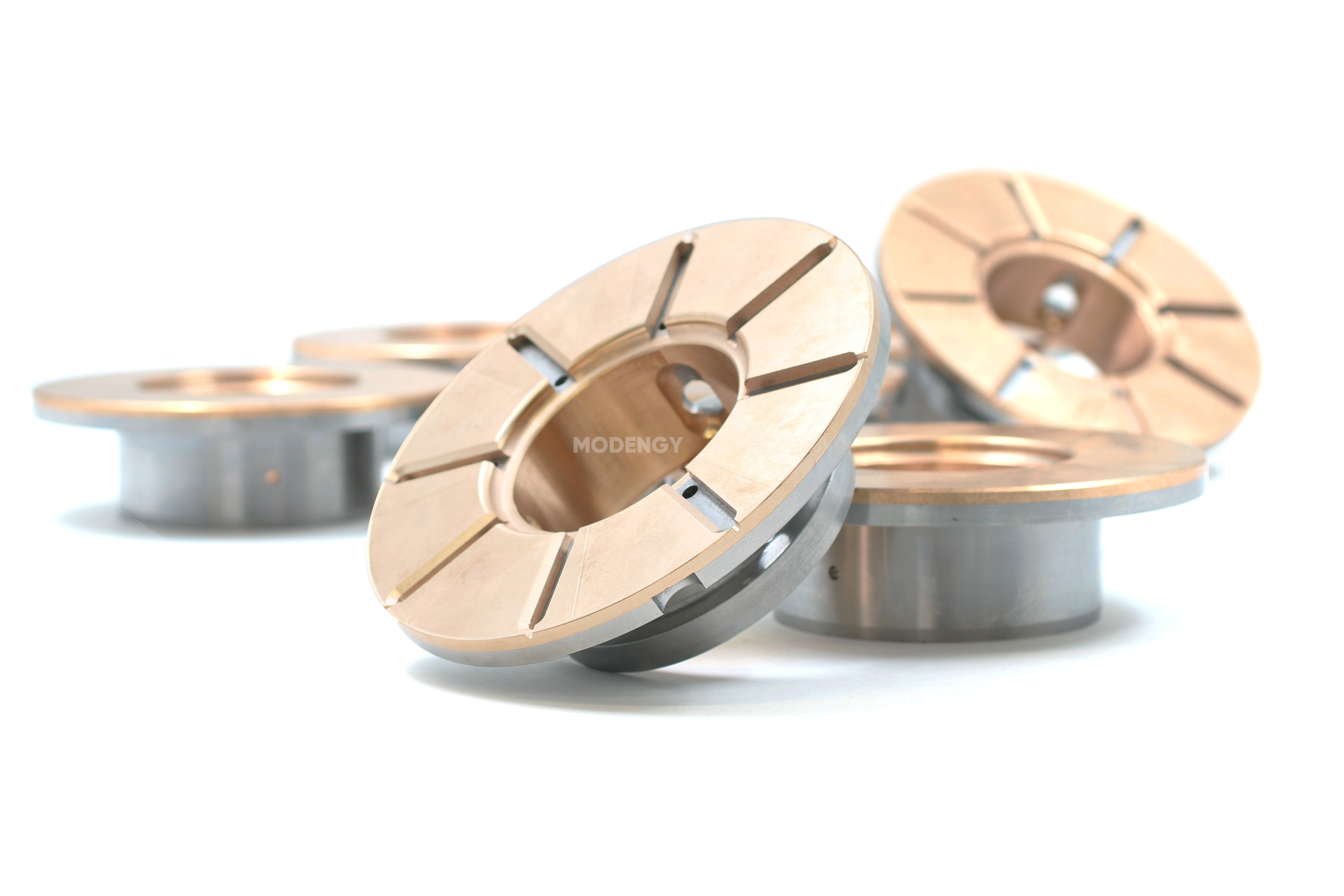

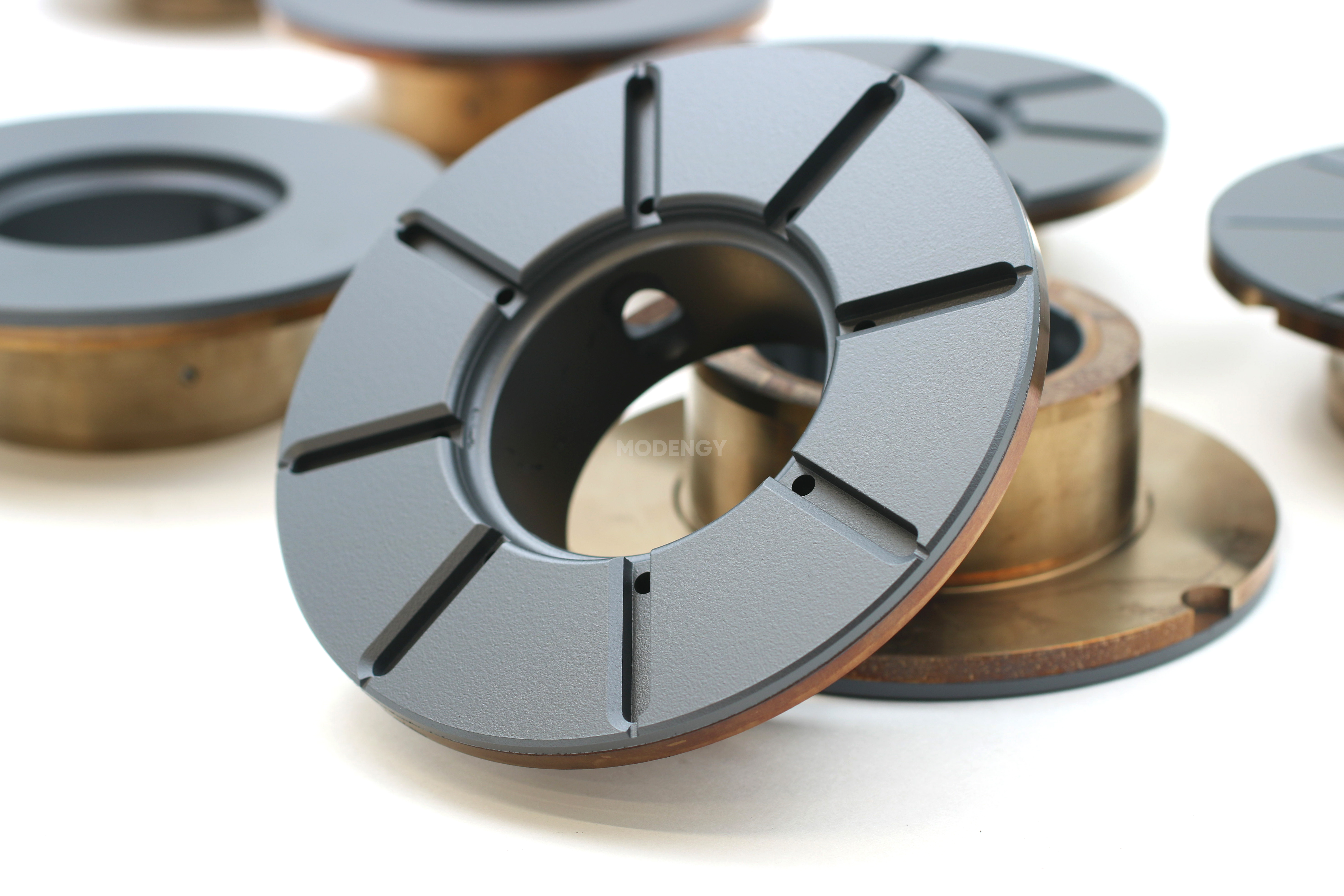

MODENGY 1006, and MODENGY 1066 reduce friction at the moments of starting and stopping as well as extend service lifetime of the highly loaded thrust bearings.
Before
After
To reduce friction, and to extend service lifetime of the balance-beam bushings, MODENGY 1066 anti-friction solid-film coating is used. It has high load-carrying capacity, provides improvement of service term and operational reliability of the suspension.
Before
After
MODENGY 1066 coating enables to prevent threaded connections of the NPP diagnostics equipment elements from damaging. It makes mounting and dismantling of the connections easier, excludes jamming, extends service lifetime of the parts without need in refreshing.
Before
After

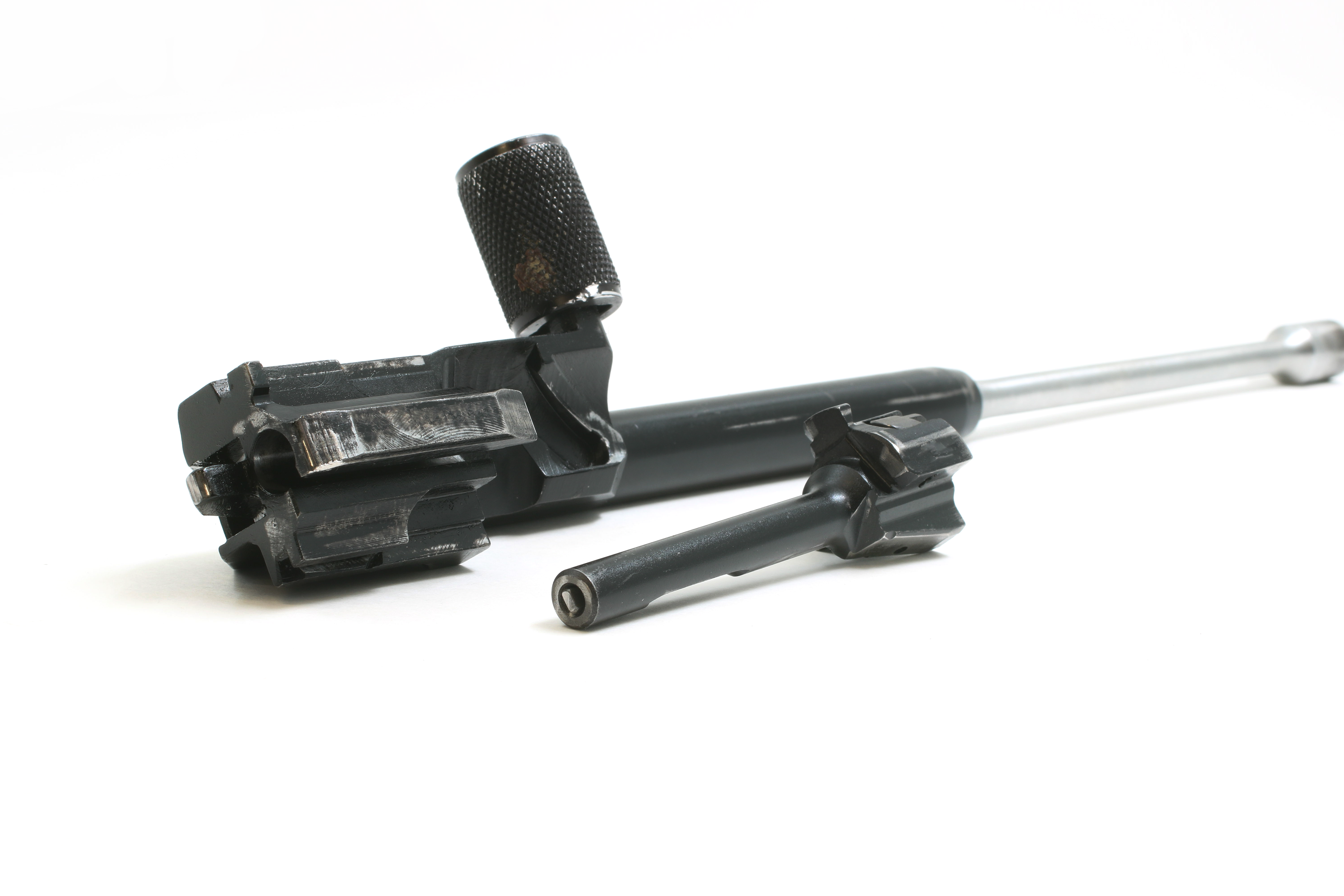

In process of gun breech-block moving relative to the frame, severe friction arises between the parts leading to their premature wear.
To solve this issue, MODENGY 1066 and MODENGY 1001 anti-friction solid-film coatings are applied onto the pneumatic gun breech-block mechanism elements.
To solve this issue, MODENGY 1066 and MODENGY 1001 anti-friction solid-film coatings are applied onto the pneumatic gun breech-block mechanism elements.
Before
After

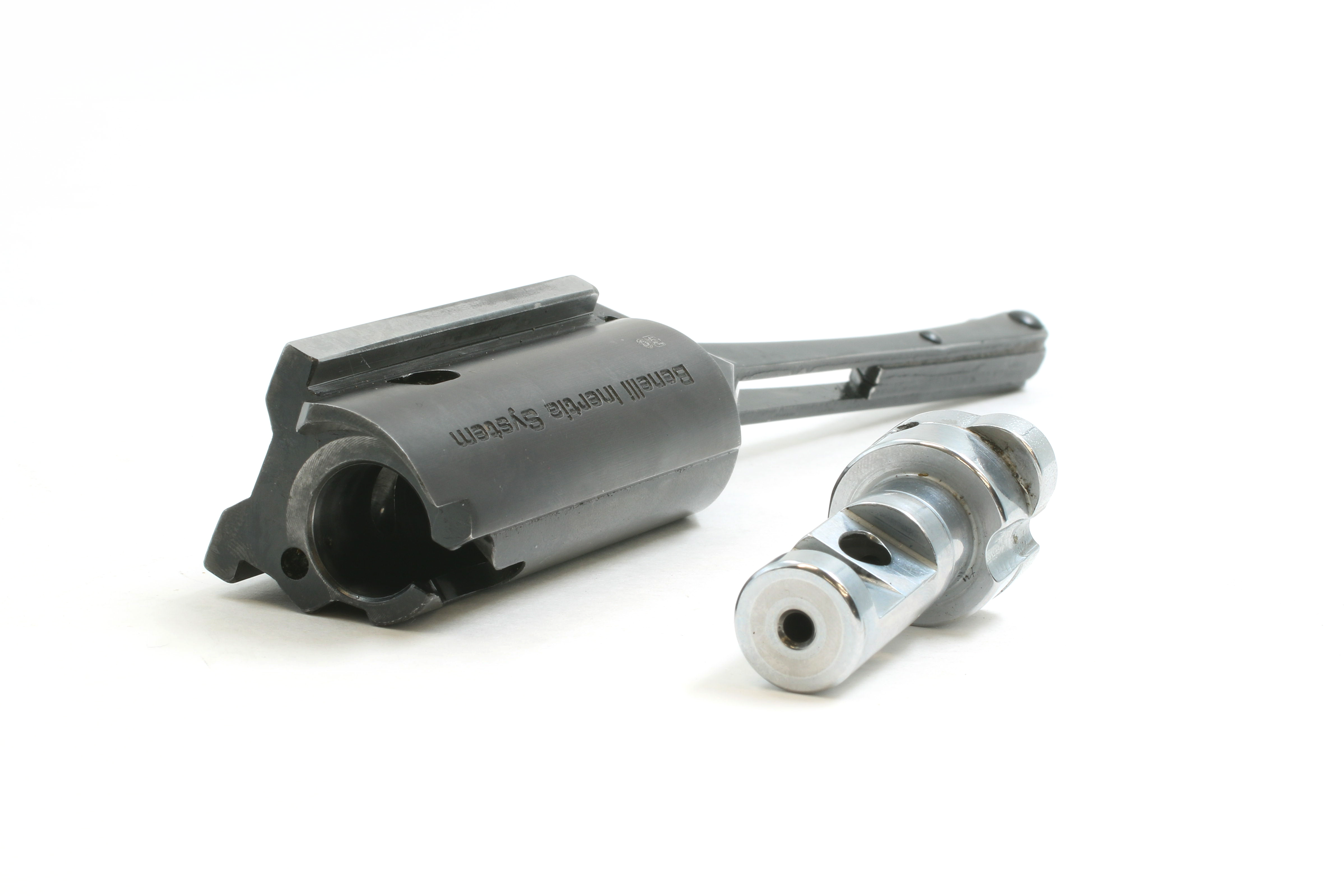

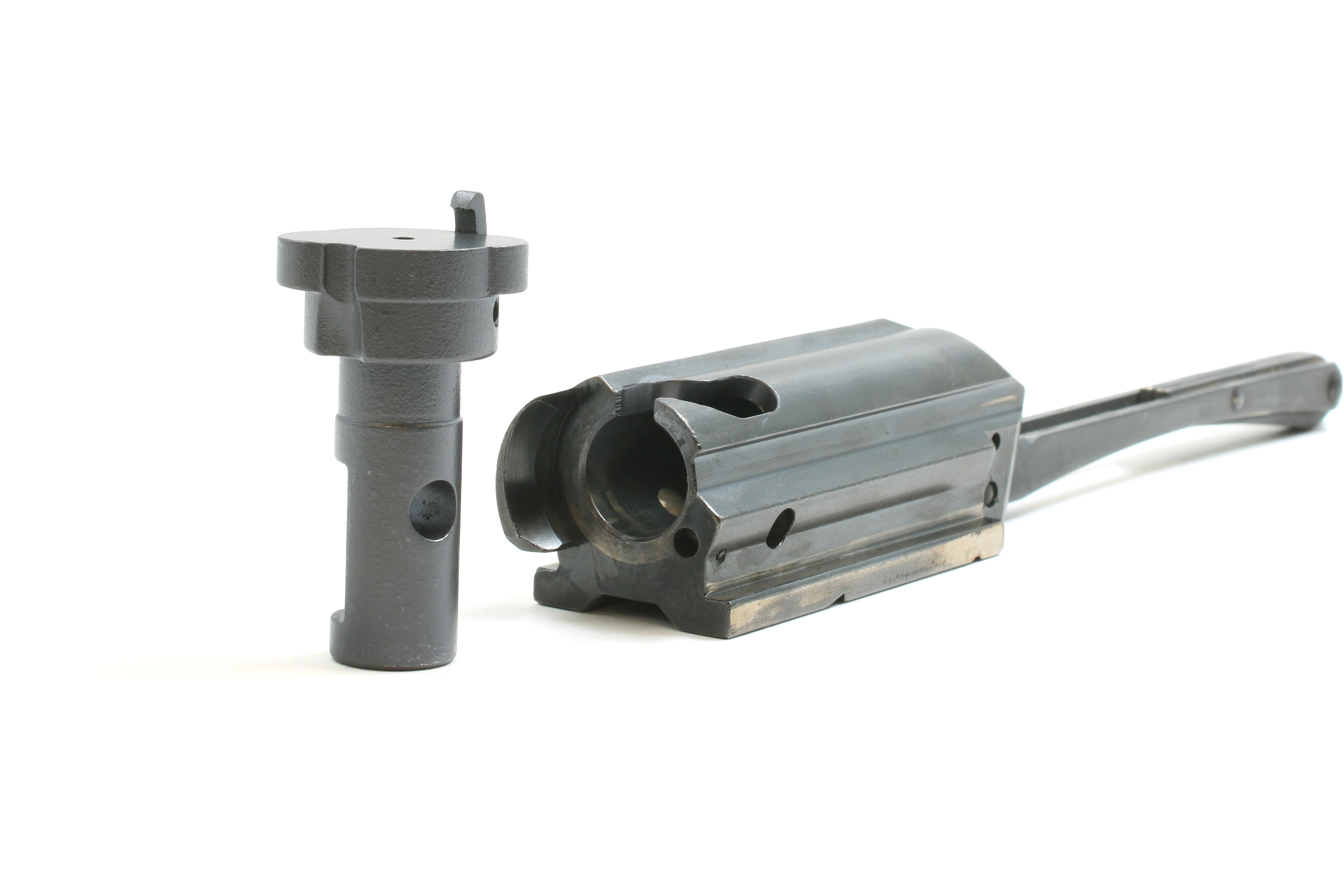

MODENGY 1066 anti-friction solid-film coating is applied onto breech frame and breech-block of the hunting carbine. A dry lubricating layer reduces friction and wear in excellent way under conditions of operating at heavy loads.
Before
After
MODENGY 1066 anti-friction solid-film coating is applied onto the parts of the weapon recharging mechanism. It reduces friction between the frame and the breech block. Due to this, smoothness of going and moving speed of the parts increases, wear decreases, and reliability of the mechanism operation improves.
Before
After
To extend service lifetime of the aircraft bushings, MODENGY 1066 anti-friction solid-film coating is applied onto them. It reduces friction and wear in the metal-to-metal pair, provides longterm corrosion protection.
Before
After

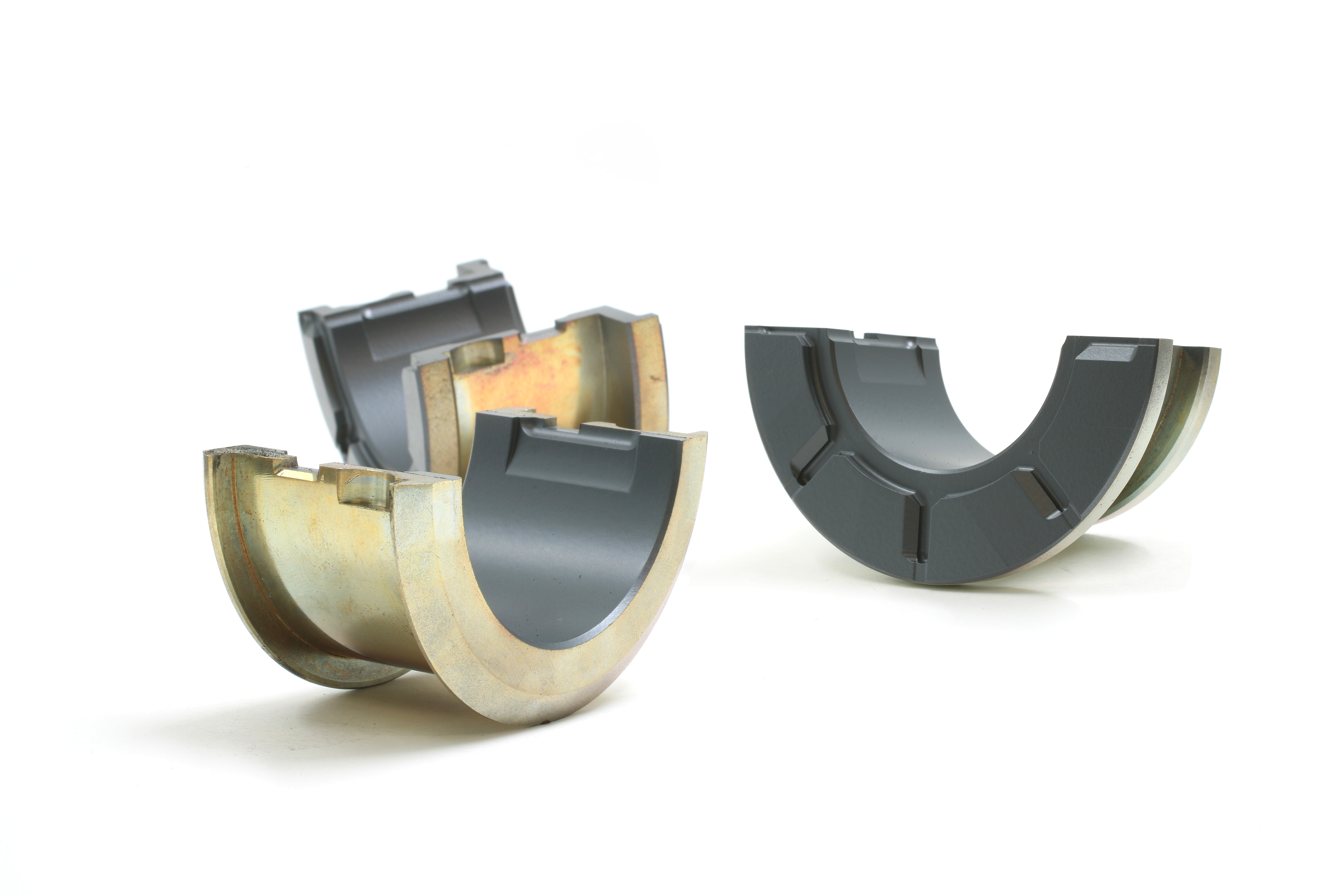

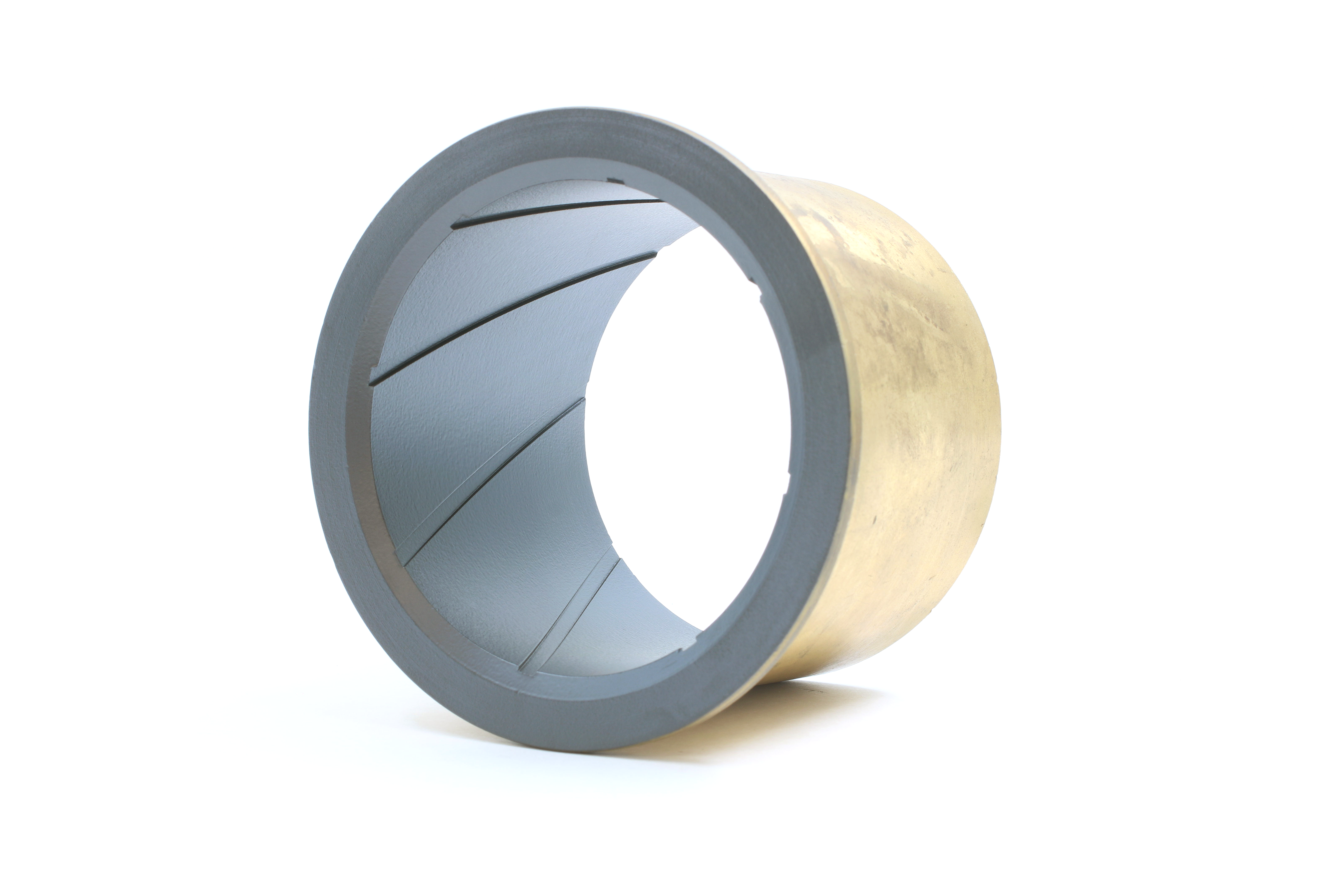

Onto the surface of the diesel locomotive slide bearings MODENGY 1066 anti-friction solid coating based on molybdenum disulfide and graphite is applied. It effectively reduces friction, and extends service lifetime of the items.
Before
After
MODENGY 1005 based on molybdenum disulfide, and MODENGY 1066 based on composition of molybdenum disulfide and graphite, coatings withstand high loads even at small rotation speeds, have high separating and anti-corrosive properties. Due to these solid-film coatings, service lifetime of the bearings extends.
Before
After
Producers of the pipeline fittings apply MODENGY 1066 coating with molybdenum disulfide and graphite onto the globe valves plugs. A thin lubricating layer reduces friction and wear as well as decreases force at the globe turning.
Before
After
Applying MODENGY 1066 and MODENGY PTFE-A20 coatings onto the work surface of the rods reduces friction between them and the valve rubber seals. Due to this wear of the parts is prevented, and tightness of the units improves.
Before
After
To reduce friction, and to protect the elements against corrosion, MODENGY 1005 and MODENGY 1066 anti-friction solid-film coatings are used. They have high load-carrying capacity, wear resistance, operability in dusty environments, and long service lifetime.
Before
After

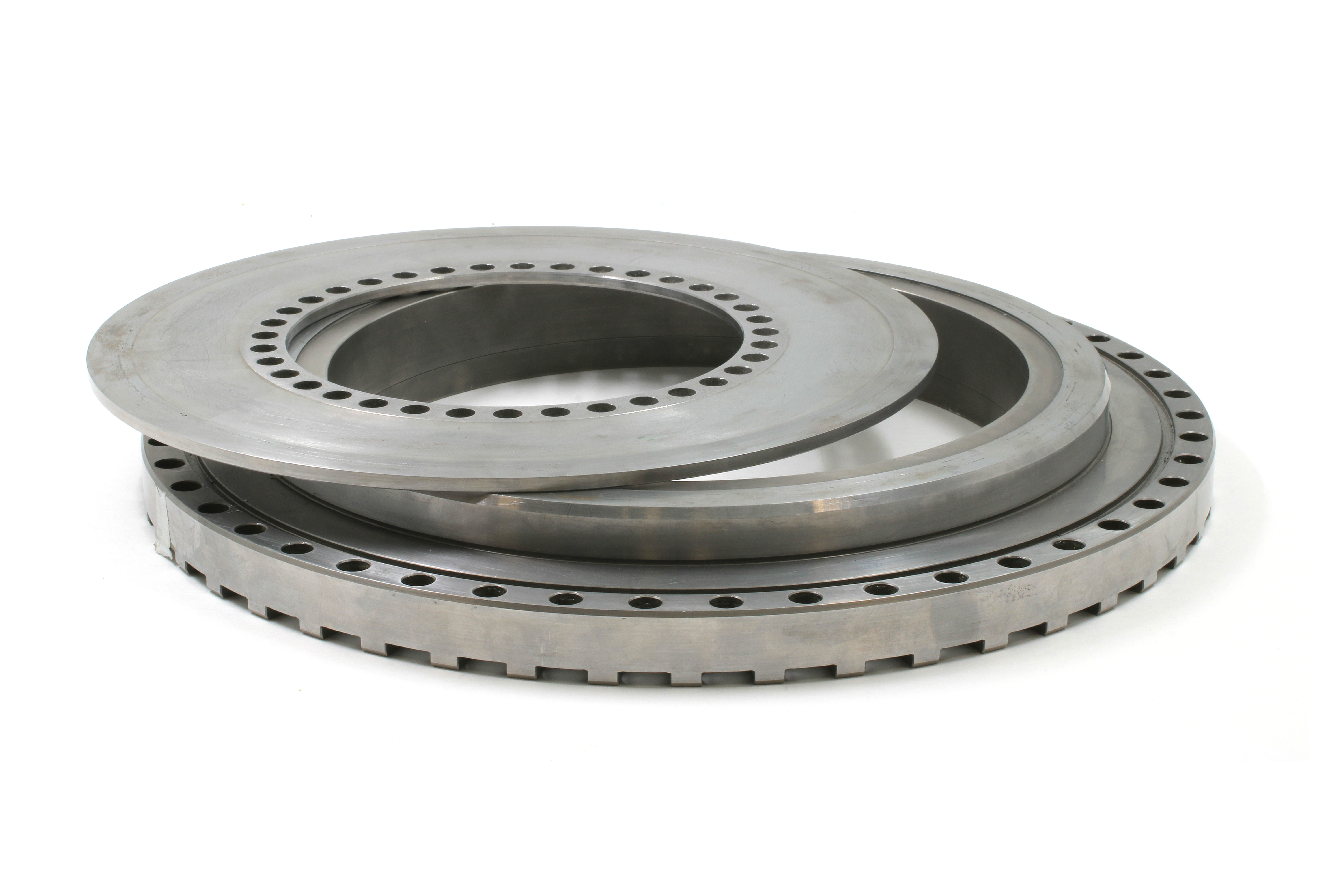

MODENGY 1005 and MODENGY 1066 coatings based on graphite and molybdenum disulfide form an anti-friction layer on the surface of the rings having high load carrying capacity. It preserves the elements against premature wear due to reducing friction coefficient, and enables to considerably extend service lifetime of the reducers bearing rings.
Before
After
MODENGY 1066 anti-friction solid-film coating is applied onto the thrust-bearings, hinges, and lids. It has high durable capacity, provides long-term lubrication, and corrosion protection. Use of this product enables to create a unit that requires no maintenance.
Before
After

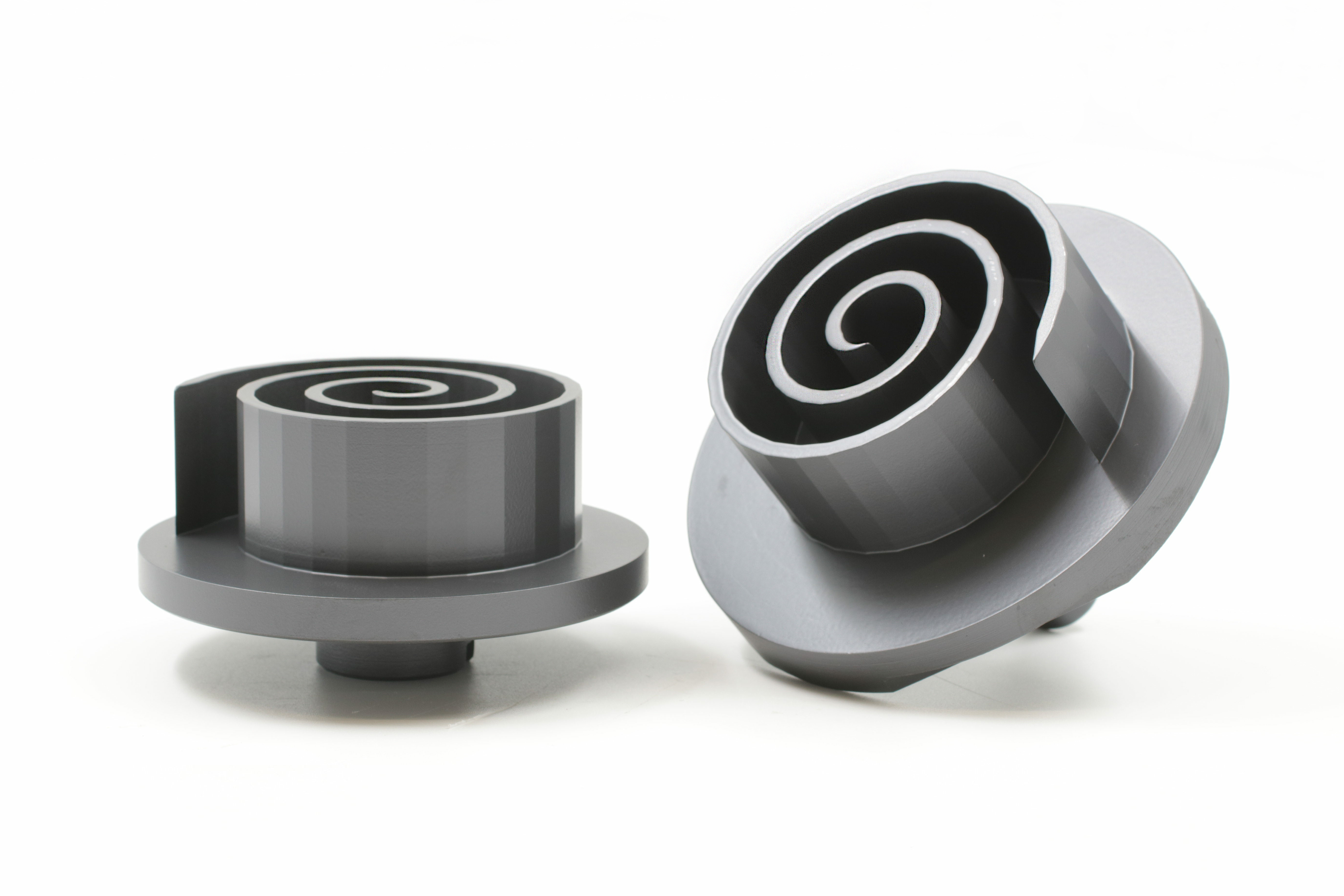

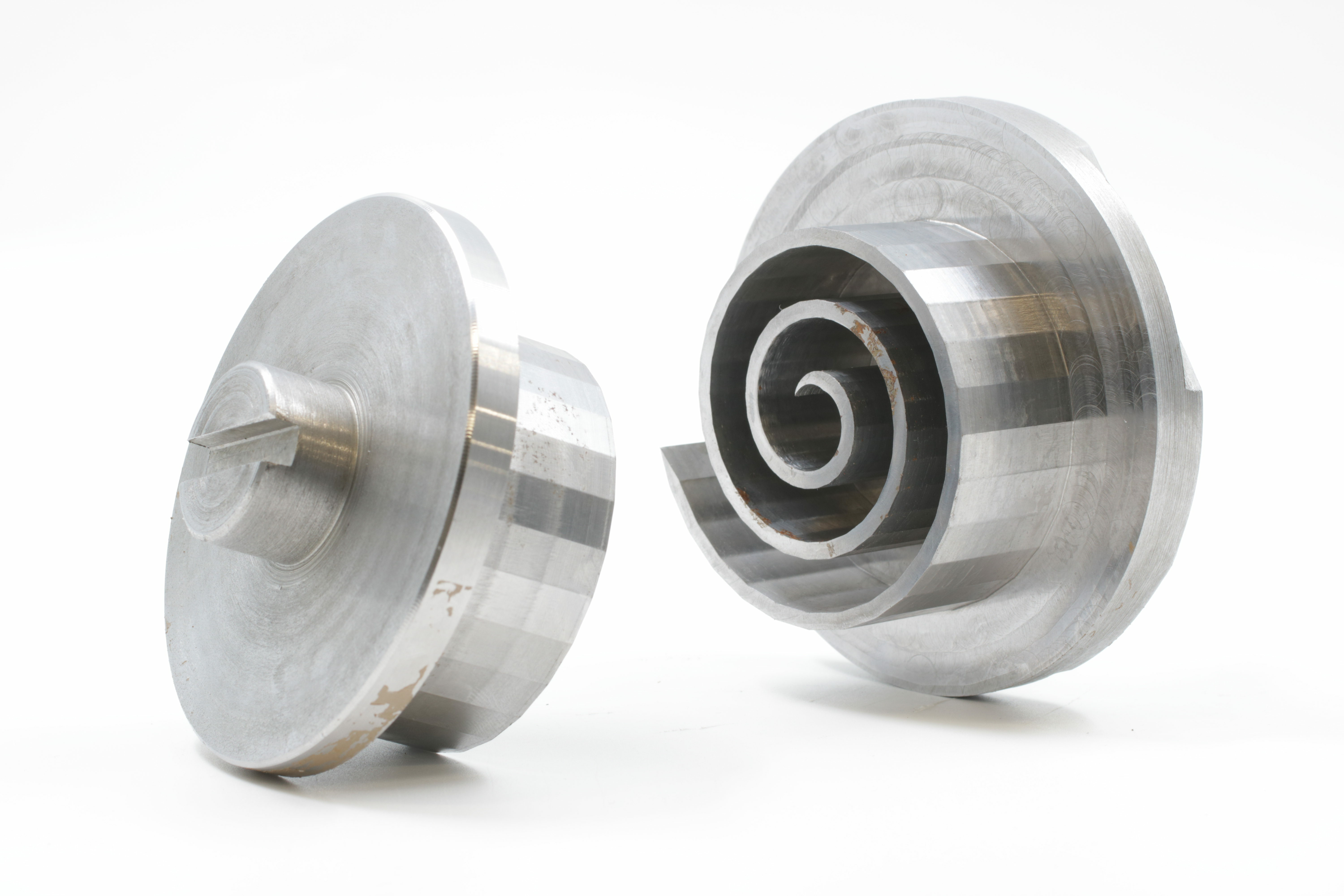

MODENGY 1066 coating based on molybdenum disulfide and graphite has high values on wear resistance, and can operate at high contact pressures. This product reduces friction coefficient between spirals, and extends service lifetime of the unit. This solution enables to abandon using fluoroplastic, and is more practically feasible.
Before
After
Due to reducing and stabilizing friction coefficient, stick-slip motion is prevented, reliability of the assembly robots increases, and their service lifetime extends.
Before
After
Due to these anti-friction solid-film coatings the issue of needles overheating at sewing is solved.
The smooth texture of the coatings enables to reduce needle friction against the multilayer textile slings of enforced strength.
The smooth texture of the coatings enables to reduce needle friction against the multilayer textile slings of enforced strength.
Before
After
Adjusting elements of the exoskeletons are exposed to high loads, and as a result wear out fast.
MODENGY 1066 perfectly suits for the exoskeleton friction units. A single application of this coating onto the adjusting plates significantly reduces friction and wear, protects the parts against corrosion.
Unlike ordinary greases, this coating doesn’t make dirty whatever touches it, nor emits any toxic evaporations, so it’s safe for health of the person who uses the exoskeleton.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1015 Special Solvent is intended to rinse equipment after the coating is applied, and the uncured coating is removed
- MODENGY 1013 Special Solvent to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low friction coefficient
- High load-carrying capacity
- Wide service temperature range
- Workability in dusty environment
- High wear resistance at dynamic loads
- Non-toxic after complete cure
- Effective protection against fretting-corrosion
- It has properties of anti-emergency lubrication
- Anti-corrosive properties
- It prevents stick-slip motion
- Long service life (depends on the unit construction – long-term lubrication)
- Resistance to oils and greases
- It speeds up parts assembly with robots
Specifications
- Colour: grey-black
- Service temperature range: -70 … +315 °С
- Corrosion protection: > 300 hours (ISO 9227)
- Standard coating consumption: 70 g / m²
- Cure temperature / time: +220 °C / 35 min
It is used in the following typical units
Sliding bearings, sliding guideways, gears, splined joints, and keyed connections, cylinder-piston group, other units with metal-metal friction pairs
