MODENGY 1014
Anti-friction solid-film coating based on polytetrafluorethylene (PTFE) and molybdenum disulfide
It is used in chemical pumps and pipeline valves; soldefing plates of the packaging equipment; the sliding friction units exposed to heating, dust, humidity, and chemically aggressive substances where oils and greases are not effective; in pneumatic cylinders, parts of the locks, hinges, automotive fastening elements in cars; in the units and mechanisms of the aerospace machinery; In the offshore oil platform fasteners; in the polymer production line calibrators

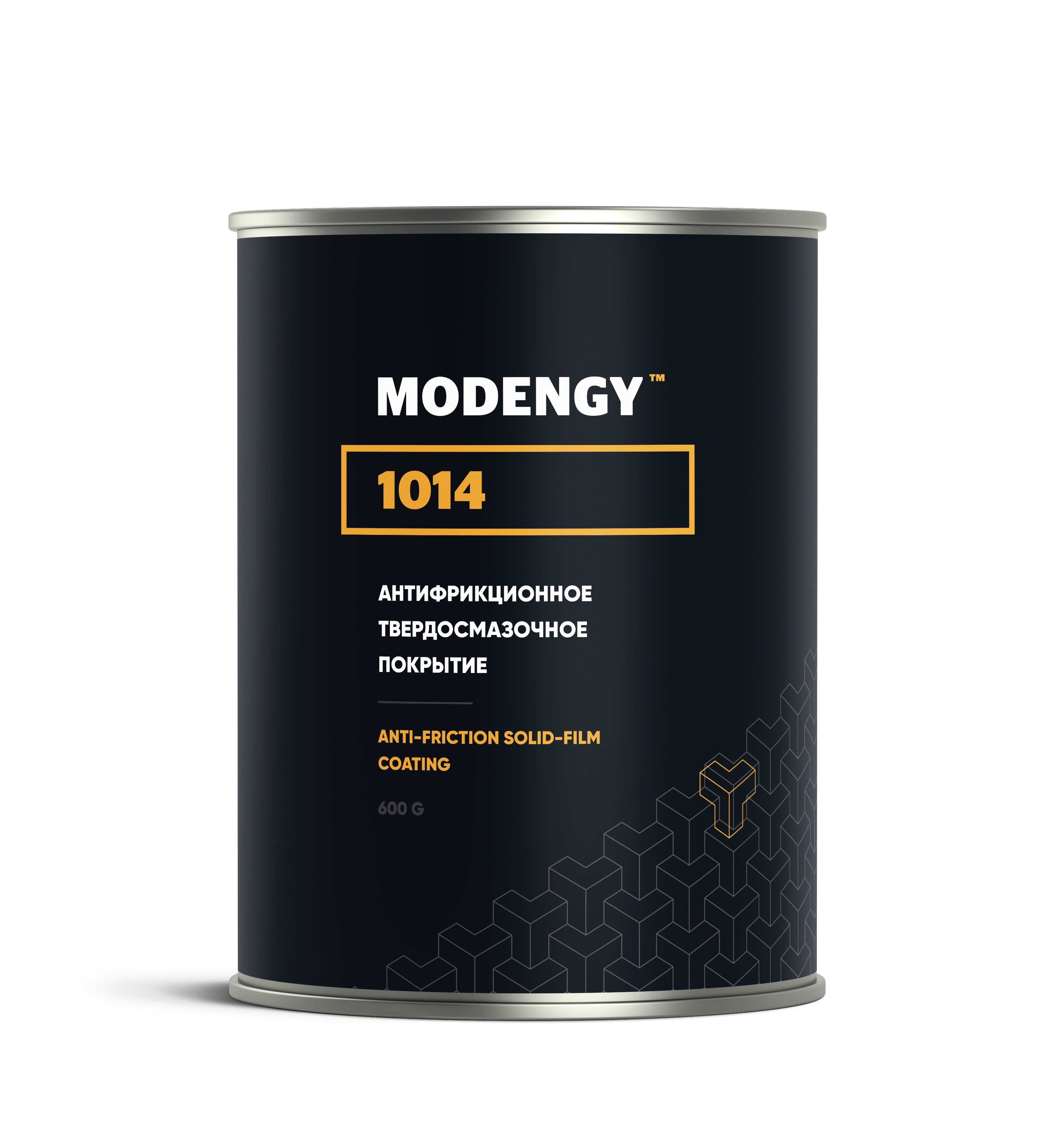

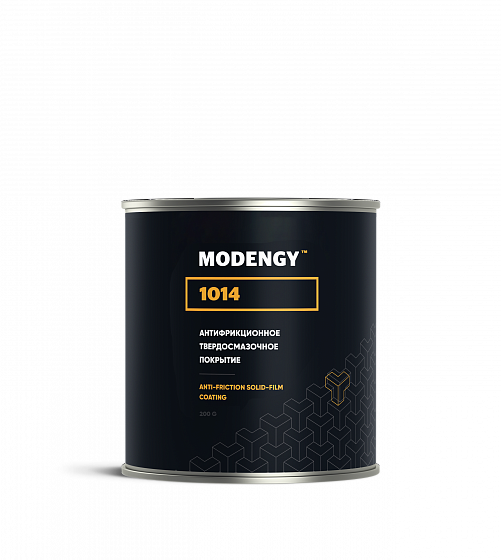

Package sizes:

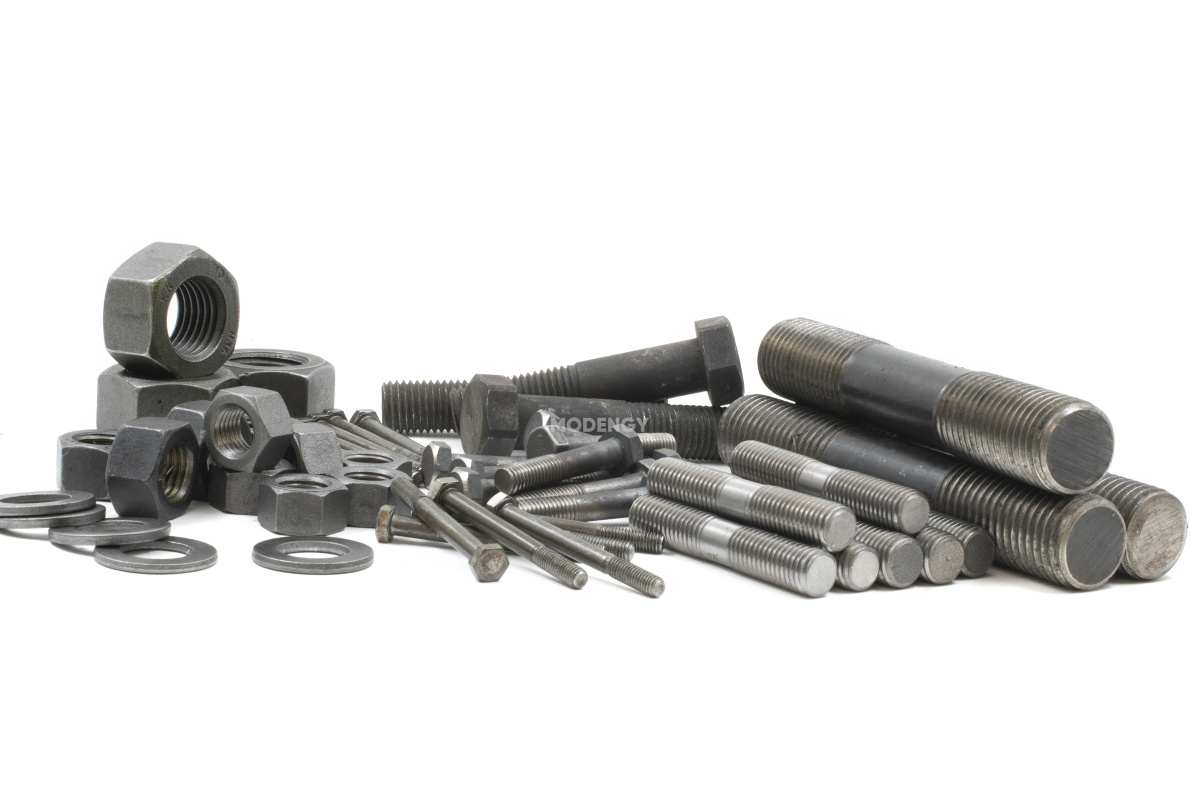

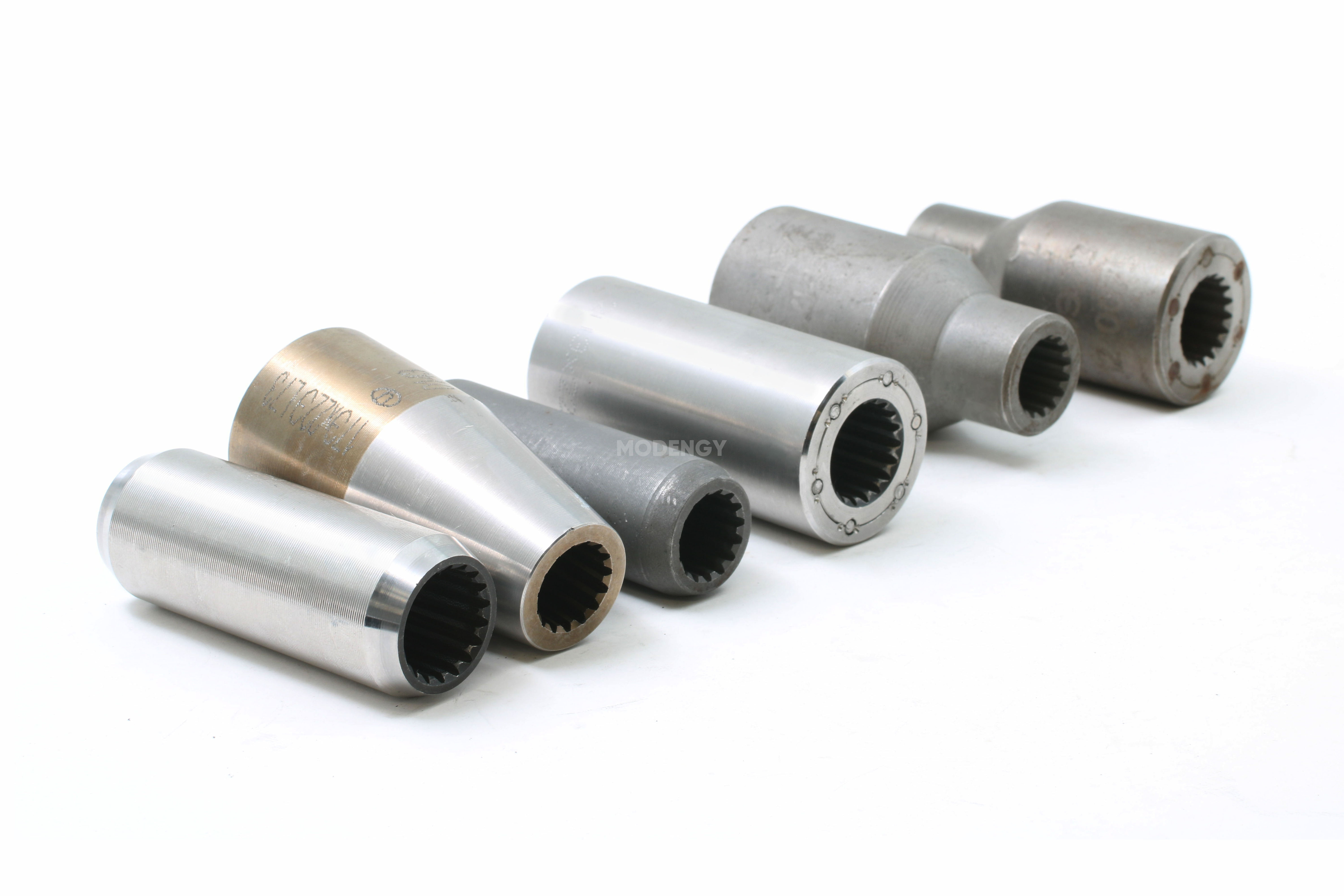

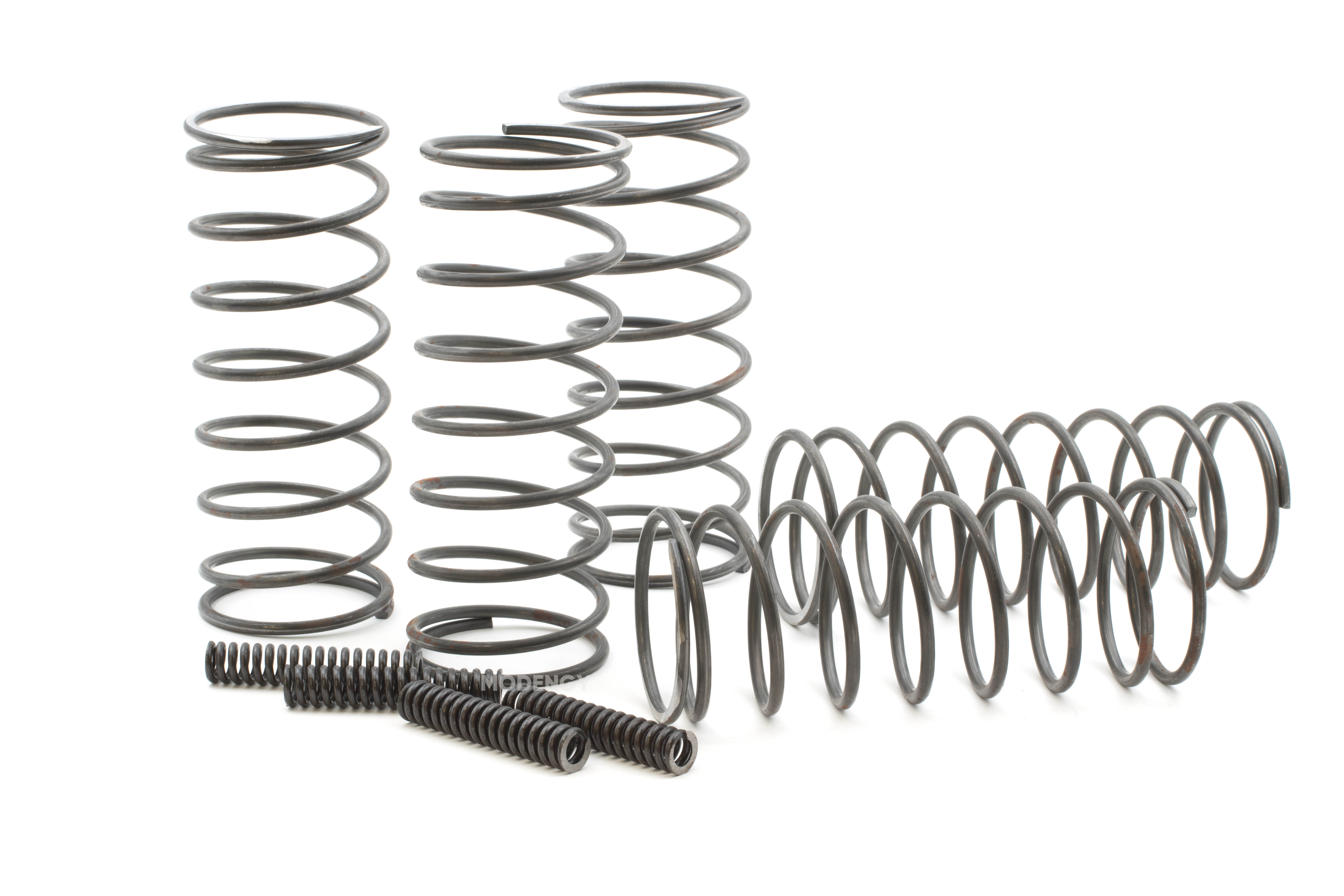

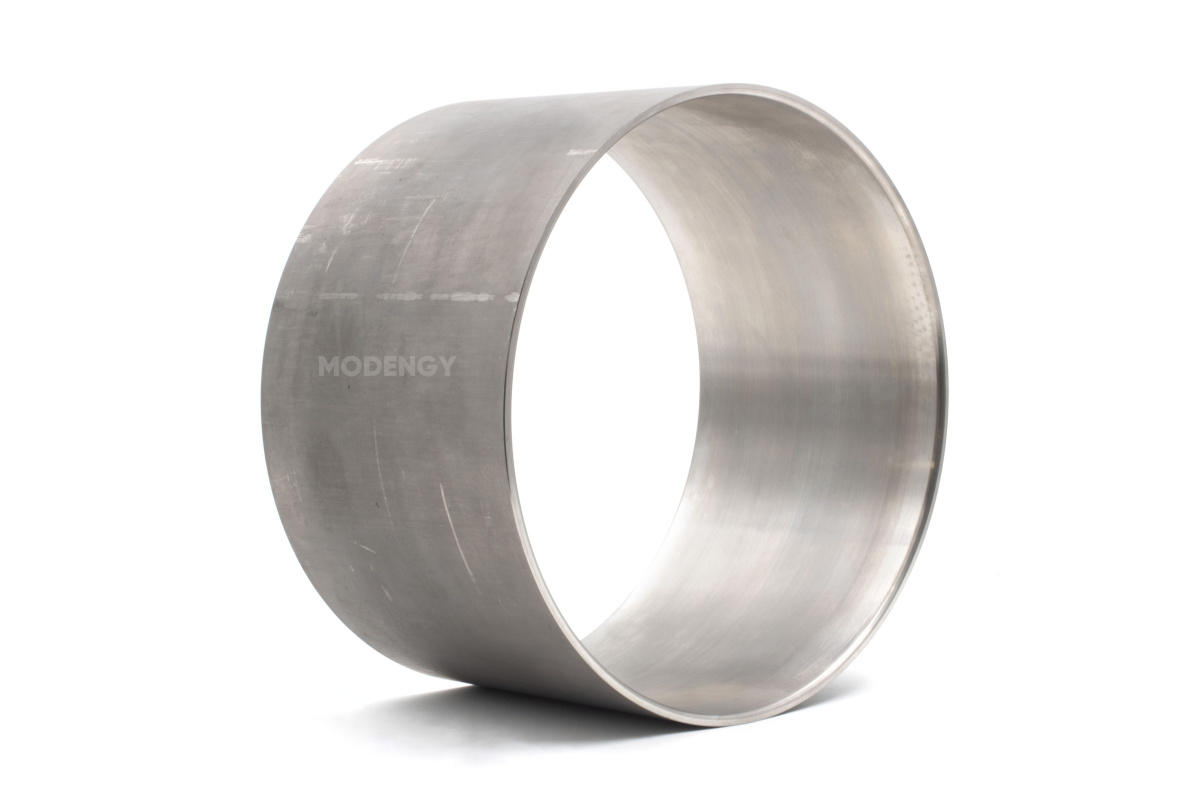

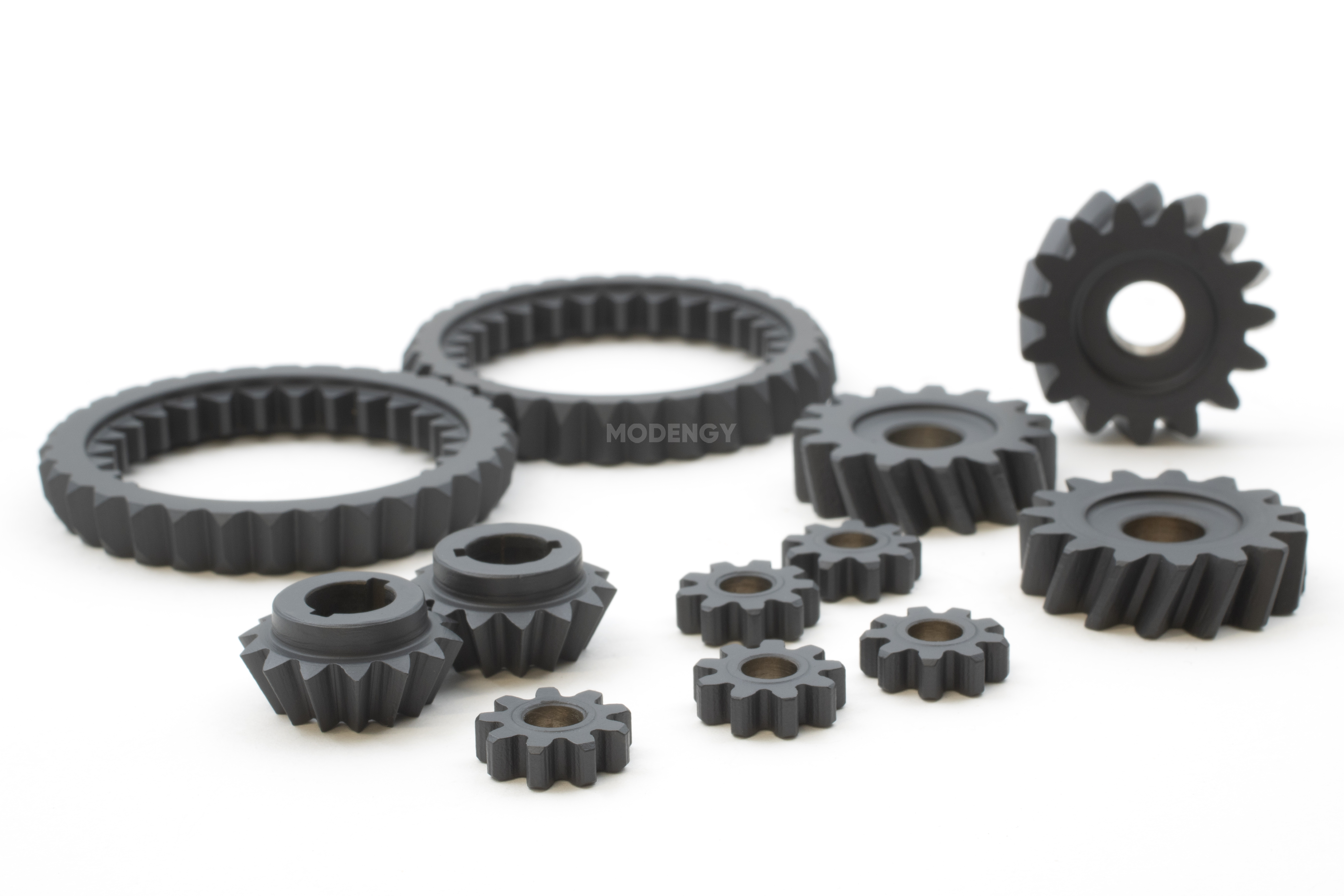

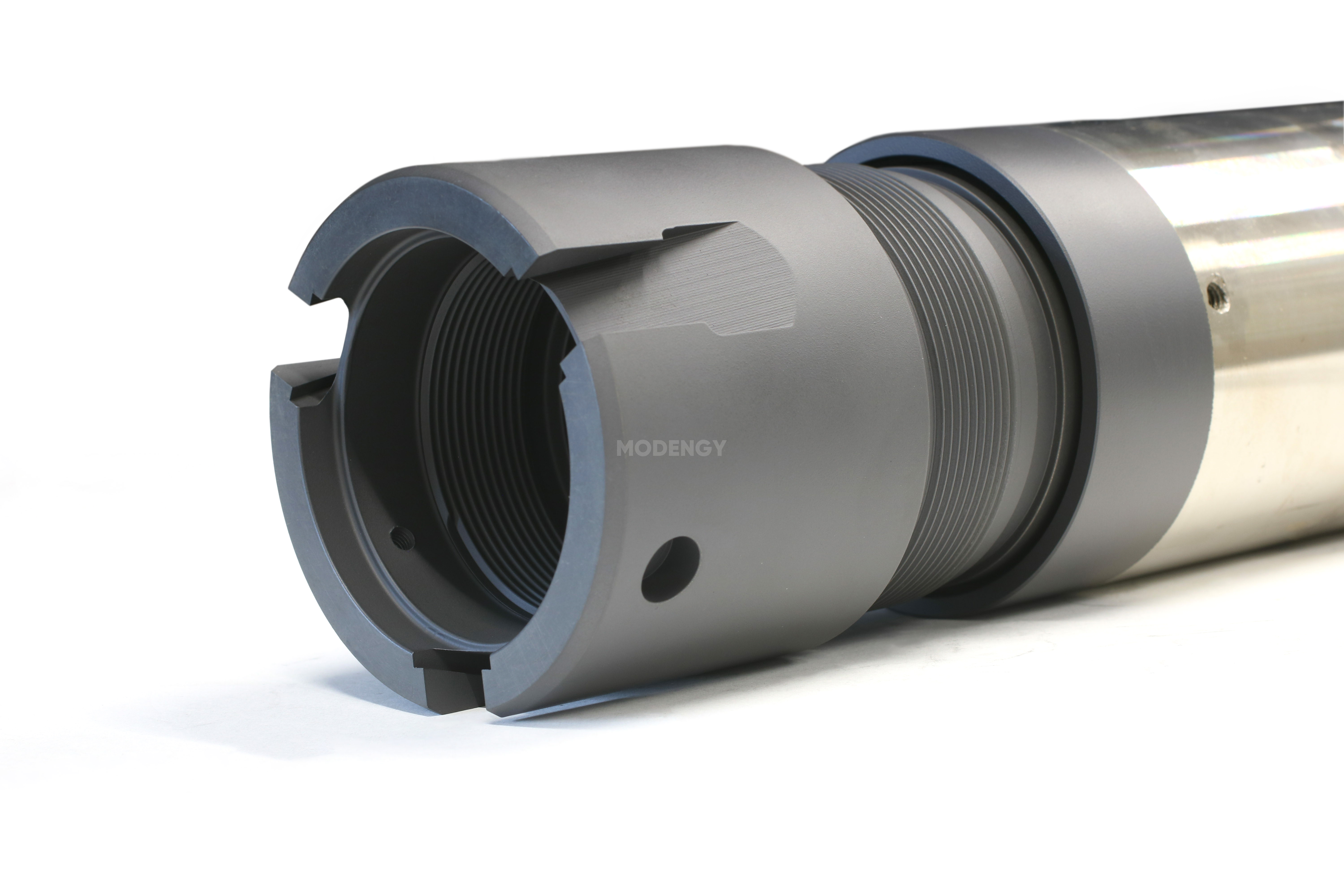

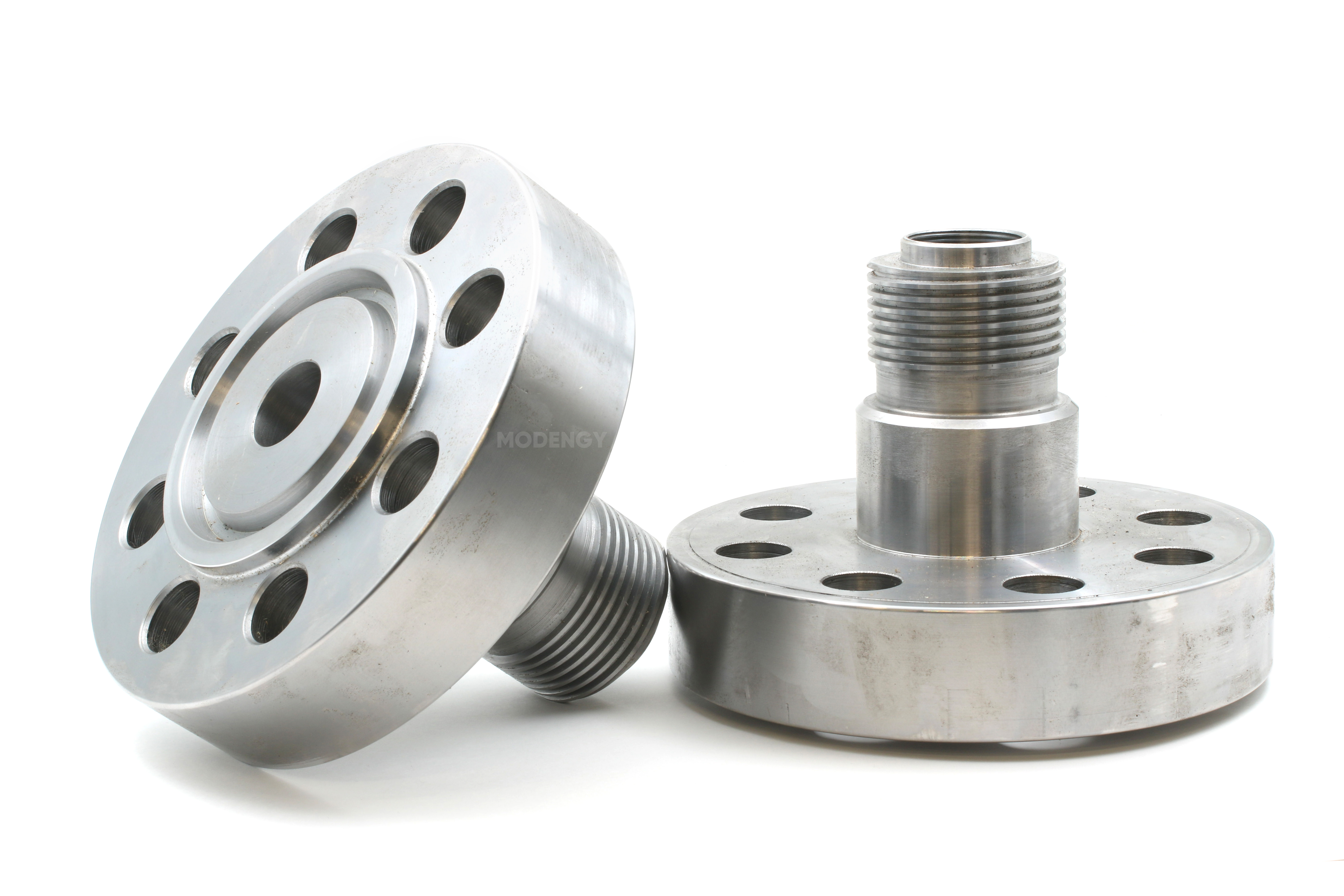

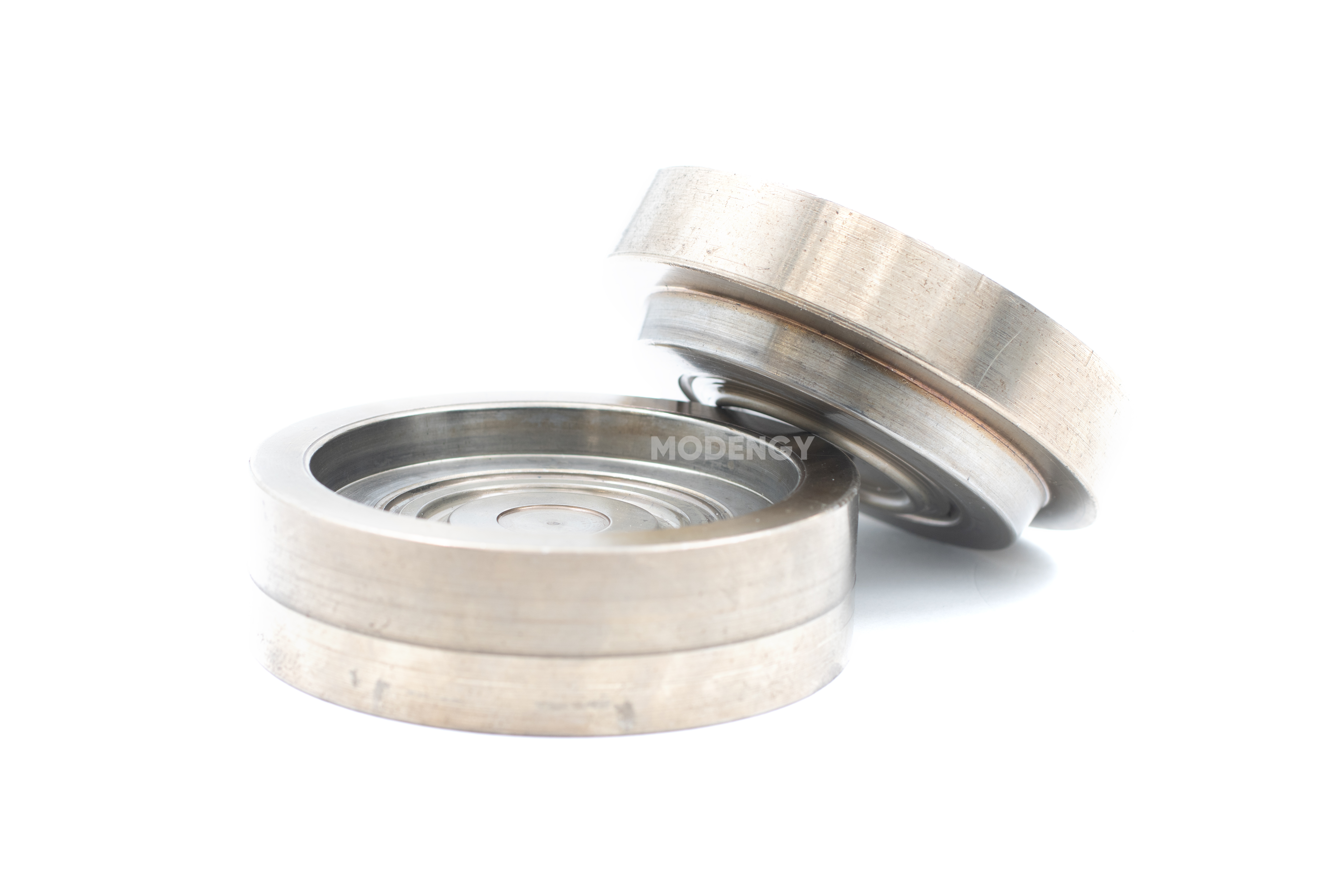

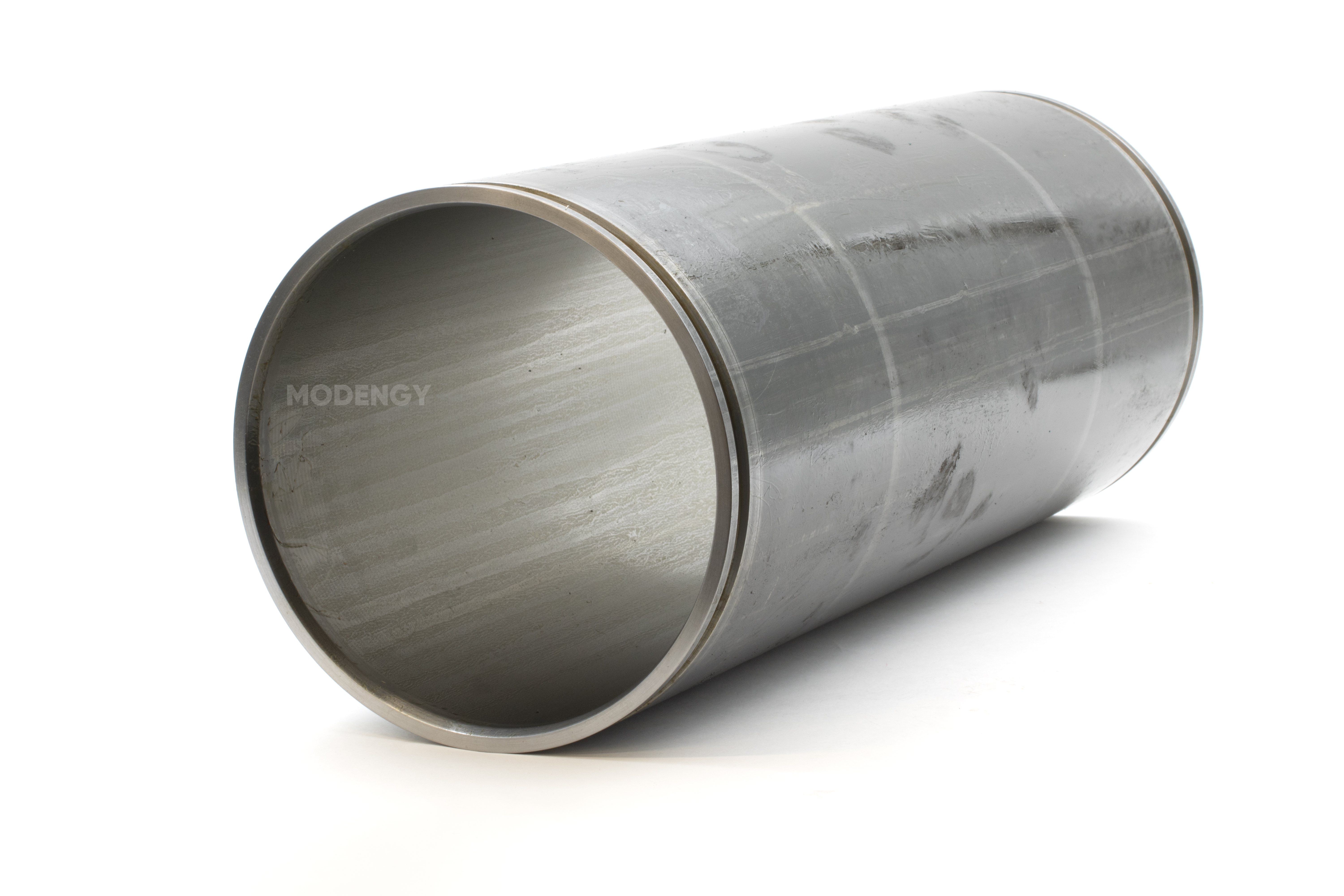

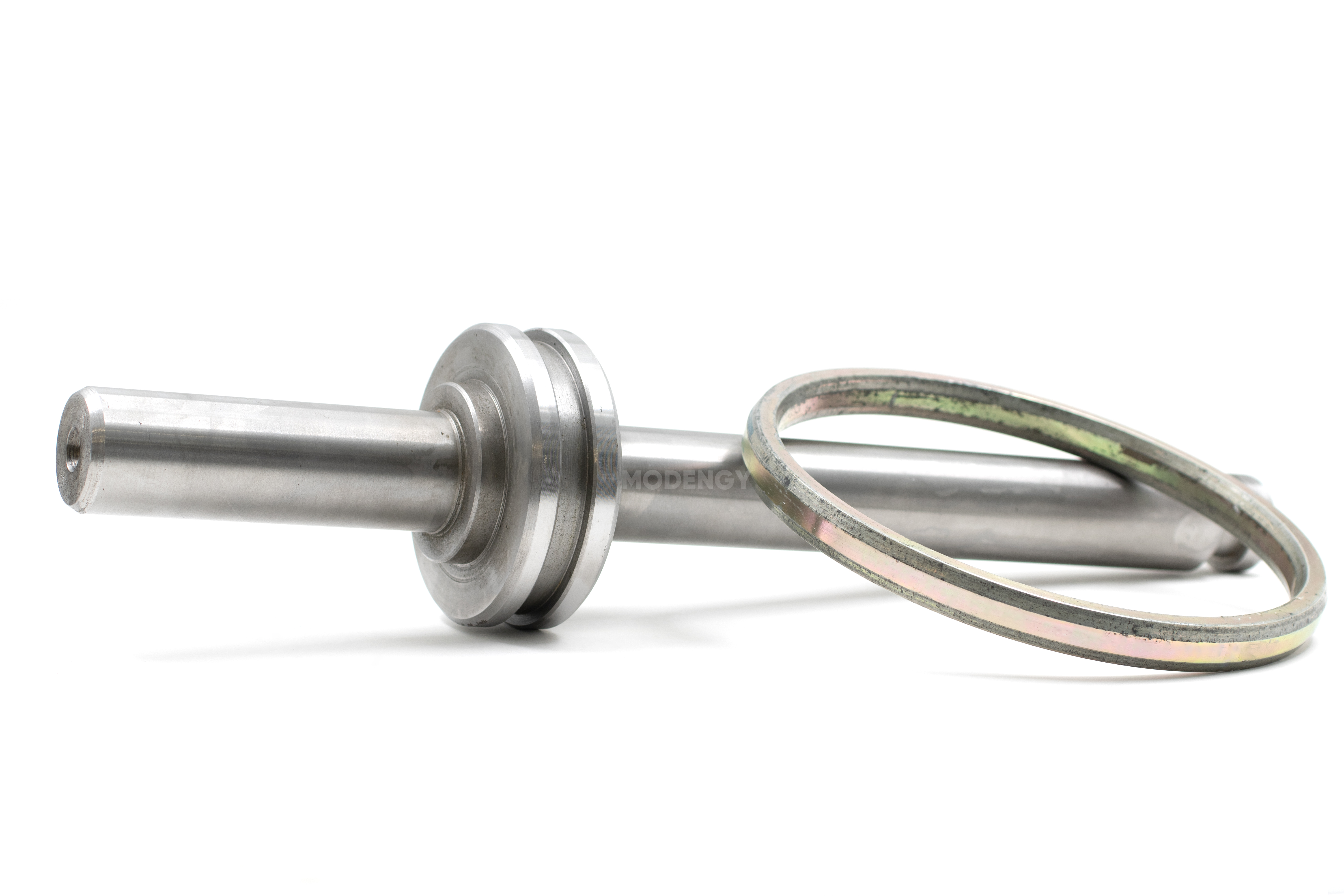

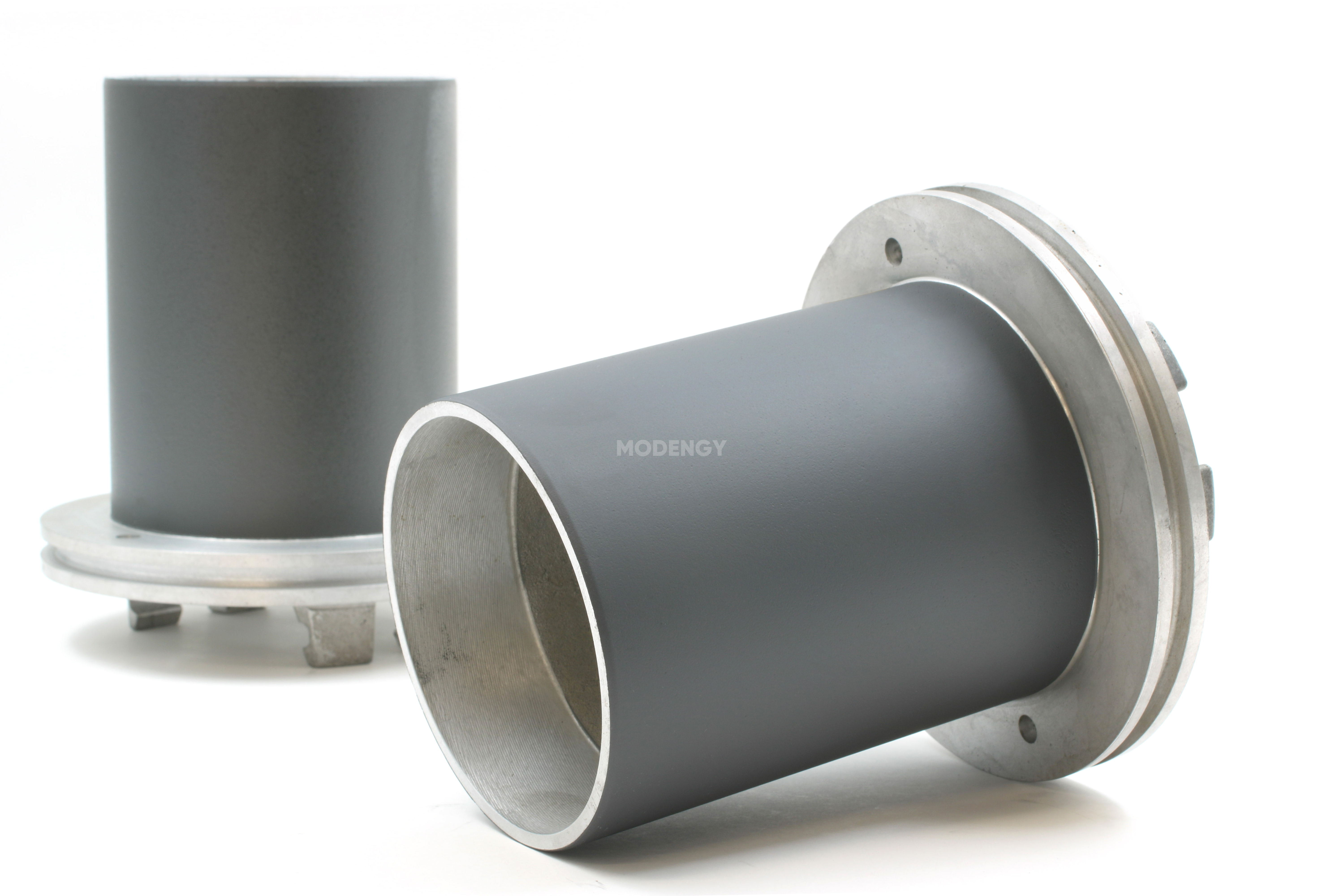

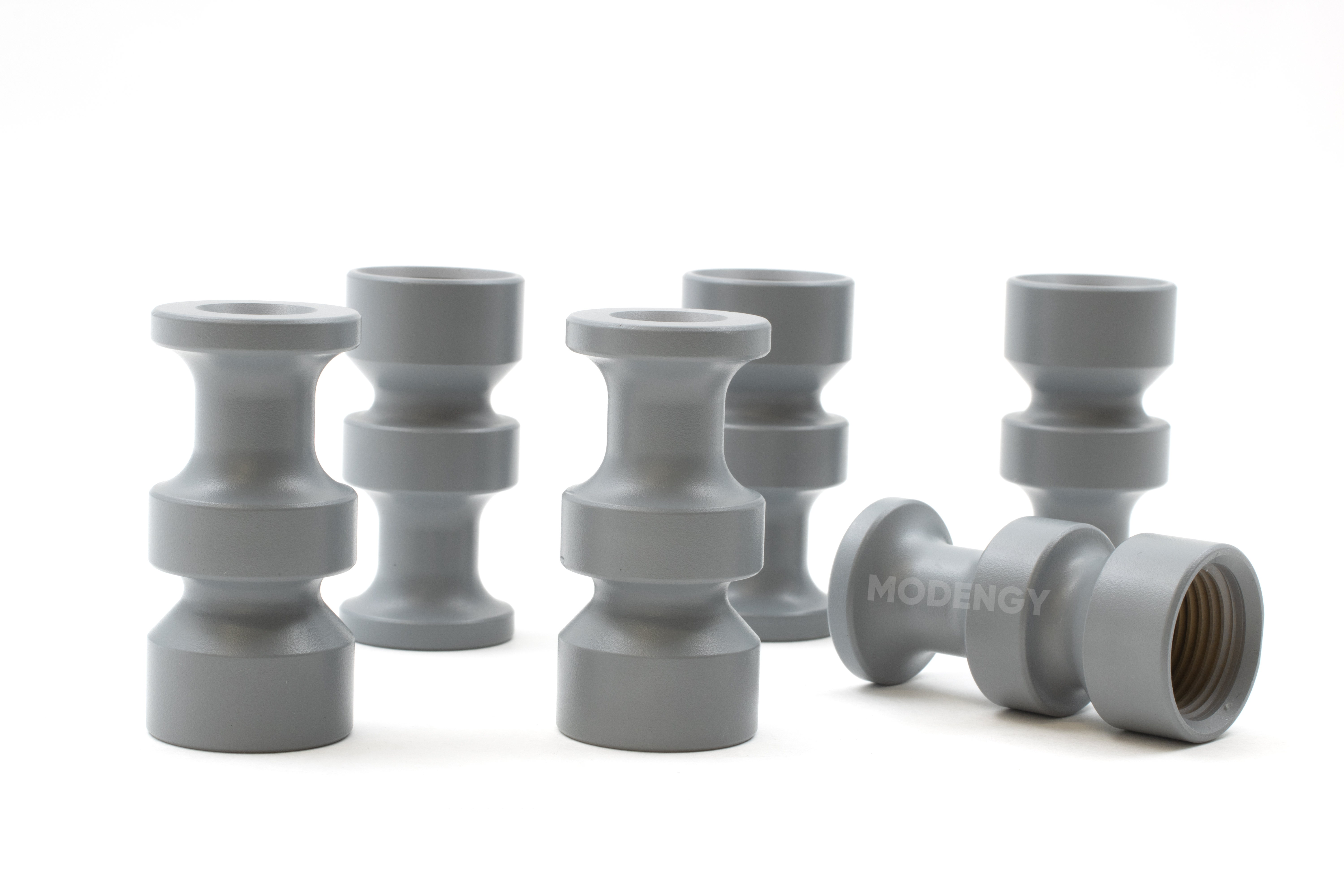

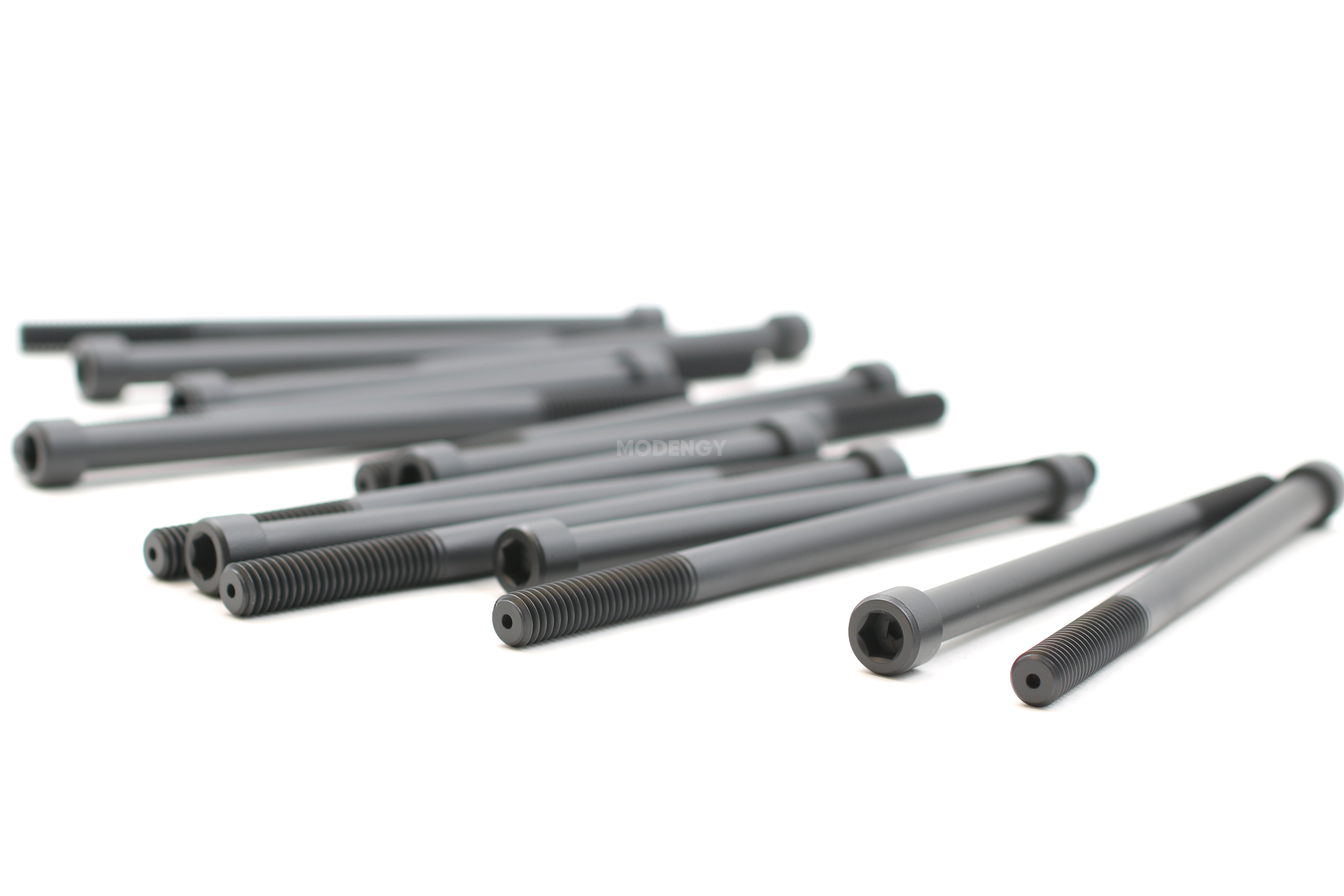

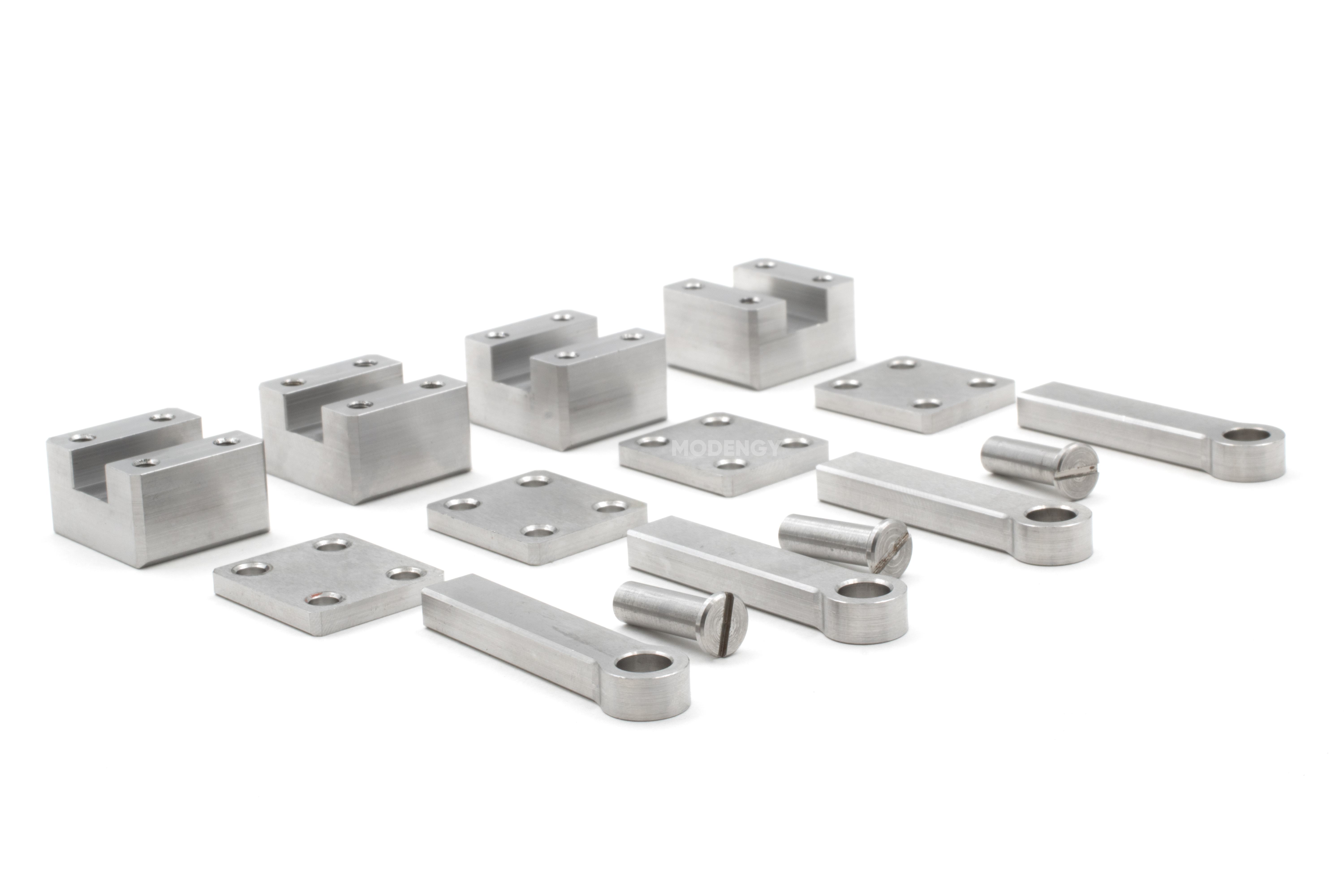

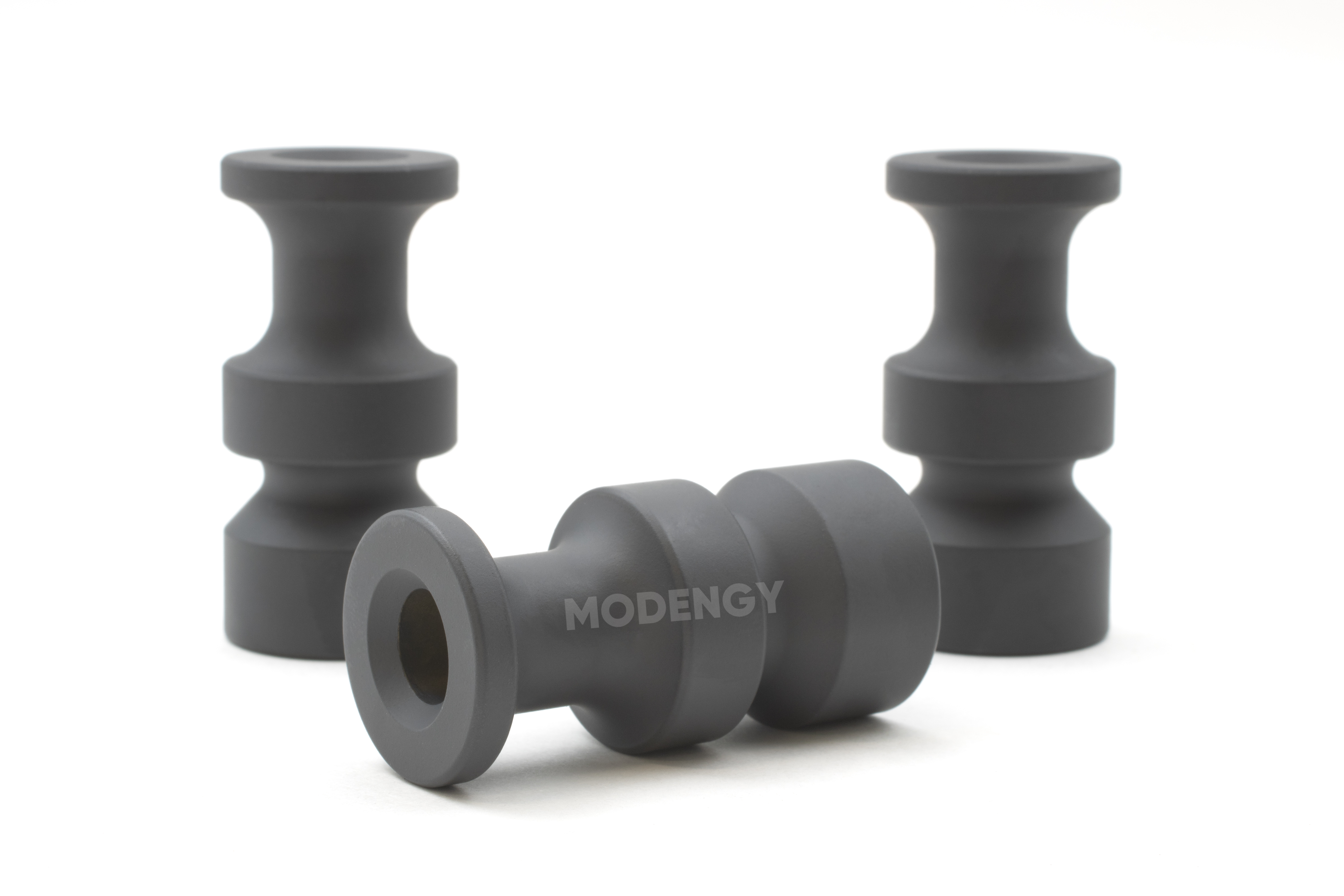

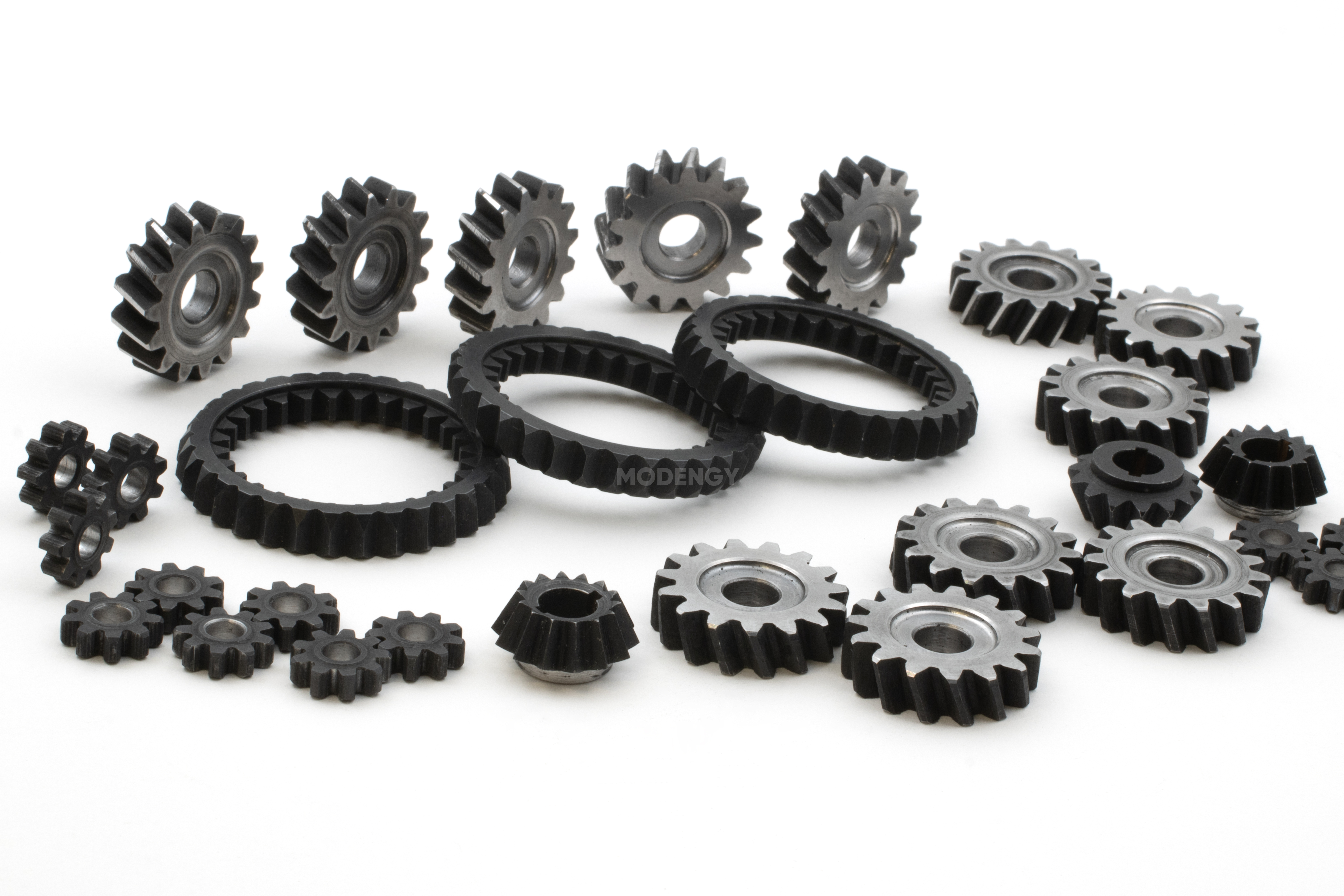

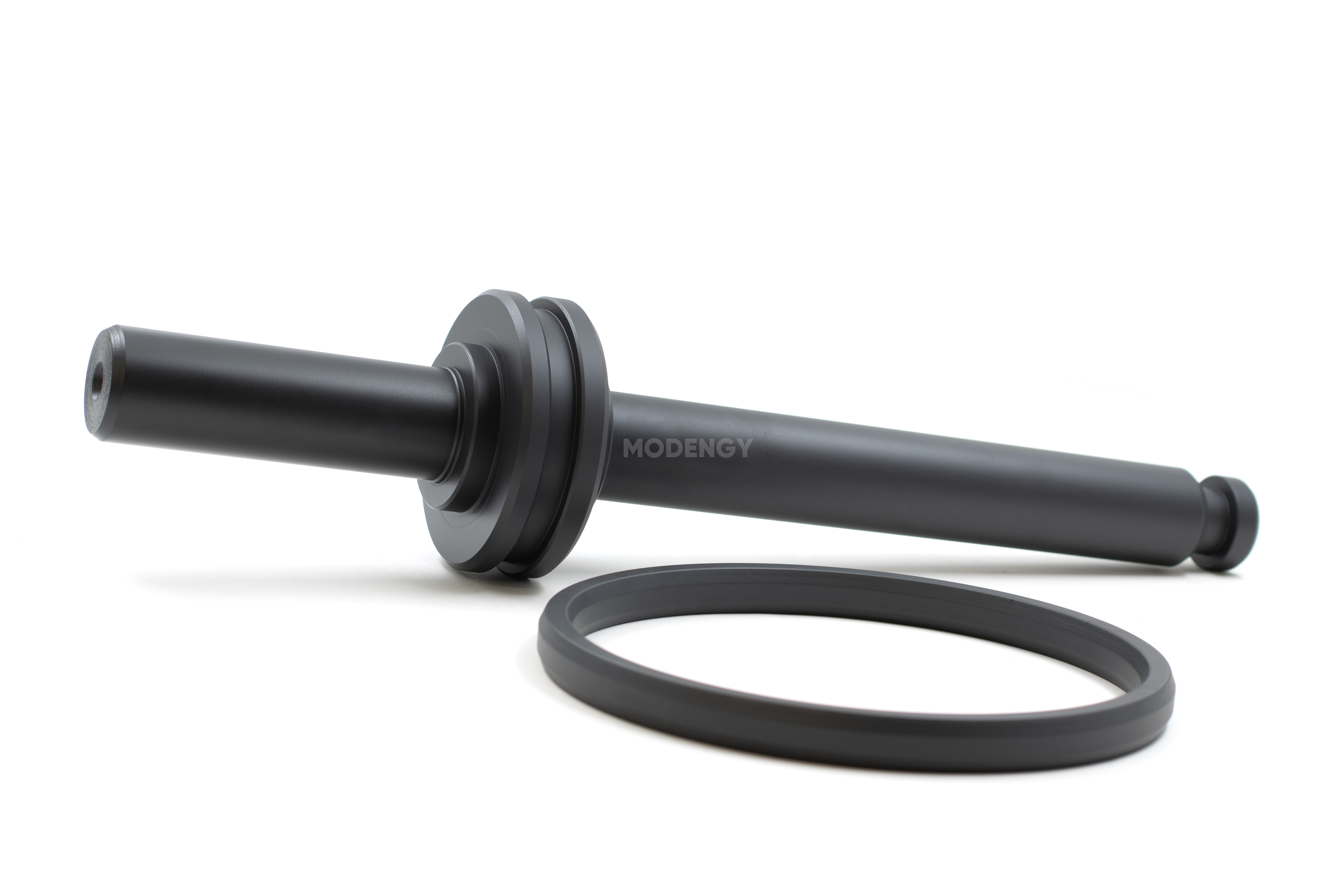

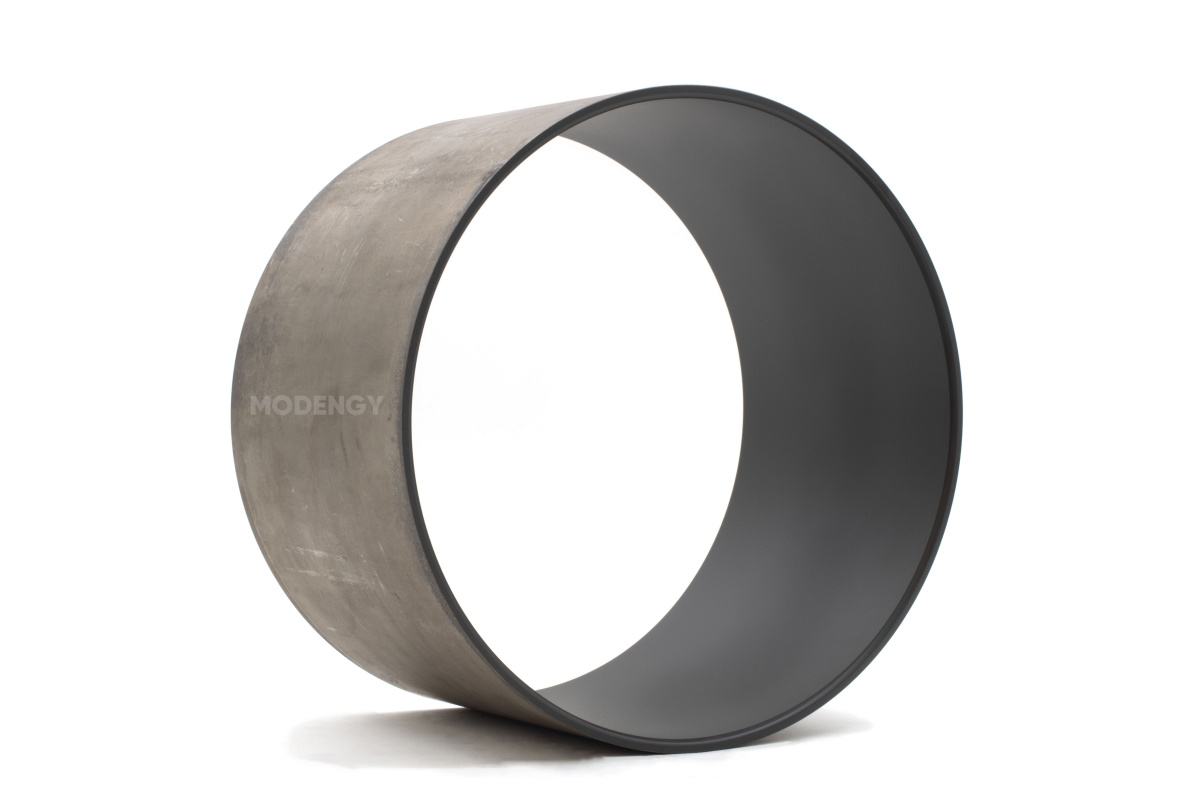

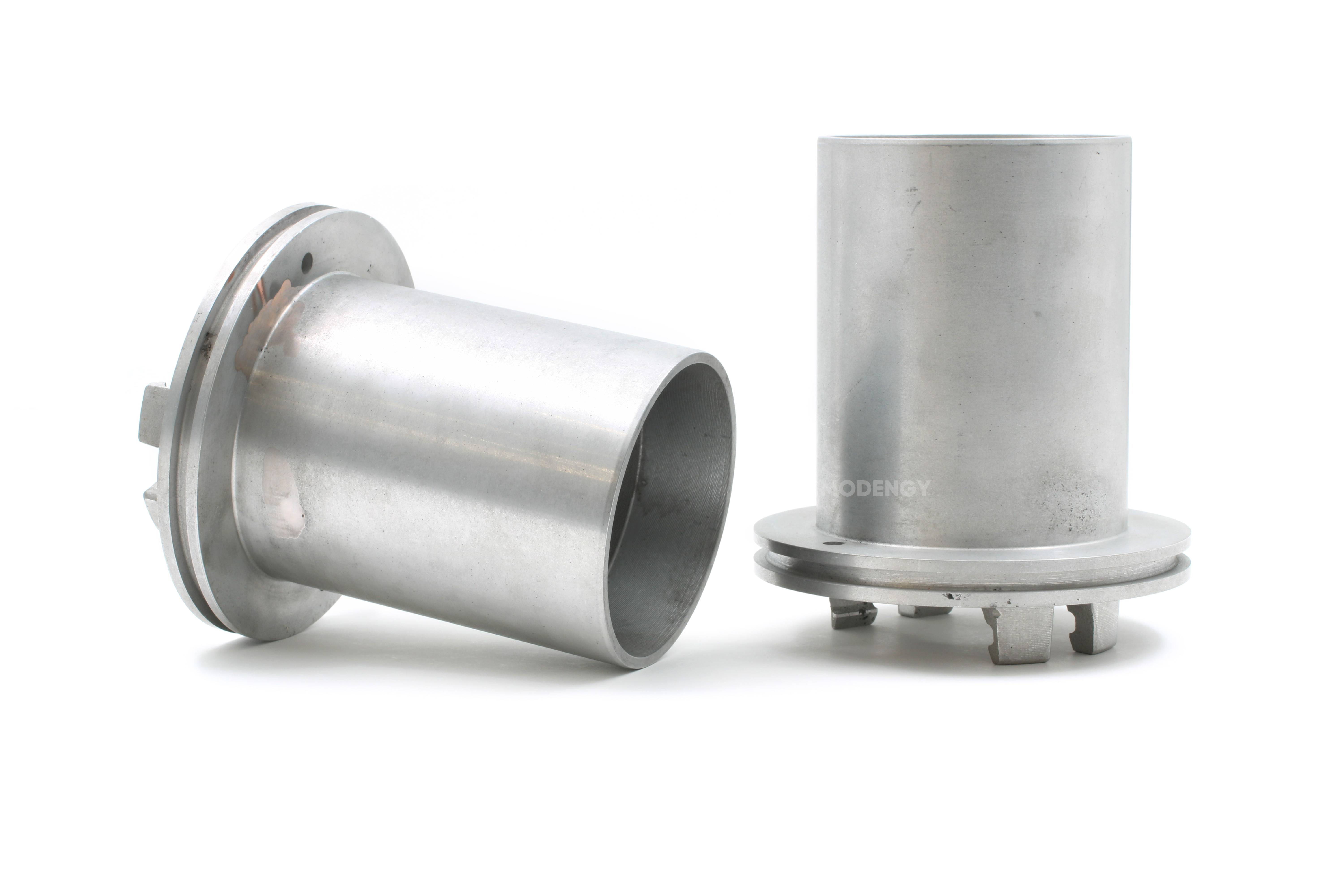

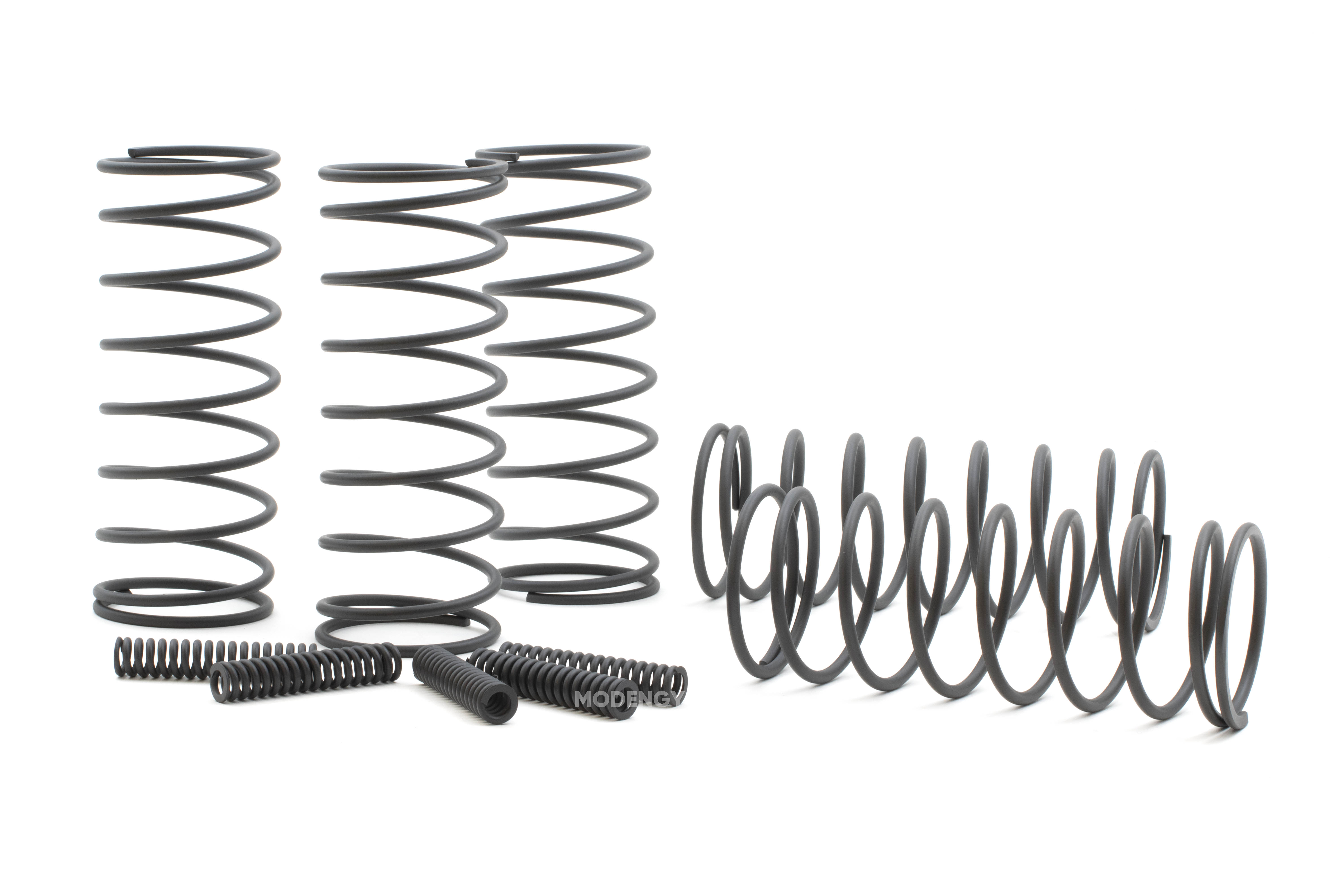

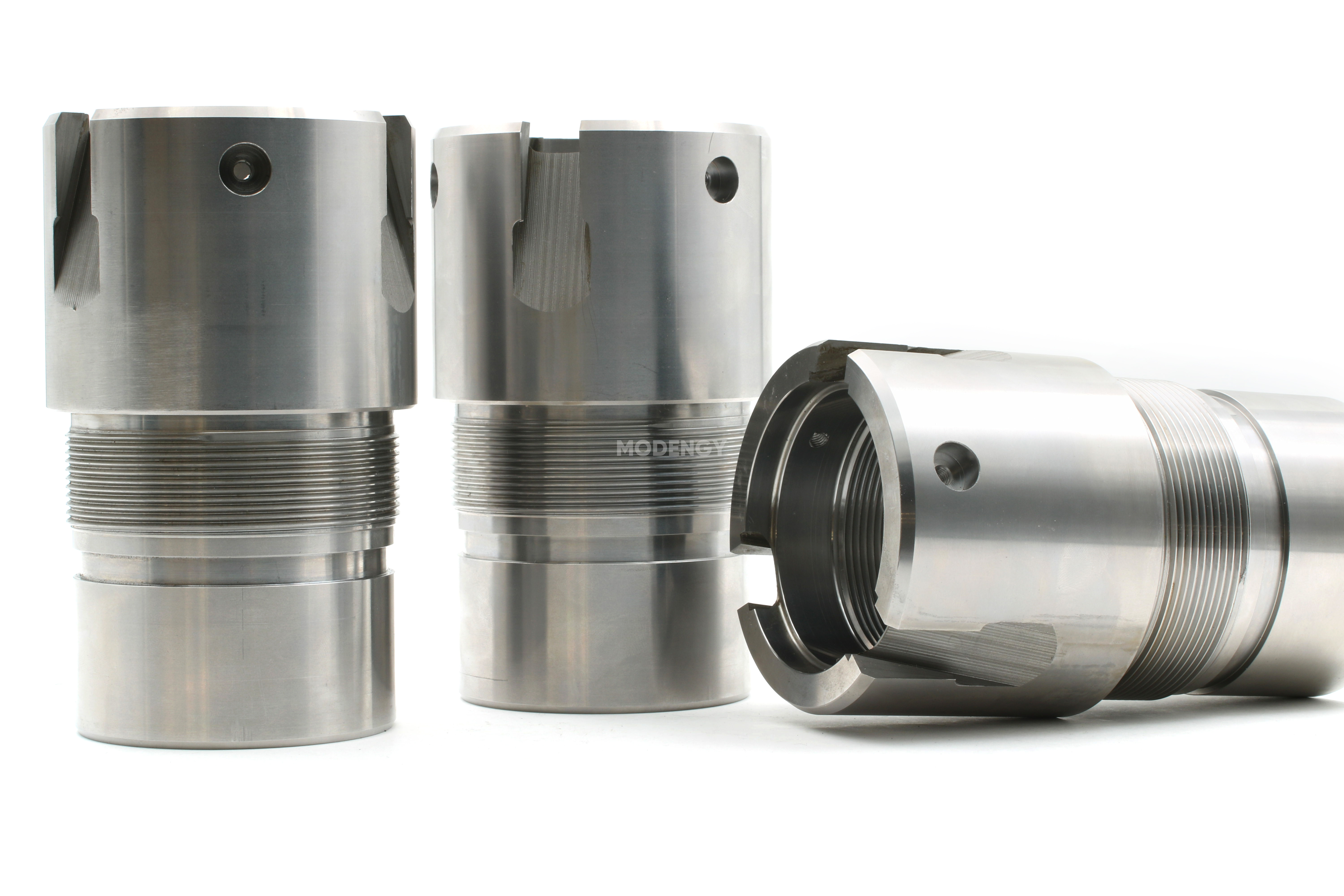

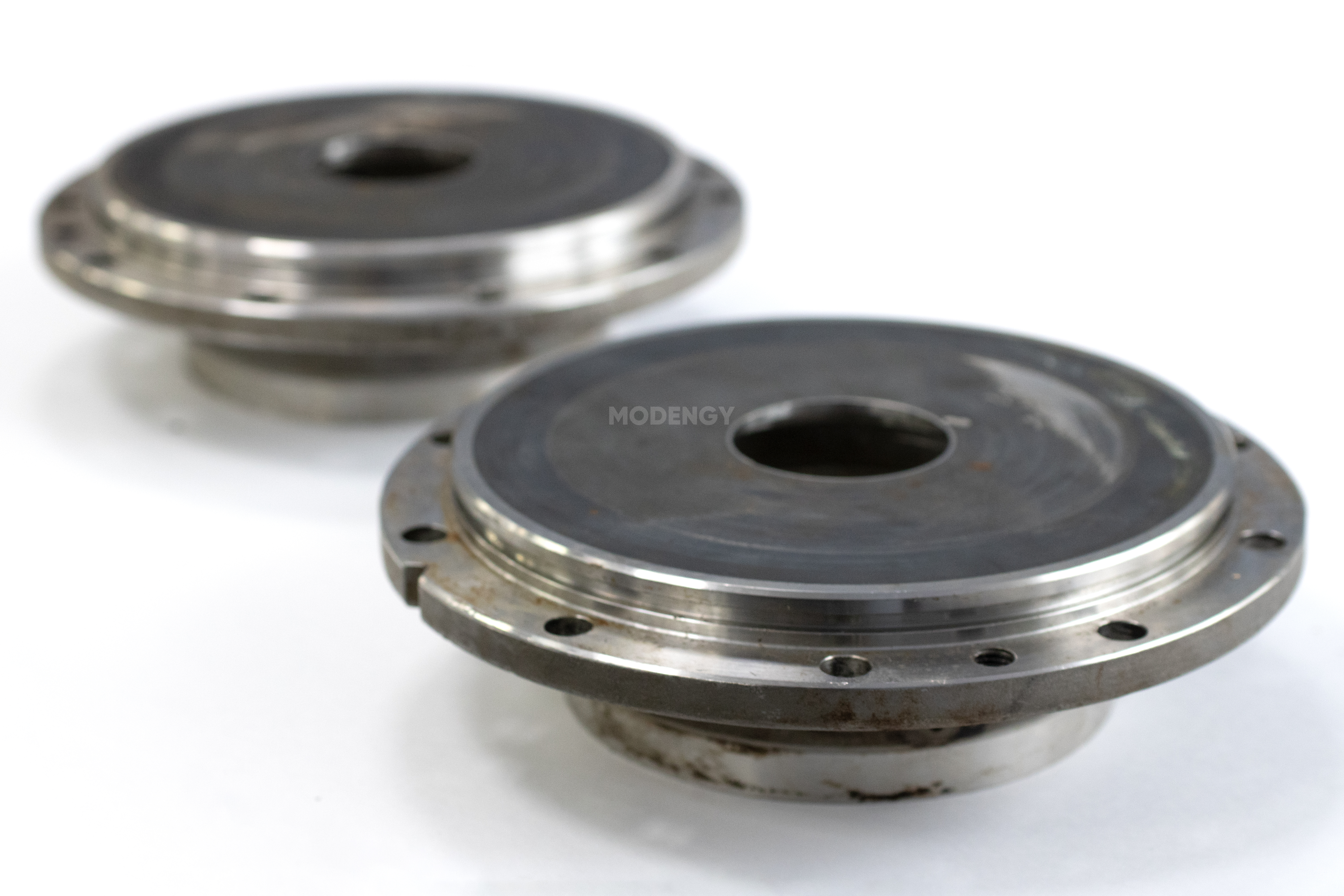

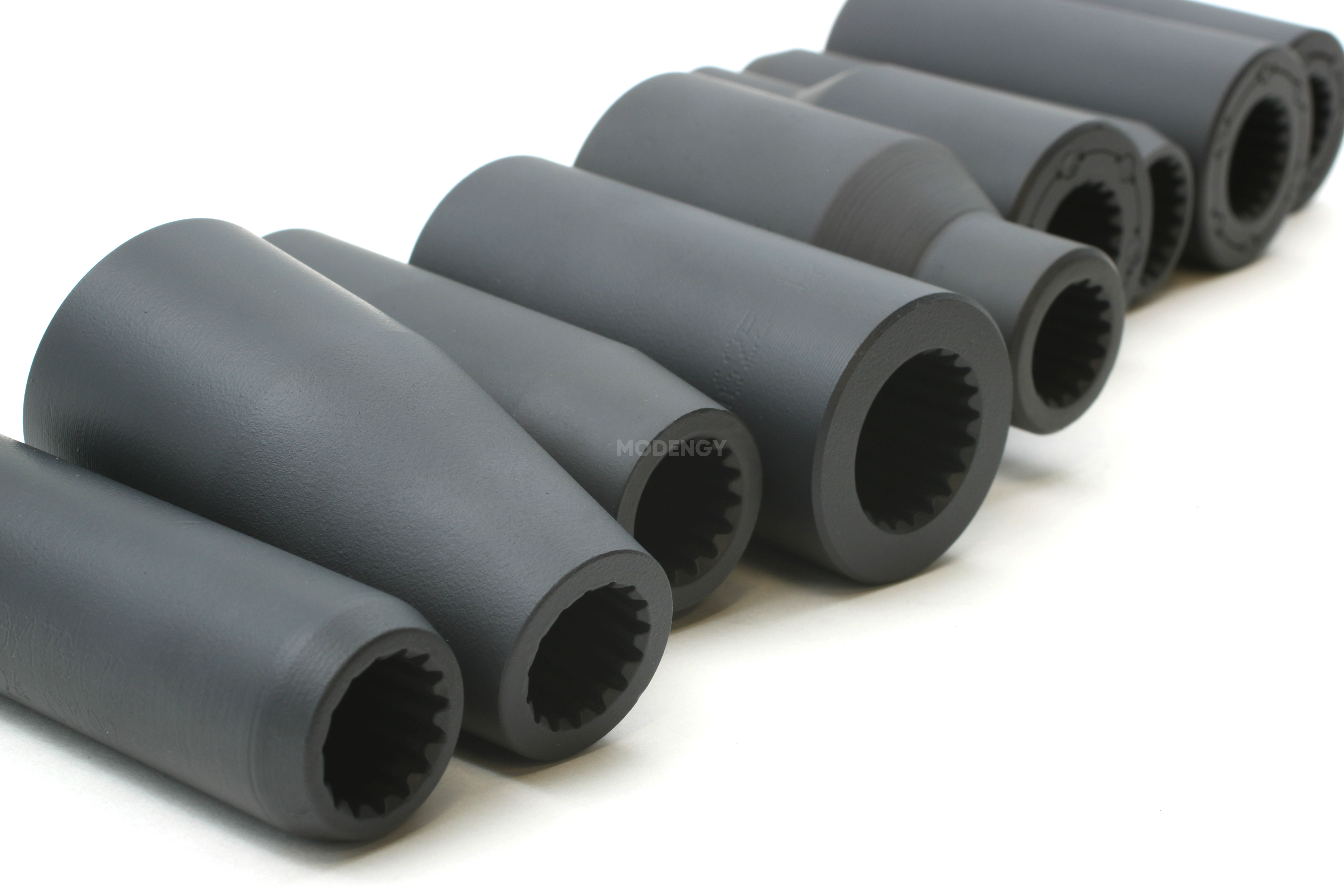

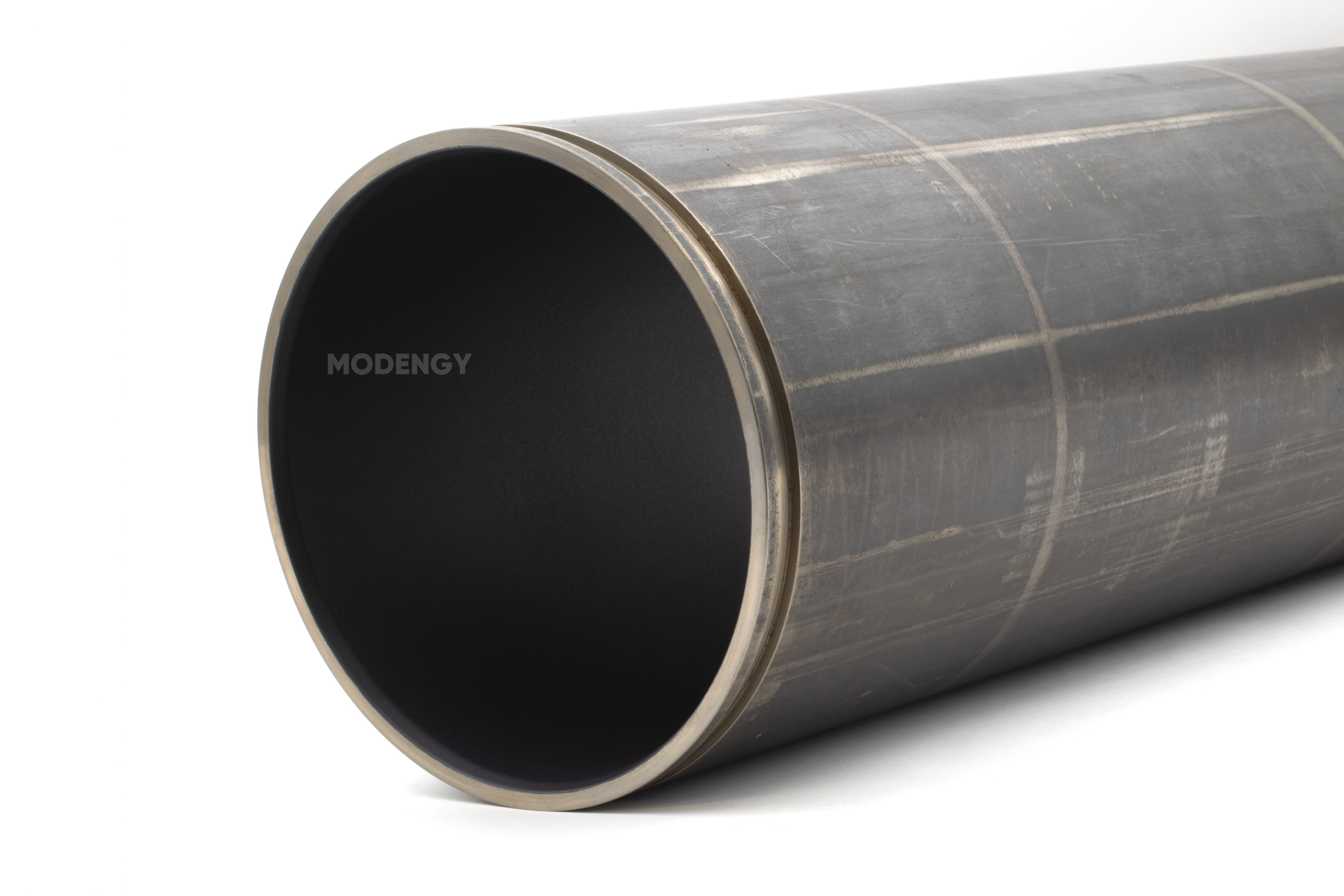

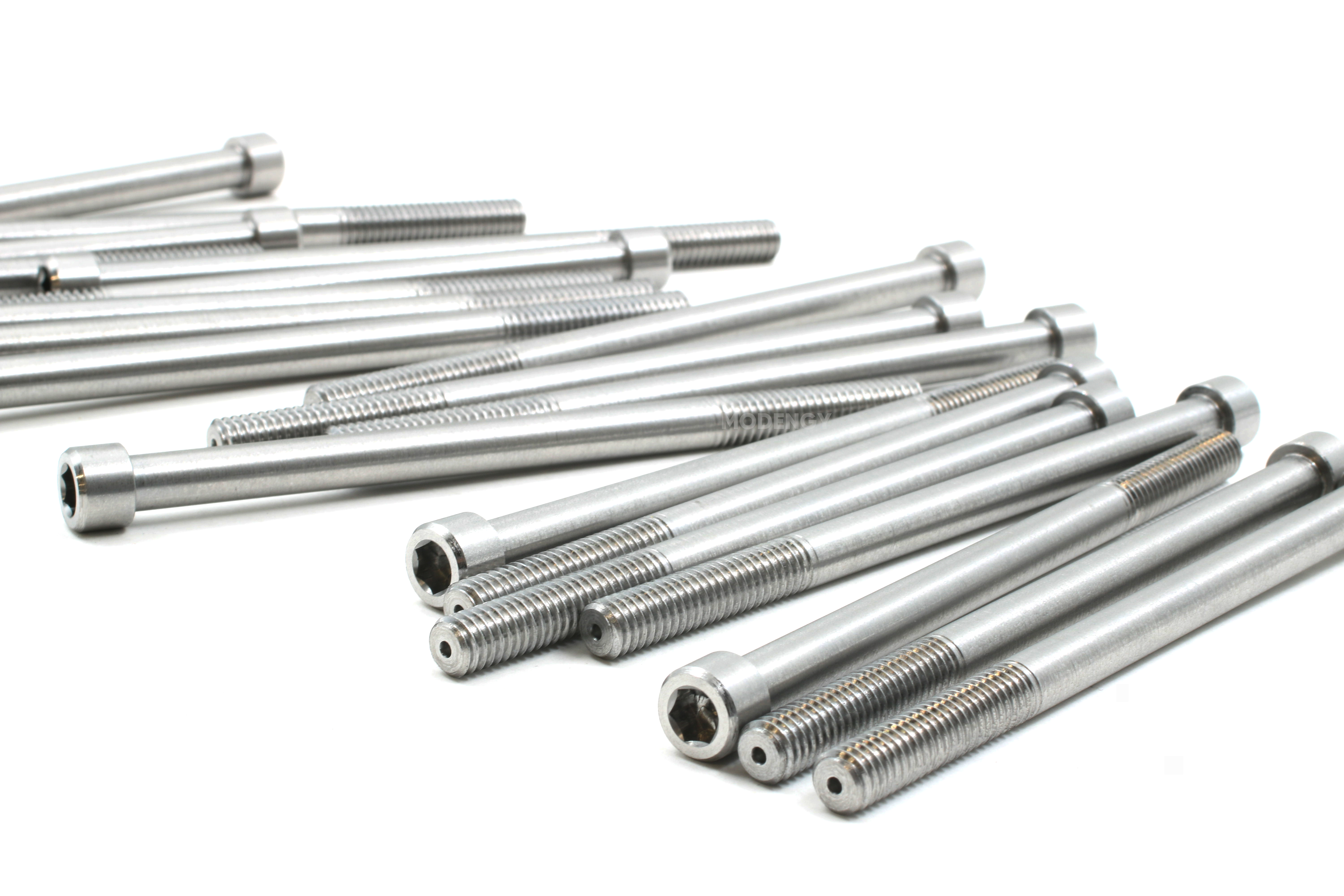

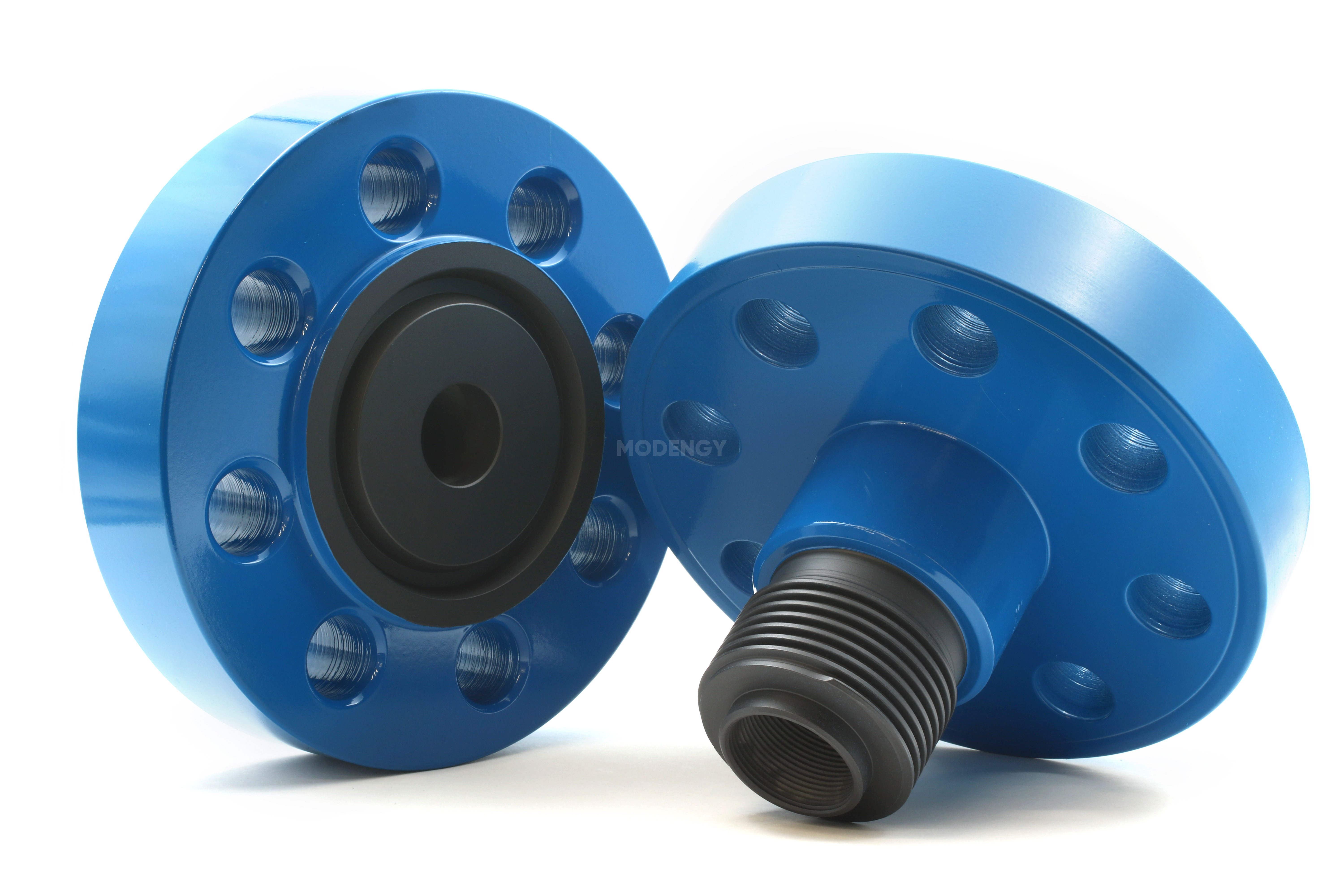

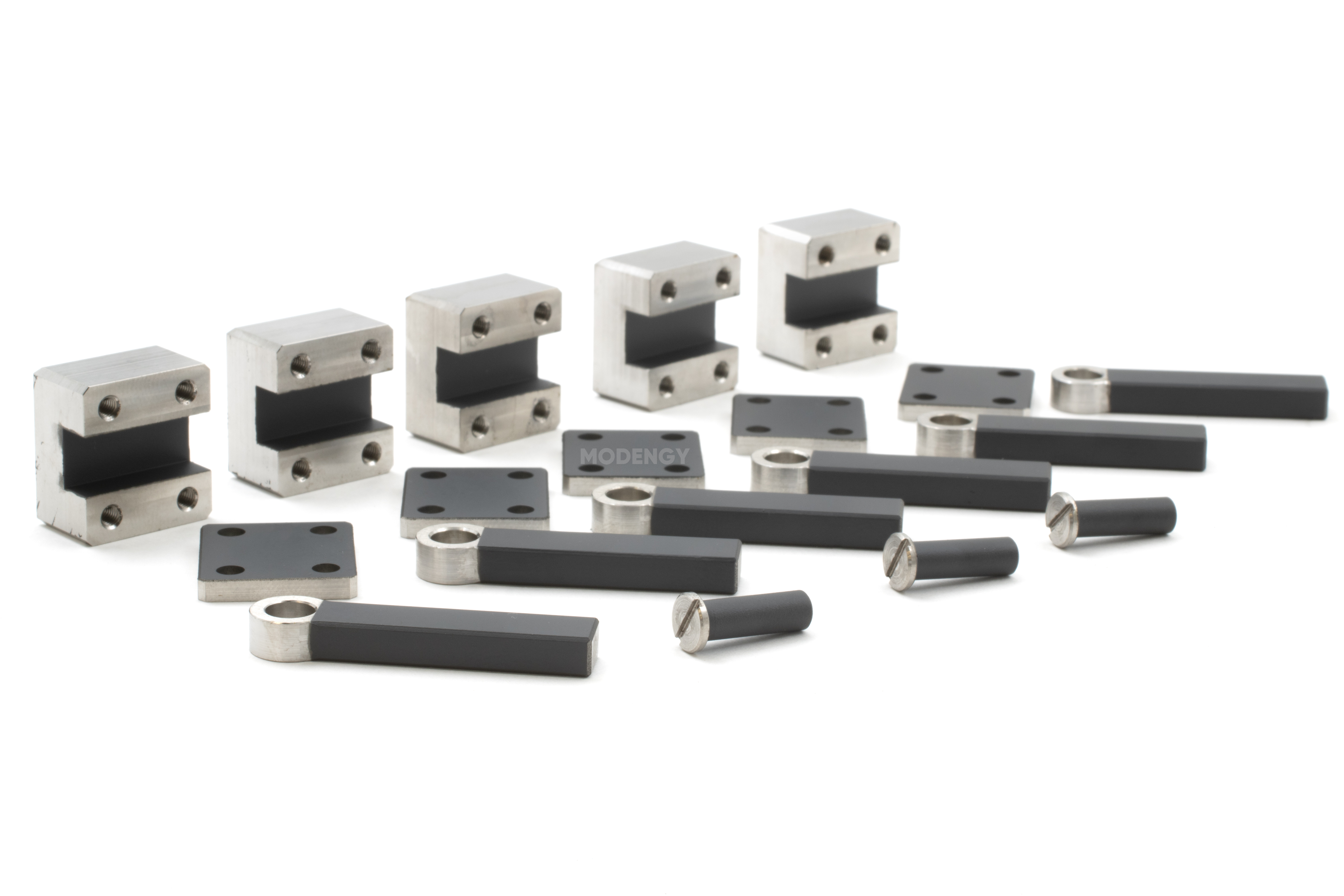

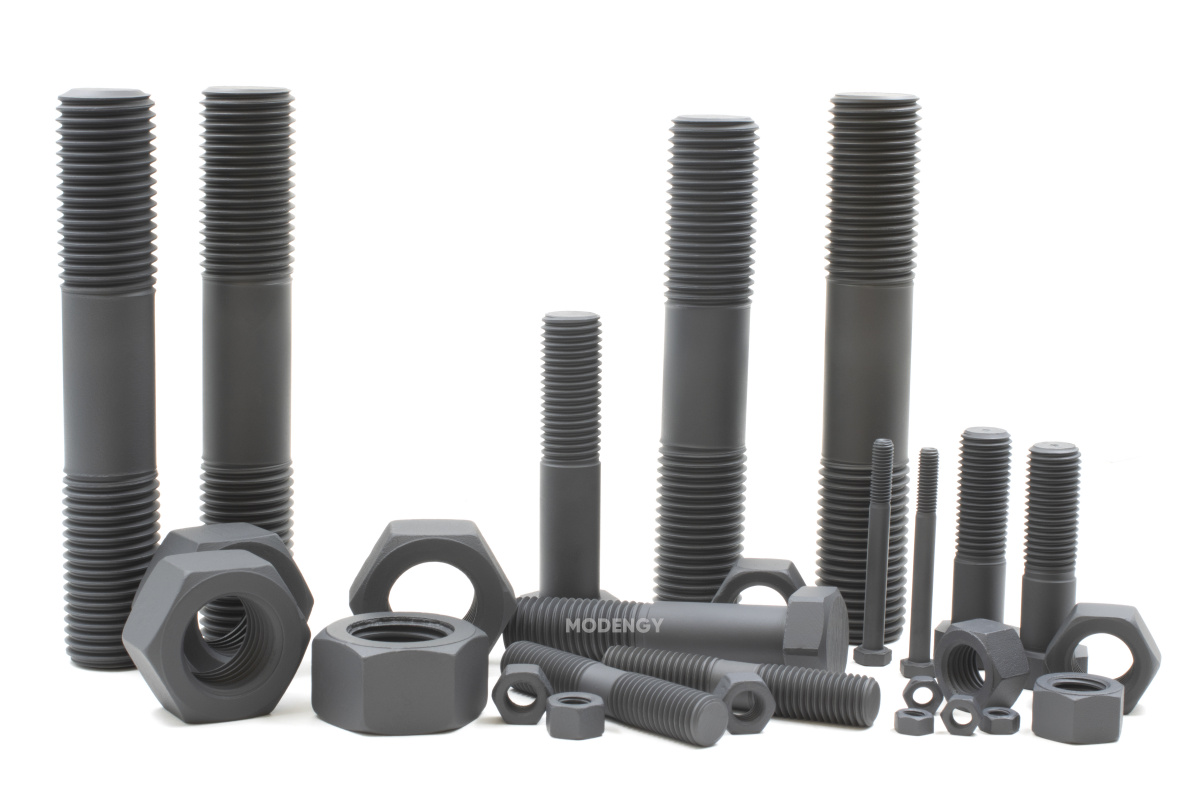

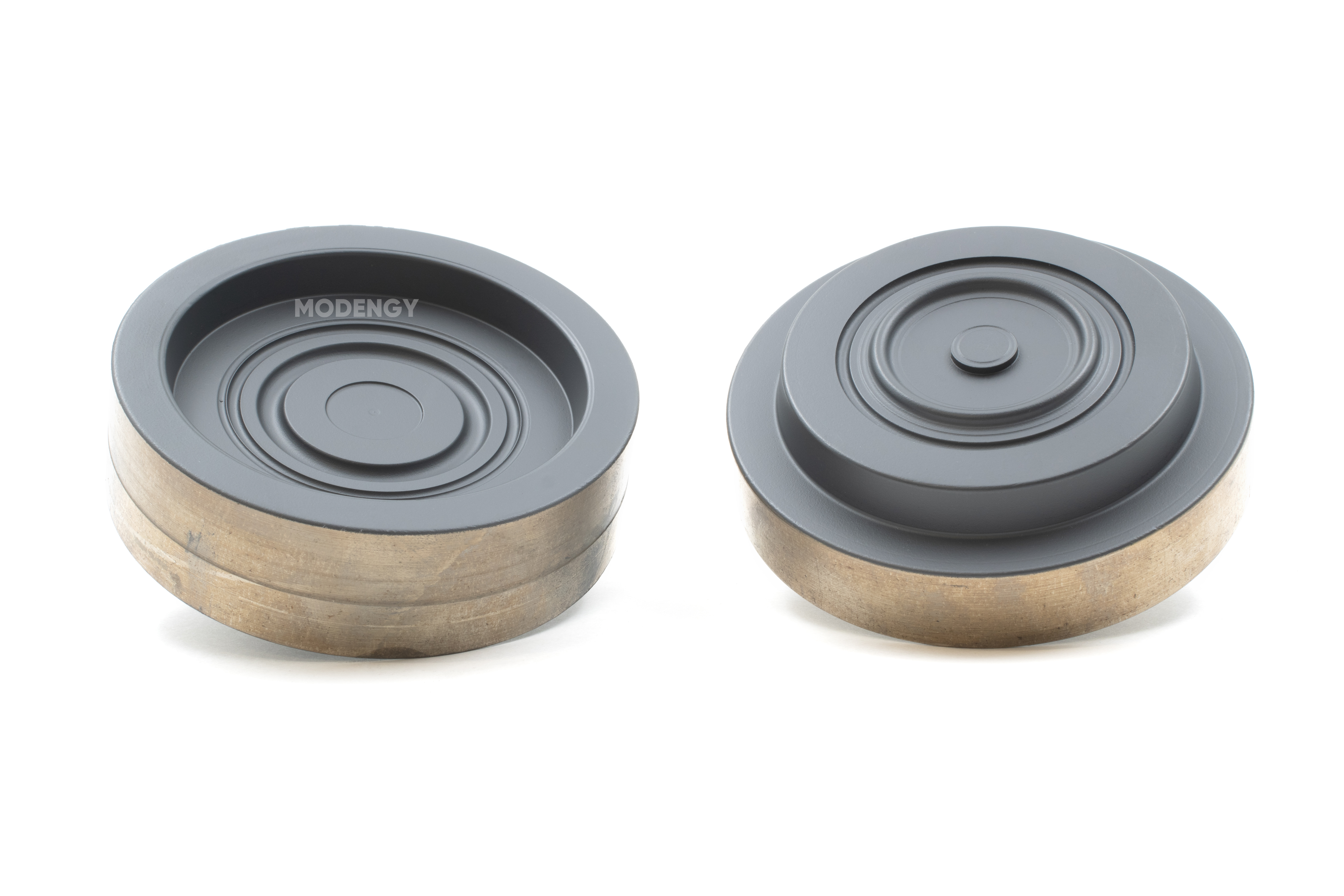

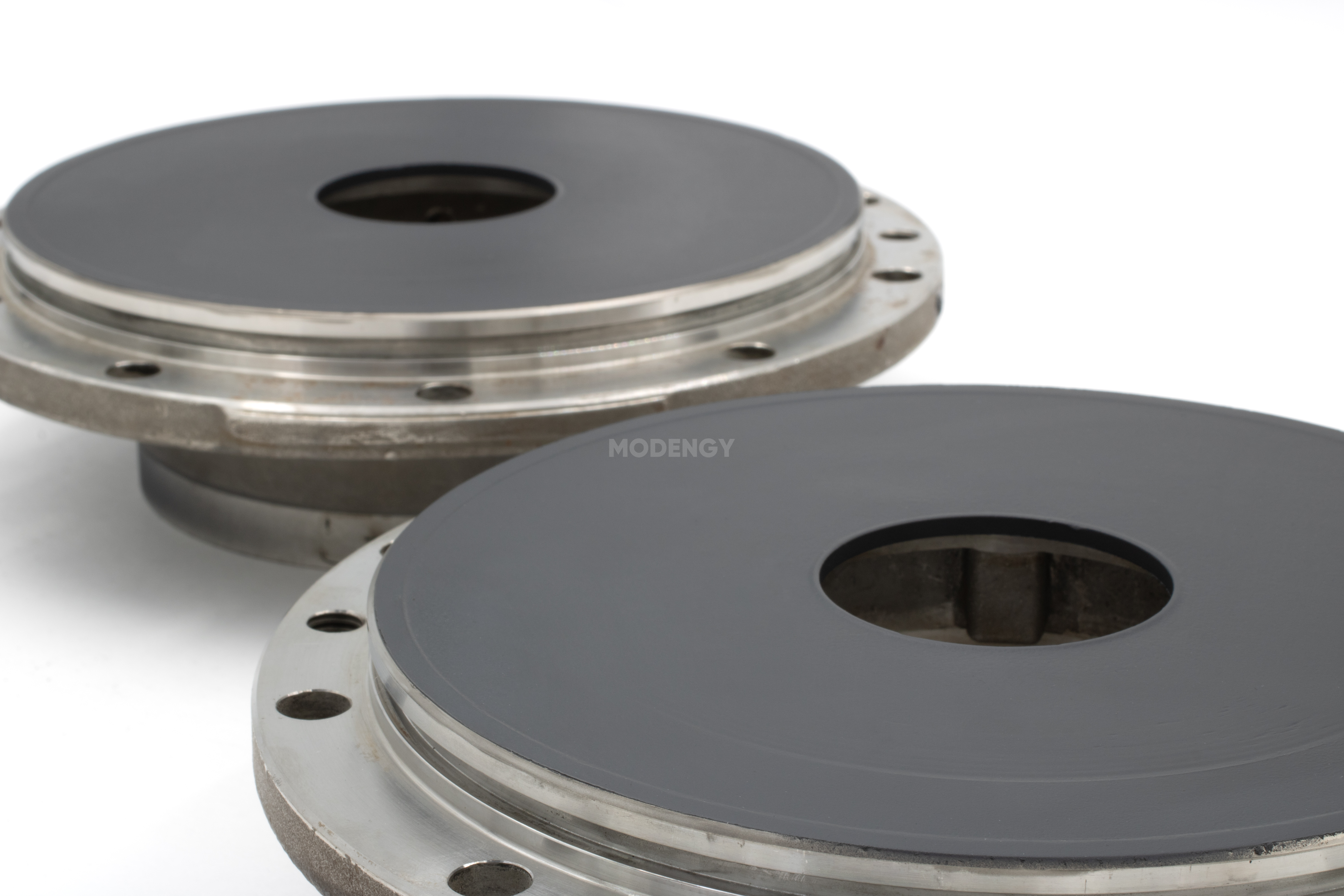

MODENGY 1014 in action
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator is intended to clean, degrease, and activate surfaces
- MODENGY 1013 Special Solvent to rinse the equipment after the coating is applied, to remove uncured coating, to control completeness of coating polymerization
- MODENGY M1-250 Spray gun - to apply MODENGY anti-friction solid-film coatings
Advantages
- Low friction coefficient
- Chemical resistance
- Fast cure at room temperature
- Wide service temperature range
- Workability in the dust environment
- High adhesion
- Non-toxic after complete cure
- It prevents stick-slip motion
- Separating properties
- Longterm service life
- It speeds up parts assembly with robots
- High anticorrosive properties
Specifications
- Colour: grey
- Service temperatures range: -75 … +255 °С
- Corrosion protection: > 672 hour (ISO 9227)
- Standard coating consumption: 55 g / m²
- Cure temperature / time: +200 °C / 40 min
It is used in the following typical units

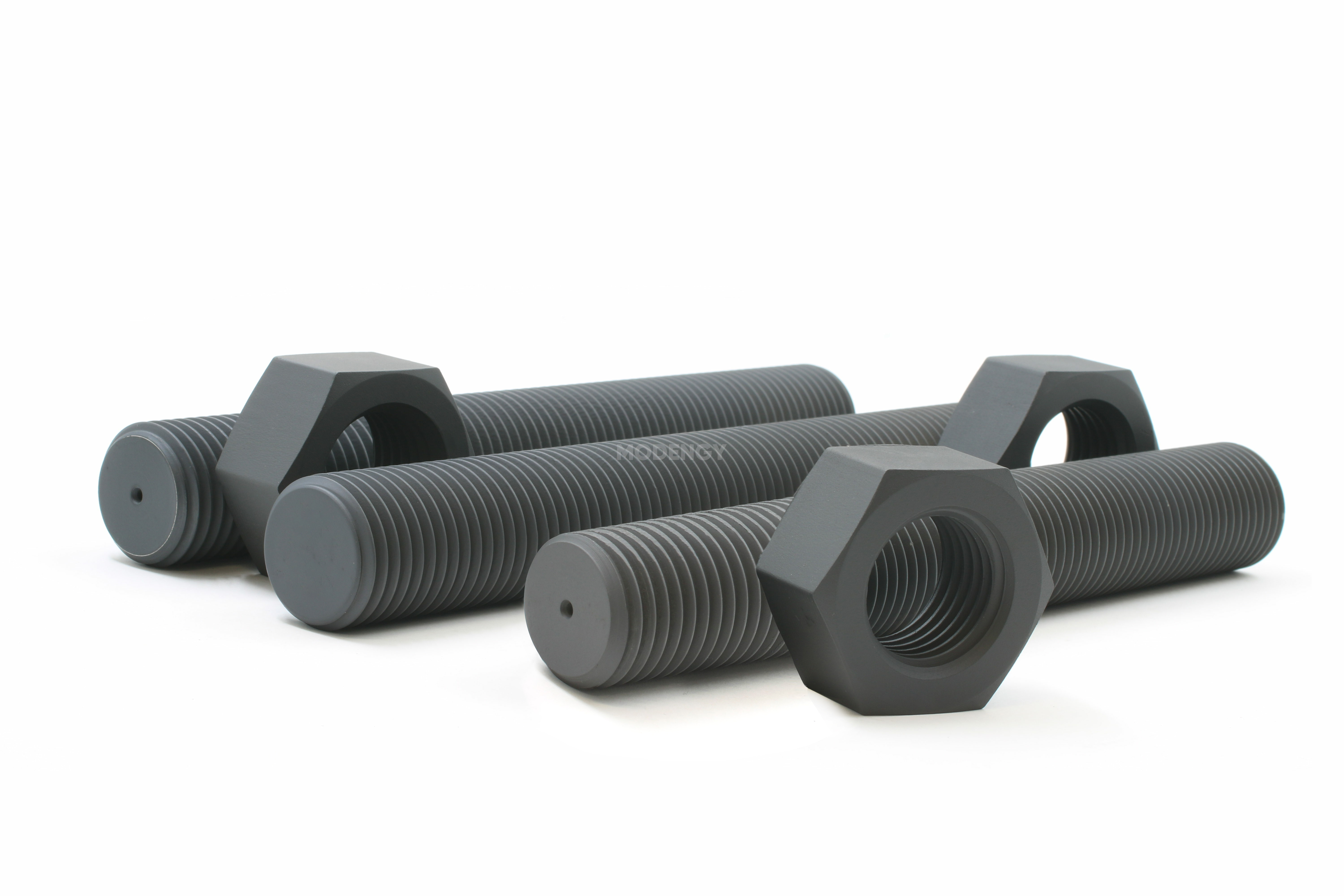

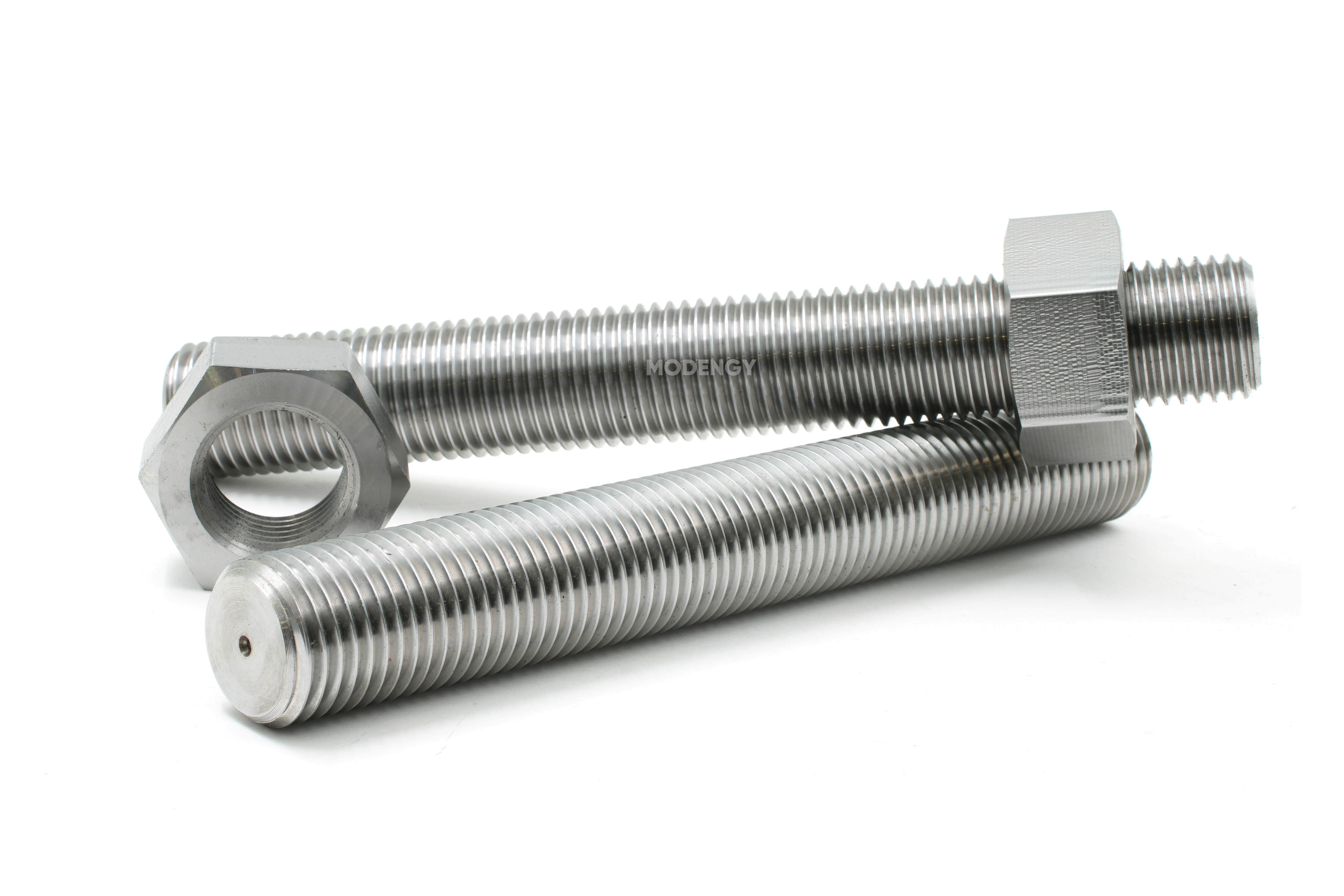

Sliding bearings, sliding guideways, threaded connections, the other units with metal/metal, metal/plastic, metal/rubber friction pairs
