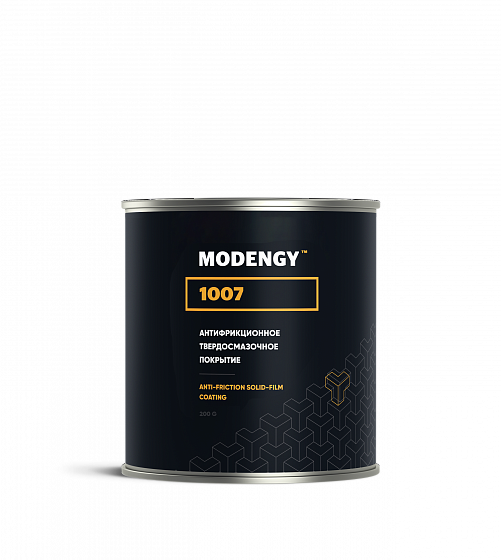

MODENGY 1007

200 G
600 G Can
4.5 KG Pail

Anti-friction solid-film coating based on graphite

It is used in friction units of the automotive machinery including engine piston skirts, splined joints, camshaft and crankshaft bushings; as an additional anti-emergency lubrication for the units lubricated with oils or greases; in pistons of the compressors, pumps, pneumatic and hydraulic drives; sliding bearings of the oil well submersible electric centrifugal pumps; on sliding surfaces of the equipment to process polymers including soldering matrixes, calibrators, cooling tables; in sliding guideways of the filling-and-packing machines; in screw compressor rotors; in heavy loaded sliding friction units exposed to heating, humidity, and dust where oils and greases are not effective


MODENGY 1007 in action

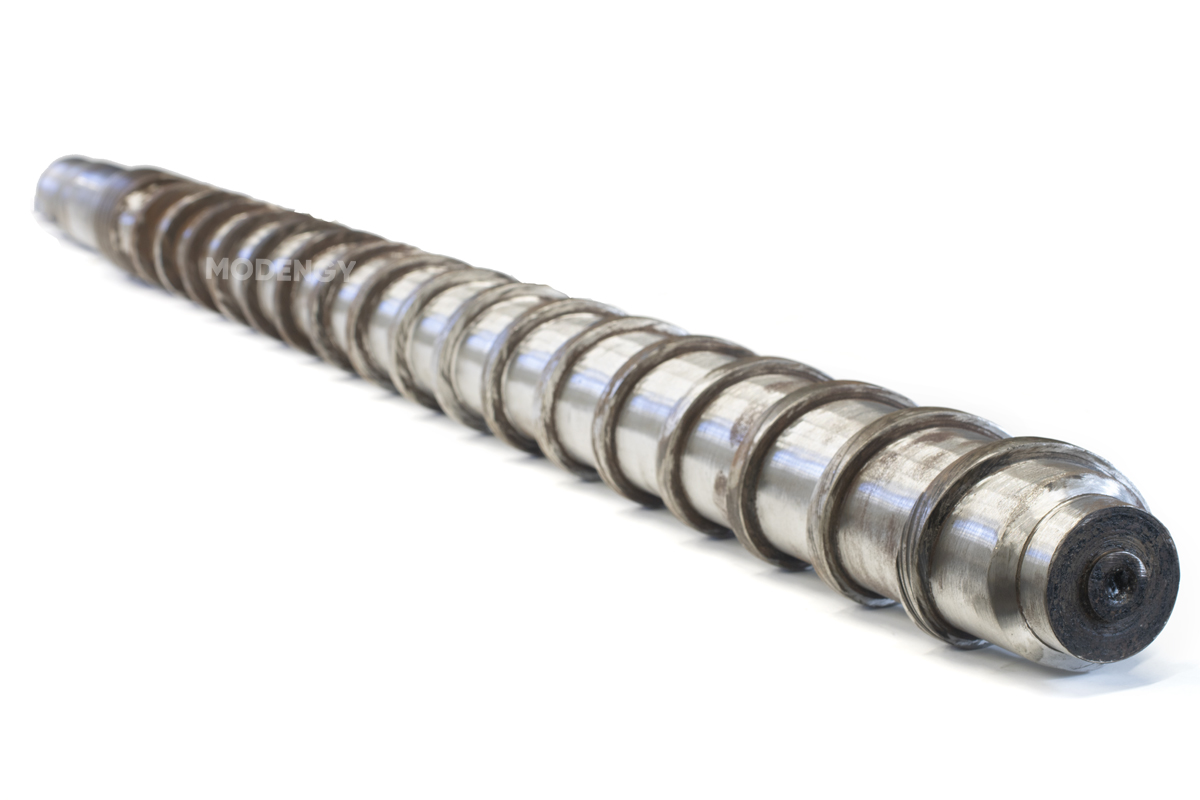

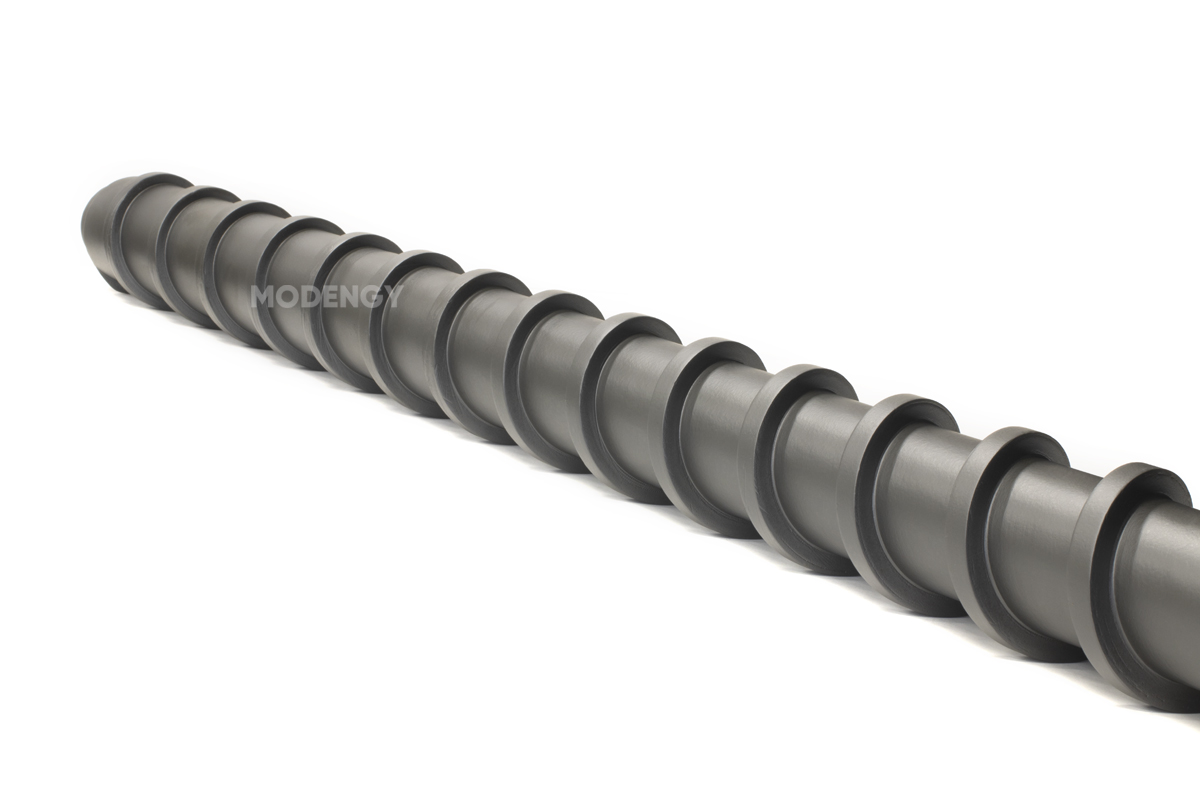

Extruder screws
Extruder screws
Before
After
MODENGY 1007 anti-adhesion coating is applied onto the screws, and prevent melted polymer from sticking onto them. Due to this, it is provided stable operating of the extrusion line without disassembling for a long while.
1 / 12

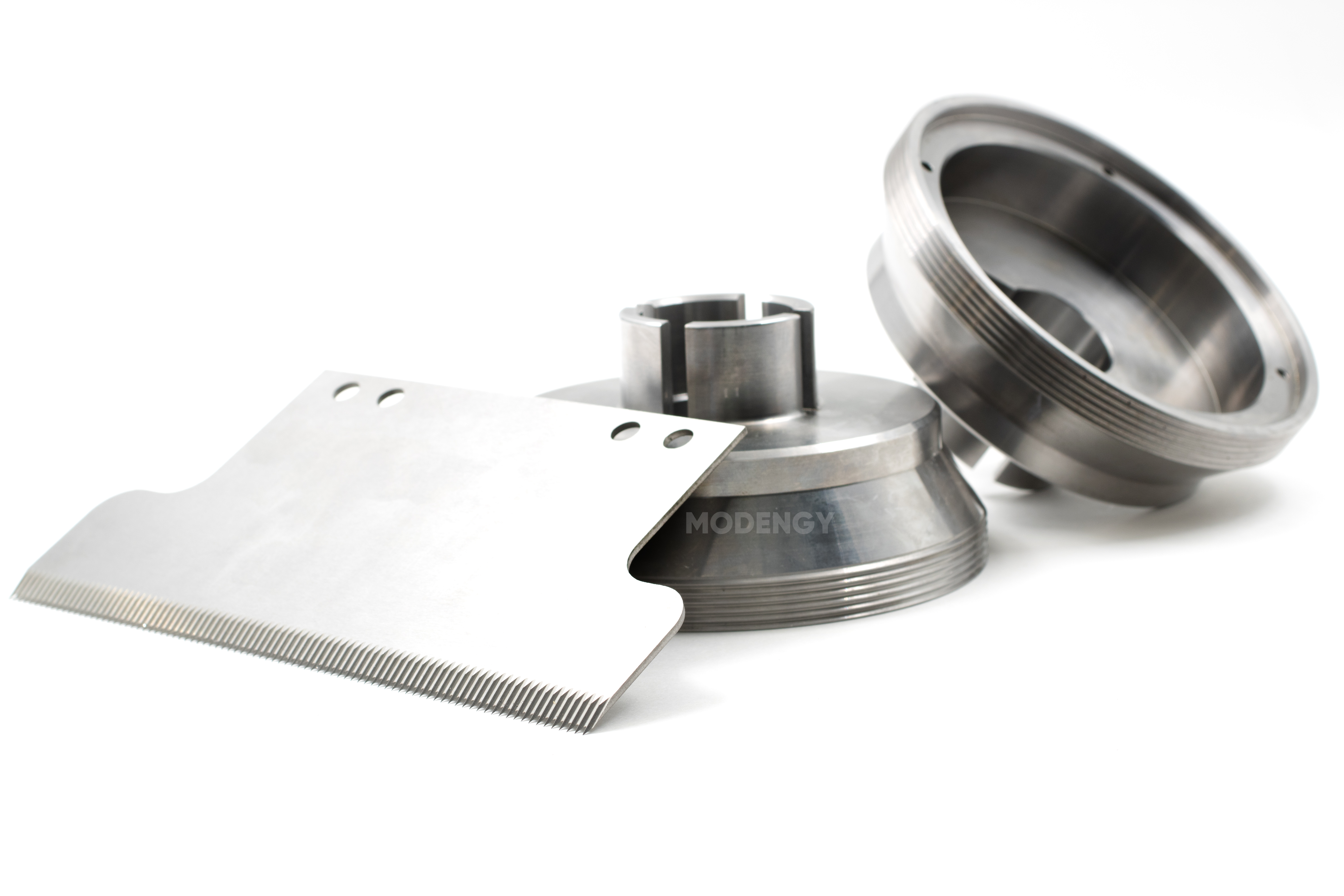

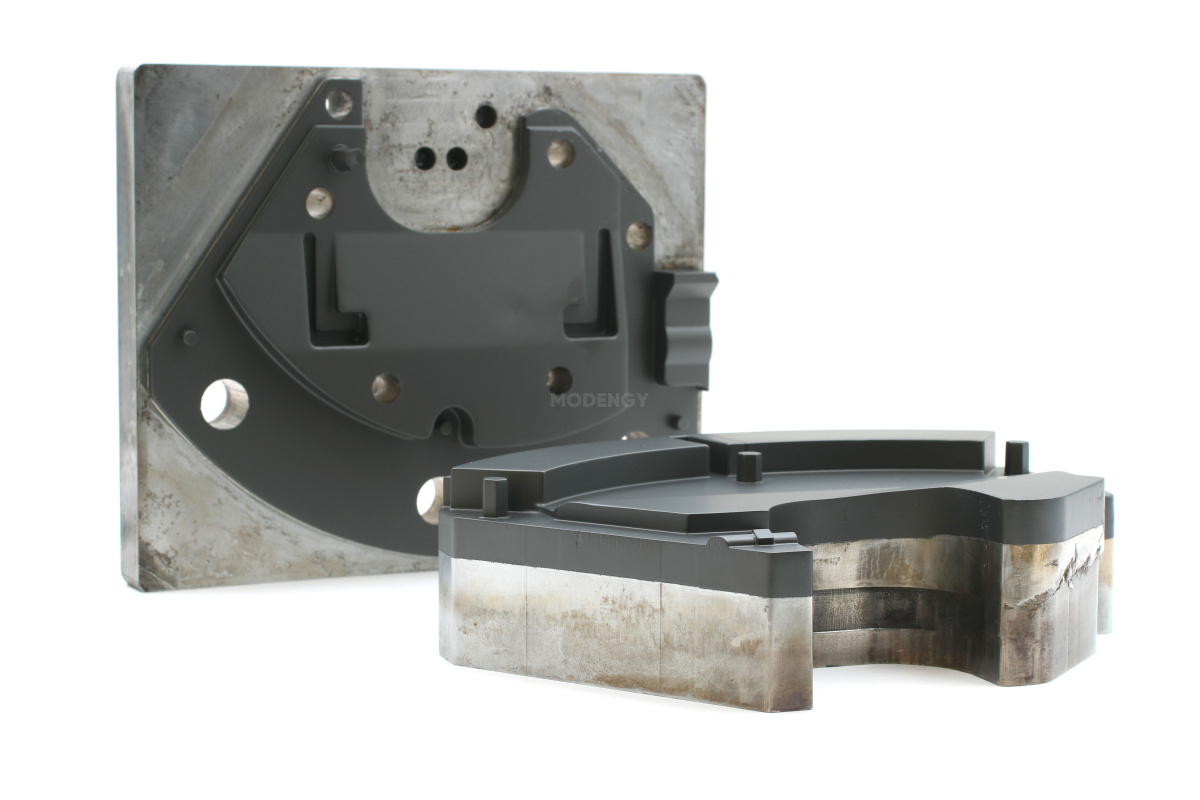

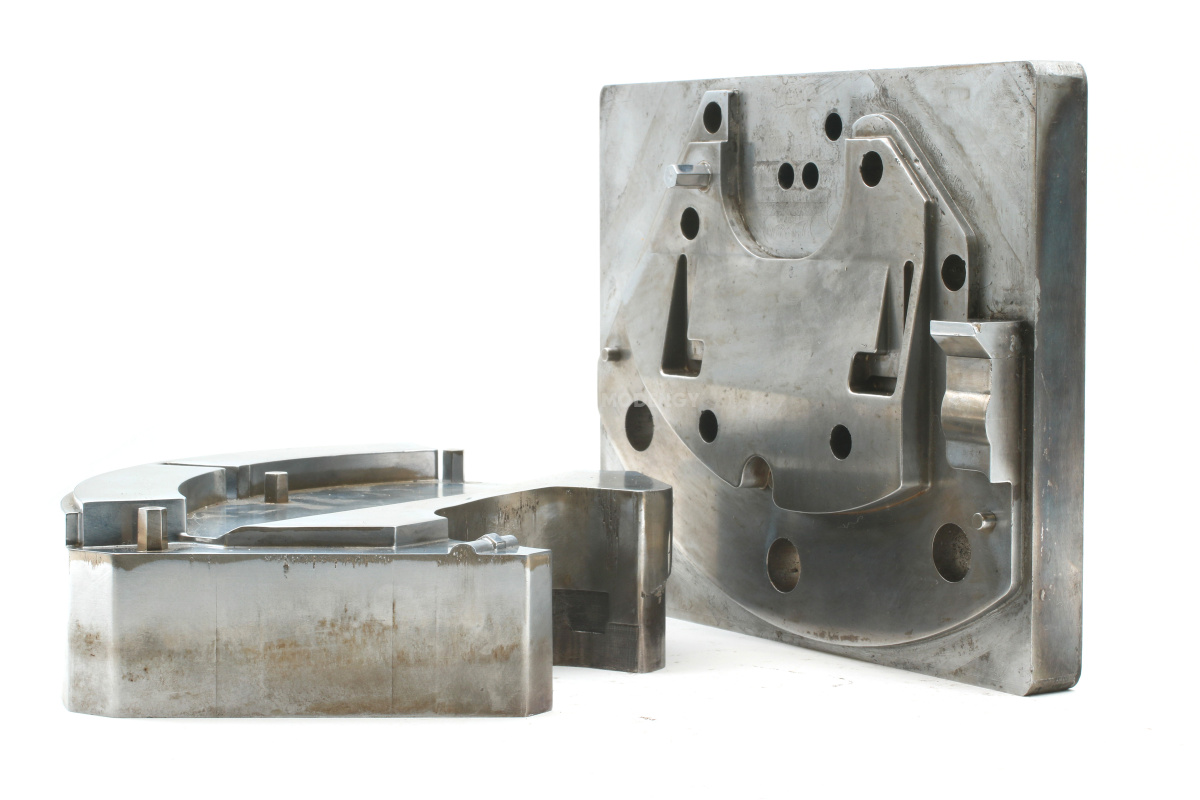

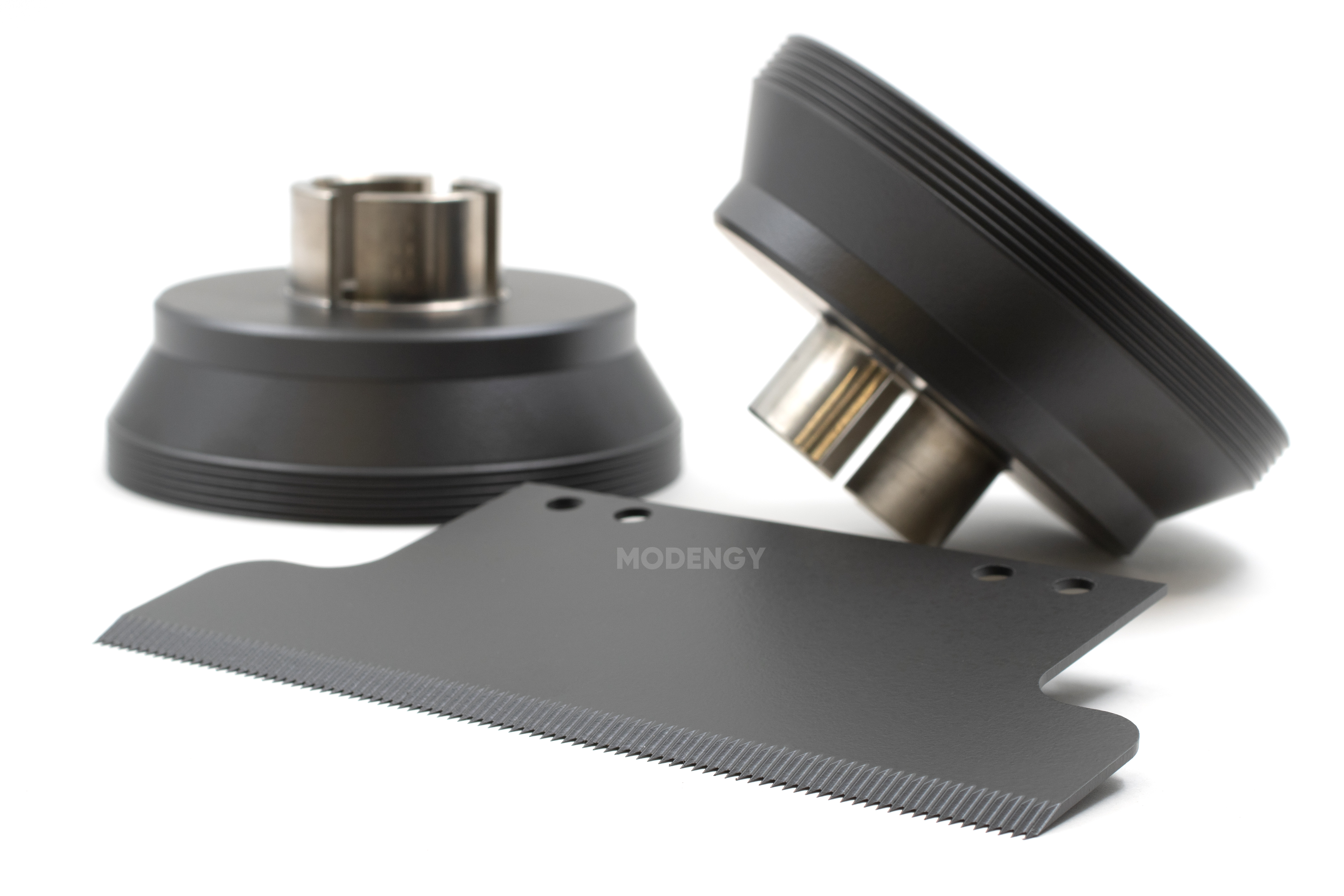

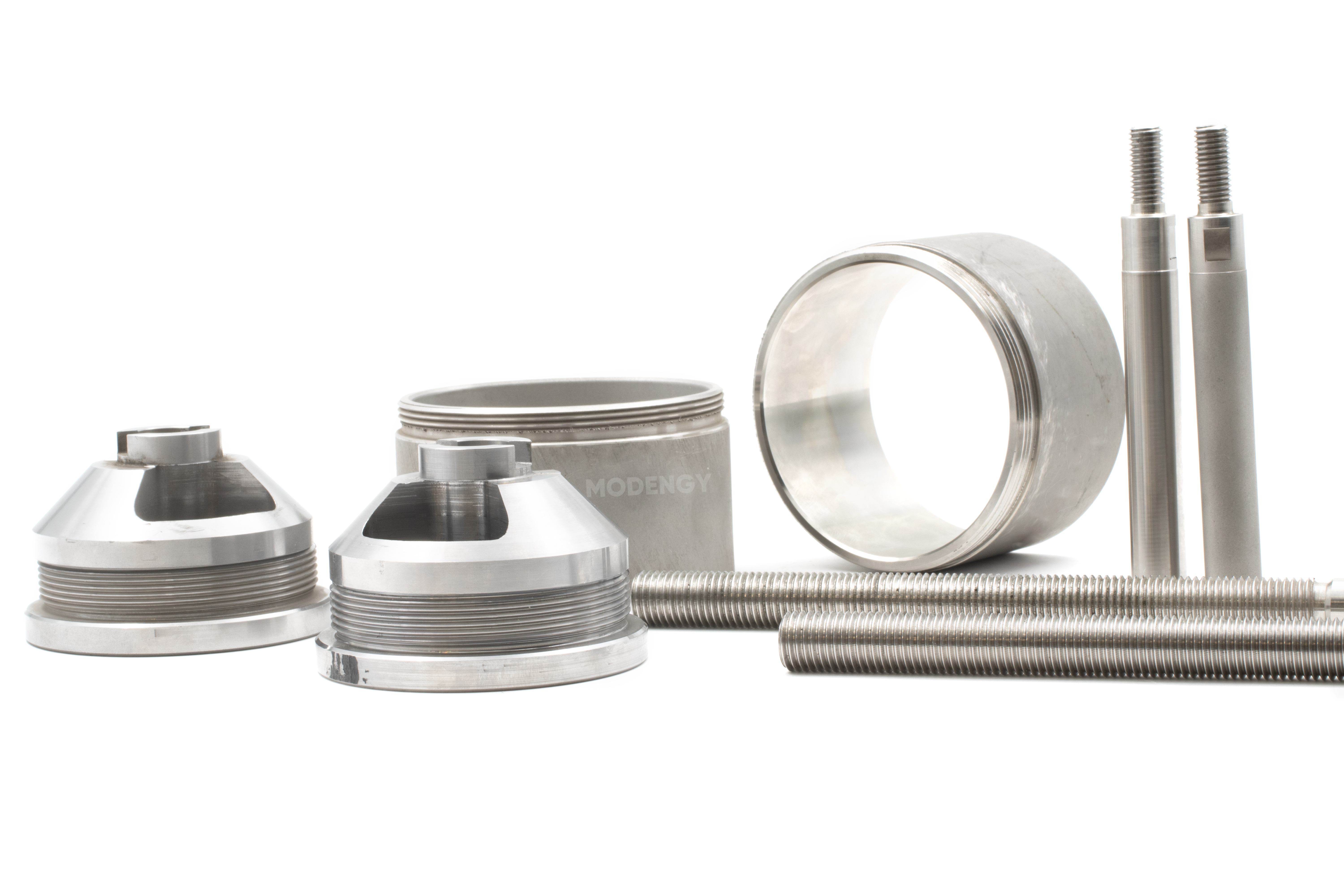

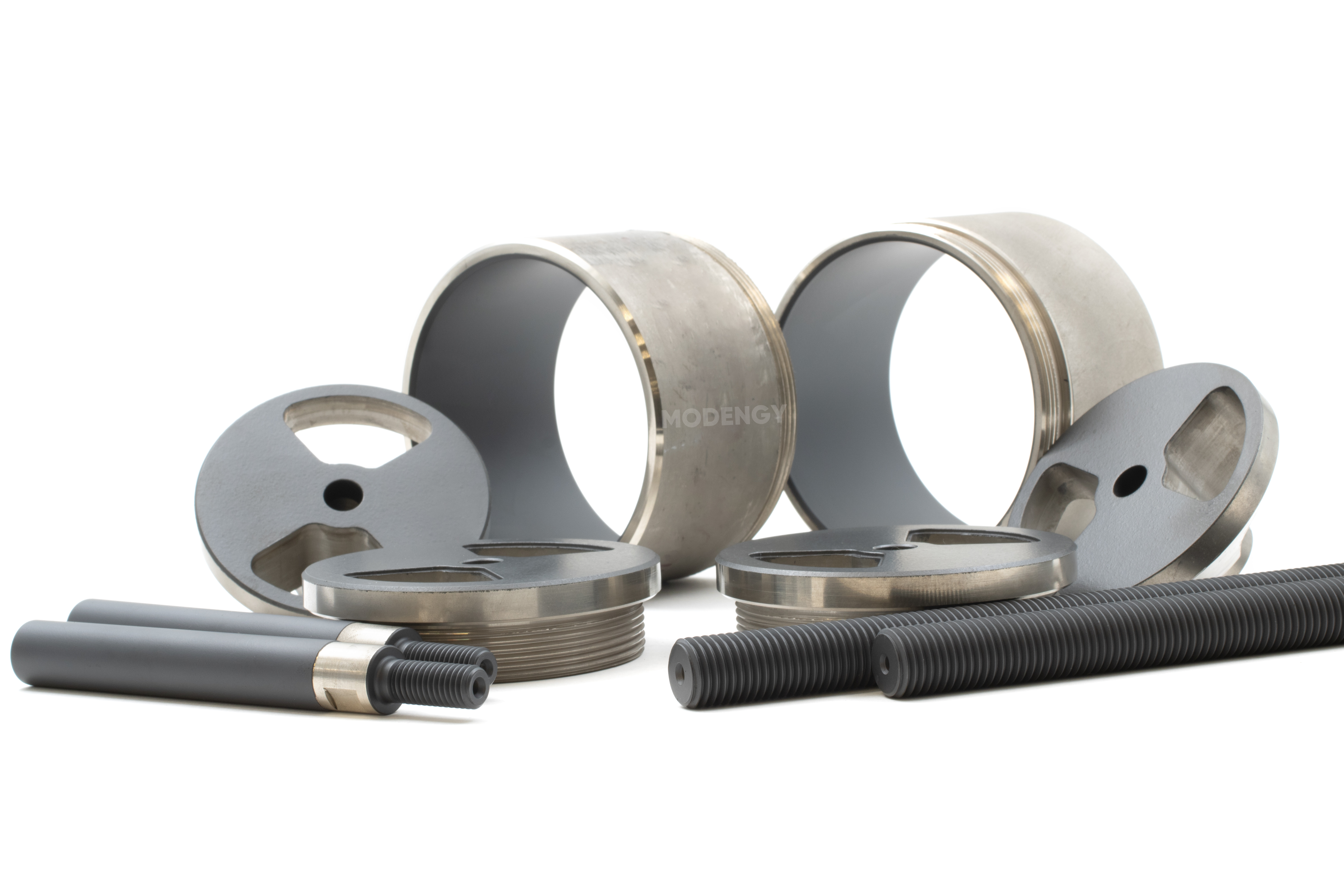

Extruders
Extruders
Before
After

Production quality of polymer items depends on the state of the knife unit contact surfaces. Due to their great anti-adhesive properties, coating prevent sticking polymer melt onto the extruder’s parts. As a result, quality of the releasing goods increases, while any unexpected line downtimes for unscheduled repair are excluded.

2 / 12

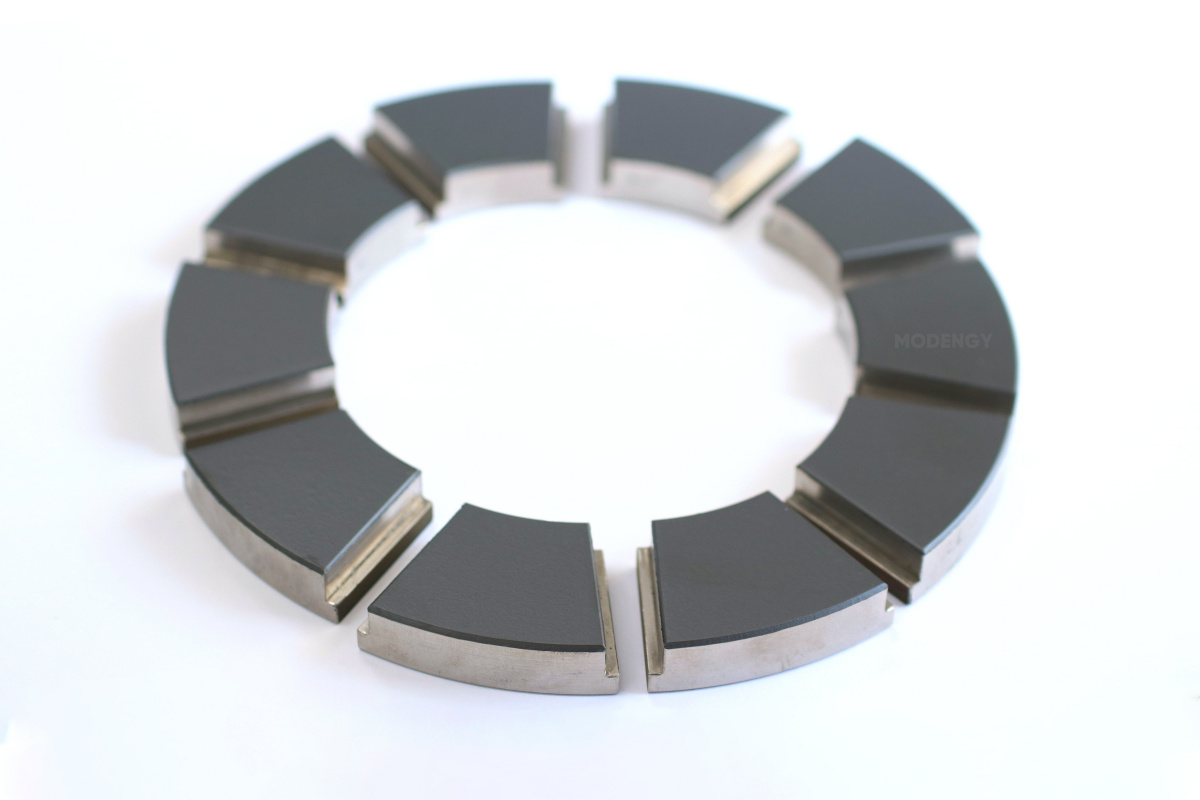

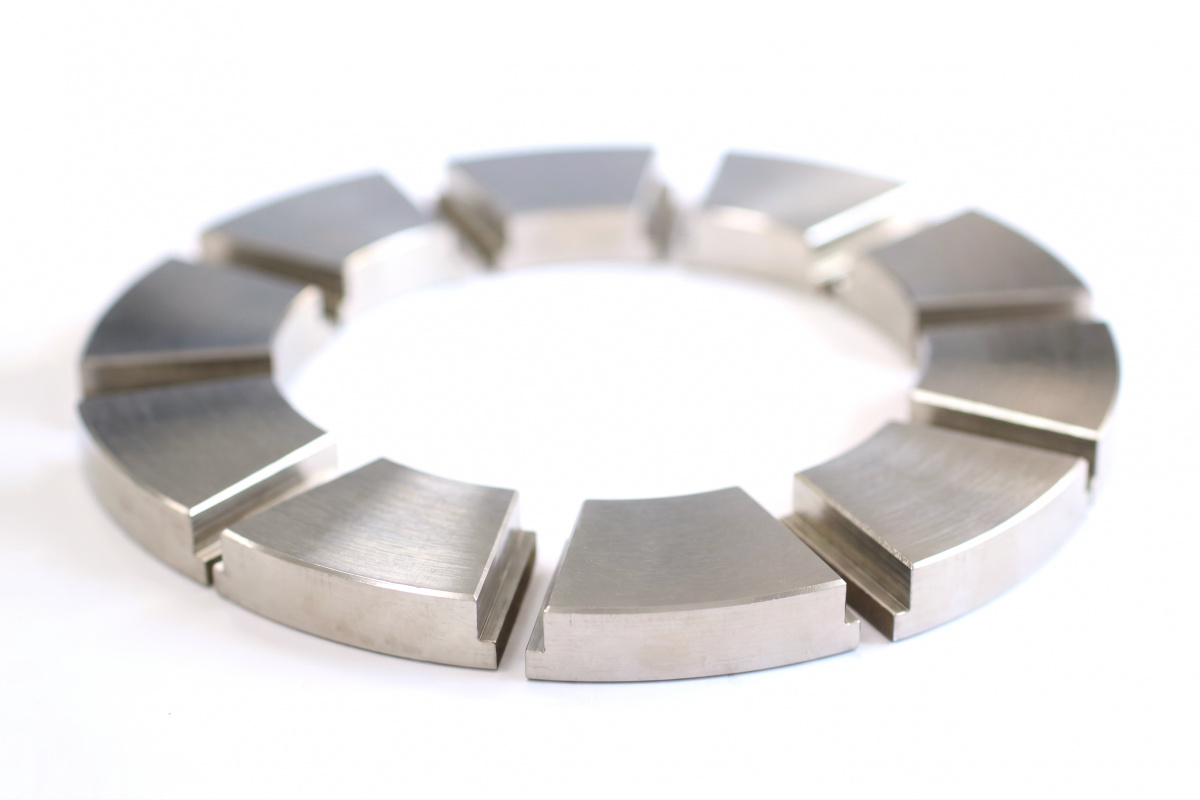

Slide thrust bearing
Slide thrust bearing
Before
After

The water protection supports of the oil pumping equipment operate at high loads and high speeds. Anti-friction materials and oils that are conventionally used in the sliding thrust bearings are not capable to protect the parts against intensive wear under such conditions.

MODENGY 1007 forms a separating layer that reduces and stabilizes friction even in case of so called ‘oil starvation’. After this coating has been used, the service temperature of the well pump sliding bearings reduces, while their service lifetime extends by several times.

3 / 12
Piston skirts of the diesel locomotives, machinery, and compressors
Piston skirts of the diesel locomotives, machinery, and compressors
Before
After
The coatings are applied onto the piston skirts of the compressors, diesel locomotives, and specialty machinery. These coatings protect the parts against increased friction, scuffing forming, and intensive wear at the moments of start, at so called ‘oil starvation’, at overloads which increases service life of the equipment, contributes to reducing noise and fuel consumption.<br>
<br>
The coatings operate within a wide temperature range, have high load-carrying capacity, none fuel, oil, or solvent types destroy them.
4 / 12

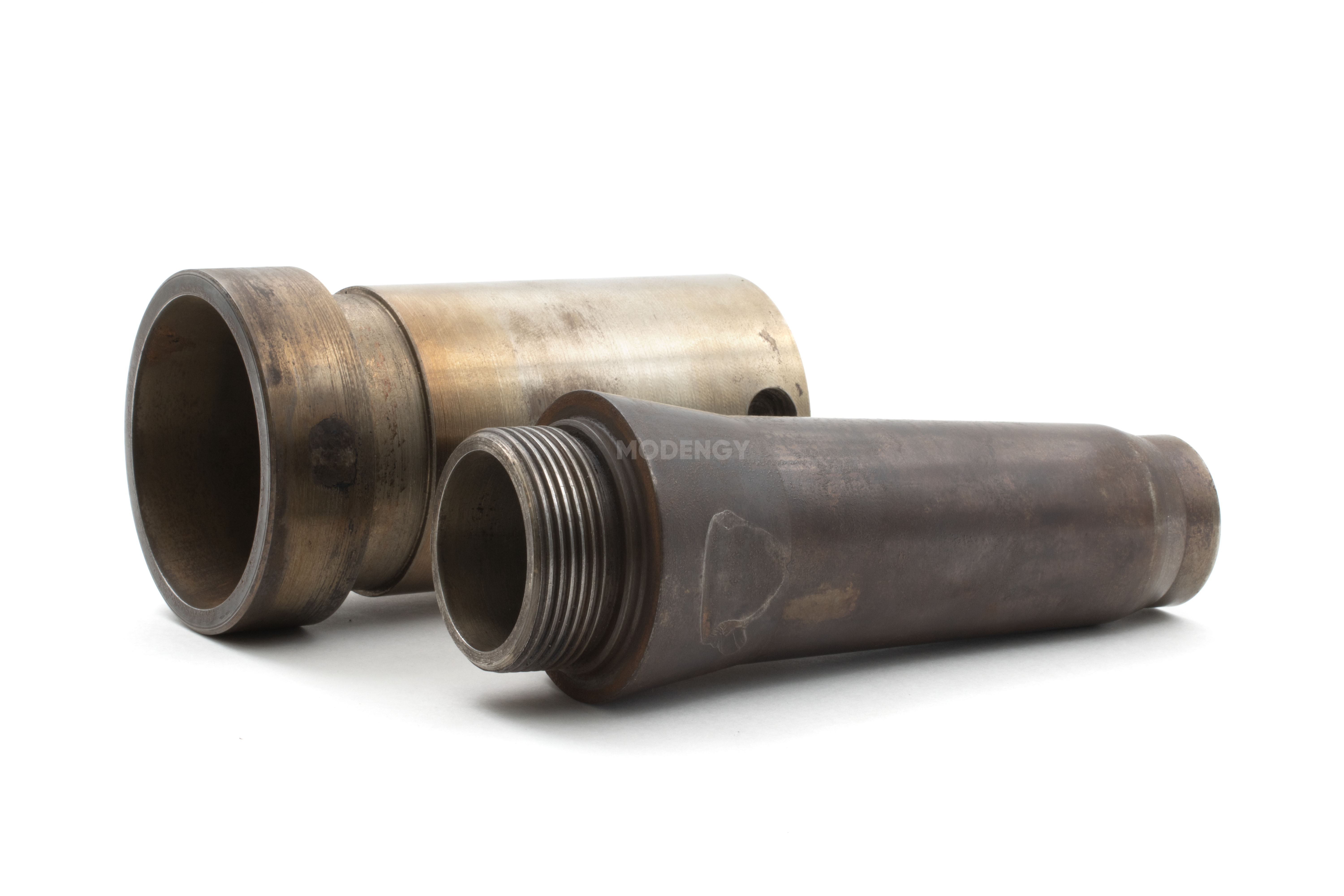

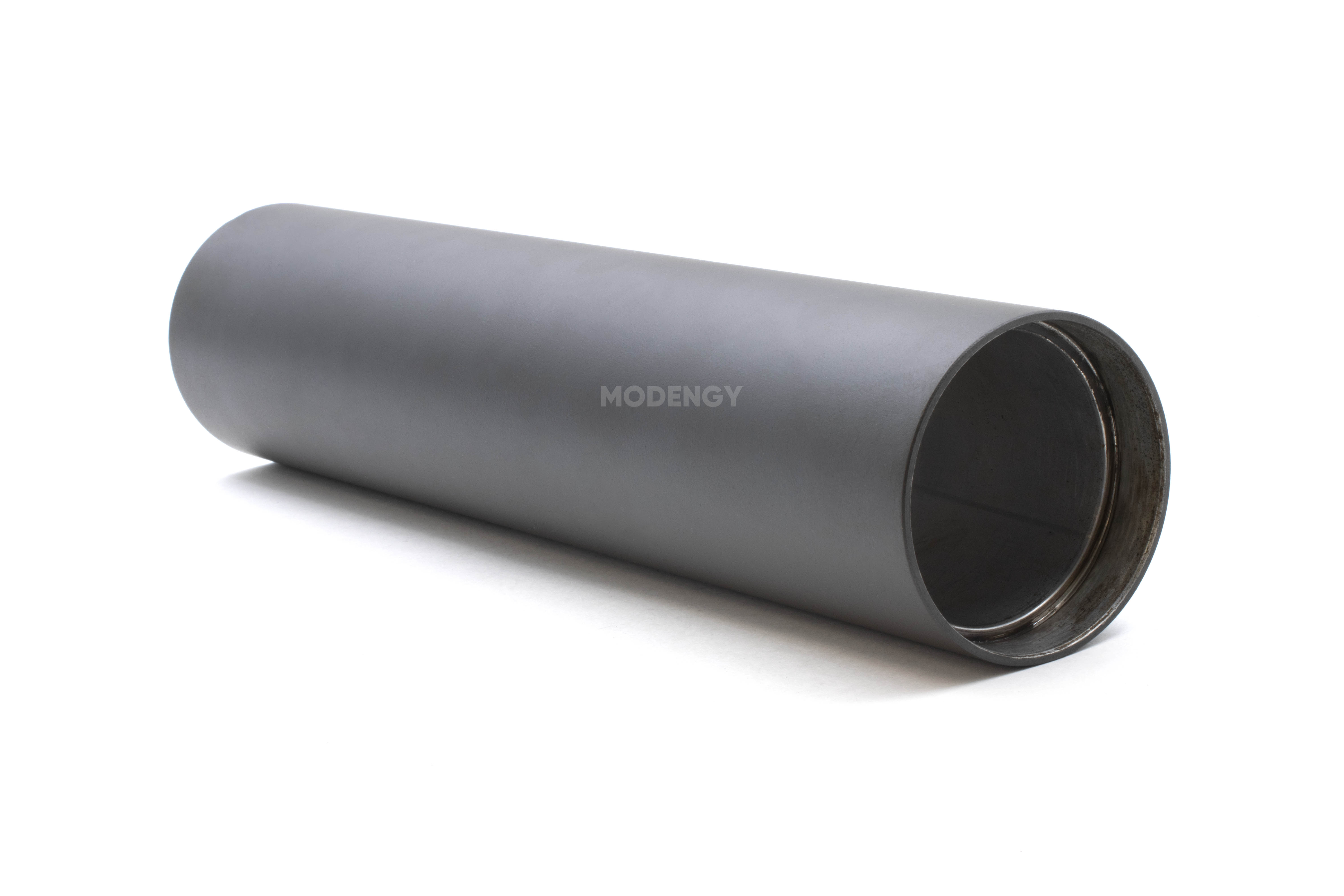

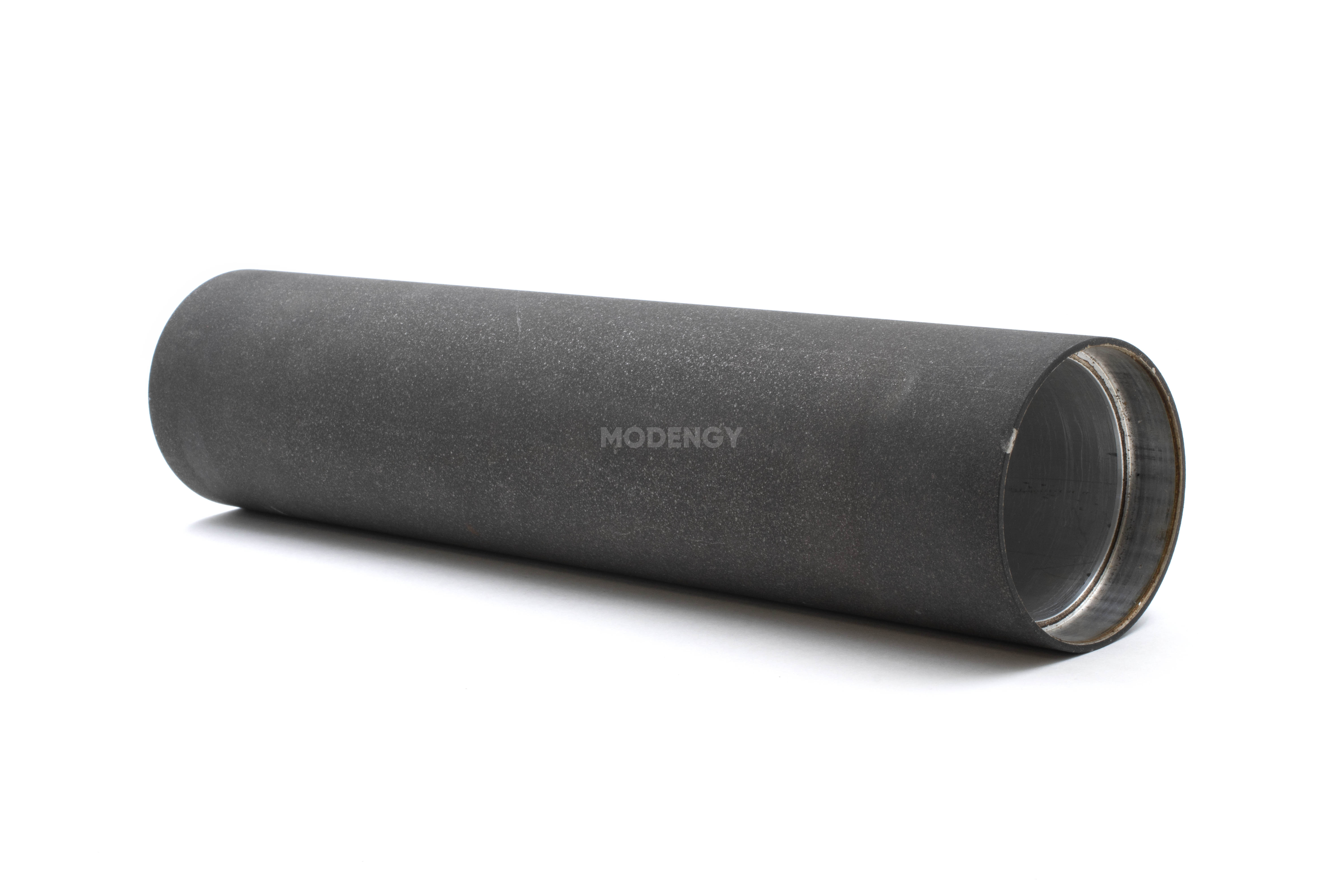

Pump sliding bearings
Pump sliding bearings
Before
After
The coating is not washed out by water, reliably protects bushings of the pump sliding bearings against premature wear, and significantly reduces losses for friction, even under the critical operation conditions in water
5 / 12

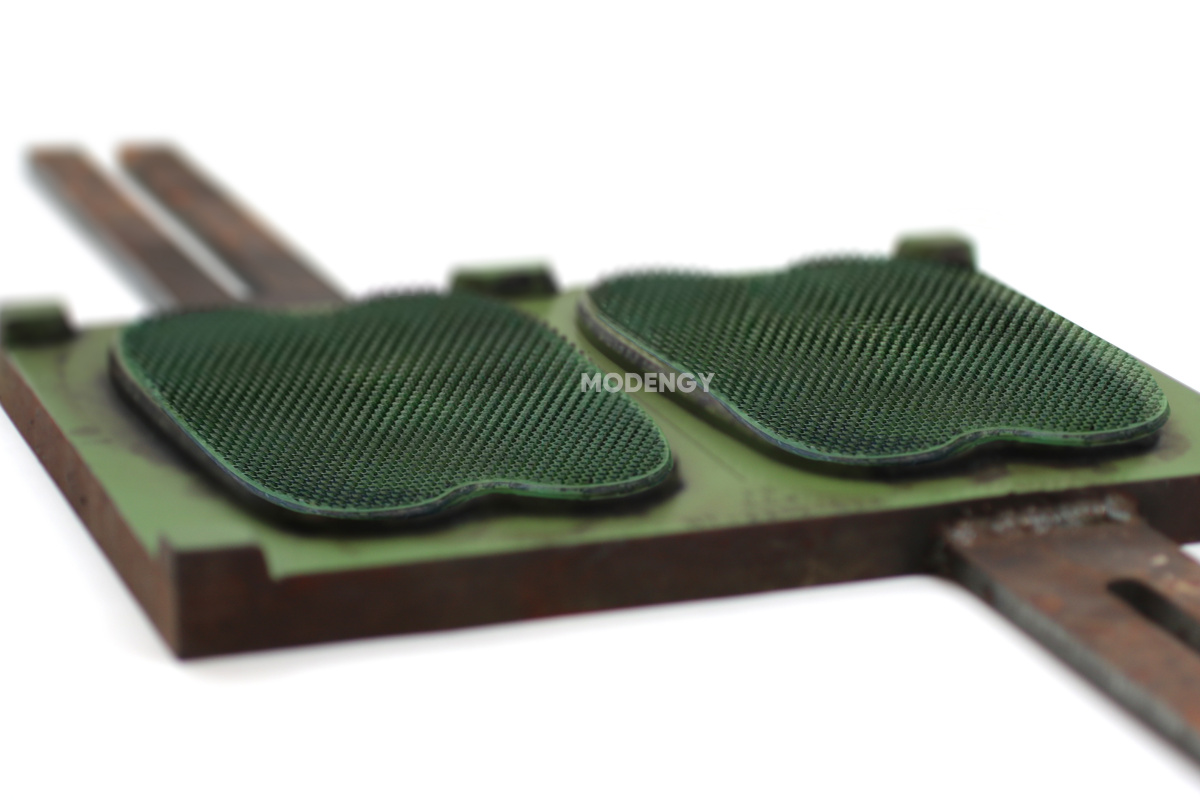

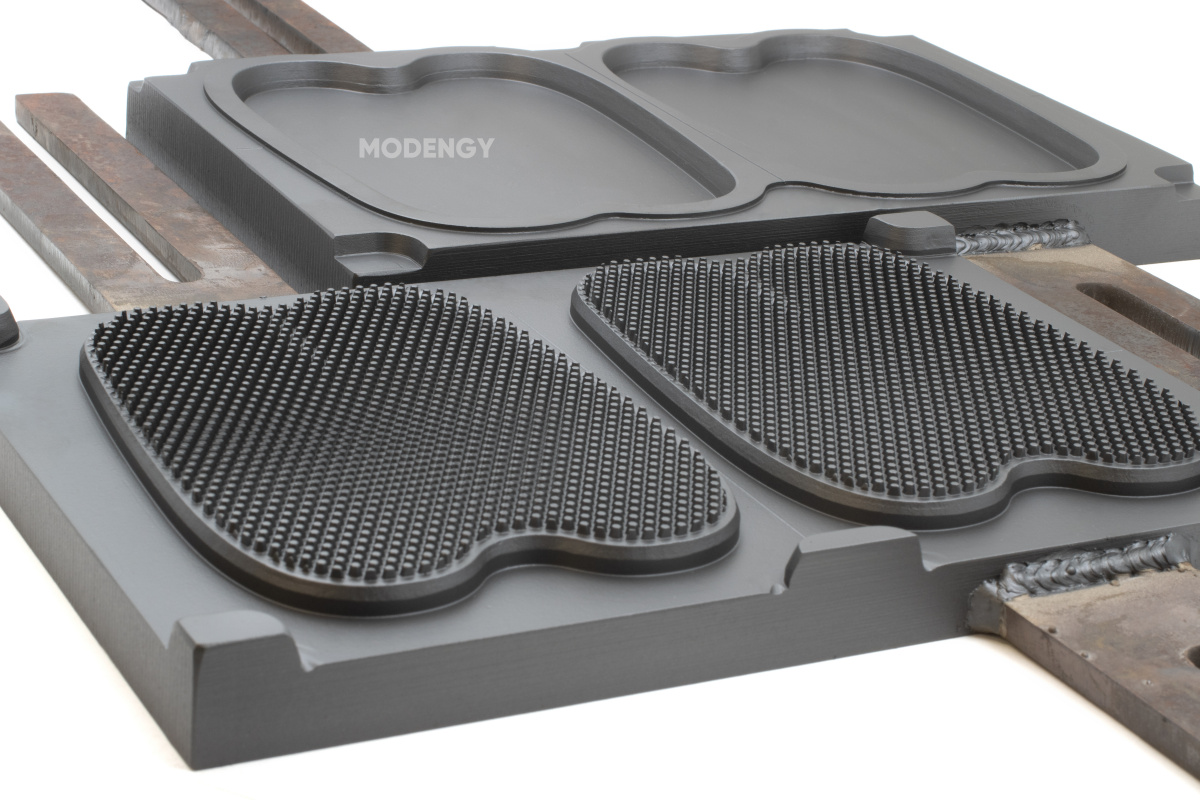

Soldering matrixes of the packaging equipment
Soldering matrixes of the packaging equipment
Before
After
Soldering equipment operates at high temperatures, which leads to the packing material sticking onto the surfaces.

The coatings are applied onto the matrixes.The coatings operate as non-stick material, effectively solving the issue of film sticking to the soldering elements. This reduces volume of defective items while packaging as maximum as possible, and extends service lifetime of the equipment.
6 / 12

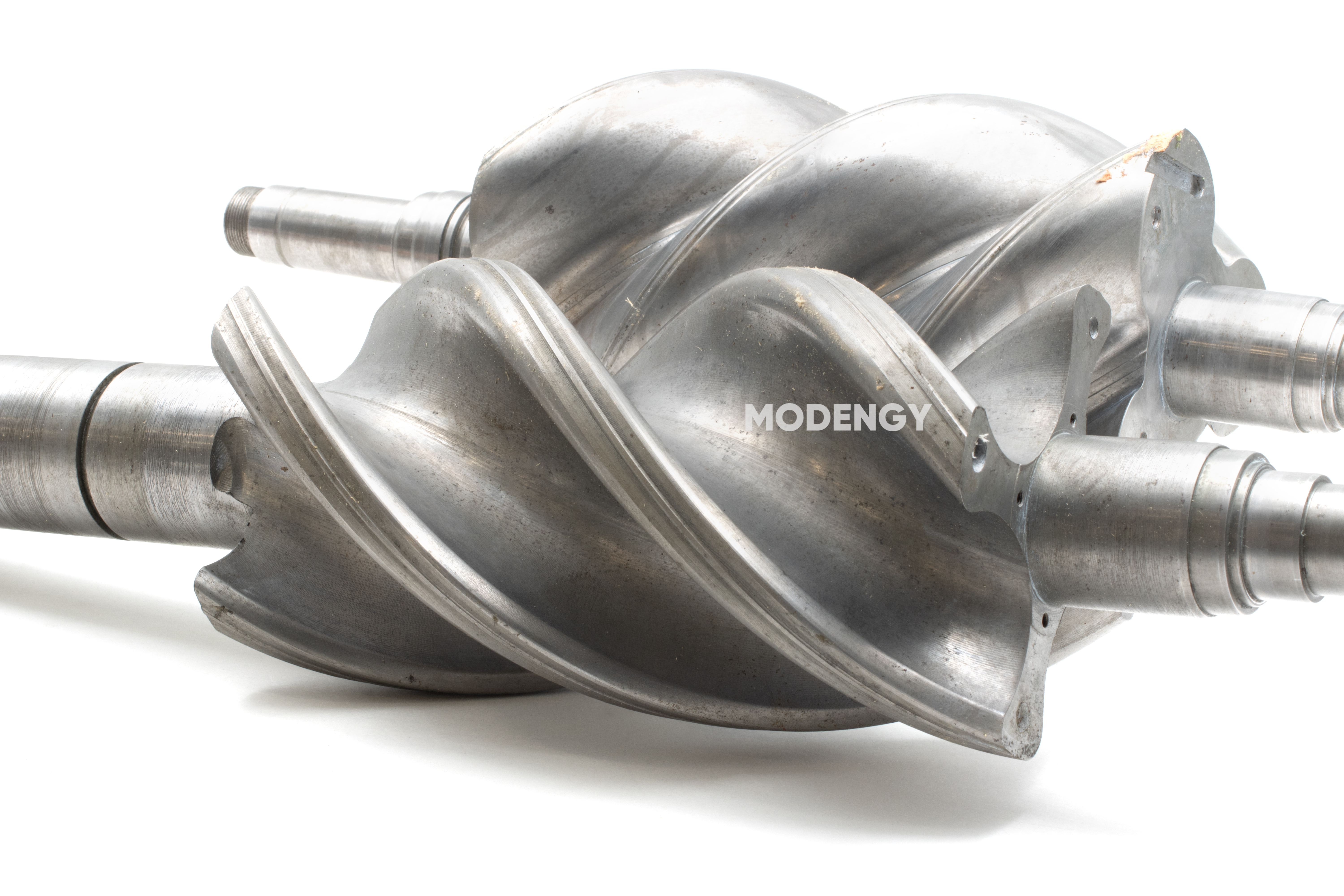

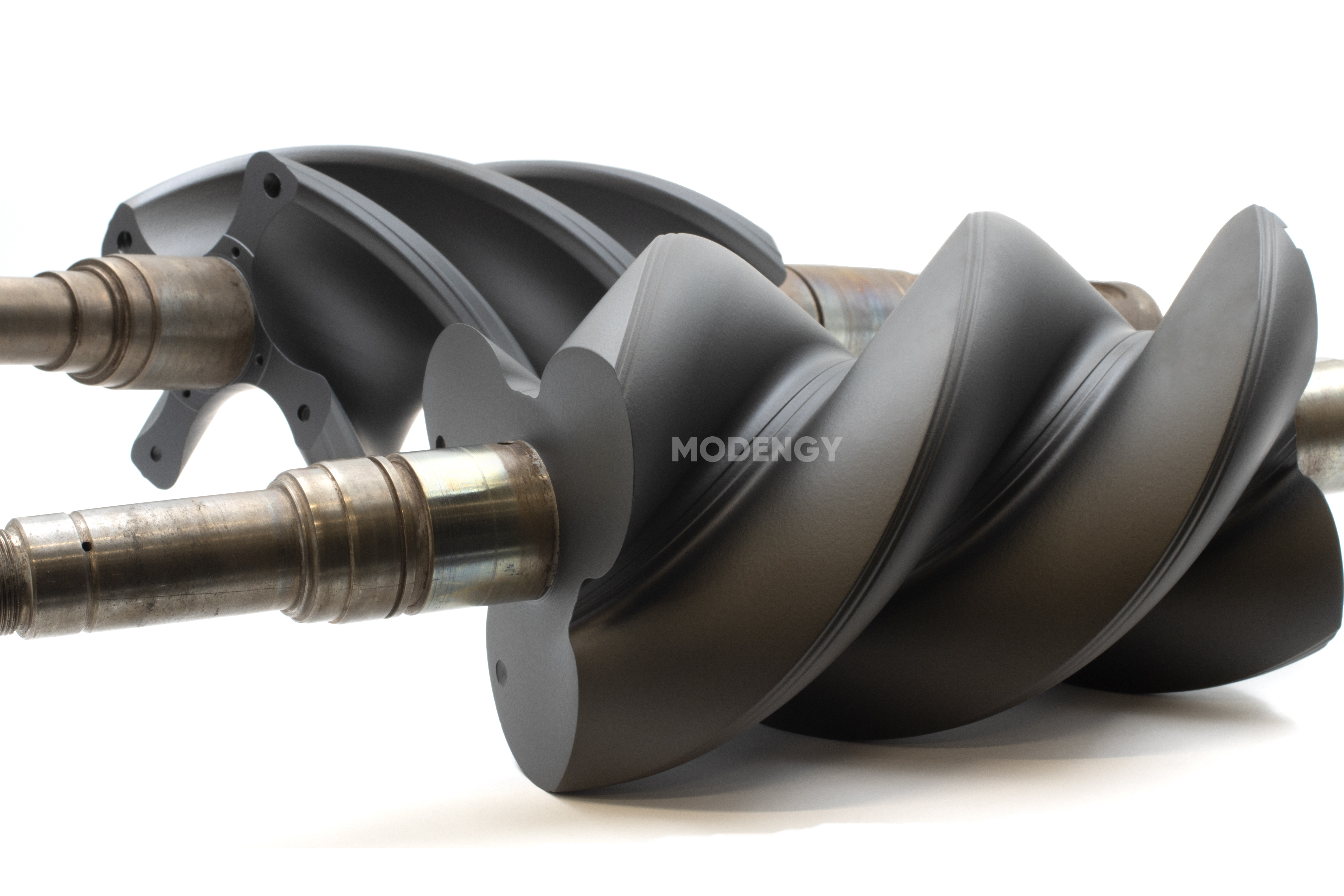

Screw compressors rotors
Screw compressors rotors
Before
After
The coating applied onto the screw compressor rotor instead of the damaged initial factory layer keeps its geometry, reduces friction, protects against corrosion.
7 / 12

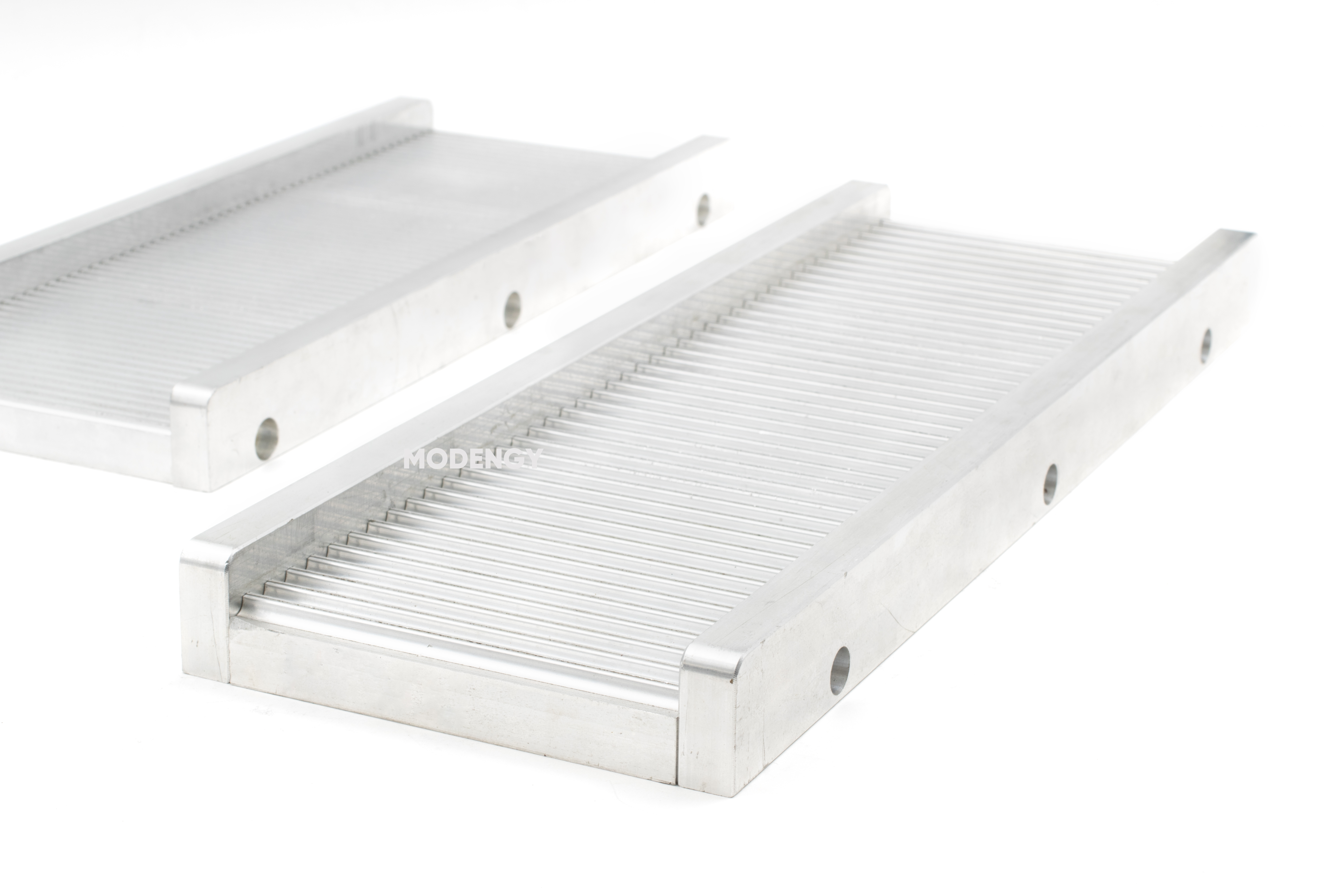

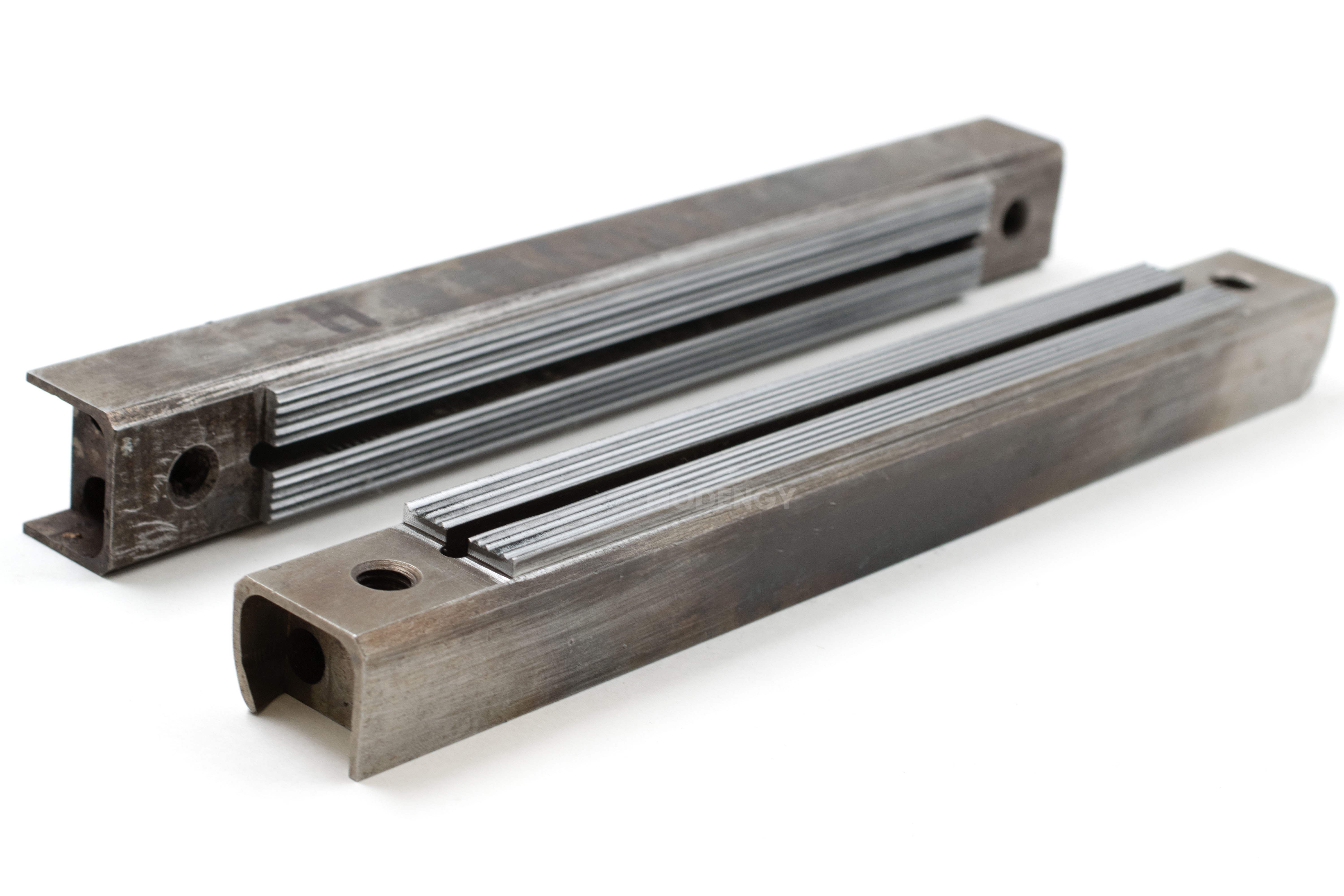

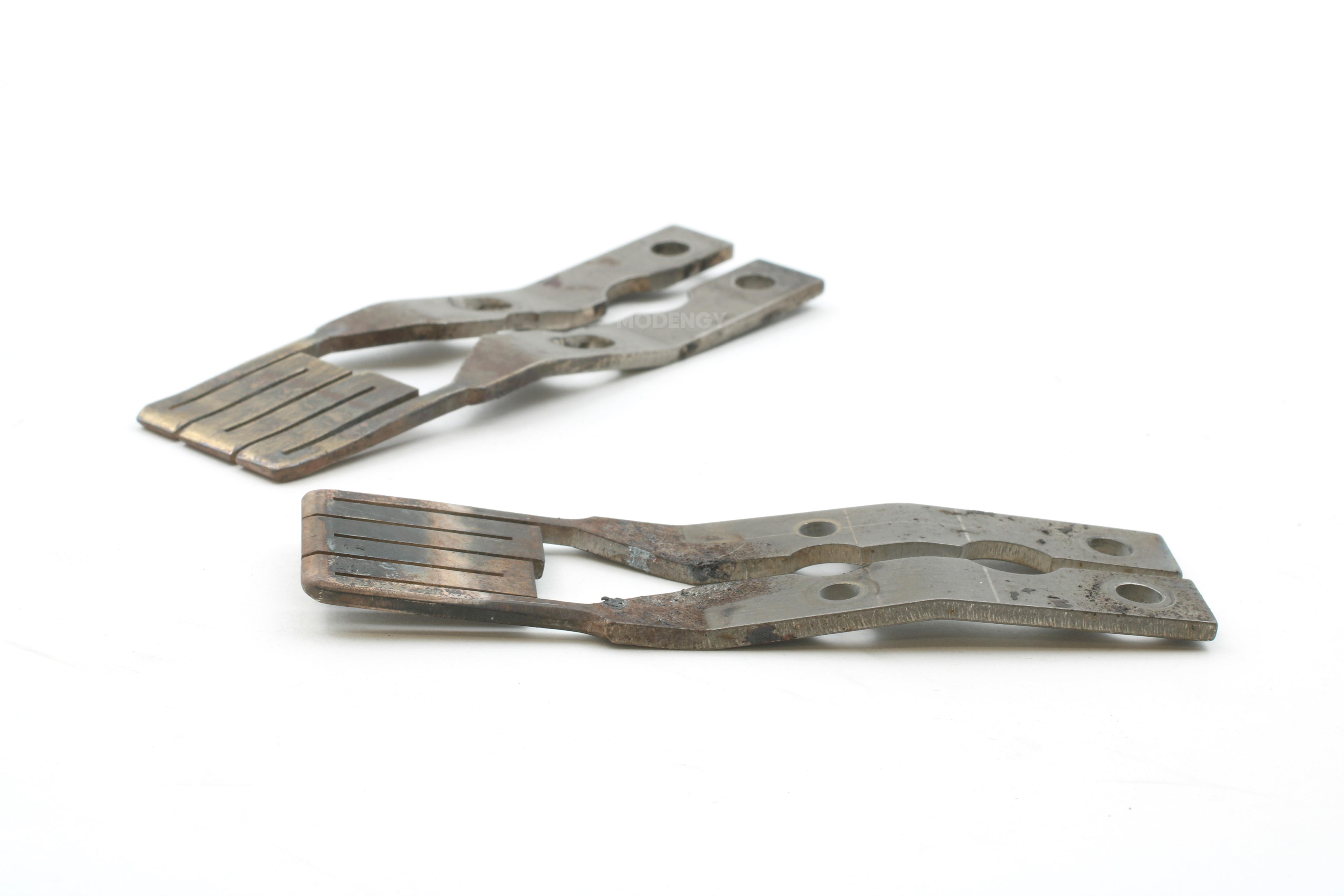

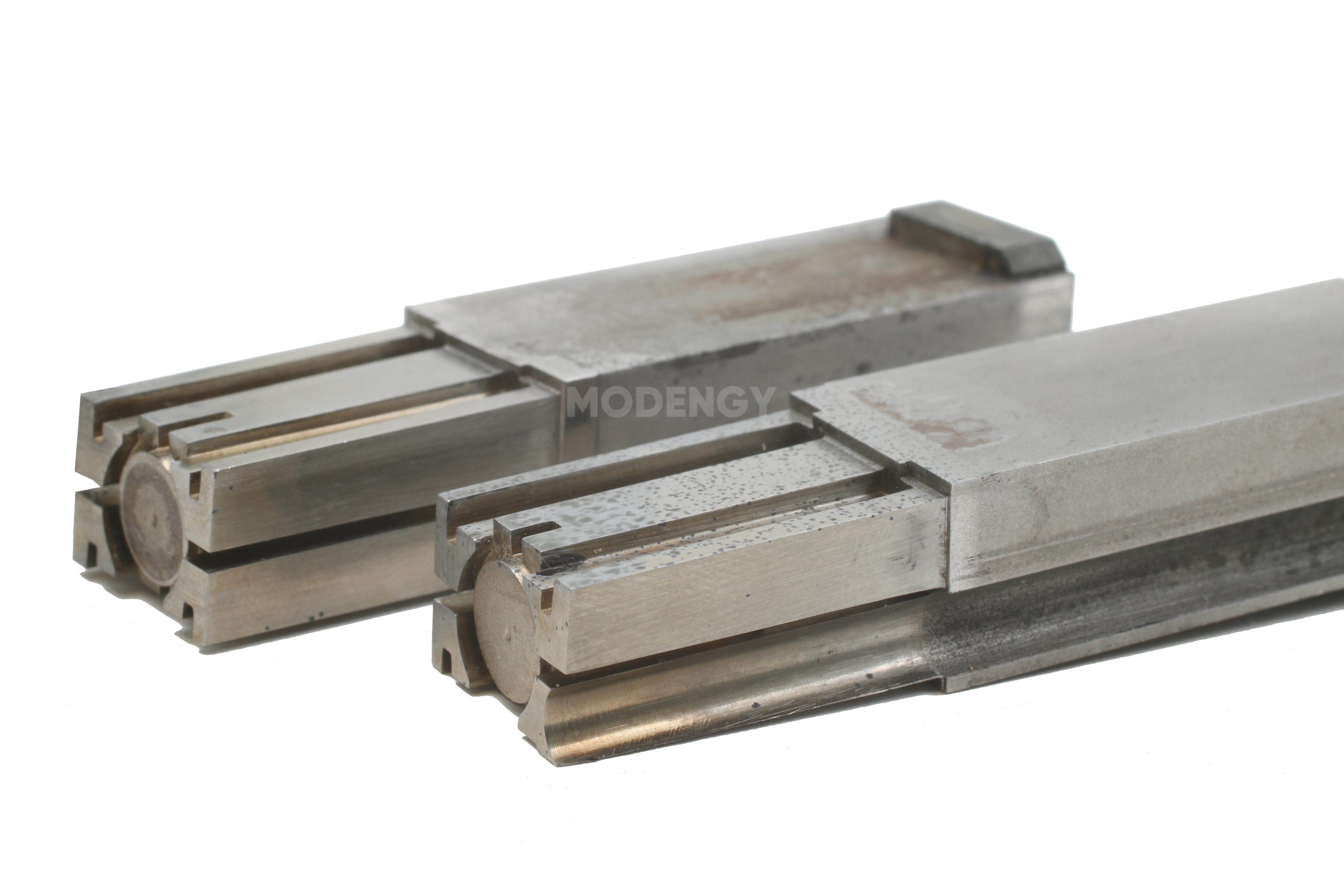

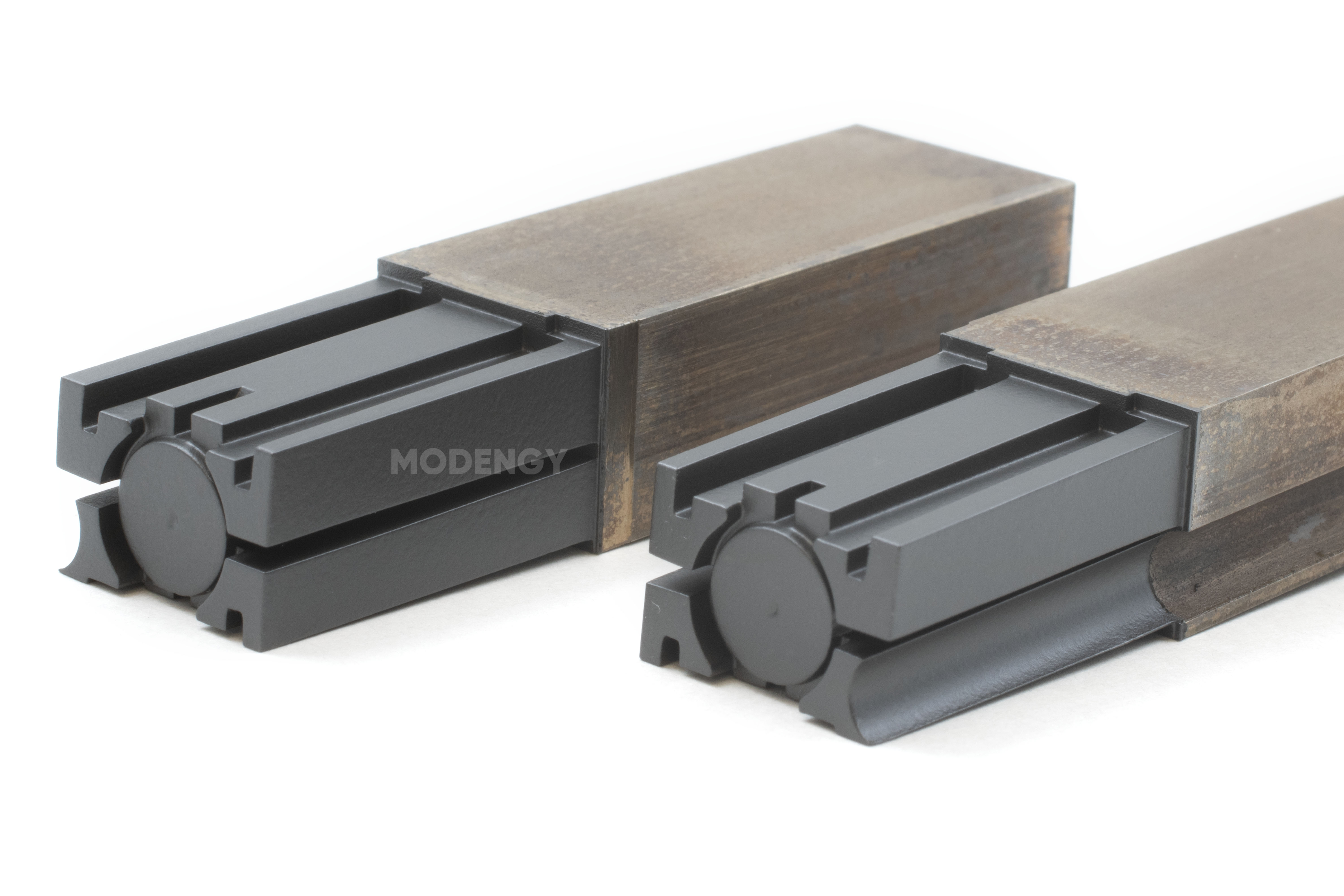

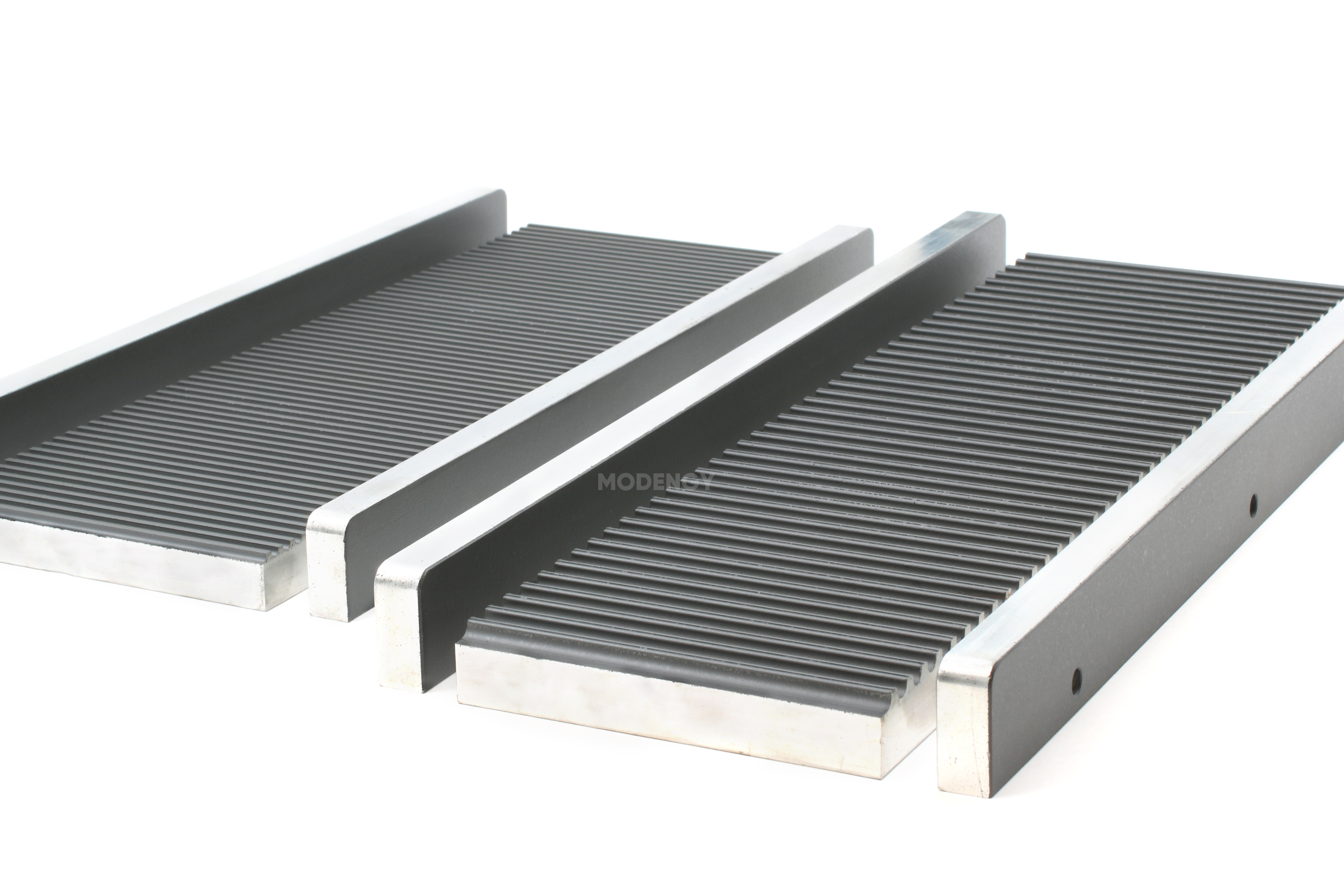

The end-soldered plates of the packaging equipment
The end-soldered plates of the packaging equipment
Before
After
The coatings are used to restore previous or to create a new protective layer on the soldering jaws, and are the optimal solution for the film sticking issue.
8 / 12

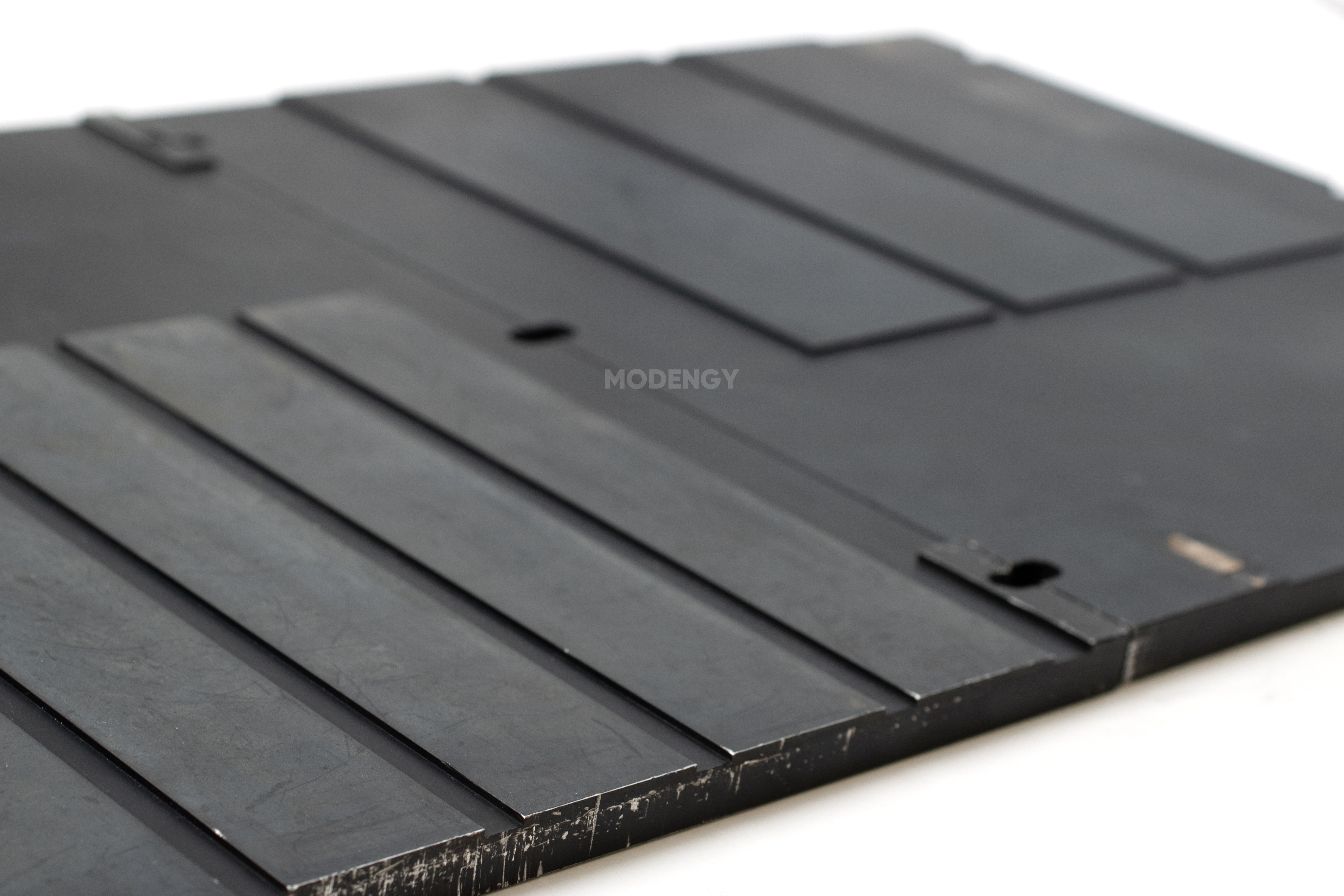

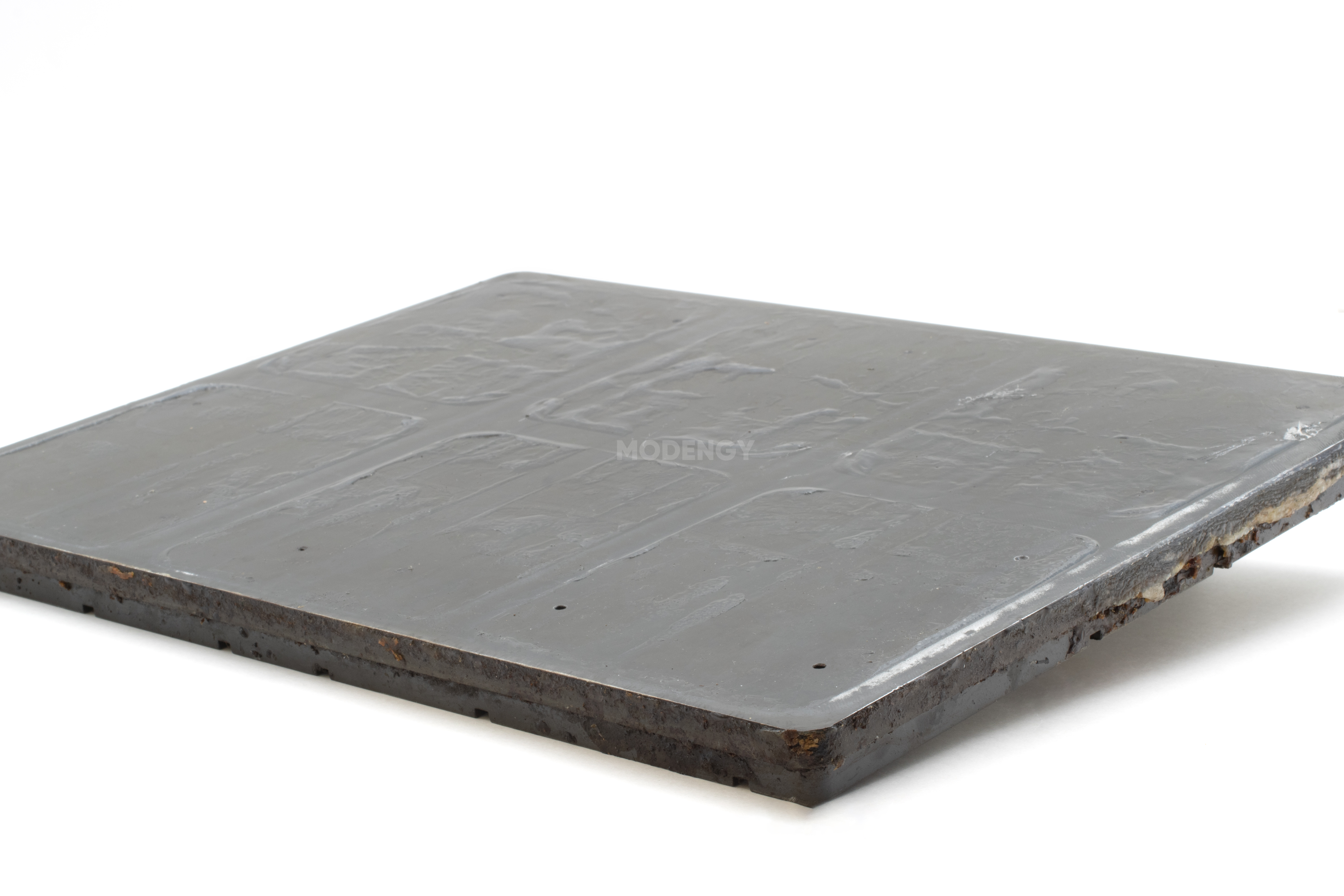

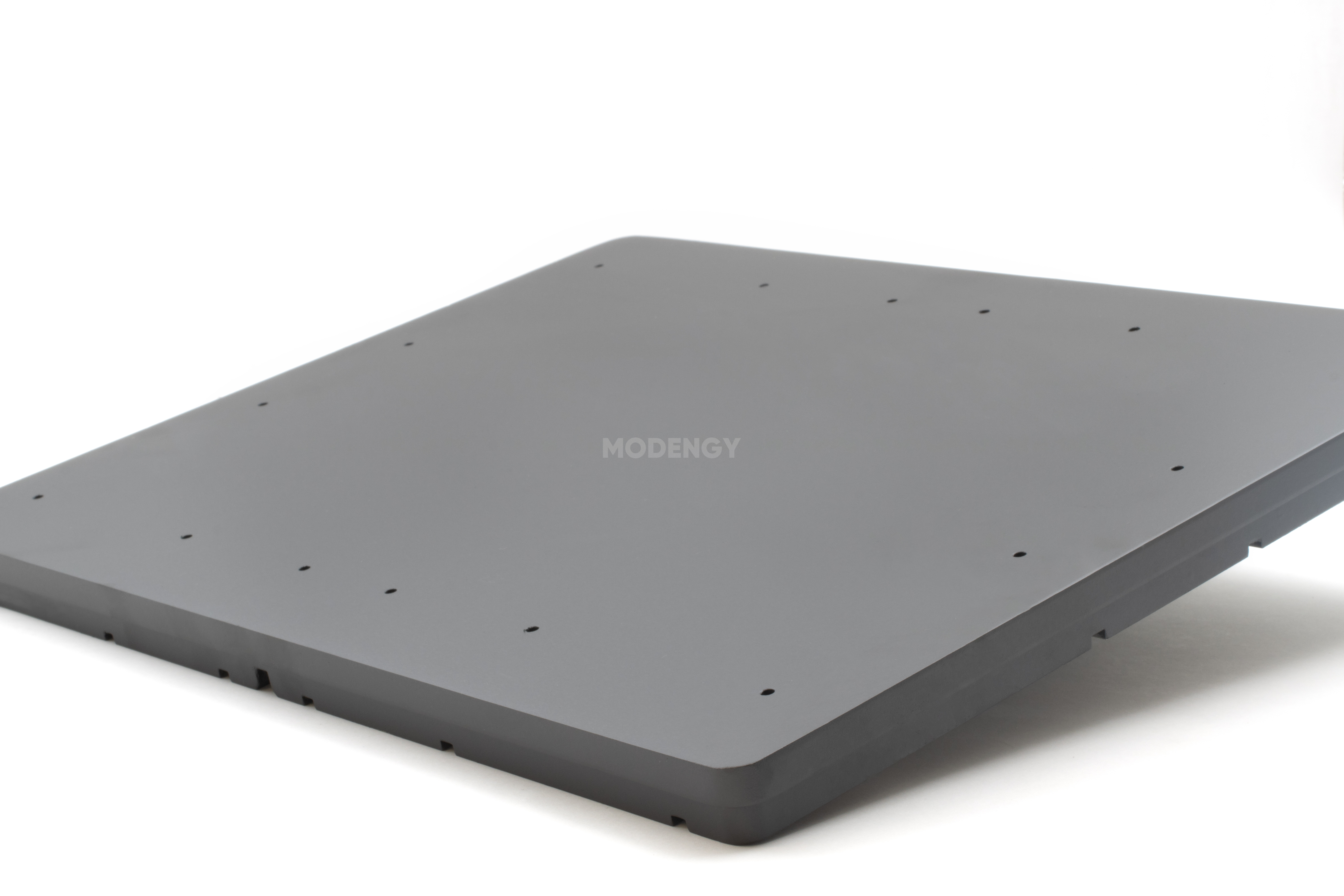

Woodworking machine working tables
Woodworking machine working tables
Before
After
Сoatings make pieces sliding easier, and prevent wood dust sticking. A dry lubricating and protective layer of the coating reduces friction coefficient and wear of the working surfaces. As a result, pieces positioning accuracy improves, and the effort that a machine operator has to apply to move them reduces.
9 / 12
Piston skirts of the tractors and combines engine
Piston skirts of the tractors and combines engine
Before
After
Coatings create a wear resistant separating layer on the parts surfaces that prevents scuffing at overheating, increased loads, as well as at the engine start moments at temperatures below zero.
10 / 12

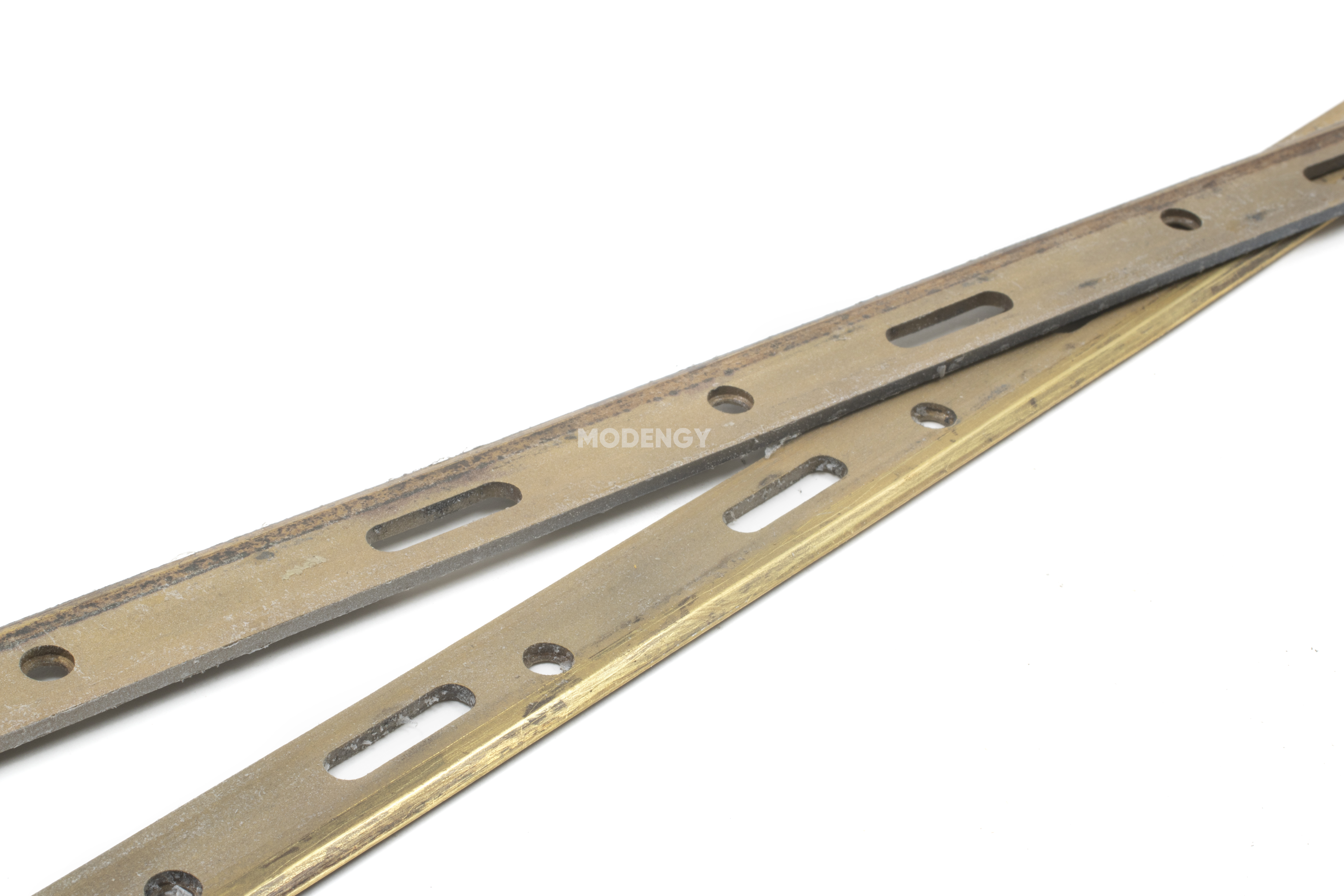

Guillotine knives for cutting window profile
Guillotine knives for cutting window profile
Before
After
MODENGY 1007 is applied onto guillotine knives at the enterprises on window profile production. The coating creates a smooth anti-adhesive layer on the treated surfaces that prevents sticking PVC.
11 / 12
Bearings of the diesel locomotive engines turbine compressors
Bearings of the diesel locomotive engines turbine compressors
Before
After
Coatings based on the solid lubricating materials reduce friction and wear at the turbine compressors start and stop moments. When there is lack of oil in the friction units, they operate as anti-emergency agents.  This enables to prolong service lifetime of the heavy-loaded bearings.
12 / 12

Additional expendable materials

Advantages

  • Wide service temperature range
  • Workability in dusty environment
  • High adhesion
  • It has properties of anti-emergency lubrication
  • It speeds up parts assembly with robots
  • Productive applying method by offset printing
  • Workability in humid environment
  • It prevents stick-slip motion
  • Long service life
  • Resistance to chemically aggressive media
  • It contributes to improving friction units smooth operating, reducing noise, and making running-in easier
  • Non-toxic after complete cure

Specifications

  • Colour: grey-black
  • Service temperatures range: -50 … +350 °C
  • Standard coating consumption: 65 g / m²
  • Cure temperature / time: +200 °C / 20 min

It is used in the following typical units

Cylinder-and-piston group, sliding bearings, sliding guideways, the other units with metal/metal friction pairs
